COOLMAX Series Cooling M52/C-mount USB3.0 CMOS Camera

  • Standard C-Mount camera with SONY Exmor or GSENSE CMOS sensors from 4.2M to 62M;
  • Big pixels or full-frame CMOS sensor;
  • Two-stage TE-cooling with controllable electric fan;
  • Sensor chip cooling up to-40°C below ambient temperature;
  • Working temperature can be regulated to specified temperature in 5 minutes;

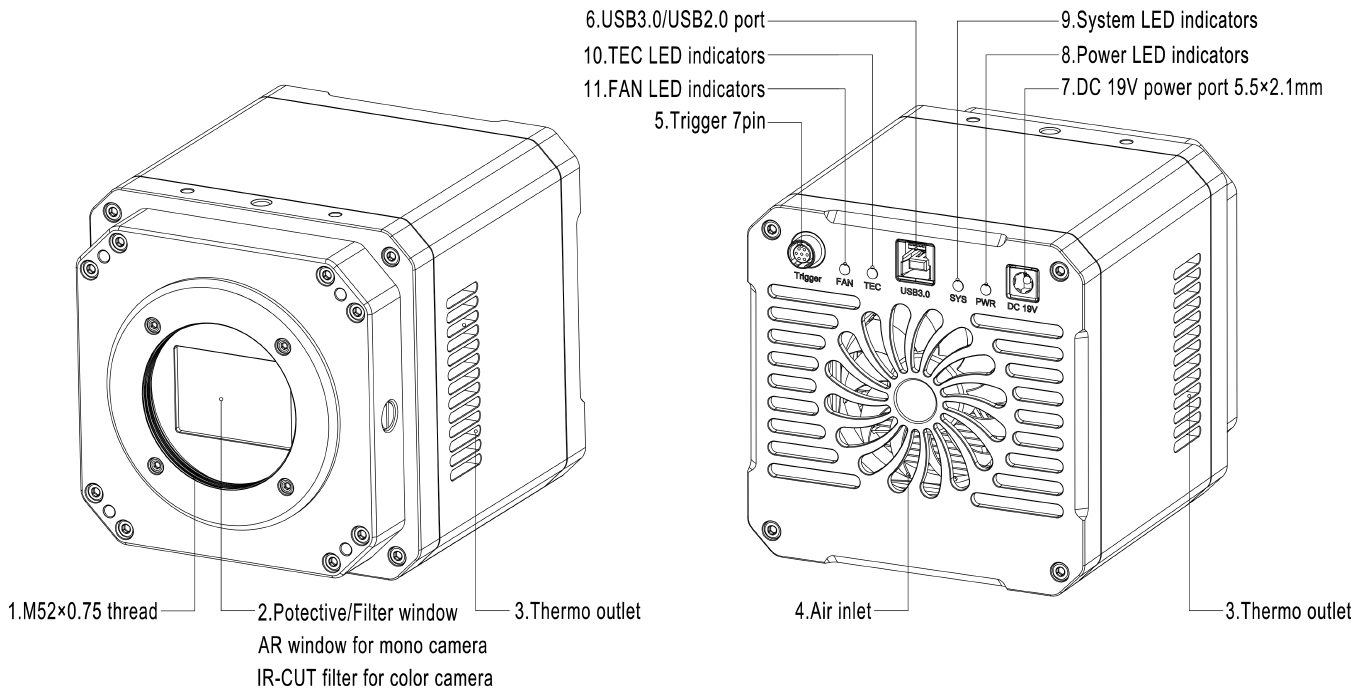

  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
  • IR-CUT/AR coated windows(Optional);
  • M52 x0.75 or C-mount;
  • USB3.0 5Gbit/second interface ensuring high speed data transmission;
  • Up to 1000 seconds long time exposure;
  • Embedded up to 16bit hardware ISP module;
  • Including 2-D denoising and sharpening;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • Support the capture of video and image in software / hardware trigger mode;
  • With advanced video & image processing application ToupView;
  • Support both video and trigger modes;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.NET, DirectShow, Twain control API;
Cooling Camera, USB3.0 CMOS Cameras

Description

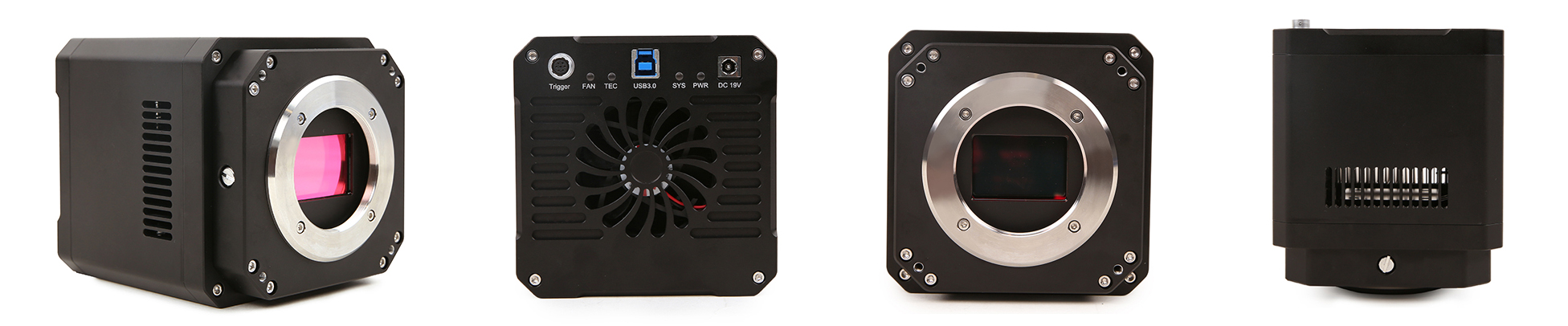

COOLMAX Series Cooling M52/C-mount USB3.0 CMOS Camera

COOLMAX camera adopts SONY Exmor or GSENSE with big pixel size or full-frame CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.

With the two-stage peltier cooling sensor chip to -40°C below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture

problem. Electric fan is used to increase the heat radiation speed.

COOLMAX comes with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The COOLMAX can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.



Model Details

Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dark Signal		 FPS/Resolution Binning Exposure
COOLMAX62AM 61M/IMX455(M)
2.7″(35.98×23.99)
Full Frame		 3.76×3.76 871mv with 1/30s
0.039mv with 1/30s
88.3dB/47.1dB		 6.1@9568×6380(16bit)
19.1@4784×3190
55.6@3184×2124
191@1040×706		 1×1
2×2
3×3
9×9		 0.1ms~1000s
COOLMAX62AC 61M/IMX455(C)
2.7″(35.98×23.99)
Full Frame		 3.76×3.76 484.5mv with 1/30s
0.039mv with 1/30s
85.8dB/47.0dB		 6.1@9568×6380(16bit)
19.1@4784×3190
55.6@3184×2124
191@1040×706		 1×1
2×2
3×3
9×9		 0.1ms~1000s
COOLMAX24AC 24M/IMX410(C)
2.7″(36.02×24.00)
Full Frame		 5.94×5.94 573mv with 1/30s
0.037mv with 1/30s
87.3dB/50.2dB		 15.3@6064×4040(14bit)
41@3024×2012
114@2016×1342		 1×1
2×2
3×3		 0.1ms~1000s
COOLMAX04AM 4.2M/GSENSE2020e(M)
1.2”(13.31×13.31)		 6.5x 6.5 8.1×107 (e-/((W/m2).s))
Peak QE 64.2% @595nm
13(e-/s/pix)
66.6dB/46dB		 44.5@2048×2048
44.5@1024 x 1022		 1×1
2×2		 0.1ms~1000s
COOLMAX04BM 4.2M/GSENSE2020BSI(M, UV)
1.2”(13.31×13.31)		 6.5x 6.5 1.1×108 (e-/((W/m2).s))
Peak QE 93.7% @550nm
80(e-/s/pix)
65.8dB/47dB		 43.5@2048 x2048
43.5@1024 x1024		 1×1
2×2		 0.1ms~1000s
COOLMAX04CM 4.2M/GSENSE400BSI(M, UV)
2.0“(22.53×22.53)		 11 x 11 3.25×108 (e-/((W/m2).s))
Peak QE 95.3% @560nm
345(e-/s/pix)
68.5dB/50dB		 37@2048 x2048
37@1024 x1024		 1×1
2×2		 0.1ms~1000s



Other Hardware Configuration

Spectral Range 200-1000nm (The spectral response range of each model is different. Please refer to the product manual of each model for detailed parameters)
White Balance ROI White Balance/ Manual Temp-Tint Adjustment/NA for Monochromatic Sensor
Color Rendering Technique Ultra Fine Color Engine/NA for Monochromatic Sensor
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System Still Picture and Movie(Free running mode or trigger mode)
Cooling System* Two-stage TE-cooling System -40 °C below Camera Body Temperature



Operating Environment

Operating Temperature -10 °C~ 50 °C
Storage Temperature -20 °C~ 60 °C
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port
External Power Adapter for Cooling System, DC12V,3A



Software Environment

Operating System Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
OS X (Mac OS X), Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17″ or Larger
CD-ROM
