Description

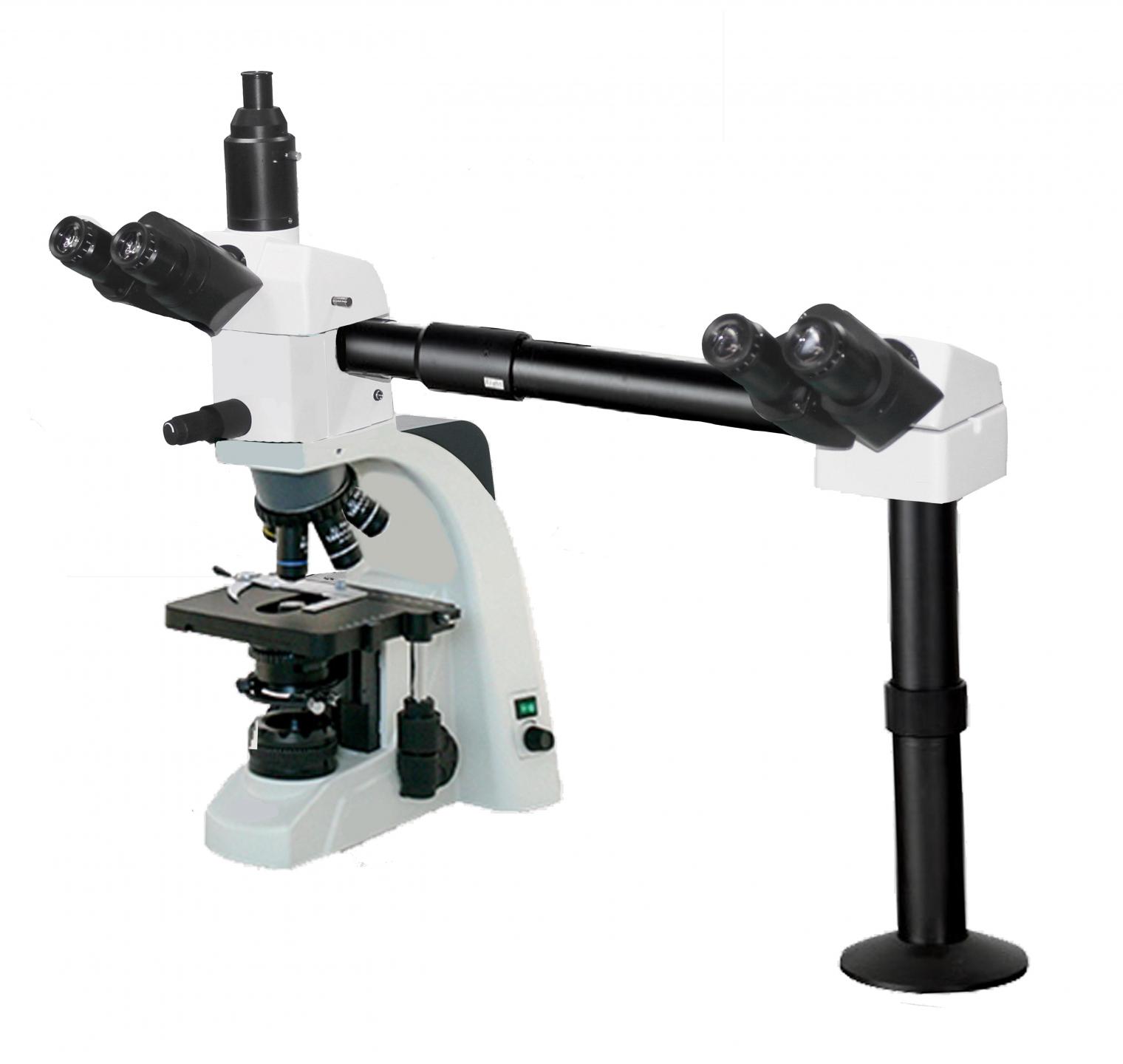

Model BX1500MU2 Series Multi-viewing Microscope for 2 Users
| Model: BX1500-MU2 | |
| Optical System: | Infinity Corrected Optical System |
| Viewing head: | 1pc of seidentopf trinocular viewing head, inclined at 30°, interpupillary 48-75mm, beam split ratio for eyepiece/camera port=100/0, 20/80 |
| 1pc of seidentopf binocular viewing head, inclined at 30°, interpupillary 48-75mm | |
| Nosepiece: | Backward Quintuple Nosepiece |
| Eyepiece: | 4pcs of wide field eyepiece WF10x/22mm, diopter adjustment +/-5, tube diamter: Φ30mm |
| Objectives: | Infinite Plan Achromatic Objective 4x, NA 0.10 |
| Infinite Plan Achromatic Objective 10x, NA 0.25 | |
| Infinite Plan Achromatic Objective 20x, NA 0.40 | |
| Infinite Plan Achromatic Objective 40x, NA 0.65, spring loaded | |
| Infinite Plan Achromatic Objective 100x, NA 1.25, spring loaded | |
| Stage: | Double layer mechnical stage 180mmx160mm, XY Moving Range 80mmx50mm, Metal clips for glass slides, with glass insert |
| Focusing: | Low-hand position coarse and fine coaxial focusing mechanism, Coarse Stroke 38.5mm per Rotation, fine division 0.001mm, Fine Stroke 0.2mm per Rotation, focal Disatnce 28mm, With adjusting elastic device and upper limit, with platform up and down adjustment mechanism, the height of the stage bracket group is adjustable |
| Condenser: | Abbe condenser N.A. 1.25 with an iris diaphragm |
| Illumination: | 10W LED Light, with full-Köhler illuminaton, brightness adjustable, longlife time, not less than 50,000 hours |
| Pointer: | Green LED pointer, brightness adjustable |
| Power: | 100-240V, 50/60Hz |
| Supplied with: | Filter, immersion oil and a dust cover for each microscope. |
Model BX1500MU3 Series Multi-viewing Microscope for 3 Users
| Model: BX1500-MU3 | |
| Optical System: | Infinity Corrected Optical System |
| Viewing head: | 1pc of seidentopf trinocular viewing head, inclined at 30°, interpupillary 48-75mm, beam split ratio for eyepiece/camera port=100/0, 20/80 |
| 2pc of seidentopf binocular viewing head, inclined at 30°, interpupillary 48-75mm | |
| Nosepiece: | Backward Quintuple Nosepiece |
| Eyepiece: | 6pcs of wide field eyepiece WF10x/22mm, diopter adjustment +/-5, tube diamter: Φ30mm |
| Objectives: | Infinite Plan Achromatic Objective 4x, NA 0.10 |
| Infinite Plan Achromatic Objective 10x, NA 0.25 | |
| Infinite Plan Achromatic Objective 20x, NA 0.40 | |
| Infinite Plan Achromatic Objective 40x, NA 0.65, spring loaded | |
| Infinite Plan Achromatic Objective 100x, NA 1.25, spring loaded | |
| Stage: | Double layer mechnical stage 180mmx160mm, XY Moving Range 80mmx50mm, Metal clips for glass slides, with glass insert |
| Focusing: | Low-hand position coarse and fine coaxial focusing mechanism, Coarse Stroke 38.5mm per Rotation, fine division 0.001mm, Fine Stroke 0.2mm per Rotation, focal Disatnce 28mm, With adjusting elastic device and upper limit, with platform up and down adjustment mechanism, the height of the stage bracket group is adjustable |
| Condenser: | Abbe condenser N.A. 1.25 with an iris diaphragm |
| Illumination: | 10W LED Light, with full-Köhler illuminaton, brightness adjustable, longlife time, not less than 50,000 hours |
| Pointer: | Green LED pointer, brightness adjustable |
| Power: | 100-240V, 50/60Hz |
| Supplied with: | Filter, immersion oil and a dust cover for each microscope. |

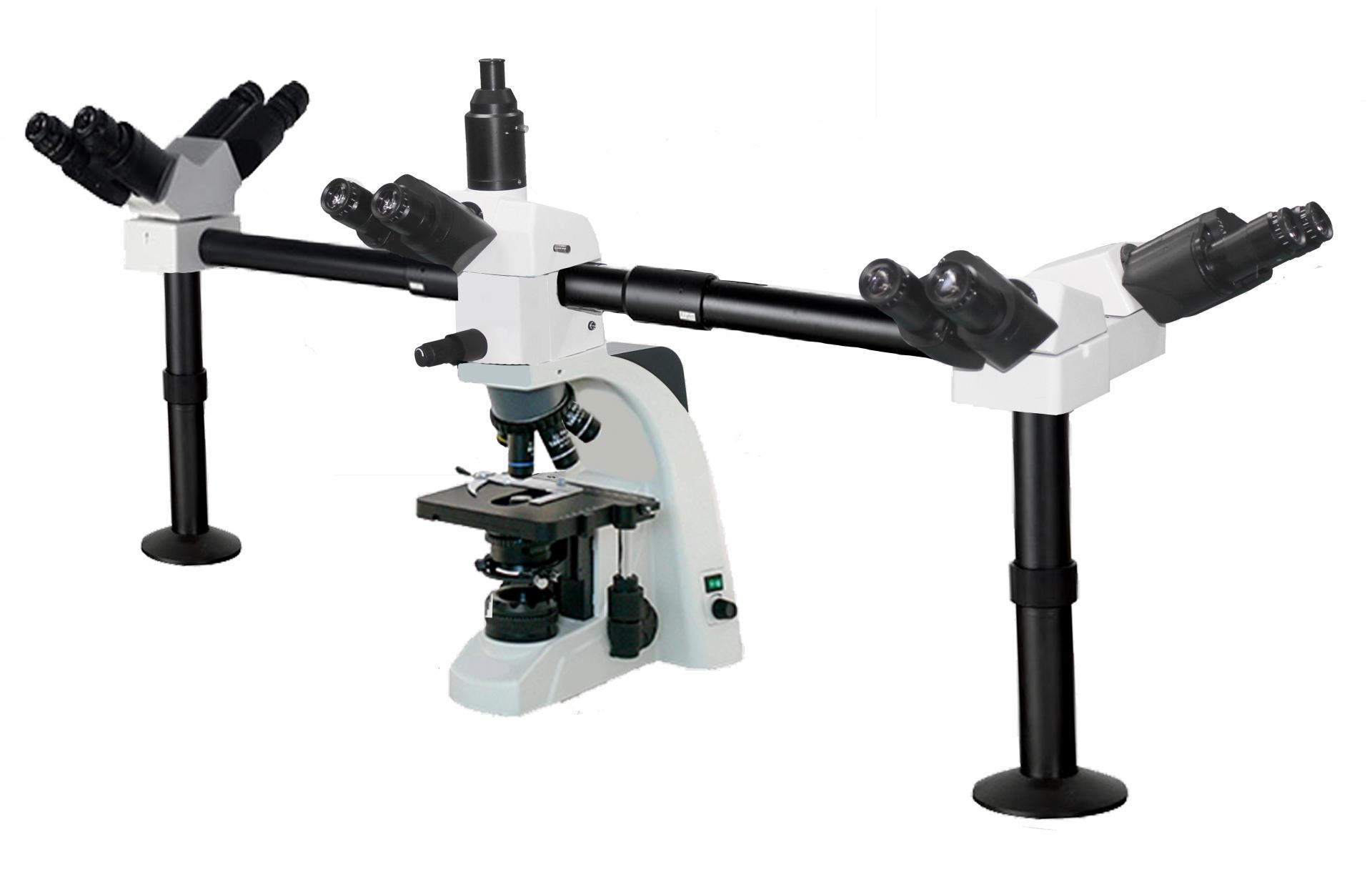

Model BX1500MU5 Series Multi-viewing Microscope for 5 Users
| Model: BX1500-MU5 | |
| Optical System: | Infinity Corrected Optical System |
| Viewing head: | 1pc of seidentopf trinocular viewing head, inclined at 30°, interpupillary 48-75mm, beam split ratio for eyepiece/camera port=100/0, 20/80 |
| 4pc of seidentopf binocular viewing head, inclined at 30°, interpupillary 48-75mm | |
| Nosepiece: | Backward Quintuple Nosepiece |
| Eyepiece: | 10pcs of wide field eyepiece WF10x/22mm, diopter adjustment +/-5, tube diamter: Φ30mm |
| Objectives: | Infinite Plan Achromatic Objective 4x, NA 0.10 |
| Infinite Plan Achromatic Objective 10x, NA 0.25 | |
| Infinite Plan Achromatic Objective 20x, NA 0.40 | |
| Infinite Plan Achromatic Objective 40x, NA 0.65, spring loaded | |
| Infinite Plan Achromatic Objective 100x, NA 1.25, spring loaded | |
| Stage: | Double layer mechnical stage 180mmx160mm, XY Moving Range 80mmx50mm, Metal clips for glass slides, with glass insert |
| Focusing: | Low-hand position coarse and fine coaxial focusing mechanism, Coarse Stroke 38.5mm per Rotation, fine division 0.001mm, Fine Stroke 0.2mm per Rotation, focal Disatnce 28mm, With adjusting elastic device and upper limit, with platform up and down adjustment mechanism, the height of the stage bracket group is adjustable |
| Condenser: | Abbe condenser N.A. 1.25 with an iris diaphragm |
| Illumination: | 10W LED Light, with full-Köhler illuminaton, brightness adjustable, longlife time, not less than 50,000 hours |
| Pointer: | Green LED pointer, brightness adjustable |
| Power: | 100-240V, 50/60Hz |
| Supplied with: | Filter, immersion oil and a dust cover for each microscope. |

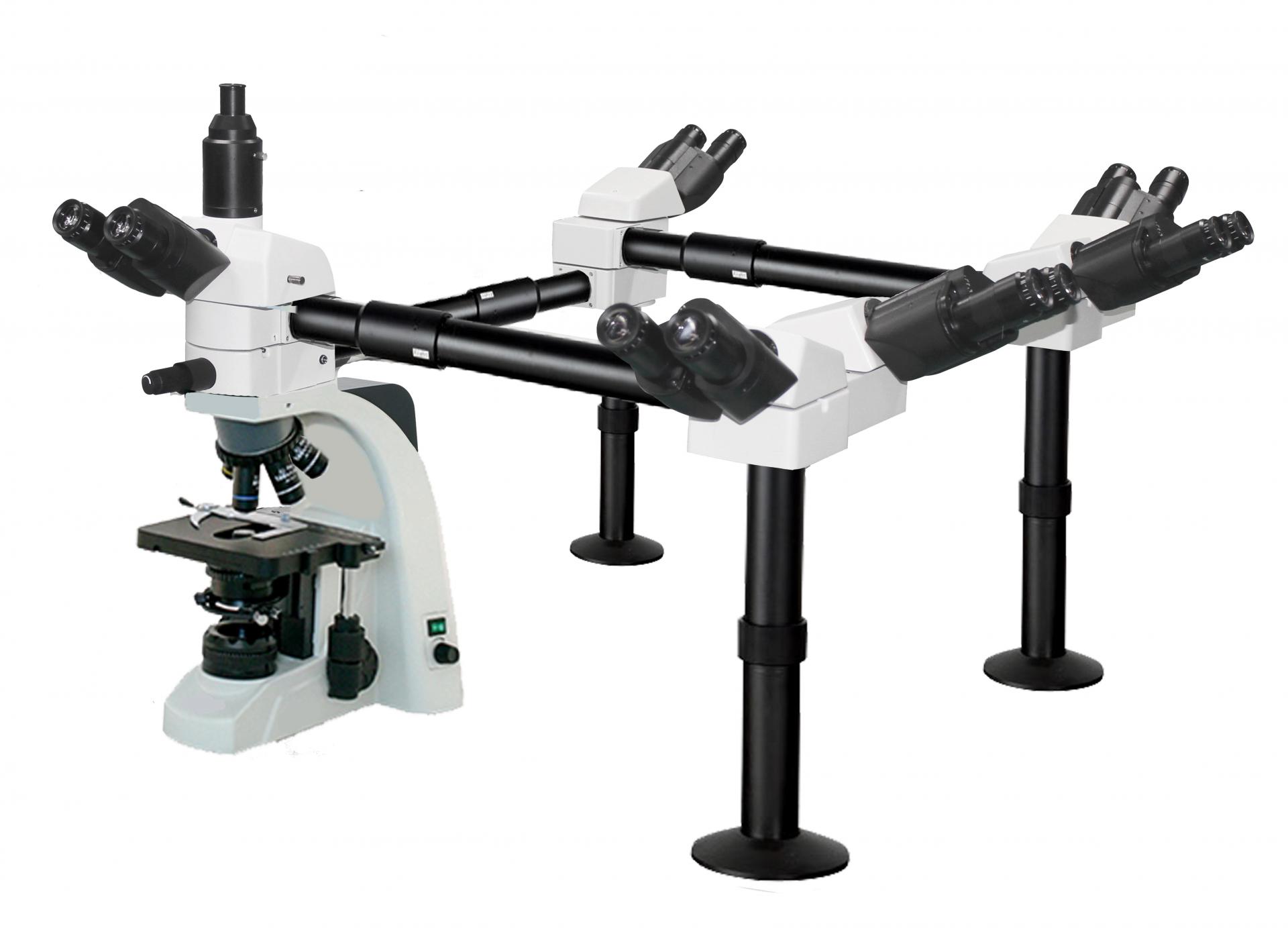

Model BX1500MU6 Series Multi-viewing Microscope for 6 Users
| Model: BX1500-MU6 | |
| Optical System: | Infinity Corrected Optical System |
| Viewing head: | 1pc of seidentopf trinocular viewing head, inclined at 30°, interpupillary 48-75mm, beam split ratio for eyepiece/camera port=100/0, 20/80 |
| 5pc of seidentopf binocular viewing head, inclined at 30°, interpupillary 48-75mm | |
| Nosepiece: | Backward Quintuple Nosepiece |
| Eyepiece: | 12pcs of wide field eyepiece WF10x/22mm, diopter adjustment +/-5, tube diamter: Φ30mm |
| Objectives: | Infinite Plan Achromatic Objective 4x, NA 0.10 |
| Infinite Plan Achromatic Objective 10x, NA 0.25 | |
| Infinite Plan Achromatic Objective 20x, NA 0.40 | |
| Infinite Plan Achromatic Objective 40x, NA 0.65, spring loaded | |
| Infinite Plan Achromatic Objective 100x, NA 1.25, spring loaded | |
| Stage: | Double layer mechnical stage 180mmx160mm, XY Moving Range 80mmx50mm, Metal clips for glass slides, with glass insert |
| Focusing: | Low-hand position coarse and fine coaxial focusing mechanism, Coarse Stroke 38.5mm per Rotation, fine division 0.001mm, Fine Stroke 0.2mm per Rotation, focal Disatnce 28mm, With adjusting elastic device and upper limit, with platform up and down adjustment mechanism, the height of the stage bracket group is adjustable |
| Condenser: | Abbe condenser N.A. 1.25 with an iris diaphragm |
| Illumination: | 10W LED Light, with full-Köhler illuminaton, brightness adjustable, longlife time, not less than 50,000 hours |
| Pointer: | Green LED pointer, brightness adjustable |
| Power: | 100-240V, 50/60Hz |
| Supplied with: | Filter, immersion oil and a dust cover for each microscope. |

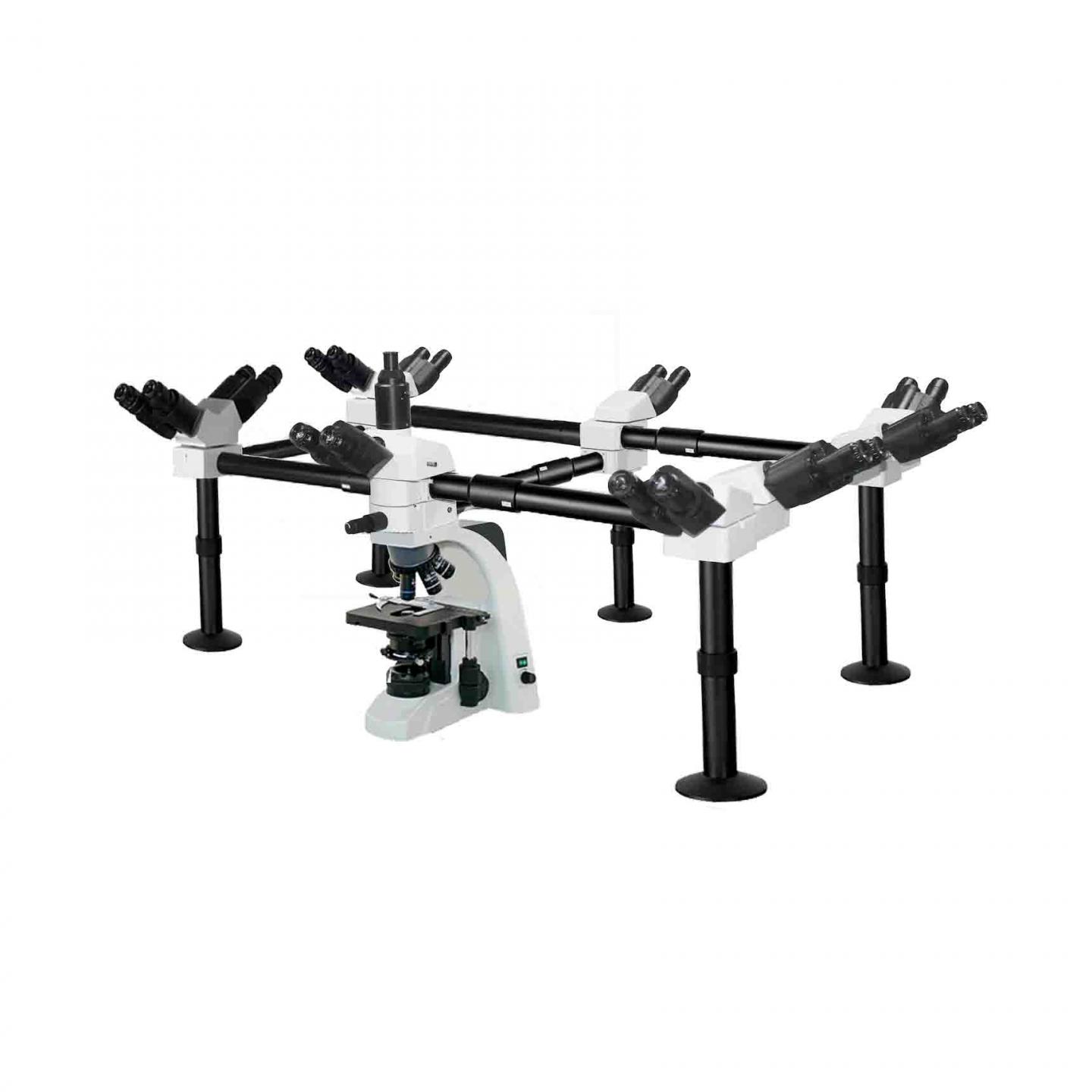

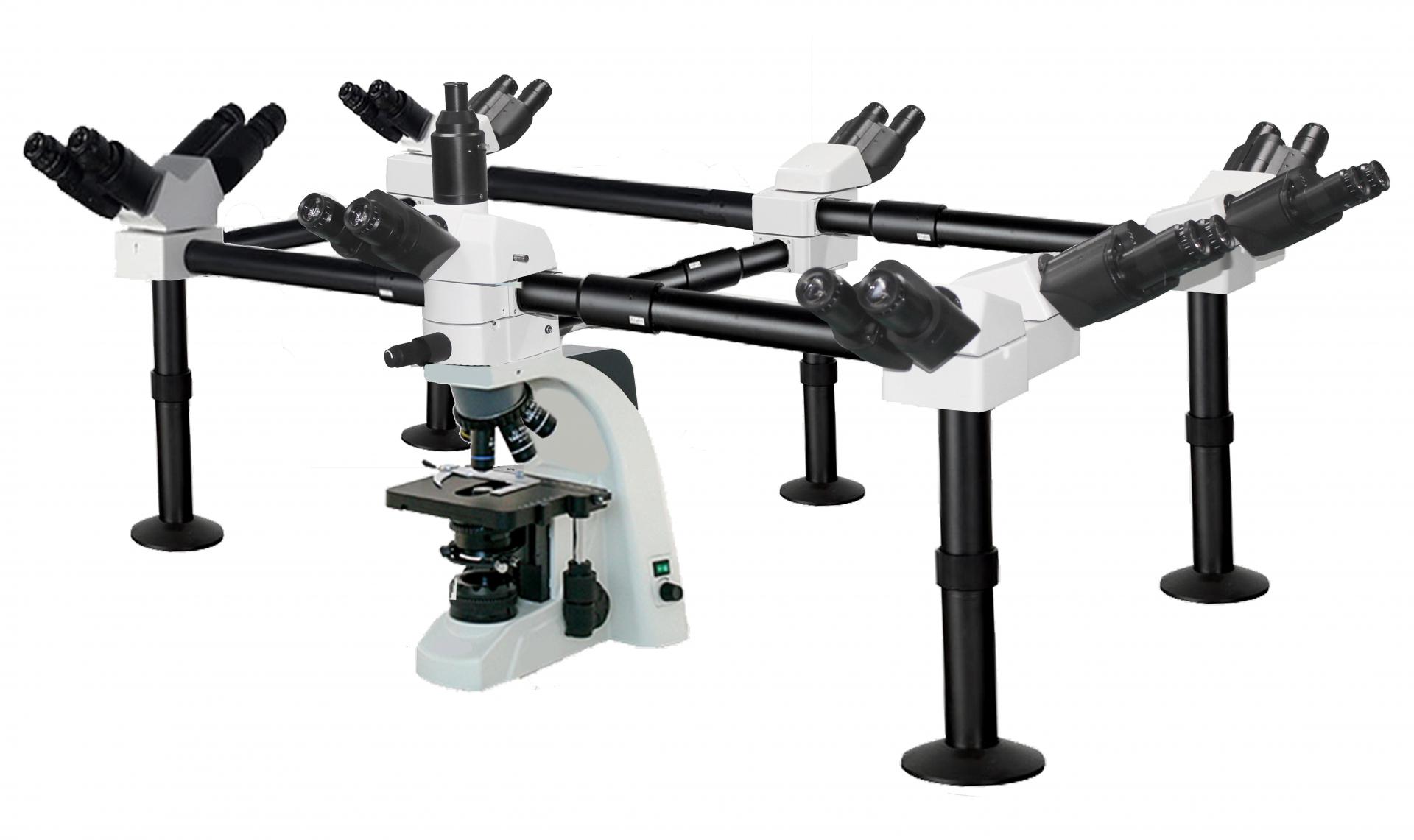

Model BX1500-MU10 Multi-viewing Microscope for 10 Users
| Model: BX1500-MU10 | |
| Optical System: | Infinity Corrected Optical System |
| Viewing head: | 1pc of seidentopf trinocular viewing head, inclined at 30°, interpupillary 48-75mm, beam split ratio for eyepiece/camera port=100/0, 20/80 |
| 9pc of seidentopf binocular viewing head, inclined at 30°, interpupillary 48-75mm | |
| Nosepiece: | Backward Quintuple Nosepiece |
| Eyepiece: | 20pcs of wide field eyepiece WF10x/22mm, diopter adjustment +/-5, tube diamter: Φ30mm |
| Objectives: | Infinite Plan Achromatic Objective 4x, NA 0.10 |
| Infinite Plan Achromatic Objective 10x, NA 0.25 | |
| Infinite Plan Achromatic Objective 20x, NA 0.40 | |
| Infinite Plan Achromatic Objective 40x, NA 0.65, spring loaded | |
| Infinite Plan Achromatic Objective 100x, NA 1.25, spring loaded | |
| Stage: | Double layer mechnical stage 180mmx160mm, XY Moving Range 80mmx50mm, Metal clips for glass slides, with glass insert |
| Focusing: | Low-hand position coarse and fine coaxial focusing mechanism, Coarse Stroke 38.5mm per Rotation, fine division 0.001mm, Fine Stroke 0.2mm per Rotation, focal Disatnce 28mm, With adjusting elastic device and upper limit, with platform up and down adjustment mechanism, the height of the stage bracket group is adjustable |
| Condenser: | Abbe condenser N.A. 1.25 with an iris diaphragm |
| Illumination: | 10W LED Light, with full-Köhler illuminaton, brightness adjustable, longlife time, not less than 50,000 hours |
| Pointer: | Green LED pointer, brightness adjustable |
| Power: | 100-240V, 50/60Hz |
| Supplied with: | Filter, immersion oil and a dust cover for each microscope. |
