Description
Descriptions
- • Multi-viewing microscopes allow few people to observe specimen at the same time.
- • With the features of excellent optical system, effective illumination, LED pointer and images coherence, it is widely used in clinic, scientific research and teaching demonstration.
–
Specifications

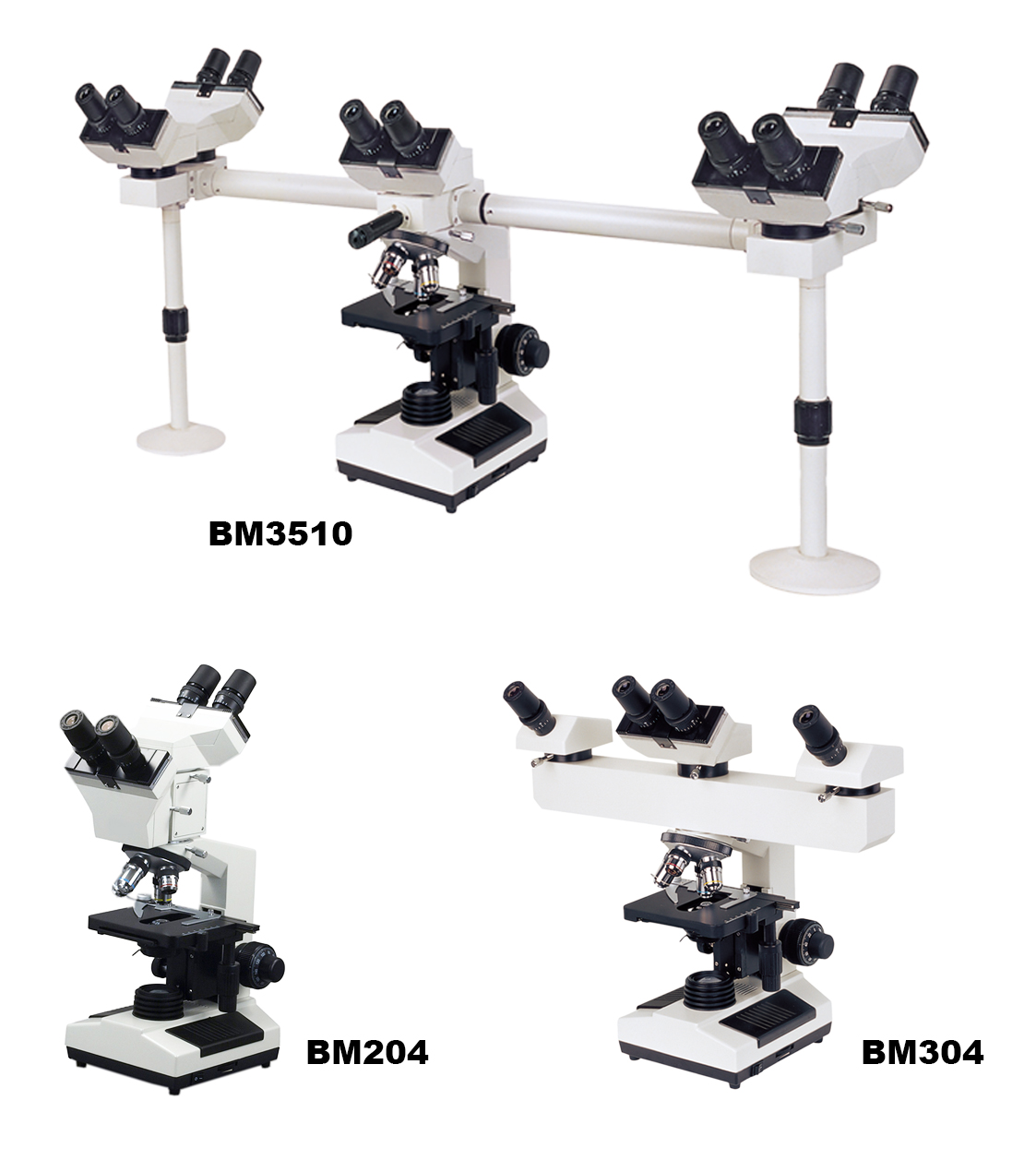

| Model | BM3204 | BM3304 | BM3510 | |
| Viewing Head | Sliding Binocular Head, lnclined at 45° | 2Pcs | 1Pc | 5Pcs |
| Monocular Head, lnclined at 45° | 2Pcs | |||
| Eyepiece | Wide Field Eyepiece WF10× | 4Pcs | 4Pcs | 10Pcs |
| Nosepiece | Quadruple Nosepiece | ● | ● | ● |
| Objective | Achromatic Objective 4×、 10×、40×、100× | ● | ● | ● |
| Condenser | Abbe Condenser NA1.25 | ● | ● | ● |
| Focusing | Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm | ● | ● | ● |
| Stage | Double Layers Mechanical Stage 140×140mm/ 75×50mm | ● | ● | ● |
| lllumination | S-LED Illumination, Brightness Adjustable | ● | ● | ● |
| Halogen Lamp 6V/ 20W | ○ | ○ | ||
| Halogen Lamp 24V/ 100W | ○ | |||
| Pointer | Green LED Pointer , Brightness Adjustable | ● | ||
| Note: ●Standard Outfit, ○Optional | ||||
