Descriptions
BM38 Series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life. It is also very comfortable for observation. BM38 series microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department. BM38 is compatible with many accessories for higher-grade BM38 series microscopes. Newly designed accessories for simple polarization, phase contrast, dark field and Epi-Fluorescence are available.
Product Details
• Bright Field Observation
- New achromatic objective supply the sharp image after adjusting Iris diaphragm. You can get high resolution and contrast ratio image at low or high magnification. 1W Single LED illuminator supplies bright background. (Plan Achromatic Objectives are optional）
• High-powered single LED cold light illuminator
- It maintains constant color temperature and closes to sun light. It can apply bright white back-ground without filter that is the best choice of observation for bright-field and photography by CCD. The illuminator supplies stable brightness and temperature difference never occurred even long time worked. Comparing with halogen lamp, LED has lower power dissipation.Brightness is adjustable freely by the rotatable key at lower left side.
• Eyepiece Tube
- Seidentopf Binocular Head, Inclined at 30°, Interpupillary distance is adjustable from 55mm to 75mm. The right eyepiece tube is ±5 diopter adjustable.
• Stage and Focusing
- Double Layers Mechanical Stage 140X140mm/75x50mm
- Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
• Objectives & Condenser
- With quadruple nosepiece, it is equipped with Achromatic Objectives：4X，10X，40X(S)，100X(S, Oil) (Plan Achromatic Objectives 4X, 10X, 40X, 100X are optional). NA 1.25 Abbe Condenser with Iris Diaphragm is able to acquire light brighter.
Specifications
| Model | BM38B | BM38BN |
| Viewing head | Seidentopf Binocular Viewing Head Inclined at 30°, interpupillary 47-78mm, 360° Rotation | |
| Nosepiece | Backward Quadruple Nosepiece | |
| Eyepiece | Wide Field Eyepiece WF10X/18 | |
| Objectives | Achromatic objective 4x/0.10, 10x/0.25, WD 5.8, 40x/0.65, spring loaded, 100x/1.25, spring loaded, oil | Plan achromatic objective 4x/0.10, 10x/0.25, 40x/0.65100x/1.25, spring loaded, oil |
| Stage | Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm | |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 25mm | |
| Condenser | NA1.25 Abbe Condenser with Aperture Diaphragm | |
| Illumination | LED illumination for long life, brightness adjustable | |
| Supplied with | Dust cover, spare fuse, blue & green filters | |
| Power | 100-240V, 50/60Hz | |
Options
| Cat. Number | Descriptions | Picture |
| M11121001 | Monocular head | |
| M11121002 | Digital Viewing Head Inclined at 30°, 5M pixels, Support Wifi | |
| M11121003 | Digital Viewing Head Inclined at 30°, 5M pixels, 8” LCD, Android OS | |
| M11121004 | Eyepiece P16×/11 | |
| M11121005 | Eyepiece WF10× with pointer | |
| M11121006 | Eyepiece WF10× with micrometer | |
| M11121007 | Achromatic objective 20× | |
| M11121008 | Achromatic objective 60× | |
| M11121009 | Semi-Plan Achromatic objective 4x | |
| M11121010 | Semi-Plan Achromatic objective 10x | |
| M11121011 | Semi-Plan Achromatic objective 20x | |
| M11121012 | Semi-Plan Achromatic objective 40x | |
| M11121013 | Semi-Plan Achromatic objective 60x | |
| M11121014 | Semi-Plan Achromatic objective 100x | |
| M11121015 | Plan Achromatic objective 4x | |
| M11121016 | Plan Achromatic objective 10x | |
| M11121017 | Plan Achromatic objective 20x | |
| M11121018 | Plan Achromatic objective 40x | |
| M11121019 | Plan Achromatic objective 60x | |
| M11121020 | Plan Achromatic objective 100x | |
| M11121021 | Halogen Lamp 6V/20W, Brightness Adjustable | |
| M11121022 | S-LED Illumination with Recharger | |
| M11121023 | Kohler Illumination | |
| M11121024 | ECO Function | |
| M11121025 | Plane-concave Mirror | |
| M11121026 | Dark Field Condenser NA0.7-0.9 (Dry) | |
| M11121027 | Dark Field Condenser NA1.25-1.36 (Oil) | |
| M11121028 | Single Phase Contrast Kit | |
| M11121029 | Sliding Phase Contrast Kit | |
| M11121030 | Turret Phase Contrast Kit | |
| M11121031 | Simple Polarization Set: Polarizer & Analyzer | |
| M11121032 | LED Epi-fluorescent Attachment FL-LED | |
| M11121033 | Epi-fluorescent Attachment XY-2 | |
| M11121034 | 1X C mount | |
| M11121035 | 0.5X C mount |

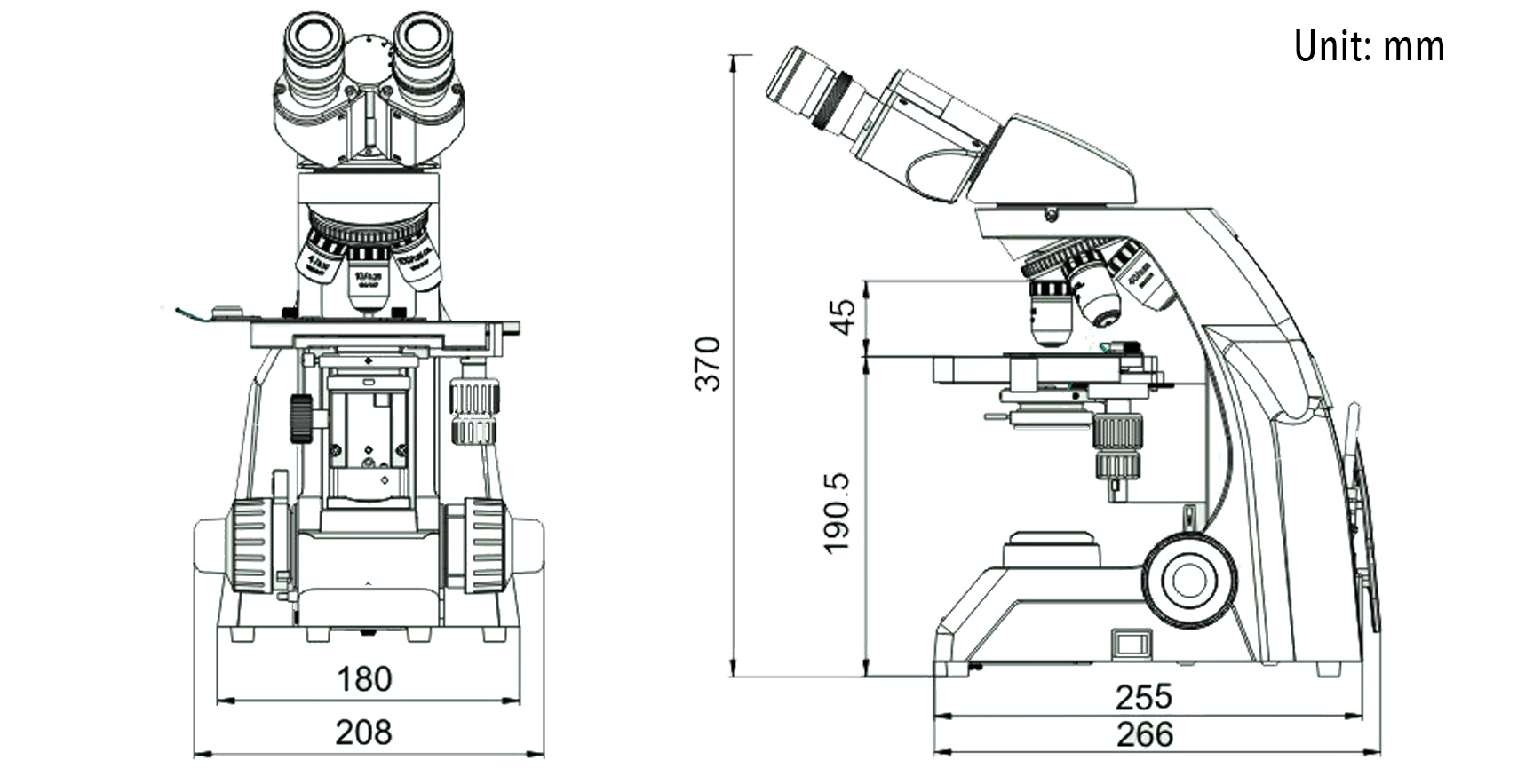

Dimensions
