Description
Descriptions
BM36 Series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life. It is also very comfortable for observation. BM36 series microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department. BM36 is compatible with many accessories for higher-grade BM36 series microscopes. Newly designed accessories for simple polarization, phase contrast, dark field and Epi-Fluorescence are available.
Product Features
Micro world, New vision
Outstanding image quality, is helpful for students to understand the main points in teaching, is effective to arouse the initiative and the ability of autonomous learning.
With PL10X/18mm high point plan eyepiece, BM36 creates more comfortable observation experience. Combined with optional plan achromatic objectives, BM36 is able to provide a sharp image in natural color, immersive yourself to the micro world and satisfy your desire to explore the unknown.
Ergonomics design

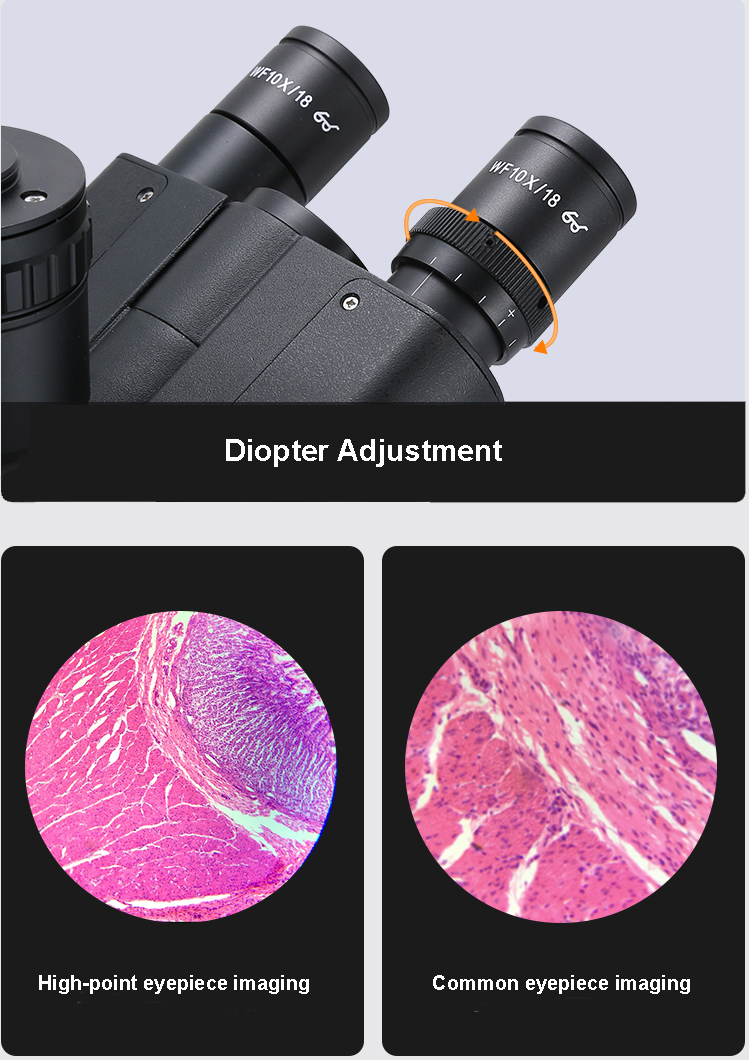

According to different interpupillary distances and eyesights of different people, the spacing of binocular tubes can be adjustable from 50mm to 75mm and the left tube with the focusing device, diopter is ±5 adjustable.
155mmX142mm double layer mechanical stage with round corners avoids the harm caused by accidental impact. Combining X/Y coaxial adjustment with the scale (0.1mm) on the stage, moving range 76x50mm, easy operation and precision position are available.
With center presetting, the Abbe condenser is non-removable, kept with correct factory set all the way. With iris diaphragm and filter holder, different backlights are usable to improve the image contrast.
Coaxial coarse and fine adjustments on both sides of the frame, are easy to focus by either hand. The tension of coarse knob is adjustable, and the precision of fine knob is 0.002mm. Upper limit design avoids the impact between objective and slide.
LED illumination system
BM34 series biological microscope adopts high performance LED illumination system with the characteristics of energy efficiency, environmental protection and long lifetime. With separated power switch and light dimmer, its intensity is adjustable.
Specifications
|
Model |
BM36B | BM36T | BM36BN |
BM36TN |
|
|
Optical system |
Finite color corrected optical system | ● | ● | ● | ● |
|
Viewing head |
30° inclined binocular head, interpupillary distance: 50-75mm, ±5 diopter adjustable |
● | ● |
|
|
|
30° inclined trinocular head, splitting ratio E:T=80:50, interpupillary distance: 50-75mm, ±5 diopter adjustable |
● | ● | |||
|
Eyepiece |
Wide field plan eyepiece PL10X/18mm |
●● | ●● | ●● |
●● |
| Eyepiece 16x |
○ |
○ | ○ |
○ |
|
| Eyepiece 20x |
○ |
○ | ○ |
○ |
|
| Reticle |
○ |
○ | ○ |
○ |
|
| Pointer |
○ |
○ | ○ |
○ |
|

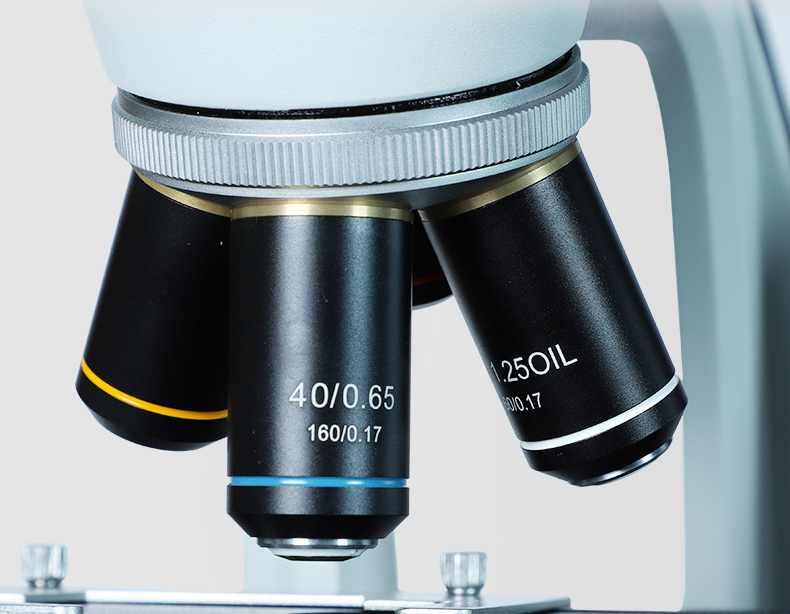

| Objective
|
Achromatic objective 4X |
● |
● |
|
|
| Achromatic objective 10X |
● |
● |
|
||
| Achromatic objective 40X, spring |
● |
● |
|
||
| Achromatic objective 100X, spring, oil |
● |
● |
|
||
| Plan achromatic objective 4X |
|
● |
● |
||
| Plan achromatic objective 10X |
|
● |
● |
||
| Plan achromatic objective 40X, spring |
|
● |
● |
||
| Plan achromatic objective 100X, spring, oil |
|
● |
● |
||
| Nosepiece | Quadruple nosepiece |
● |
● | ● |
● |
| Stage | Stage 155mmX142mm double layers mechanical stage, moving range: 76mmX50mm, precision: 0.1mm. |
● |
● | ● |
● |
| Focusing | Coaxial coarse and fine adjustment, with coarse adjustment stop and tightness adjustment, range: 25mm, precision: 0.002mm. |
● |
● | ● |
● |
| Illumination | 3W LED, center presetting, intensity adjustable, external wide voltage AC adapter, 100V-240V_AC50/60Hz input |
● |
● | ● |
● |
| Condenser | N.A.1.25 Abbe condenser with iris diaphragm |
● |
● | ● |
● |
| Others | Filters for transmitted light: blue/yellow/green |
● |
● | ● |
● |
| Camera accessories: | 0.35X/0.5X/1X focusing C-mount |
○ |
○ | ○ |
○ |
Product System Digram
Product Dimensions
Optional Accessories
| Order Code | Descriptions |
| M11BM36001 | Monocular head |
| M11BM36002 | Binocular head |
| M11BM36003 | Trinocular head |
| M11BM36004 | WF10x/18mm eyepiece |
| M11BM36005 | WF10x/18mm with micrometer eyepiece |
| M11BM36006 | WF10x/18mm eyepiece, with pointer |
| M11BM36007 | WF16x/15mm eyepiece |
| M11BM36008 | WF20x/10mm eyepiece |
| M11BM36009 | Quadruple nosepiece |
| M11BM36010 | Quintuple nosepiece |
| M11BM36011 | Achromatic objective 4x/0.10 |
| M11BM36012 | Achromatic objective 10x/0.25 |
| M11BM36013 | Achromatic objective 40x/0.65, spring loaded |
| M11BM36014 | Achromatic objective 100x/1.25, spring loaded, oil |
| M11BM36015 | Plan achromatic objective 4x/0.10 |
| M11BM36016 | Plan achromatic objective 10x/0.25 |
| M11BM36017 | Plan achromatic objective 40x/0.65, spring loaded |
| M11BM36018 | Plan achromatic objective 100x/1.25, spring loaded, oil |
| M11BM36019 | NA 1.25 Abbe Condenser with Iris Diaphragm |
| M11BM36020 | Simple Polarising set (filters only) |
| M11BM36021 | 0.35x C-Mount projection lens |
| M11BM36022 | 0.5x C-Mount projection lens |
| M11BM36023 | 0.75x C-Mount projection lens |
| M11BM36024 | Recharagable device |
