Description
Descriptions

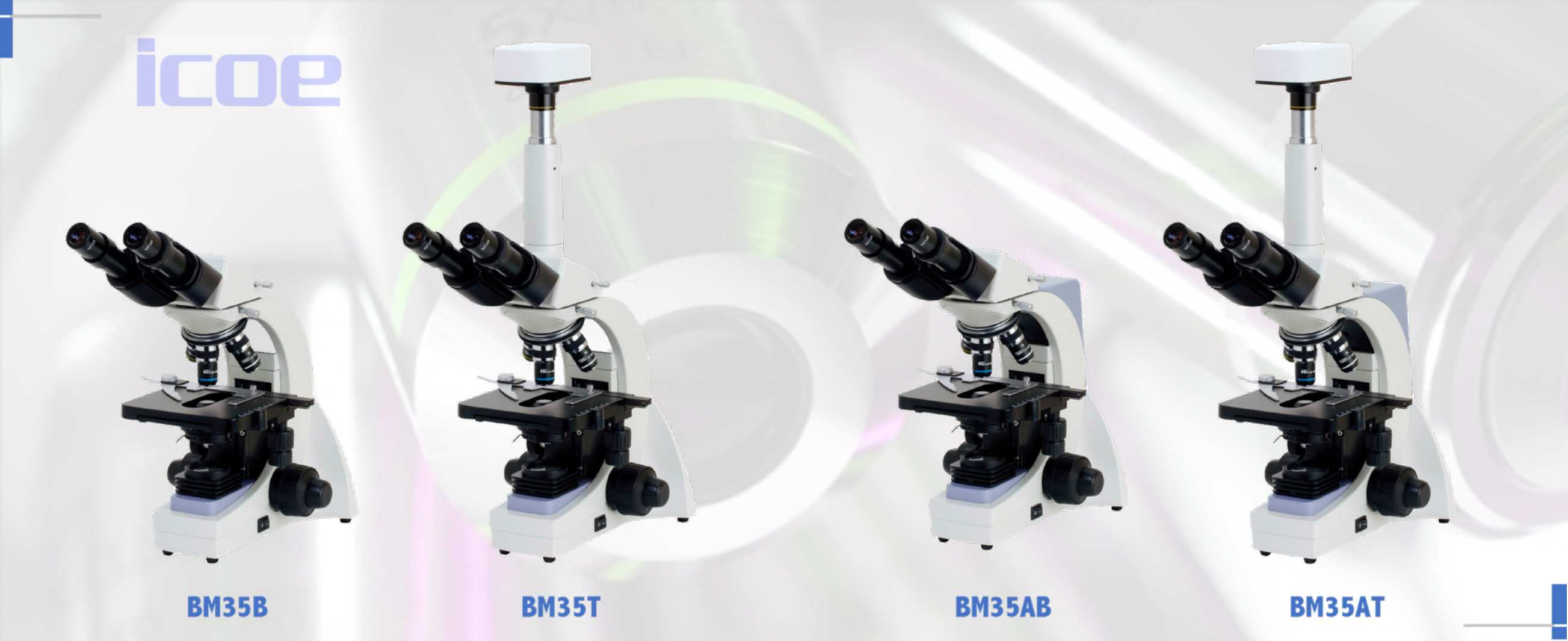

BM35 Series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life. It is also very comfortable for observation. BM35 series microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.
BM35 is compatible with many accessories for higher-grade BM35 series microscopes. Newly designed accessories for simple polarization, phase contrast, dark field and Epi-Fluorescence are available.
- • The magnification change after the width of eyes is adjusted doesn’t take place in the body tube where easiness to use was pursued.
- • 1W high luminance single LED lamp that obtains a bright observation image is built into.
- • The tension mechanism that can adjust the torque of the flutter is adopted.
- • It is a lockable stopper mechanism as for the stage upper bound position.
- • The lamp replacement can be easily done only by detaching the lamp house unit on the base.
- • The plan achromatic objectives are optional.
Product Details
• Bright Field Observation
- New achromatic objective supply the sharp image after adjusting Iris diaphragm. You can get high resolution and contrast ratio image at low or high magnification. 1W Single LED illuminator supplies bright background. (Plan Achromatic Objectives are optional）

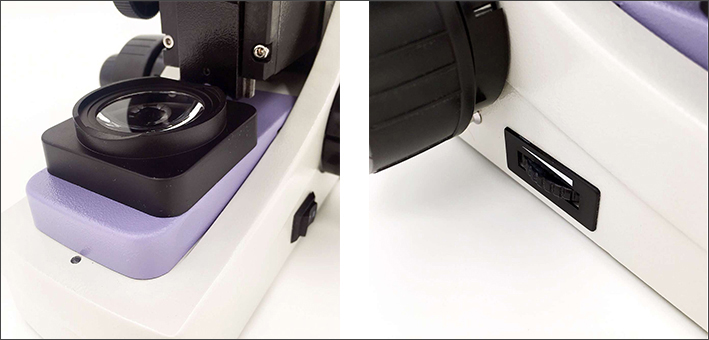

• High-powered single LED cold light illuminator
- It maintains constant color temperature and closes to sun light. It can apply bright white back-ground without filter that is the best choice of observation for bright-field and photography by CCD. The illuminator supplies stable brightness and temperature difference never occurred even long time worked. Comparing with halogen lamp, LED has lower power dissipation.Brightness is adjustable freely by the rotatable key at lower left side.

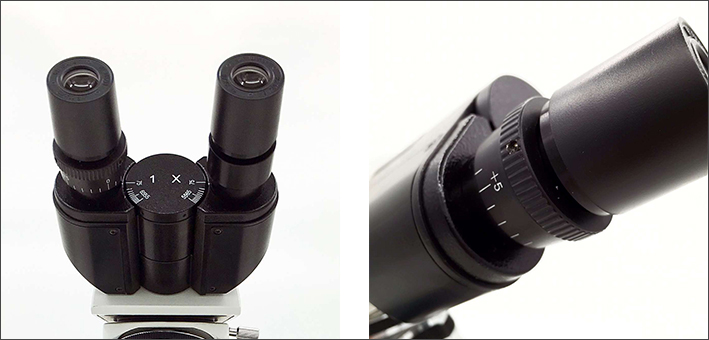

• Eyepiece Tube
- Seidentopf Binocular Head, Inclined at 30°, Interpupillary distance is adjustable from 55mm to 75mm. The right eyepiece tube is ±5 diopter adjustable.

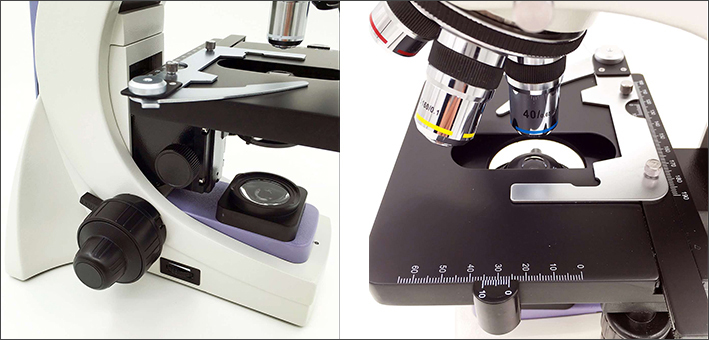

• Stage and Focusing
- Double Layers Mechanical Stage 140X140mm/75x50mm
- Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

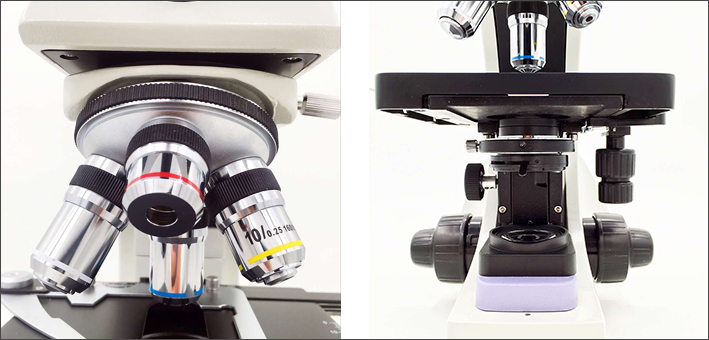

• Objectives & Condenser
- With quadruple nosepiece, it is equipped with Achromatic Objectives：4X，10X，40X(S)，100X(S, Oil) (Plan Achromatic Objectives 4X, 10X, 40X, 100X are optional). NA 1.25 Abbe Condenser with Iris Diaphragm is able to acquire light brighter.
Specifications
Model: BM35B/BM35AB
- • Viewing head: Seidentopf Binocular Head, Inclined at 30°, Interpupillary 55-75mm, 360° Rotation
- • Nosepiece: Quadruple revolving nosepiece
- • Eyepiece: Wide Field Eyepiece WF10X/18
- • Objectives: Achromatic objective 4x/0.10
- Achromatic objective 10x/0.25
- Achromatic objective 40x/0.65, spring loaded
- Achromatic objective 100x/1.25, spring loaded, oil
- • Stage: Double Layers Mechanical Stage 140x140mm/75x50mm
- • Focusing: Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
- • Condenser: NA 1.25 Abbe Condenser with Iris Diaphragm
- • Illumination: LED illumination for long life, brightness adjustable
- • Supplied with: Dust cover, spare fuse, blue & green filters
- • Power: 100-220V, 50/60Hz
Options
- • Viewing head: Monocular head
- Trinocular head
- Trinocular head with LCD monitor
- • Eyepiece P16×, Eyepiece WF10× with pointer;
- • Achromatic objective 20x, 60x; Semi-Plan/Plan Achromatic DIN objective 4×, 10×, 40x, 100x
- • Halogen Lamp 6V/20W, Brightness Adjustable
- • Dark-field Attachment: NA0.7-0.9 Dark Field Condenser (Dry); NA1.25-1.36 Dark Field Condenser (Oil)
- • Phase Contrast Kit: Single Phase Contrast Kit; Sliding Phase Contrast Kit; Turret Phase Contrast Kit
- • Simple Polarization Set: Polarizer & Analyzer
- • Epi-fluorescent Attachment; FL-LED Epi-fluorescent Attachment

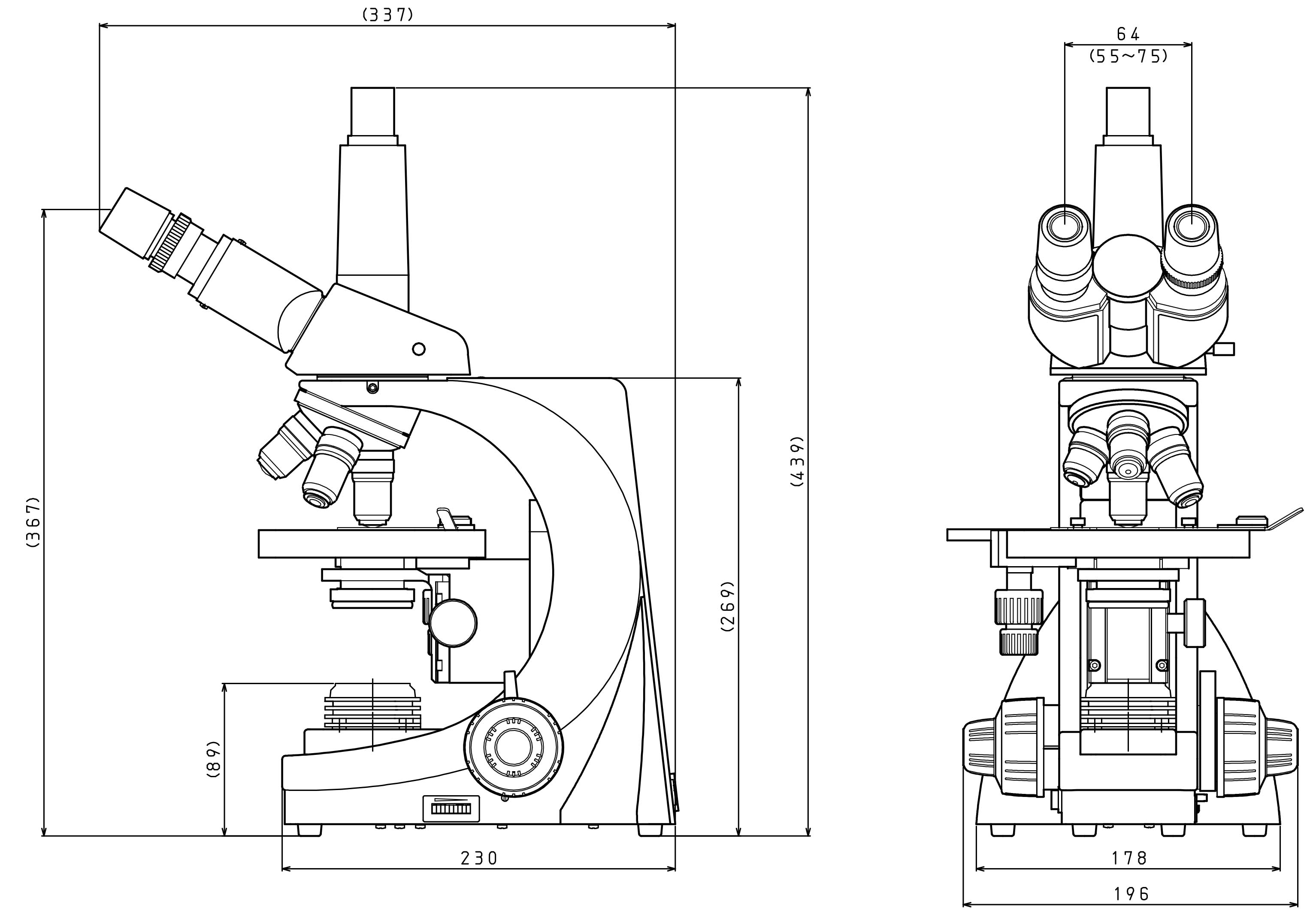

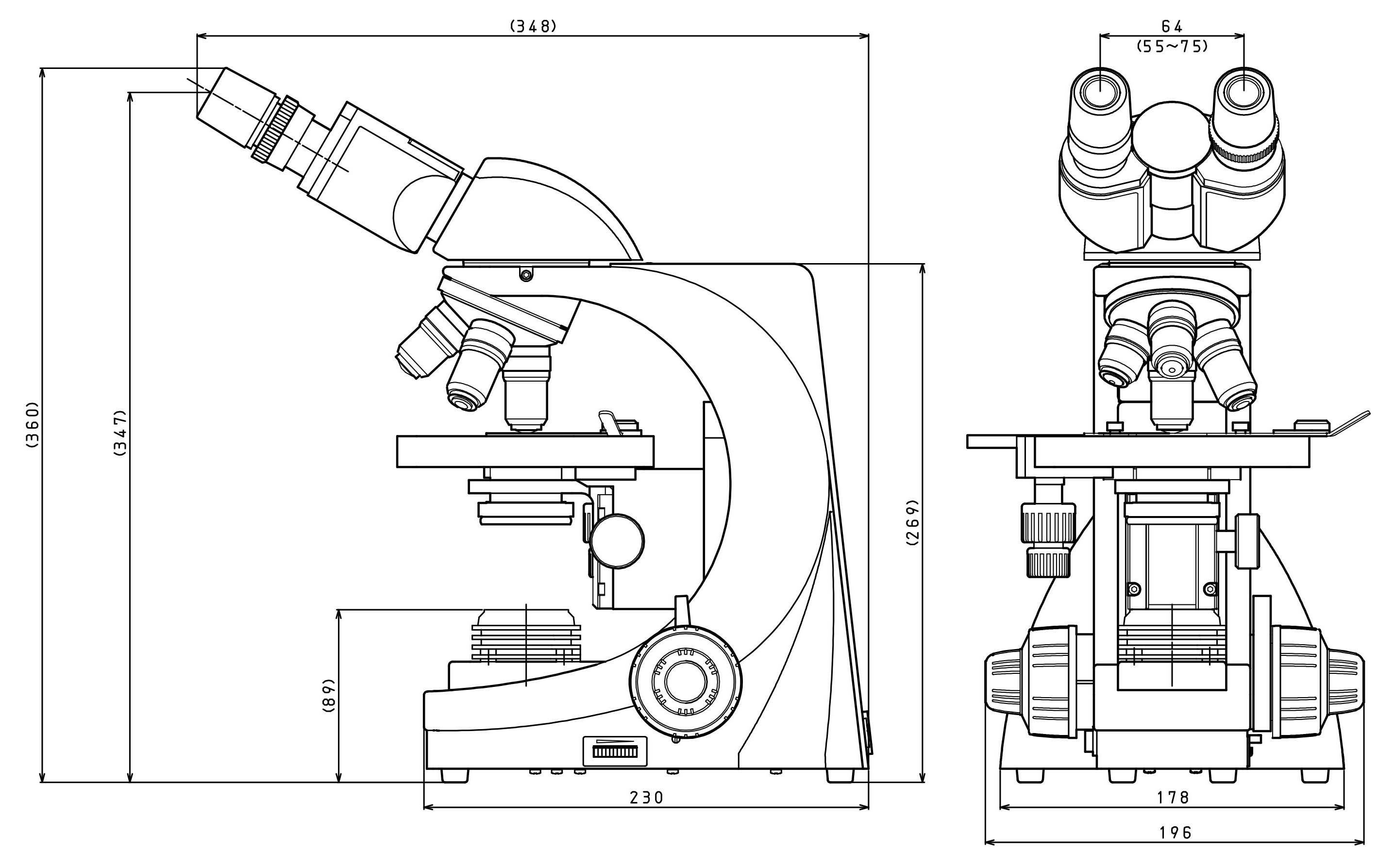

Dimensions
