BM33 Series Biological Microscope

Home Microscopy Biological Microscopes Educational Microscopes BM33 Series Biological Microscope

BM33 Series Biological Microscope

Educational Microscopes2018-11-05n50

Description

Descriptions

This BM33 series microscope with siedentopf binocular (monocular, trinocular available) is ideal for use at the senior high school and college level, or for use in veterinary and medical applications. The adjustable inter-pupillary distance ranges from 55mm to 75mm, and it offers four levels of magnification, ranging from 40x to 1000x.

Standard DIN achromatic objectives are parfocaled, parcentered, and color-coded to provide sharp, color-corrected images. The coaxial coarse and fine focusing knobs are positioned low on the bracket, near the base, making certain that adjustments are made with maximum stability and minimum strain.

The ball-bearing driven, reversed nosepiece with internal click-stops, guarantee parcentration and repeatability with every magnification change. The double layer built-in mechanical stage with a low-positioned control knob, allows for smooth and comfortable specimen movement.



Product Details

• Bright Field Observation

  • New achromatic objective supply the sharp image after adjusting Iris diaphragm. You can get high resolution and contrast ratio image at low or high magnification. 1W Single LED illuminator supplies bright background. (Plan Achromatic Objectives are optional)

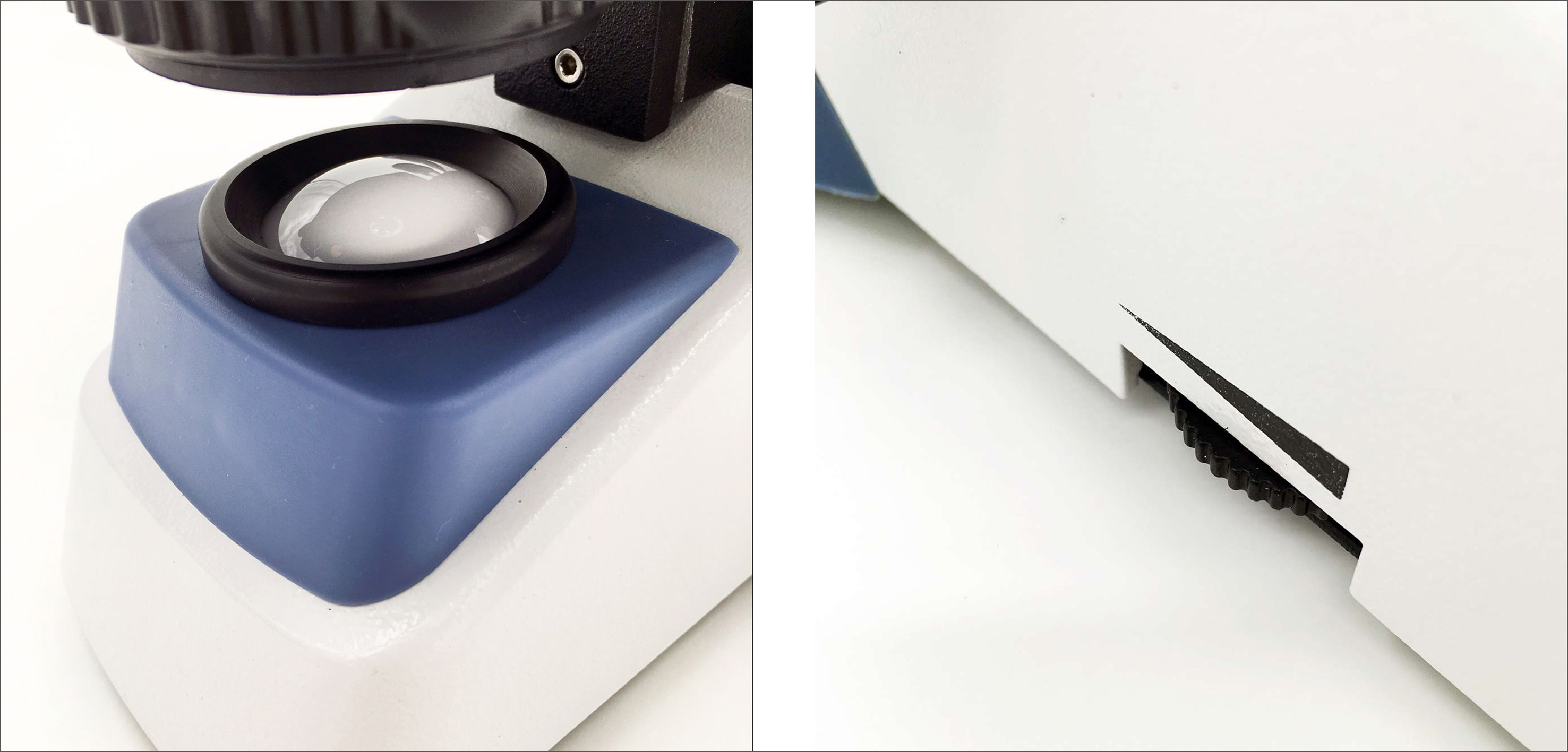

• High-powered single LED cold light illuminator

  • It maintains constant color temperature and closes to sun light. It can apply bright white back-ground. The illuminator supplies stable brightness and temperature difference never occurred even long time worked. Comparing with halogen lamp, LED has lower power dissipation. Brightness is adjustable freely by the rotatable key at lower left side.



• Eyepiece Tube

  • Seidentopf Binocular Head, Inclined at 30°, Interpupillary distance is adjustable from 55mm to 75mm. The right eyepiece tube is ±5 diopter adjustable.

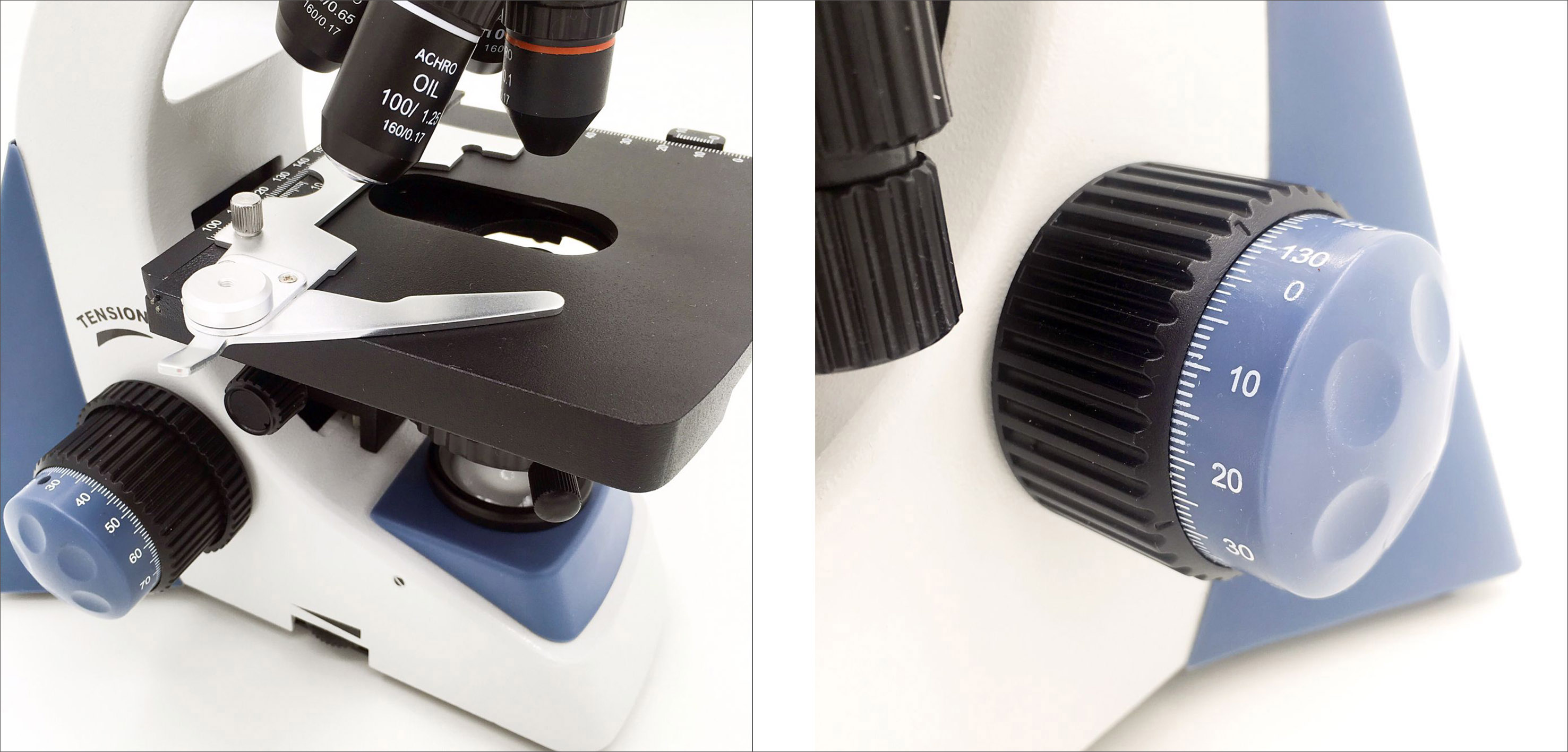

• Stage and Focusing

  • Double Layers Mechanical Stage 125X125mm/60x40mm
  • Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 14mm per rotation.

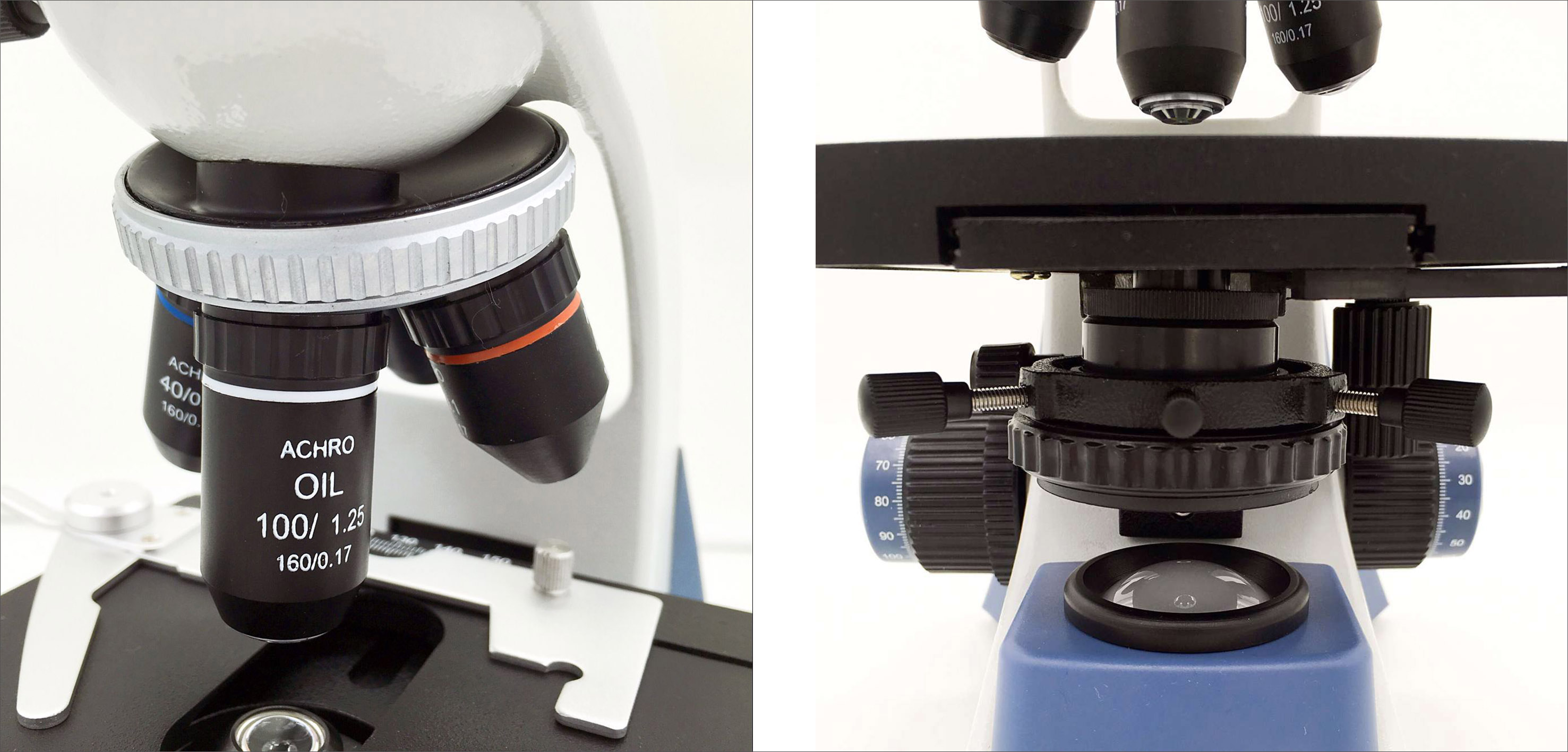

• Objectives & Condenser

  • With quadruple nosepiece, it is equipped with 45mm DIN Achromatic Objectives:4X,10X,40X(S),100X(S, Oil) (Plan Achromatic Objectives 4X, 10X, 40X, 100X are optional). NA 1.25 Abbe Condenser with Iris Diaphragm is able to acquire light brighter.

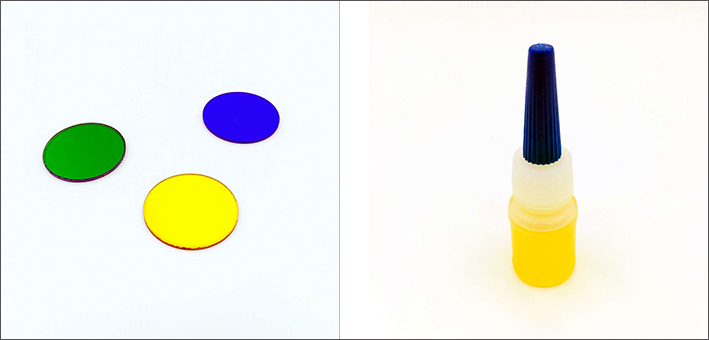

• Green, Blue, Yellow filters and 5ml oil immersion are included











Specifications

Model BM33M BM33B BM33T BM33V
Viewing head Monocular Head, Inclined at 45°, 360° Rotation Seidentopf Binocular Head, Inclined at 30°, Interpupillary 55-75mm, 360° Rotation Seidentopf Trinocular Head, Inclined at 30°, Interpupillary 55-75mm, 360° Rotation Dual Observation Head, One Tube 30º Inclined And Another Tube Vertical, 360º Rotation
Nosepiece Quadruple revolving nosepiece
Eyepiece Wide Field Eyepiece WF10X/18
Objectives:  Achromatic DIN objective 4x/0.10, 10x.0.25, 40x/0.65 (S), 100x/1.25 (S, Oil)
Stage Double Layer Mechanical Stage Size 125x125mm/60x40mm
Focusing Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 20mm
Condenser NA 1.25 Abbe Condenser with Iris Diaphragm
Illumination  LED illumination for long life, brightness adjustable
Supplied with Dust cover, spare fuse, blue, green and yellow filters



Options

Cat. Number Descriptions Picture
M11091001 Eyepiece P16×
M11091002 Eyepiece WF10× with micrometer
M11091003 Semi-Plan Achromatic objective 4x
M11091004 Semi-Plan Achromatic objective 10x
M11091005 Semi-Plan Achromatic objective 40x
M11091006 Semi-Plan Achromatic objective 100x
M11091007 Plan Achromatic objective 4x
M11091008 Plan Achromatic objective 10x
M11091009 Plan Achromatic objective 20x
M11091010 Plan Achromatic objective 40x
M11091011 Plan Achromatic objective 100x
M11091012 8″ LCD monitor that adapted to trinocular head
M11091013 1X C mount
M11091014 0.5X C mount
