Description
Descriptions

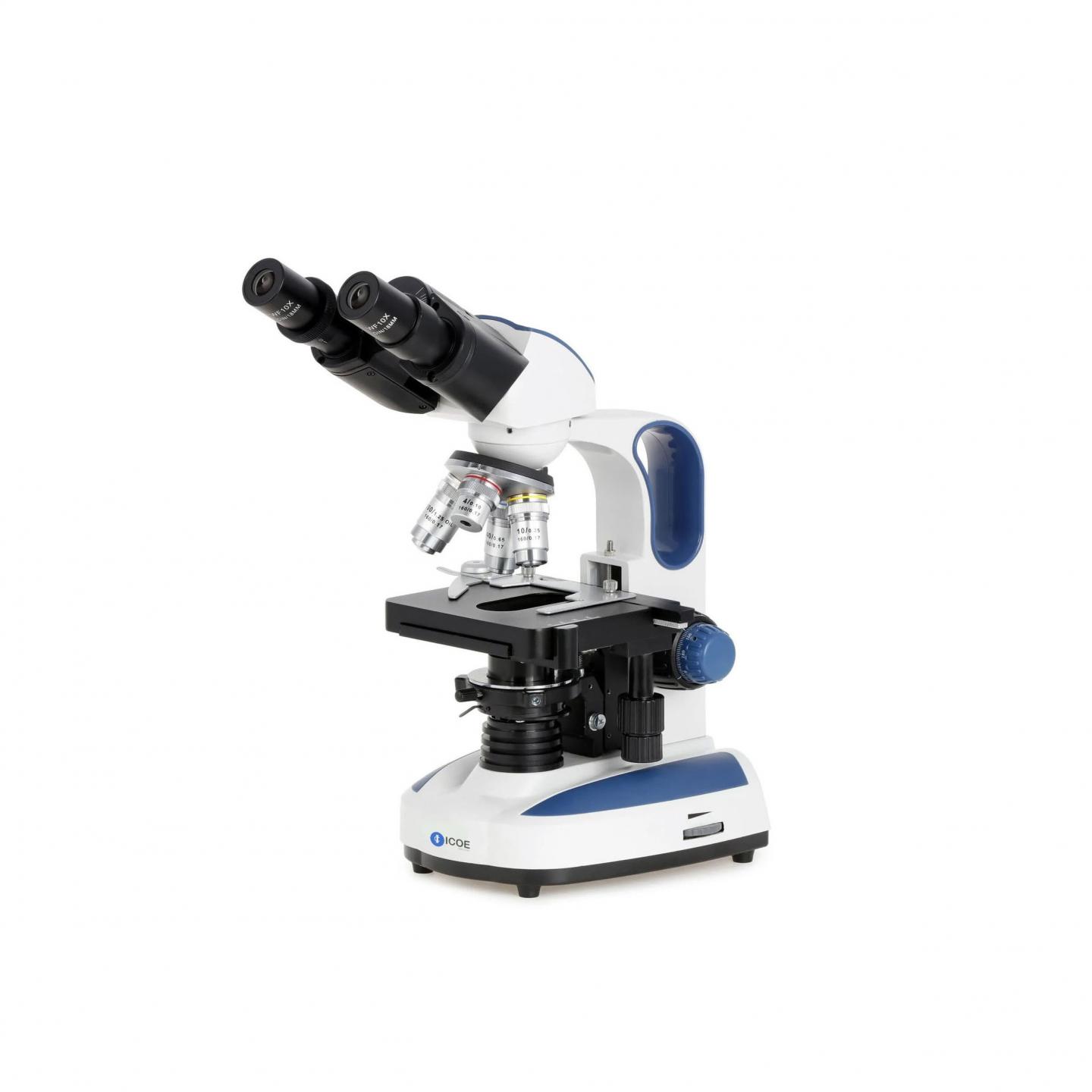

The FM22 Series & FM24 Series biological microscope offers unique design solutions to ensure the smooth progress of your courses. Using the FM22 & FM24 to foster your students’ curiosity and maintain their enthusiasm for learning, you can unlock their potential and open their eyes to the world around them.

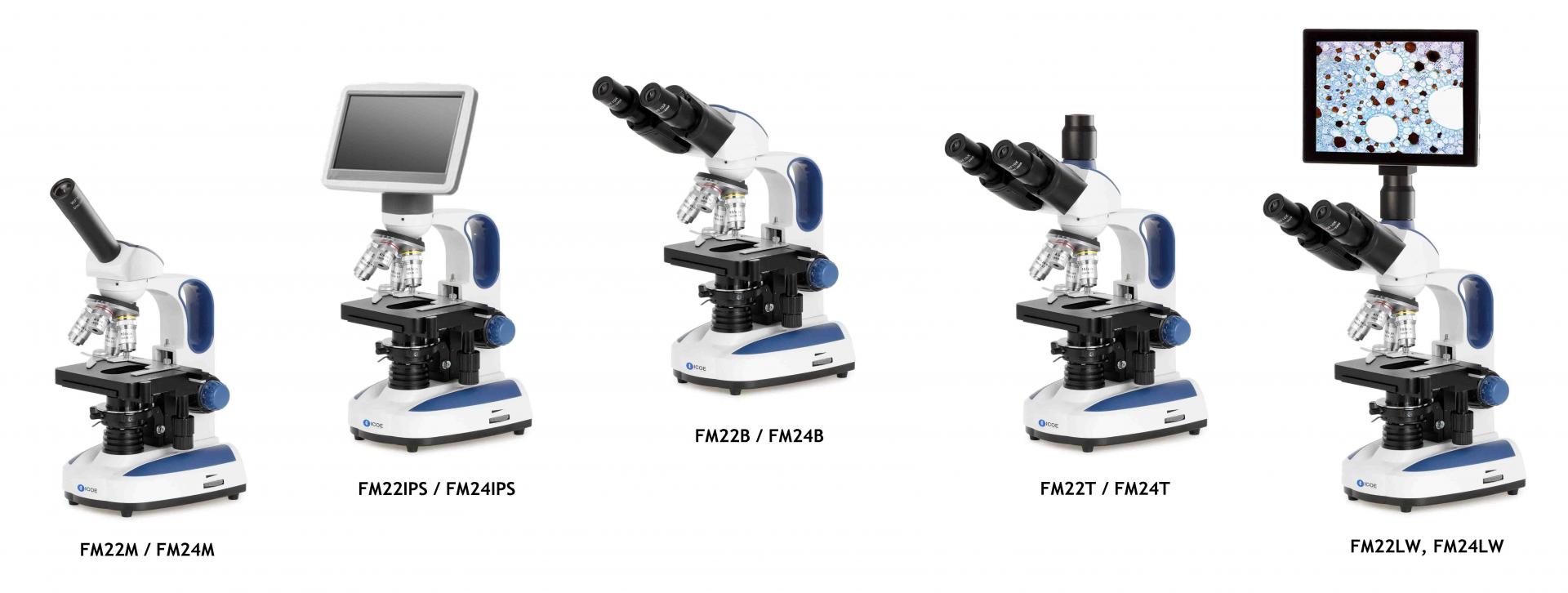

There are many models available
Specifications
Model | FM24M | FM24B | FM24T | FM24IPS | FM24LW | |
Viewing head | Monocular viewing head inclined at 45°, 360° rotation | ● | ||||
Seidentopf binocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75mm, equipped with a ±5 diopter adjustment on the left tube | ● | |||||
Seidentopf trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75mm, equipped with a ±5 diopter adjustment on the left tube, with a fixed light path beamsplitter 50:50 and generates an erect image | ● | ● | ||||
7-inch IPS full view screen, screen size 1024x600mm, built-in 5mp color CMOS, size: 5345(H)x3003(V)um, pixel: 2.75(H)x2.75(V)um, resolution: 1920×1080, with a USB interface, HDMI interface & SD card, to facilitate data presentation | ● | |||||
10.5″ LCD touch screen with integrated display camera, with IMX307, 1/2″ sensor, 2.0×2.0um, 8MP 4K, CMOS chip, 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, built-in with S-EYE image software | ● | |||||
Eyepiece | WF10x/18mm eyepiece | ● | ●● | ●● | / | ●● |
WF10x/20mm eyepiece | ○ | ○○ | ○○ | / | ○○ | |
WF16x eyepiece | ○ | ○○ | ○○ | / | ○○ | |
WF20x eyepiece | ○ | ○○ | ○○ | / | ○○ | |
Nosepiece | Reversed quadruple ball bearings revolving nosepiece | ● | ● | ● | ● | ● |
Objective | Achromatic objective 4x/0.10 | ● | ● | ● | ● | ● |
Achromatic objective 10x/0.25 | ● | ● | ● | ● | ● | |
Achromatic objective 20x/0.40 | ○ | ○ | ○ | ○ | ○ | |
Achromatic objective 40x/0.65, spring loaded | ● | ● | ● | ● | ● | |
Achromatic objective 60x/0.85, spring loaded | ○ | ○ | ○ | ○ | ○ | |
Achromatic objective 100x/1.25, spring loaded, oil | ● | ● | ● | ● | ● | |
Semi plan achromatic objective 4x/0.10 | ○ | ○ | ○ | ○ | ○ | |
Semi plan achromatic objective 10x/0.25 | ○ | ○ | ○ | ○ | ○ | |
Semi plan achromatic objective 20x/0.40 | ○ | ○ | ○ | ○ | ○ | |
Semi plan achromatic objective 40x/0.65, spring loaded | ○ | ○ | ○ | ○ | ○ | |
Semi plan achromatic objective 60x/0.85, spring loaded | ○ | ○ | ○ | ○ | ○ | |
Semi plan achromatic objective 100x/1.25 spring loaded, oil | ○ | ○ | ○ | ○ | ○ | |
Plan achromatic objective 4x/0.10 | ○ | ○ | ○ | ○ | ○ | |
Plan achromatic objective 10x/0.25 | ○ | ○ | ○ | ○ | ○ | |
Plan achromatic objective 20x/0.40 | ○ | ○ | ○ | ○ | ○ | |
Plan achromatic objective 40x/0.65, spring loaded | ○ | ○ | ○ | ○ | ○ | |
Plan achromatic objective 60x/0.85, spring loaded | ○ | ○ | ○ | ○ | ○ | |
Plan achromatic objective 100x/1.25, spring loaded, oil | ○ | ○ | ○ | ○ | ○ | |
Stage | Double layer mechnical stage 130 x 130 mm with mechanical 70 x 30 mm X-Y translation stage | ● | ● | ● | ● | ● |
Focusing | Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rortation, total travel approximately 23mm, supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control | ● | ● | ● | ● | ● |
Condenser | Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder | ● | ● | ● | ● | ● |
Illumination | High brightness energy-saving LED illumination for long life, brightness adjustable | ● | ● | ● | ● | ● |
Power | Supplied with rechargeable AA batteries and integrated 100-240 V power supply for cordless operation | ● | ● | ● | ● | ● |
Others | Dust cover, spare fuse, white filter, slim and easy to carry, AA batteries, user manual and immersion oil | ● | ● | ● | ● | ● |
C mount | 0.35x/0.5x/0.75x/1x C mount | ○ | ○ | ○ | ○ | ○ |
Optional Accessories
Cat. Number | Descriptions |
FM2401001 | Monocular viewing head inclined at 45°, 360° rotation |
FM2401002 | Seidentopf binocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75mm, equipped with a ±5 diopter adjustment on the left tube |
FM2401003 | Seidentopf trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75mm, equipped with a ±5 diopter adjustment on the left tube, with a fixed light path beamsplitter 50:50 and generates an erect image |
FM2401004 | Dual observation head, one tube 45° inclined toward & the other 45° inclined baclward, 360° rotation |
FM2401005 | Digital monocular head |
FM2401006 | Digital binocular head |
FM2401007 | IPS screen head, 7″ IPS full view screen, screen size 1024x600mm, built-in 5mp color CMOS, size: 5345(H)x3003(V)um, pixel: 2.75×2.75um, resolution: 1920×1080, with a USB interface, HDMI interface & SD card, to facilitate data presentation |
FM2401008 | WF10x/18mm eyepiece |
FM2401009 | WF10x/18mm micrometric eyepiece |
FM2401010 | WF10x/18mm eyepiece, with pointer |
FM2401011 | WF10x/20mm eyepiece |
FM2401012 | WF10x/20mm micrometric eyepiece |
FM2401013 | WF16x eyepiece |
FM2401014 | WF20x eyepiece |
FM2401015 | Quadruple nosepiece |
FM2401016 | Achromatic objective 4x/0.10 |
FM2401017 | Achromatic objective 10x/0.25 |
FM2401018 | Achromatic objective 20x/0.40 |
FM2401019 | Achromatic objective 40x/0.65, spring loaded |
FM2401020 | Achromatic objective 60x/0.85, spring loaded |
FM2401021 | Achromatic objective 100x/1.25, spring loaded, oil |
FM2401022 | Semi plan achromatic objective 4x/0.10 |
FM2401023 | Semi plan achromatic objective 10x/0.25 |
FM2401024 | Semi plan achromatic objective 20x/0.40 |
FM2401025 | Semi plan achromatic objective 40x/0.65, spring loaded |
FM2401026 | Semi plan achromatic objective 60x/0.85, spring loaded |
FM2401027 | Semi plan achromatic objective 100x/1.25 spring loaded, oil |
FM2401028 | Plan achromatic objective 4x/0.10 |
FM2401029 | Plan achromatic objective 10x/0.25 |
FM2401030 | Plan achromatic objective 20x/0.40 |
FM2401031 | Plan achromatic objective 40x/0.65, spring loaded |
FM2401032 | Plan achromatic objective 60x/0.85, spring loaded |
FM2401033 | Plan achromatic objective 100x/1.25, spring loaded, oil |
FM2401034 | Double layer mechnical stage 130 x 130 mm with mechanical 70 x 30 mm X-Y translation stage |
FM2401035 | Round stage with 130mm diameter, 360° rotatable and two object clamps |
FM2401036 | Abbe condenser N.A. 1.25 with iris diaphragm and filter holder |
FM2401037 | Simple Polarising set (analyzer and polarizer) |
FM2401038 | Blue filter, 32 mm diameter |
FM2401039 | Green filter, 32 mm diameter |
FM2401040 | Yellow filter, 32 mm diameter |
FM2401041 | Neutral grey filter, 32 mm diameter |
FM2401042 | 1 W LED replacement unit |
FM2401043 | Spare halogen 20W 12V bulb |
FM2401044 | Spare fuse 1A 250V, 10 pcs |
FM2401045 | Universal SLR-adapter with built-in 2x lens for standard 23.2 mm tube. Needs T2 adapter |
FM2401046 | T2 ring for Nikon D SLR-digital camera |
FM2401047 | T2 ring for Canon EOS SLR-digital camera |
FM2401048 | 0.35x C-Mount projection lens |
FM2401049 | 0.5x C-Mount projection lens |
FM2401050 | 0.75x C-Mount projection lens |
FM2401051 | AAA Recharagable batteries (3pcs) |
FM2401052 | Heating stage (stage warmer), stage size: 152mm x 134mm, Preset Temp. Control Range: 15º C to 55º C. Actual Stage Temp: 20º to 52º C. Temp. Setting Increments: +/-0.1º C. Temp. Display Divisions: Temp. Display Divisions. Input: 110V/220V (back panel switch): Output: 50W |
FM2401053 | Anti-theft slot: At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft |
FM2401054 | Carry bage |
FM2401055 | Aluminum case |
DETECO5A | Digital eyepiece TECO-5A, 5.1MP, USB port |
DCKOTI5A | Digital camera KOTI-5A, 5.1MP, CMOS USB2.0 |
DTX195L2 | Digital tablet DX1, 9.5″ LCD display, 2MP, CMOS, 3 x USB2.0 ports, 1 x HDMI port, with image process software |
DP1105L8 | Digital tablet DP1-Pro, 10.5 tablet with touch screen, 8MP, CMOS, 4K. with 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, support blue tooth, with image process software |
*** | More digital cameras are available and optional, please refer to the brochure of ICOE digital cameras |
