A28 Series Autofocus Digital Microscope System (4K, 28x Zoom)

Home Microscopy Stereo Microscopes Digital Stereo A28 Series Autofocus Digital Microscope System (4K, 28x Zoom)

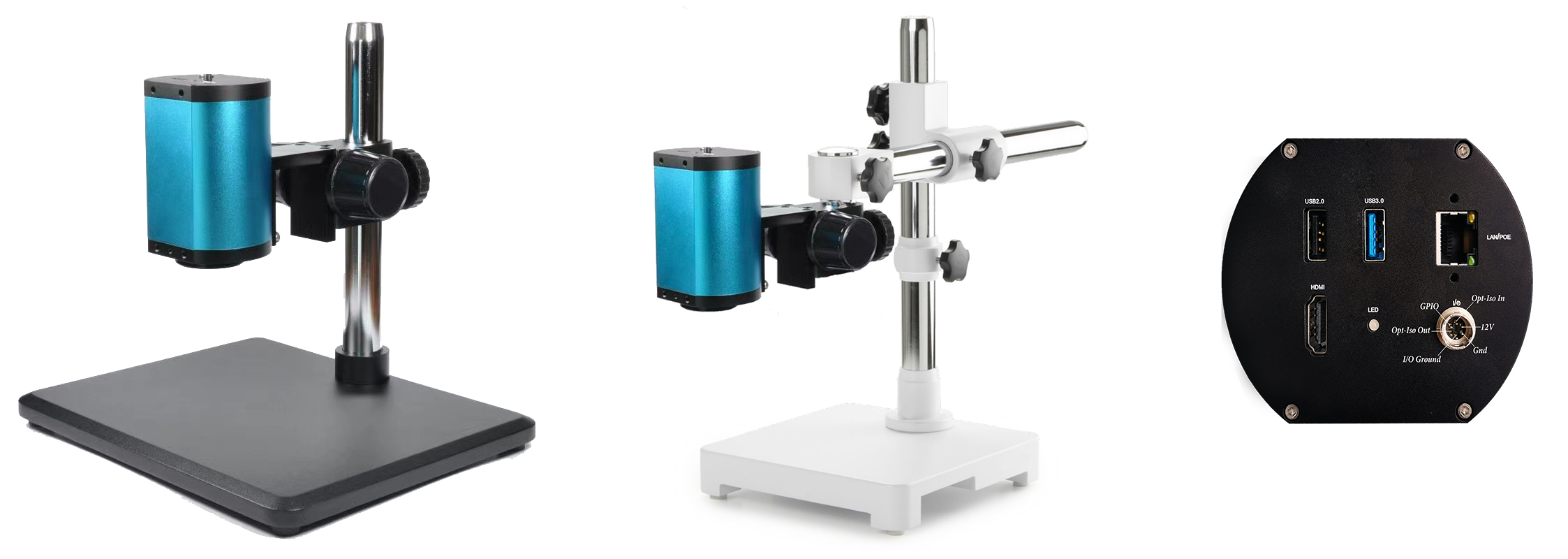

A28 Series Autofocus Digital Microscope System (4K, 28x Zoom)

Digital Stereo, Digital Microscopes, Tabletop Digital Microscope2022-11-05n50

Description

28x Digital Zoom/Optical Zoom 4K Resolution All In One Auto Focus Microscope Camera With Wide Angle Lens



A28 series is a new generation of multi-function, high-definition microscope all-in-one machine with large field of view and global invention patent launched by ICOE. It has a variety of image output interfaces, extremely high output frame rate and extremely excellent image quality, as well as extremely powerful and rich software functions.

This product is widely used in industry, microscopy, scientific research, education and other fields, and is widely favored by customers.



Feature Of A28-H4K Optical Zoom Microscope

  • 1. 4K Ultra HD image quality
  • 2. Full Automatic Focus With Global Invention Patents. Integrated coke technology
  • 3. Super High Working Distance and Super large Field of view, up to 28x zoom ratio
  • 4. Rich output interface and control interface, built-in internal storage function and various measurement functions
  • 5. Support for mouse ,foot pedal, keypad, keyboard, etc. Multiple control interface



Main Advantages

  • 1. 4K high-definition image quality: the pictures are clearly visible, which is convenient for users to observe and allow users to experience different visual enjoyment
  • 2. Measurement function: Built-in diversified image measurement tools, which can quickly and accurately perform image measurement
  • 3. Up to 28x zoom ratio: allow users to observe high-definition details and discover more tiny and interesting new worlds



Camera Installation Information

  • 1. Use HDMI cable to connect the monitor with camera.
  • 2. Connect mouse.
  • 3. Use appropriate power supply.



Zoom Module

ZOOM FOV (10cm working distance) FOV (30cm working distance)
1X 171mm*92mm 420mm*230mm
2X 89mm*50mm 196mm*110mm
3X 71mm*40mm 150mm*84mm
4X 60mm*33mm 116mm*65mm
5X 52mm*29mm 101mm*57mm
14X 24.3mm*13.5mm 45.5mm*25mm
28X 12.15mm*6.75mm 22.75mm*13mm



Technical Specifications of camera

Image Sensor Color CMOS
pixel 8 M pixels
Pixel size 1/2.8〞
Menu All-digital UI design
Method of Operation Mouse
Power DC DC12V
output method HDMI/LAN
Display Frame rate 4K@60fps/4k@50fps
Scanning method Line by line scanning
White Balance Manual / Auto/ One click
Exposure Auto/Manual
Shutter Speed 1/50s(1/60s)~1/10000s
Angle of view D:78.6°(W)-6.16°(T)
H:69.2°(W)-5.22°(T)
V:45.4°(W)-3.26°(T)
Working distance 10cm~∞
Optical magnification 1~28
Digital magnification 1~3
Digital zoom Support
Storage Support USB2.0/USB3.0 external storage
Support camera internal storage
Digital magnification range magnification range from 10X-280X on 28” monitor.
