Description

Features

Applications for visual defect detection

For laboratory and industrial electronics applications

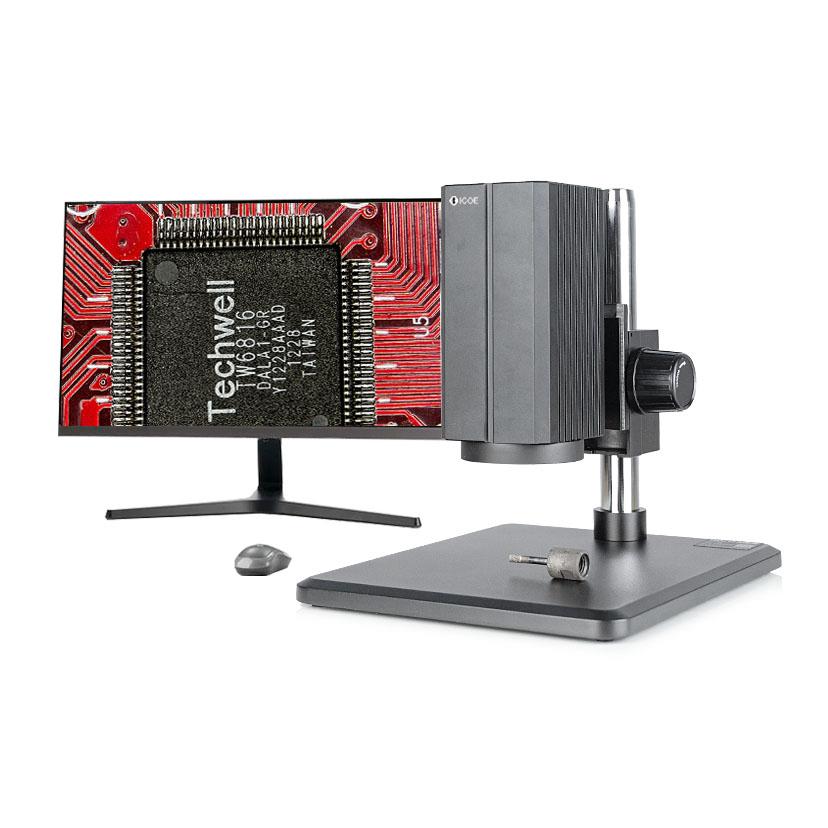

Provides improved detection efficiency and operating comfort, integrating preview and processing functions. Simply place the sample on the workbench for detection, reducing manual operation and providing clear images. From now on, you can focus solely on the inspection task.

1080P High-Definition Image Output

1). Low color distortion, true color reproduction

Outputs 1920x1080P Full HD images, equipped with a Sony image sensor, providing high sensitivity and high-quality images. The core image processing observes various defects such as bumps and imperfections. Details are more than three times better than ordinary chips.

2). High-definition image quality, no motion blur

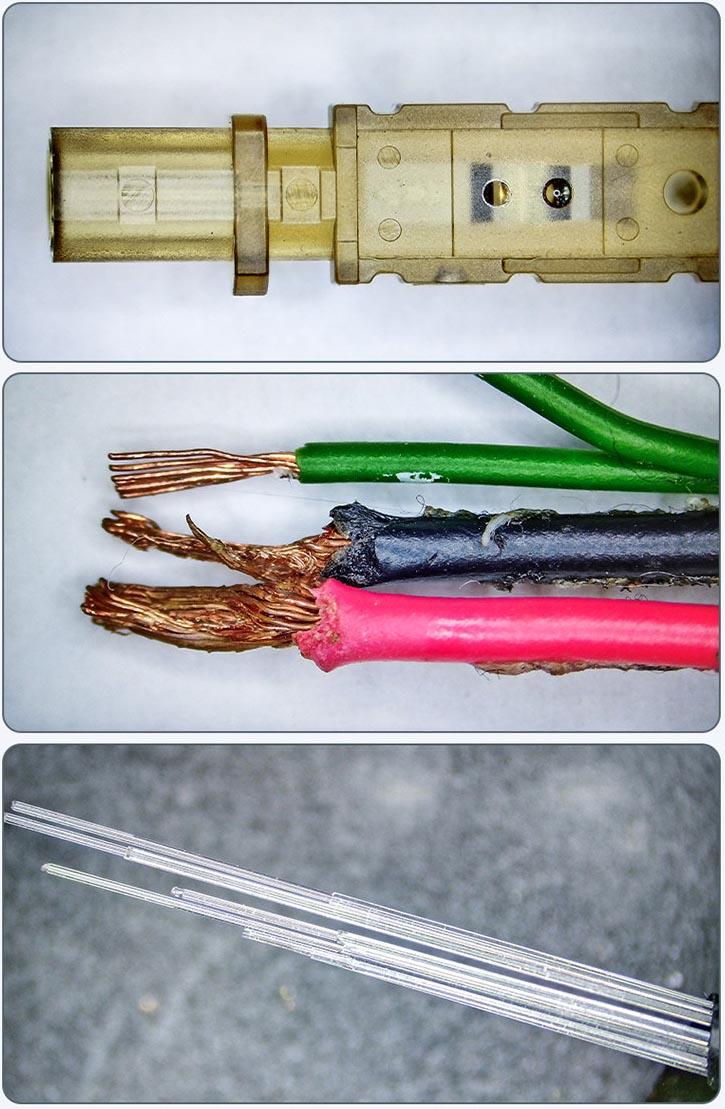

Microscopic details are fully displayed, with no motion blur or ghosting, providing a comfortable viewing experience.

Dual-purpose device

1). Can be connected to a monitor independently:

Connect to a monitor to perform real-time measurements using the built-in measurement software. Supports video recording and photo taking.

2). Can be connected to a computer for precise measurement:

Can also be connected to a computer to perform real-time measurements using measurement software. perform more functions.

Autofocus & Electric zoom

Real-time display of current magnification

The camera has a built-in motor, allowing users to zoom and focus simply by moving the mouse. This enables quick magnification of areas of interest, presenting detailed defects with higher magnification and resolution. Continuous autofocus ensures the sample remains in focus at all times.

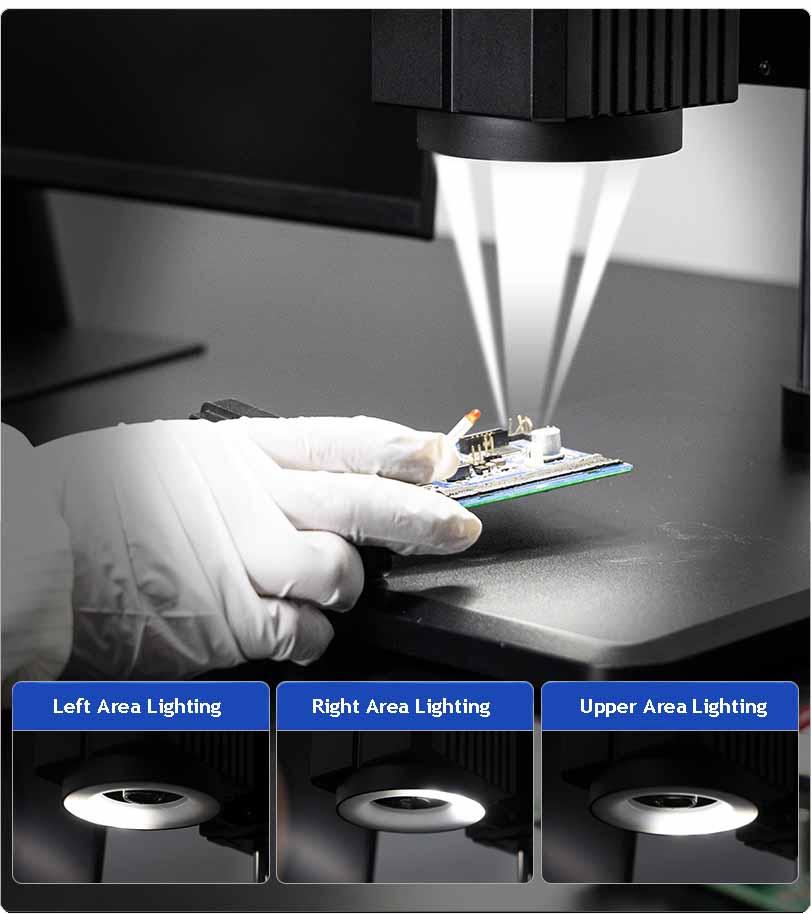

Multi-angle stereo illumination

Enhanced contrast, revealing details

By illuminating the surface from different directions, it creates an angled stereo view, used to detect subtle scratches, bumps, surface printing, and other details that are difficult to see. A ​​built-in control panel allows for independent control of the brightness of different areas.

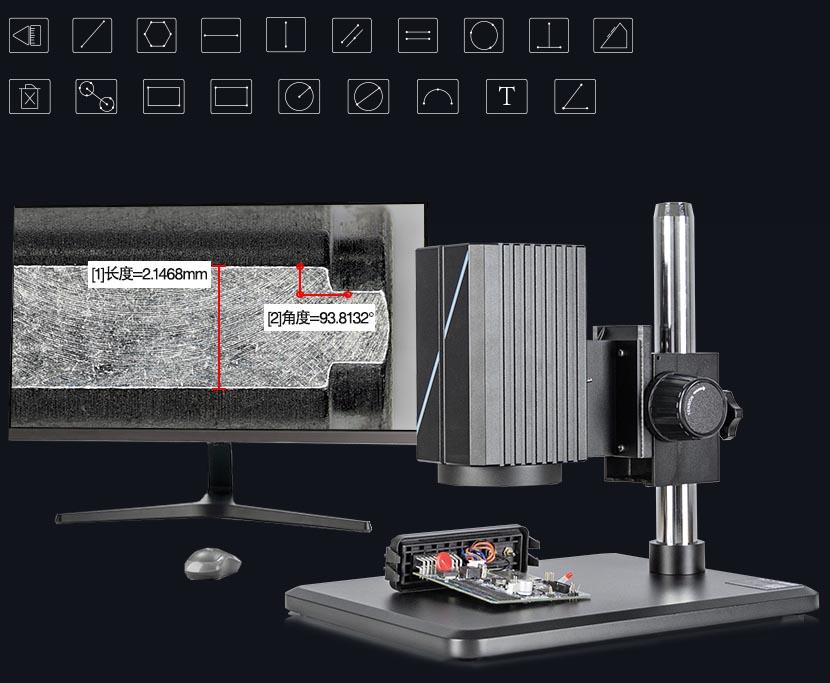

Calibration-free data measurement

18 sets of extendable measurement tools

18 sets of professional measurement tools, no computer required, calibration-free data, measure anytime, anywhere using the software displayed on the screen, measure multiple sample features in real-time images and save the results along with the image. Data acquisition is just a click away.

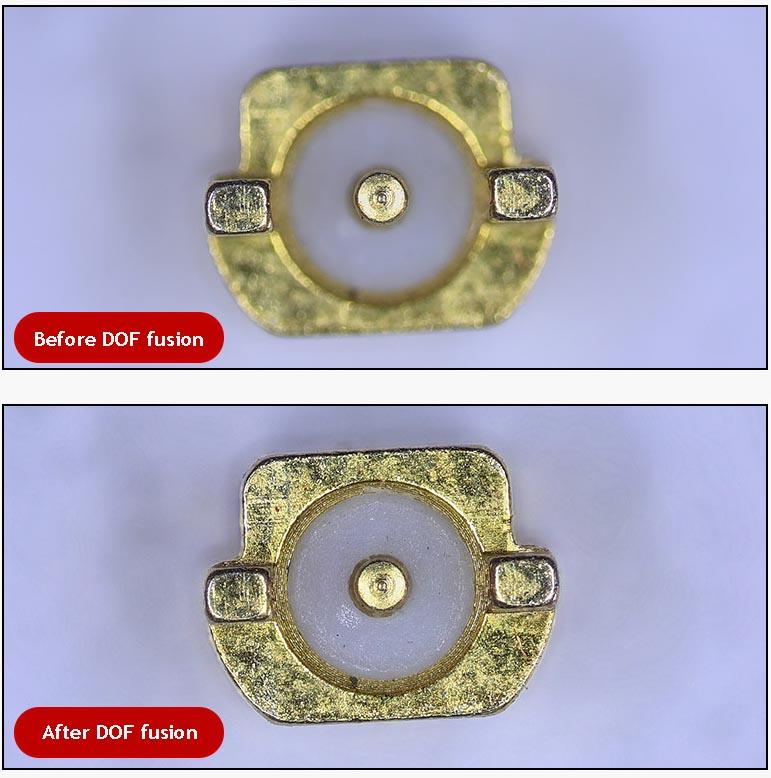

Depth of field fusion

The software is with new depth of field fusion function

Images with varying depths of field can be combined into a single sharp image.

Manual 3D Viewer are optional

360-degree 2D/3D inspection, when select manual 3D viewer, microscope viewing achieves 360-degree flexible control.

Model & Specifications

Inquiry Us
