Description
Features
1. ZX67 series stereo zoom microscope feature with its excellent optical characteristics, easy operation and high level of ergonomic working comfort
2. The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
3. The high-quality optics, together with a large working surface offers the highest level of comfort for your applications
4. As standard this microscope offers you continuous total magnification of 7,5×–50×
5. As standard, the ZX67 series is provided as a binocular & trinocular version with 10× eyepieces with a field of view with a diameter of 23 mm
6. HS2 stand gives you a large working area as well as a precise adjustment mechanism
7. A large selection of eyepieces as well as auxi-liary objectives are available as accessories
Extral Features for ZX67X Series
1. The highlight of the ZX67X is the strong, continuoulsy dimmable, integrated LED ring illumination in the objective housing, which ensures uniform, shadow-free illumination An LED transmitted light variant is also included
2. With its built-in, top-quality optics and powerful, integrated LED ring illumination unit, this model is a special all-rounder for all areas of application
Application
In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control
Applications/Samples: Samples with focus on three-dimesnional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components
Models & Specifications
|

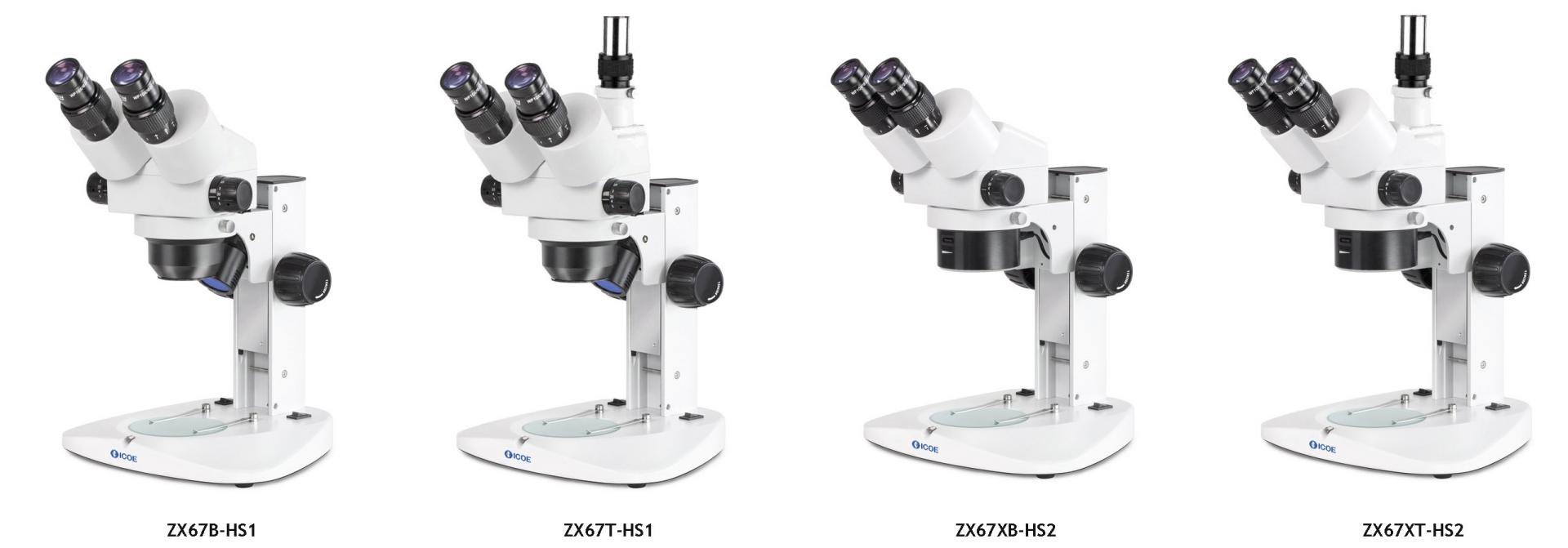

Model |

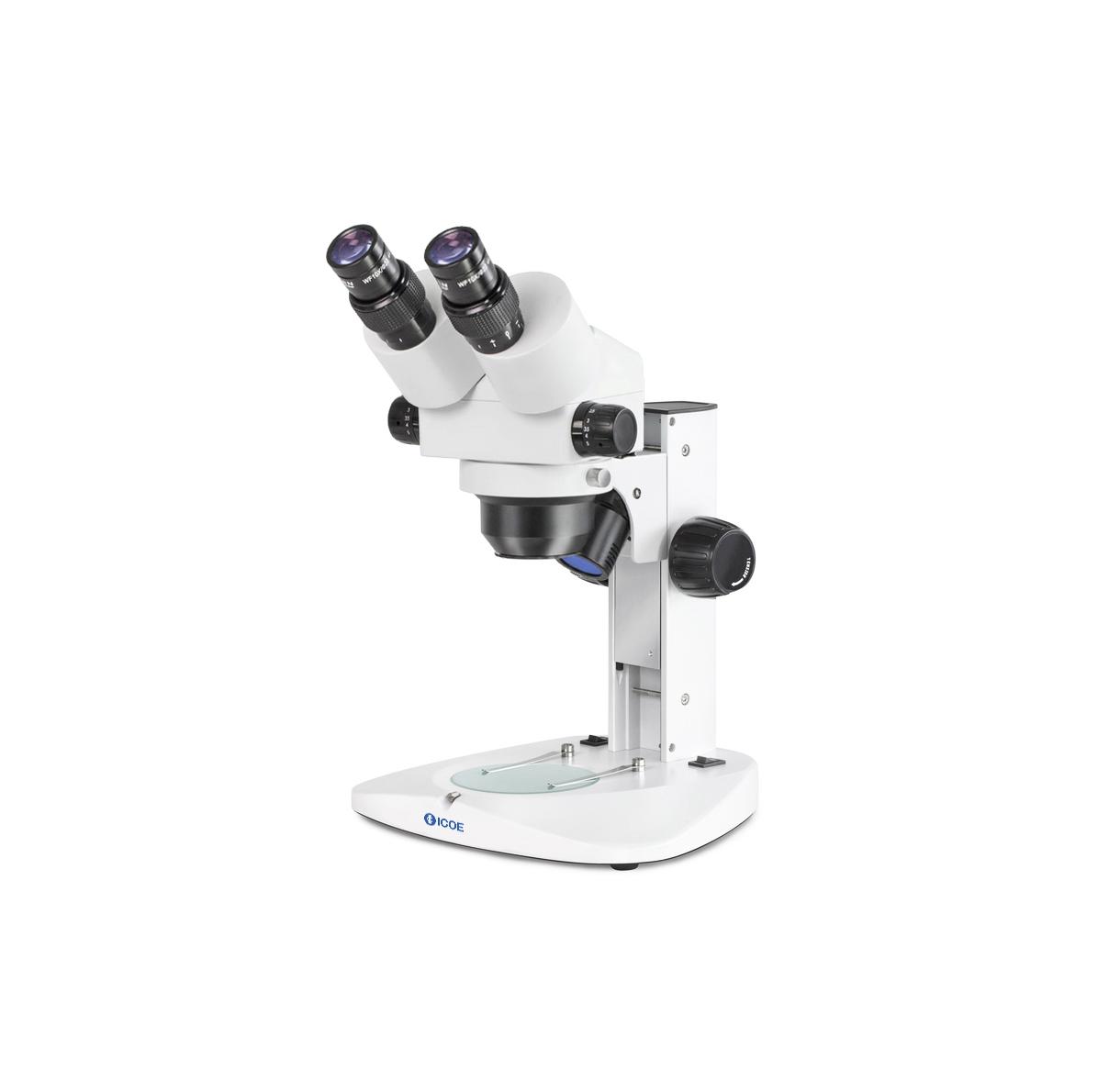

ZX67B-HS1 |
ZX67T-HS1 | ZX67XB-HS2 |
ZX67XT-HS2 |
|
| Optical system | Greenough type optical system | ● | ● | ● | ● |
| Viewing head with
zoom body |
Binocular heads, 360° rotating and 45° inclined, with diopter adjustment for both side ±5, interpupillary distance adjustable between 55 and 75 mm, continuous zoom objective range: 0.75x – 5x, zoom ratio 6.7:1. Working distance: 113mm. | ● | |||
| Trinocular heads, 360° rotating and 45° inclined, with diopter adjustment for both side ±5, interpupillary distance adjustable between 55 and 75 mm, continuous zoom objective range: 0.75x – 5x, zoom ratio 6.7:1. Working distance: 113mm. | ● | ||||
| Binocular heads, 360° rotating and 45° inclined, with diopter adjustment for both side ±5, interpupillary distance adjustable between 55 and 75 mm, continuous zoom objective range: 0.75x – 5x, zoom ratio 6.7:1. Working distance: 113mm. Integrated LED ring illumination unit | ● | ||||
| Trinocular heads, 360° rotating and 45° inclined, with diopter adjustment for both side ±5, interpupillary distance adjustable between 55 and 75 mm, continuous zoom objective range: 0.75x – 5x, zoom ratio 6.7:1. Working distance: 113mm. Integrated LED ring illumination unit | ● | ||||
| Eyepiece | WF10x/23mm | ●● | ●● | ●● | ●● |
| WF15x/16mm | ○○ | ○○ | ○○ | ○○ | |
| WF20x/12mm | ○○ | ○○ | ○○ | ○○ | |
| WF25x/9mm | ○○ | ○○ | ○○ | ○○ | |
| WF30x/8mm | ○○ | ○○ | ○○ | ○○ | |
| Crosshair for eyepiece | ○○ | ○○ | ○○ | ○○ | |
| Micrometer scale for eyepiece | ○○ | ○○ | ○○ | ○○ | |
| Pair of eyecups | ○○ | ○○ | ○○ | ○○ | |
| Auiliary objective | Auxiliary lens 0.5x, WD 177mm | ○ | ○ | ○ | ○ |
| Auxiliary lens 0.75x, WD 117mm | ○ | ○ | ○ | ○ | |
| Auxiliary lens 1.5x; WD 47mm | ○ | ○ | ○ | ○ | |
| Auxiliary lens 2x; WD 30mm | ○ | ○ | ○ | ○ | |
| Protection glass | ○ | ○ | ○ | ○ | |
| Magnification | Standard magnification: 7.5x-50x (can be extended to 3.75x-300x by selecting eyepieces & auxiliary lens) | ● | ● | ● | ● |
| Camera adapter | C mount adapter with 0.5x lens, for trinocular port | ○ | ○ | ○ | ○ |
| C mount adapter with 1x lens, for trinocular port | ○ | ○ | ○ | ○ | |
| Universal SLR camera adapter with 2x projection lens for 23.2 mm tubes. Needs T2 adapter | ○ | ○ | ○ | ○ | |
| T2 adapter for Nikon D digital SLR cameras | ○ | ○ | ○ | ○ | |
| T2 adapter for Canon EOS digital SLR cameras | ○ | ○ | ○ | ○ | |
| Stand | HS1 stand, base size 320×275x35mm, with insert plate and Φ95mm black/white board & glass plate, arm height: 300mm, head support: Φ76mm, with coarse focusing knob on both side, focus stroke: 105mm; with upper and lower LED lighting with 3W, independent switch, adjustable brightness; voltage range: 100-240V | ● | ● | ○ | ○ |
| HS2 stand, base size 320×275x35mm, with insert plate and Φ95mm black/white board & glass plate, arm height: 300mm, head support: Φ76mm, with coarse focusing knob on both side, focus stroke: 105mm; with 3W transmitted LED lighting and power supply for inclident/ring lighting, independent switch, adjustable brightness; voltage range: 100-240V | ○ | ○ | ● | ● | |
| BS1 universal single-arm stand, without illumination, capable to expand the operating range and observe objects in any direction, vertical pole height: 380mm, diameter: Φ32mm, horizontal movement: 235mm, base: 230x230x40mm, compatible with A1/A6/A7 head holder (adjust distance is customizable)
compatible with A1/A6/A7 head holder |
○ | ○ | ○ | ○ | |
| BS2 universal double-arm stand, without illumination, capable to expand the operating range and observe objects in any direction, vertical pole height: 380mm, diameter: Φ32mm, horizontal movement: 235mm, base: 210x260x50mm, compatible with A1/A6/A7 head holder (adjust distance is customizable) | ○ | ○ | ○ | ○ | |
| AC2 articulated arms with adjustable tilt, swivel and rotating functions, capable to expand the operating range and observe objects in any direction, vertical pole height: 400mm, horizontal distance: 770mm, column diameter: Φ25mm, column height: 275mm, base: 98x80x116mm, with desktop clamp for mounting on max. 50mm tabletops, compatible with A3 head holder | ○ | ○ | ○ | ○ | |
| Other types of stands available (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
| Options
|
External illumiantion (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ |
| Darkfield attachment (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
| Polarization kit (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
| Movement stage (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
| Heating stage (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
Note: ● = Included with delivery ○=Option
