Description
Models & Specifications

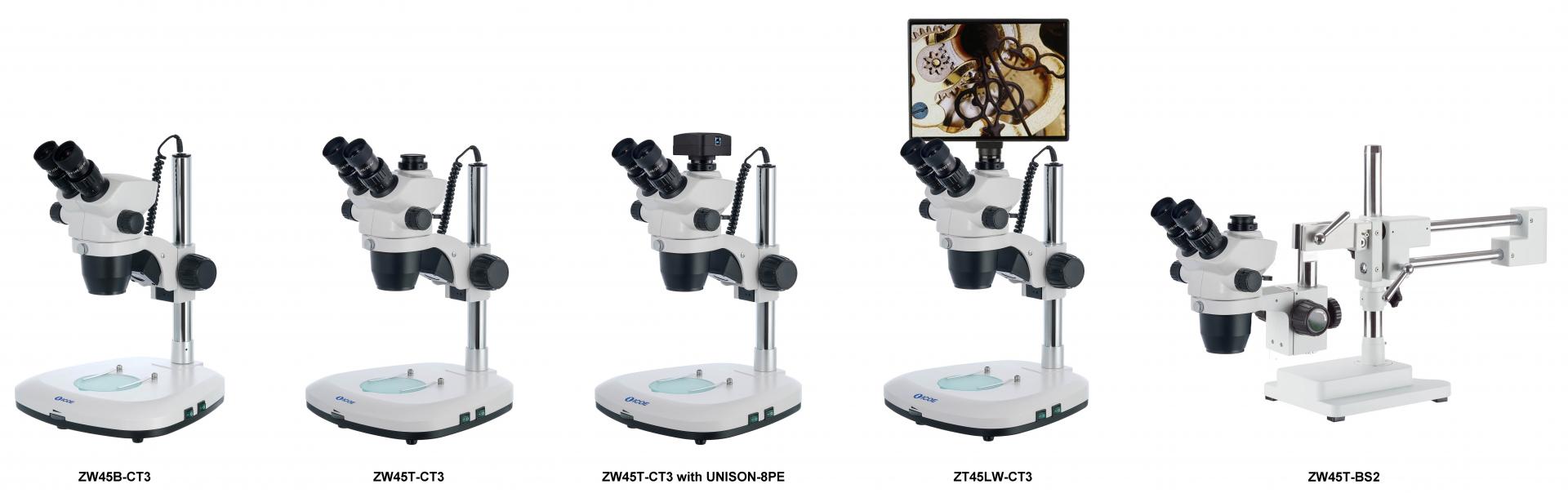

| Model | ZW45B-CT3 | ZW45T-CT3 | ZW45LW-CT3 | ZW45T-BS2 | |
| Optical system: | Greenough type optical system | ● | ● | ● | ● |
| Viewing Head: | Binocular heads, 360° rotating and 45° inclined, with diopter adjustment for both side ±5 | ● | |||
| Trinocular heads, 360° rotating and 45° inclined, with diopter adjustment for both side ±5 | ● | ● | ● | ||
| Interpupillary distance: | Adjustable between 50 and 75 mm | ● | ● | ● | ● |
| Eyepiece: | Wide field eyepieces WF10x/22mm | ●● | ●● | ●● | ●● |
| Wide field eyepieces WF10x/23mm | ○○ | ○○ | ○○ | ○○ | |
| WF15x/16mm | ○○ | ○○ | ○○ | ○○ | |
| WF20x/12mm | ○○ | ○○ | ○○ | ○○ | |
| WF25x/9mm | ○○ | ○○ | ○○ | ○○ | |
| WF30x/8mm | ○○ | ○○ | ○○ | ○○ | |
| Crosshair for eyepiece | ○○ | ○○ | ○○ | ○○ | |
| Micrometer scale for eyepiece | ○○ | ○○ | ○○ | ○○ | |
| Eyecups | ○○ | ○○ | ○○ | ○○ | |
| Zoom objective: | Continuous zoom 0.7x – 4.5x. Working distance: 120mm | ● | ● | ● | ● |
| Zoom ratio: | 6.4:1 | ● | ● | ● | ● |
| Magnification: | Standard magnification: 7x-45x (based on 10x eyepiece), it can be extended to 2.1x-270x (based on eyepiece magnifications & auxiliary lens) | ● | ● | ● | ● |
| Auxiliary lens: | 0.3x auxiliary lens, WD: 287mm | ○ | ○ | ○ | ○ |
| 0.5x auxiliary lens, WD: 165mm | ○ | ○ | ○ | ○ | |
| 0.7x auxiliary lens, WD: 120mm | ○ | ○ | ○ | ○ | |
| 0.75x auxiliary lens, WD: 117mm | ○ | ○ | ○ | ○ | |
| 1.5x auxiliary lens, WD: 45mm | ○ | ○ | ○ | ○ | |
| 2x auxiliary lens, WD: 30mm | ○ | ○ | ○ | ○ | |
| Focusing: | Rack and opinion controlled by a pair of knobs placed on both sides of the stand | ● | ● | ● | ● |
| Illumimation: | Double adjustable illuminator for incident and transmitted light fitted with two high-efficiency 3W LED light sources, brightness adjustable | ● | ● | ● | / |
| Stand & stage base: | CT3 stand, base size 250x285x40mm, with Φ95mm black/white board & glass plate, vertical pole height: 300mm, head support: Φ76mm, with coarse focusing knob on both side, focus stroke: 100mm; with upper and lower LED lighting with 3W, independent switch, adjustable brightness; voltage range: 100-240V | ● | ● | ● | |
| CT4 stand, base size 2550×285x40mm, with Φ95mm black/white board & glass plate, vertical pole height: 300mm, head support: Φ76mm, with coarse focusing knob on both side, focus stroke: 105mm; with upper and lower LED lighting with 3W, independent switch, adjustable brightness; voltage range: 100-240V | |||||
| BS1 universal single-arm stand, without illumination, capable to expand the operating range and observe objects in any direction, vertical pole height: 380mm, diameter: Φ32mm, horizontal movement: 235mm, base: 230x230x40mm, compatible with A1/A6/A7 head holder (adjust distance is customizable) | |||||
| BS2 universal double-arm stand, without illumination, capable to expand the operating range and observe objects in any direction, vertical pole height: 380mm, diameter: Φ32mm, horizontal movement: 235mm, base: 210x260x50mm, compatible with A1/A6/A7 head holder (adjust distance is customizable) | ● | ||||
| AC2 articulated arms with adjustable tilt, swivel and rotating functions, capable to expand the operating range and observe objects in any direction, vertical pole height: 400mm, horizontal distance: 770mm, column diameter: Φ25mm, column height: 275mm, base: 98x80x116mm, with desktop clamp for mounting on max. 50mm tabletops, compatible with A3 head holder | |||||
| Other types of stands available (please refer to the appendix page, stereomicroscope accessories) | |||||
| Camera adapter: | C mount adapter with 0.5x lens, for trinocular port | ○ | ● | ○ | |
| C mount adapter with 1x lens, for trinocular port | ○ | ○ | ○ | ||
| Universal SLR camera adapter with 2x projection lens for 23.2 mm tubes. Needs T2 adapter | ○ | ○ | ○ | ||
| T2 adapter for Nikon D digital SLR cameras | ○ | ○ | ○ | ||
| T2 adapter for Canon EOS digital SLR cameras | ○ | ○ | ○ | ||
| Options: | LED Ring illumination (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ |
| External illumiantion (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
| Darkfield attachment (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
| Polarization kit (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
| Movement stage (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
| Heating stage (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | |
| Digital device: | UNISON-8PE (UNISON-8PB upgraded model) color CMOS digital camera, 8.3M/IMX334(C) 1/1.8″(7.68×4.32); Pixel size: 2.0×2.0um; FPS/Resolution: 45@3840×2160, 70@1920×1080; Automatic exposure control; Image Analysis System: Image capture and processing software for advanced imaging in life science and clinical applications. Software in Russian and English | ||||
| DP1-Pro digital tablet, 10.5″ LCD touch screen with integrated display camera, with IMX307, 1/2″ sensor, 2.0×2.0um, 8MP 4K, CMOS chip, 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, built-in with S-EYE image software | ● | ||||
