Description

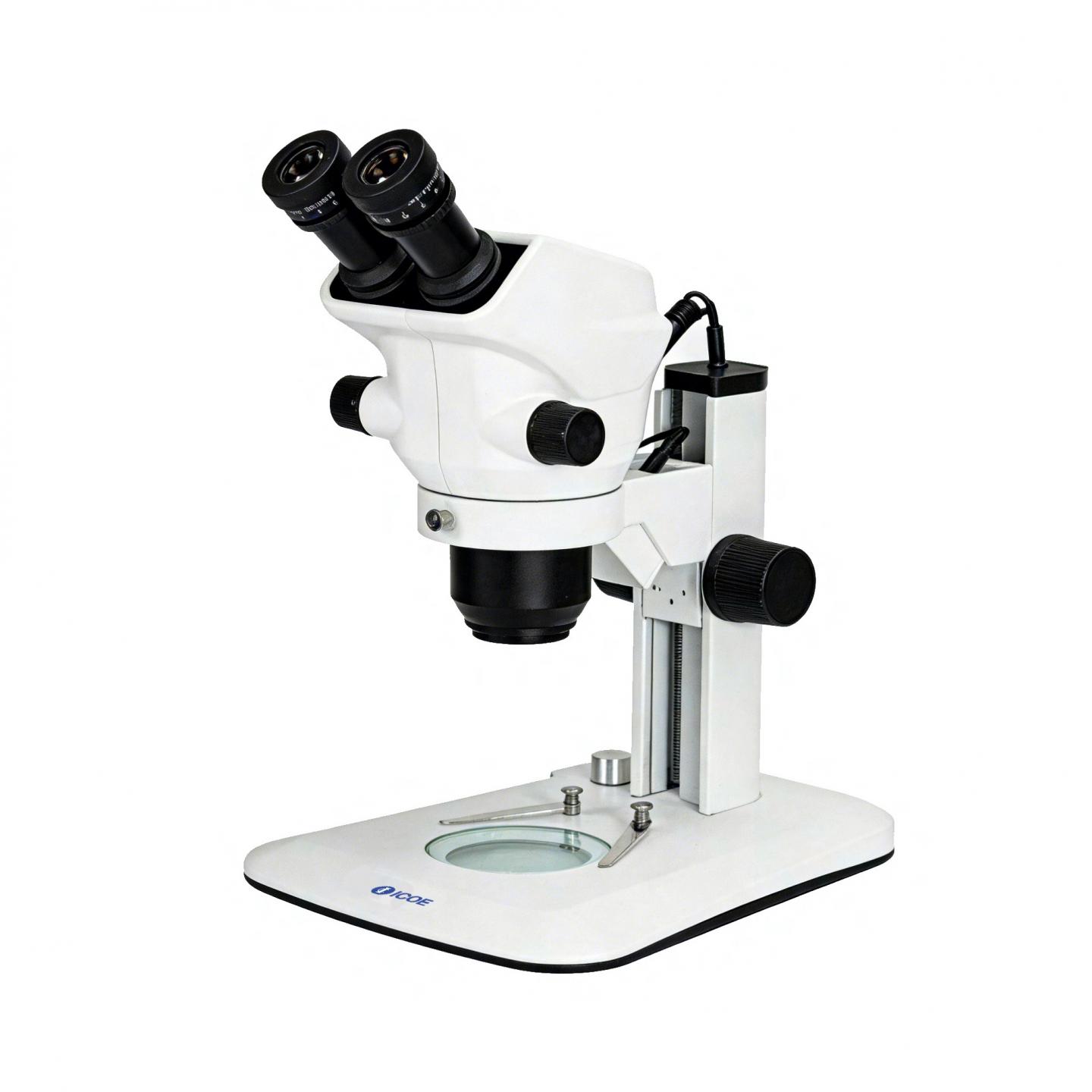

ZW110 is a high-performance continuous zoom stereo microscope with wide zoom ratio (11:1) and long working distance (110mm) designed with Greenough optical system. It is the perfect choice for both low-magnification (0.6X) macroscopic observation and close-up observation with a clear high-magnification (6.6X) field of view.
The products can provide customized product packages equipped with LED lighting and digital cameras according to different requirements of scientific research, experiment, teaching or industrial inspection.
Performance Characteristics
- High resolution and clarity, capable of clearly displaying sample details and features;
- Utilizes non-contact optical detection methods to better preserve the integrity of samples;
- Excellent visualization for easier observation and inspection;
- Enables image processing and analysis, providing more reliable data support for research and applications;
- Widely applicable in research fields such as biology, materials science, medicine, and environmental science.
Technical Specifications
| Model | ZW110B-GR2 | ZW110T-GR2 | |
| Optical System: | Greenough zoom optical system | • | • |
| Observation Tube: | 45° Inclined binocular viewing tube, Interpupillary distance adjustment 55-75mm | • | |
| 45° Inclined trinocular viewing tube, Interpupillary distance adjustment 55-75mm | • | ||
| Eyepiece: | High eyepoint WF10X/Φ23mm | •• | •• |
| WF15X/Φ16mm | ○○ | ○○ | |
| WF20X/Φ12mm | ○○ | ○○ | |
| WF25X/Φ9mm | ○○ | ○○ | |
| WF30X/Φ8mm | ○○ | ○○ | |
| Objective Lens: | 0.6-6.6X Continuous zoom objective | • | • |
| Zoom Ratio: | 11:1 | • | • |
| Magnification: | Total magnification up to 6X-66X (Based on 10x eyepieces & standard objective, can be extended to 3X-396X when using optional eyepieces and auxiliary lenses) | • | • |
| Resolution: | 167lp/mm | • | • |
| Working Distance: | 110 mm | • | • |
| Auxiliary lenses: | 0.5X, Magnification 3.0-33X, Working distance 211mm | ○ | ○ |
| 0.7X, Magnification 4.2-46.2X, Working distance 129mm | ○ | ○ | |
| 1.5X, Magnification 9.0-99X, Working distance 52mm | ○ | ○ | |
| 2 X, Magnification 12-132X, Working distance 36mm | ○ | ○ | |
| Illumimation: | 5W LED Incident & transmitted illumination, light intensity adjustable independently | • | • |
| Stand: | GR2 Ergo Stand with dual LED light for transmitted and inclident illuminations, light intensity control independently, with 2 clips for holding specimen, 360mm height of post, Coaxial coarse fcousing adjustment (fine focusing is optional), ∅100mm glass plate, microscope base dimensions 300×344 mm, with anti-vibration feet. Choice of black or white background | • | • |
| C mount: | 0.5x / 1x C mount adapter | ○ | |
| Overall Size: | 380 X 260 X 450mm (WxLxH) | • | • |
