Description

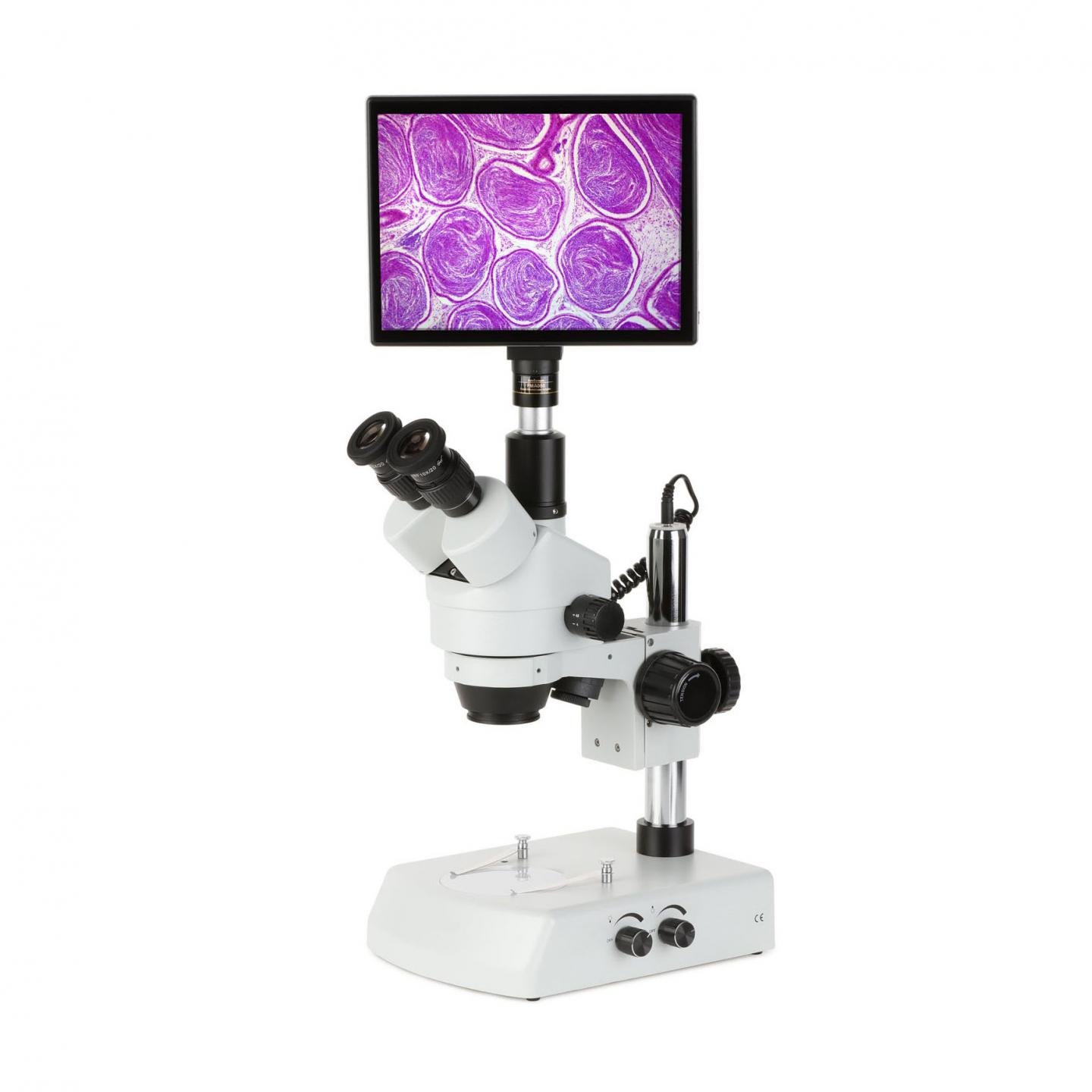

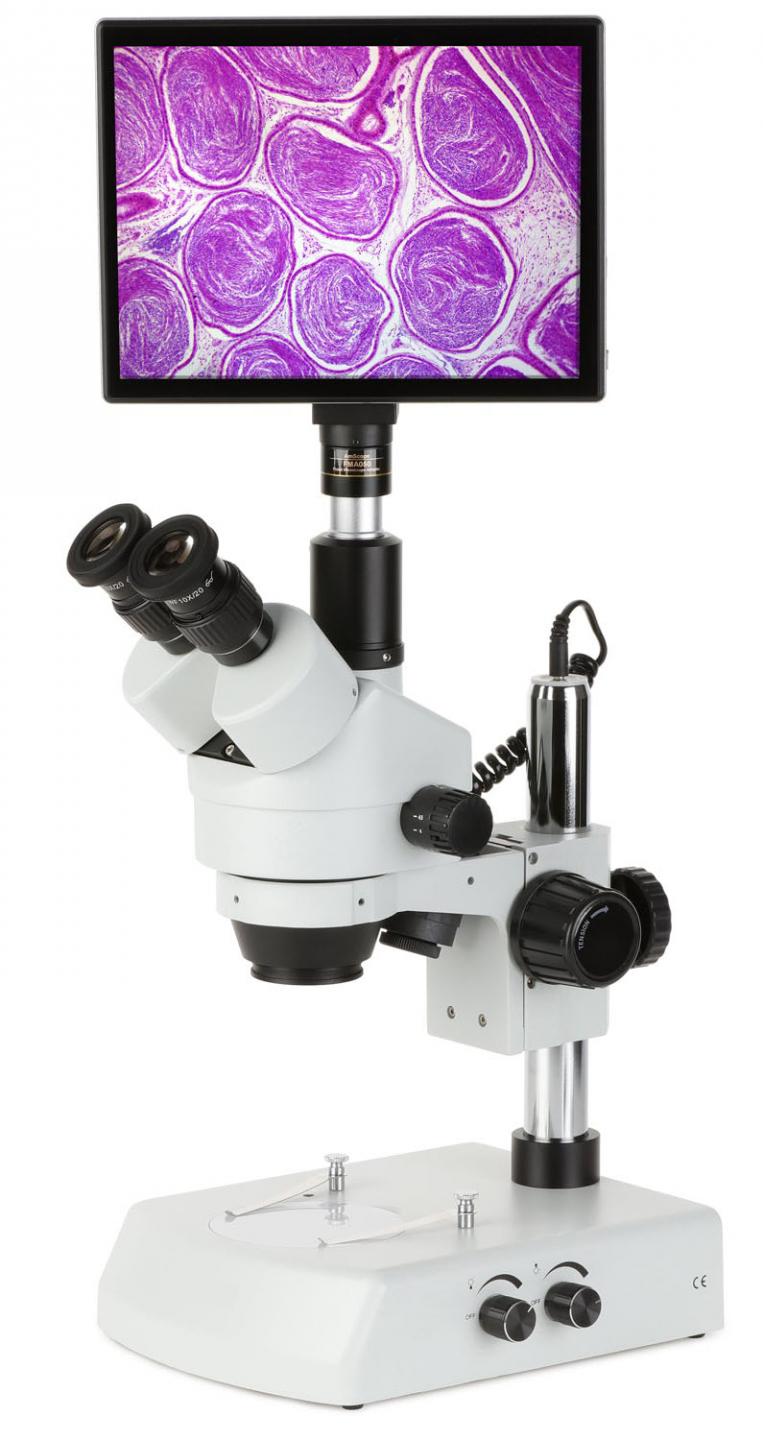

ZT45L-CL3 Digital Stereo Microscope with 9.7 Inch Digital Tablet and 5.1MP Integrated Camera
| Specifications | |
| Optical system: | Greenough type optical system |
| Viewing Head: | Trinocular heads, 360° rotating and 45° inclined, with diopter adjustment for both side ±5, with 0.5x C mount |
| Digital Part: | 9.7″ LCD touch screen with integrated display camera, with 1/2.3″ sensor, 2.2×2.2um, 5.1MP, CMOS chip, with softwareallowing live image transmission to the tablet, as well as creating images and videos for documentation purposes. Functions – measurement, counting, documentation, archiving and image processing; can be connect to the PC, and operating systems: Windows XP, Vista 7,8,10 automatic white balance and contrast adjustment; integrated interface offering: data storage on a USB flash drive or SD card, connection to a USB mouse, live image transfer to an external screen via HDMI or to external receivers via WLAN. Interface: USB 2.0, WiFi standard, HDMI, MicroSD card; |
| Interpupillary distance: | Adjustable between 54 and 76 mm |
| Eyepiece: | A pair of WF10x/20 mm |
| Zoom objective: | Continuous zoom objective range: 0.7x – 4.5x (6.43:1 zoom factor). Working distance: 105mm. |
| Zoom ratio: | 6.43:1 |
| Magnification: | Standard magnification: 7x-45x (can be extended to 2.1x-270x) |
| Focusing: | A1 Rack and opinion controlled by a pair of knobs placed on both sides of the stand |
| Illumimation: | Double adjustable illuminator for incident and transmitted light fitted with two high-efficiency 3W LED light sources, with a 95mm frosted disk for transmitted light & a 95mm black/white disk with clamps; with separate brightness controls |
| Stand & stage base: | CL3 stand, fitted with a transparent disc for transmitted light with specimen clips |
