ZT45D Digital Zoom Stereo Microscope

Home Microscopy Stereo Microscopes Digital Stereo ZT45D Digital Zoom Stereo Microscope

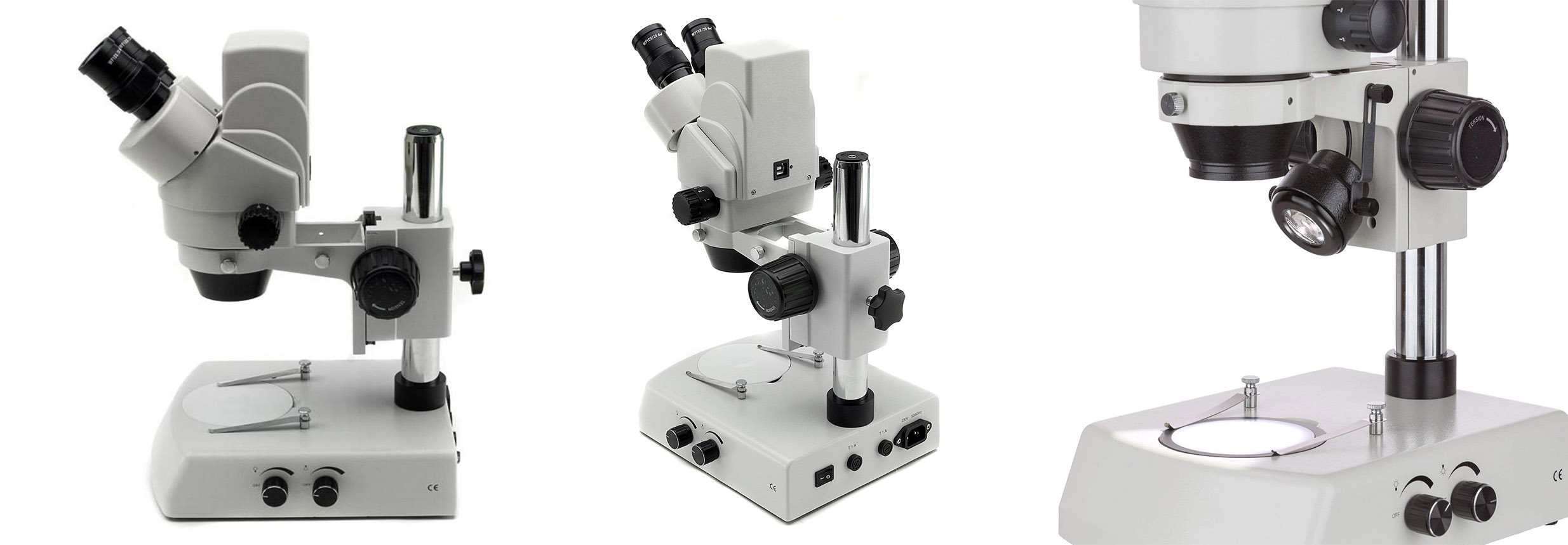

ZT45D Digital Zoom Stereo Microscope

Digital Stereo, Tabletop Digital Microscope2018-11-22n50

Description

Descriptions

The stereomicroscopes of the ZT45 series are instruments specifically designed for laboratory and industry applications. Their optical and mechanical qualities place them at the top of that sought-after category of appliances and the price/quality ratio is exceptionally good.

ZT45D stereo zoom microscope is our best option when an ease of use and a good quality for the image are required. By using the built-in camera with its USB port the connection with the pc will be simple and quick.





Specificztaions

Model: ZT45D

  • • Head: Binocular
  • • Zoom Objectives: 0.7x-4,5x
  • • Stand: Pillar stand
  • • Illumination: Incident and transmitted 12V/15W halogen with separated brightness controls

Technical specifications of the built-in camera

  • • Resolution: 1280 x 1024 pixels (1.3 M pixels)
  • • Sensor: CMOS 1/2”
  • • Pixel Size: 5.2 µm x 5.2 µm
  • • Imaging Area: 6.67 mm x 5.33 mm
  • • Frame Rate at Full Resolution: 7.5 frames/sec (fps)
  • • Frame Rate at Half Resolution: 15 frames/sec (fps)
  • • Optical Format: 1/2”
  • • Aspect Ratio: 5:4
  • • S/N Ratio: max 45 dB
  • • Dynamic Range: 68.2 dB
  • • ADC: 10 bit
  • • Data Output: (Uncompressed Video) 3×8 bit
  • • Exposure Range: 0-70 msec
  • • Sensitivity: 1,0V/Lux-second
  • • C-Mount Lens Adapter: no
  • • System Requirements: Widows 2000 / XP SP2 / Vista / Seven 32bit, USB 2.0
  • • Software: ICOE management, TWAIN interface, several freeware for image elaboration
  • • Capture Features: Continuous auto white balance, continuous auto exposure
  • • Included with the camera: 1.5 m USB cable
