Description

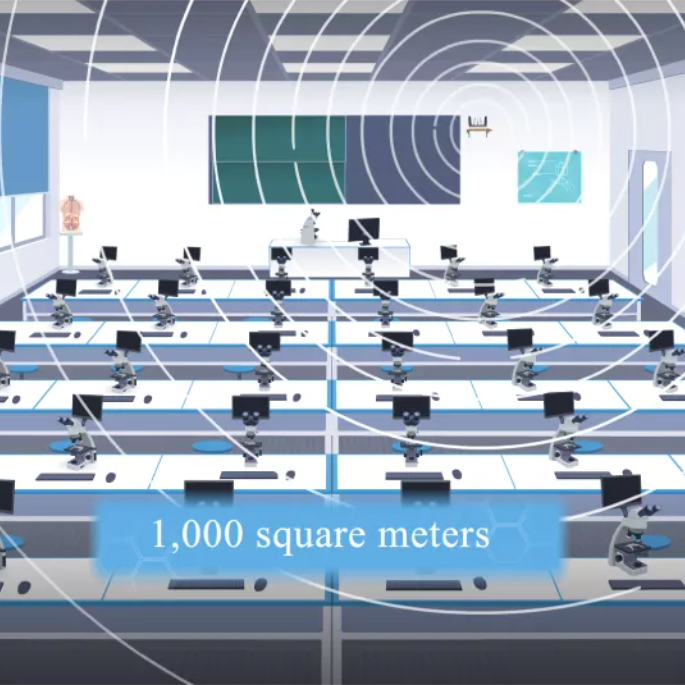

Make Your Microscope Classroom Digital & Wireless

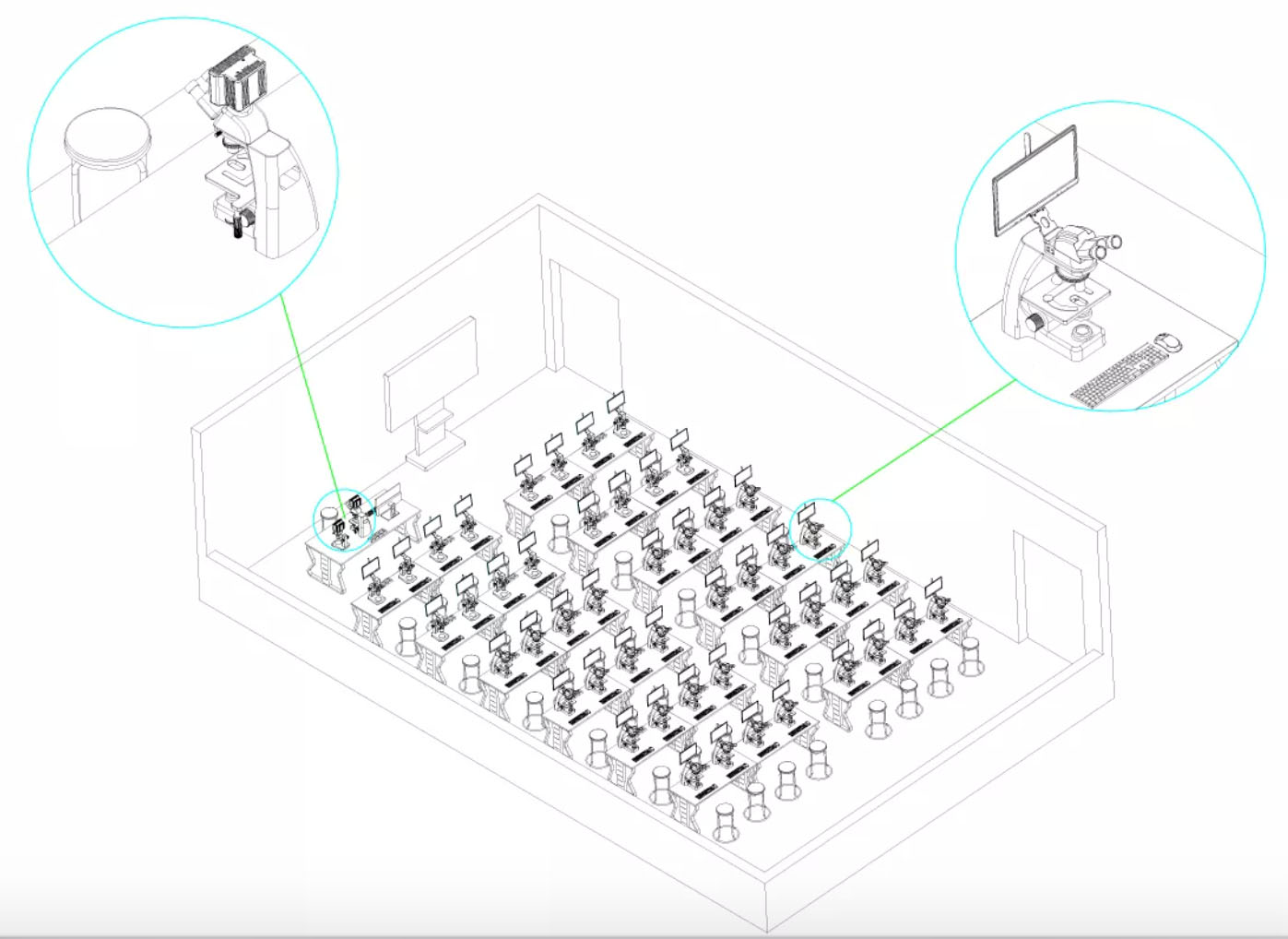

Create a true and stunning wireless microscope classroom and smart laboratory. Easily improve the quality of teaching and reduce the burden of laboratory management. Efficiently realize multi-functional interaction between teaching and learning.
What is “5G WiFi Microscope Interactive System”?
With a specially designed 5G WiFi module, optical microscopes, digital cameras, PCs, smart mobile devices and other devices are cleverly integrated into the digital wireless interactive system, which is for building a wireless microscope classroom or smart laboratory.
Wireless Interaction Enhances Your Teaching Quality
Life Science Education
The wireless microscope classroom system enhances for building smart morphology laboratories integrating anatomy, histology and embryology, and pathology, which helps to provide better morphology experiment teaching services. It is very suitable for basic medical education.
Earth Science Education
The experimental courses of earth science and geological science usually use polarized light microscope and stereo microscope. Through a laboratory equipped with the 5G WiFi microscope interactive system, teachers can quickly and efficiently cultivate students’ ability to observe and identify rock, mineral and fossil specimens.
Materials Science Education
Microscopes are used in materials science and engineering to study the structure and properties of materials. Especially for metallographic subjects, the laboratory with metallurgy microscope and 5G WiFi interactive system can enhance students’ learning of grain analysis, cast iron analysis, non-metallic inclusion level, welding analysis, corrosion analysis and other skills.
Forensic Science Education
Physical evidence technology, tool mark examination, document examination, etc. are the basic courses of criminal investigation and forensic medicine. With the 5G WiFi interactive system equipped in the lab, teachers can effectively train students to master the steps and methods of material evidence photography, examination of handprints and footprints, document inspection and forensic material evidence experiments.
System Advantages
Shorten Distance Between Teacher & Students With Real Wireless Connection
A true wireless microscope teaching system for smart laboratory. Robust wireless coverage up to 1000 square meters without no dead ends. Convenient for laboratory management. Support up to 120 student stations, perfectly realize “1 to 120” super large experimental demonstrations and teaching.
More Than 120 Stations Controlled by Only One Computer
1. Messenger
Instantly communicate with students with text or picture. One-click to collect images from all stations or to assign homework to each stations.
2. Lecturing Mode
The tutor PC screen or the selected screen is streamed to all stations. Lecturing materials or the operating process is displayed on the screen of each station synchronously.
3. Monitor Screen
Realtime monitor all screens of station to ensure all students participate in learning. Without tutor’s permission, student cannot install any App, nor exit the system.
4. Monitor Live Image
Live microscopic images of each station are streamed to the screen of tutor. It can help the tutor check whether students understand the experimental intention correctly.
5. Live Comparison
The tutor’s screen can display two or four images from different sites for analysis and comparison. Including real-time images and captured still images.
6. Take Attendance
Quickly check the boot status and login status of each station. By only one click, the tutor can download the attendance name list of the class.
Wireless Network
The teacher’s interactive workstation combines camera and router into one, automatically creates a 5G WiFi local area net work when it is turned on.
Reliable image quality
1. Unique algorithm guarantees high-speed 30fps at full resolution 4000×3000 through H.264 protocol. Image quality is far more better than MJPEG.
2. Built-in dedicated image firmware for different microscope brands and models, ensuring the camera image properties match and work harmoniously with the microscope’s color temperature and coordinates for true color reproduction.
3. One click access to BF and FL modes according to specimen and usage.
Stable WiFi signal
Thanks to the technology of automatically avoids congested channels, helps users to experience ultra-low latency. The technology allows up to 120 student stations to work together in a single system in a classroom without interfering with each other.
Perfect match of optics and electronics
The camera comes with its own interface, which not only matches our own brand ICOE microscopes, but also matches the dovetail slots of Olympus, Nikon, Leica and Carl Zeiss educational microscopes without damage to optical path.
Epoch-making software
Shorten distance between teacher and students with easy to use, flexible software. Perfectly compatible with Windows, iOS and Android systems, let students truly immerse themselves in the joy of learning.
Collaborative working with third-party software
The interactive system is not only a tool for microscopy observation, but also a hardware platform to run third-party educational software that using CS & BS Architecture or Android APP, achieving achieve cost-effective and saving desk space.
AI auxiliary diagnosis (optional)
With the revolutionary AI Big Data Pathological Diagnosis Auxiliary module (optical), effectively improve students’ practical ability in pathological diagnosis and reduce teaching intensity.

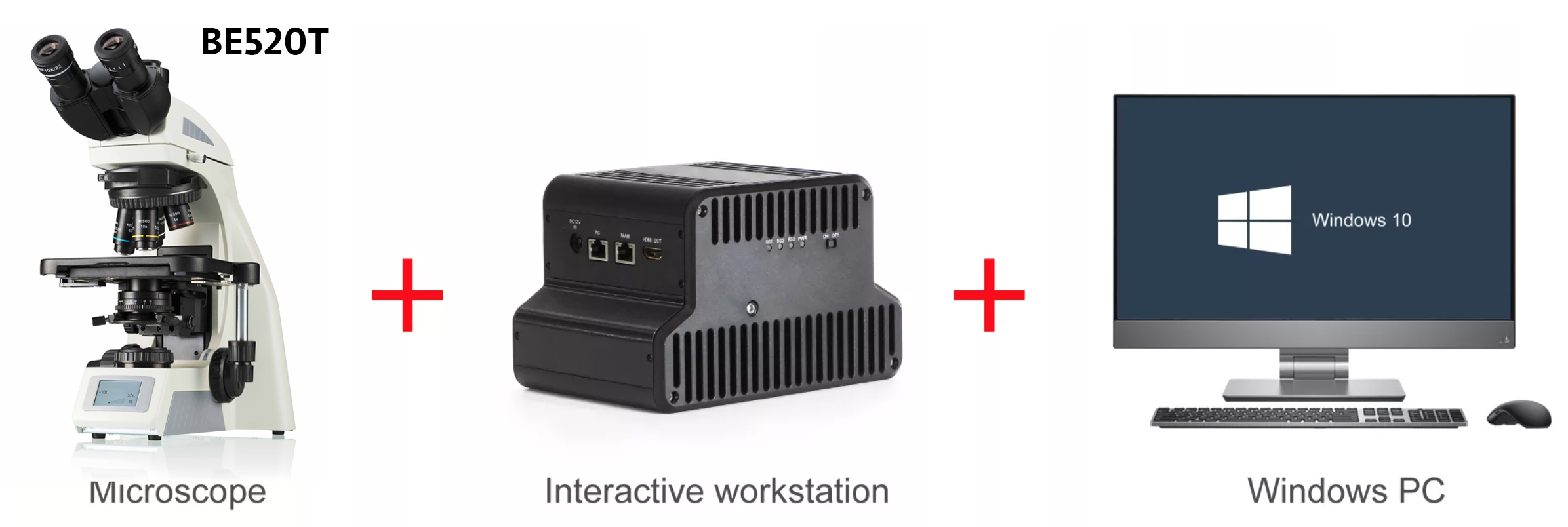

The teacher’s main control end
1. Recommend Microscope Models
Model | BE520T |
Optical System: | NIS60 Infinity Optical System |
Viewing head: | Seidentopf trinocular viewing head, inclined at 30°, interpupillary 47-78mm, splitting ratio of syepiece/camera: 50: 50 |
Nosepiece: | Backward Quintuple Coding Nosepiece, which remembers the illumination brightness when using each objectives. When different objectives are switched between each other, the light intensity is automatically adjusted to reduce visual fatigue and improve work efficiency. |
Eyepiece: | Wide field eyepiece WF10x/22mm, diopter adjustment +/-5, tube diamter: Φ30mm |
Objectives: | NIS60 Infinite Plan Achromatic Objective 4x, NA 0.1, WD: 30mm |
NIS60 Infinite Plan Achromatic Objective 10x, NA 0.25, WD: 17.5mm | |
NIS60 Infinite Plan Achromatic Objective 40x, NA 0.65, WD: 1.5mm | |
NIS60 Infinite Plan Achromatic Objective 100x, NA 1.25, WD: 0.13mm, spring loaded, oil | |
Stage: | Synchronous belt platform stage 235mmx150mm, XY Moving Range 78mmx54mm, Metal clips for glass slides, hard oxidized platform surface |
Focusing: | Low-hand position coarse and fine coaxial focusing mechanism, Coarse Stroke 37.7mm per Rotation, Fine division 0.002mm, Fine Stroke 0.2mm per Rotation, Focal Disatnce 30mm, With adjusting elastic device and upper limit, with platform up and down adjustment mechanism, stage XY graduation step 0.1mm |
Condenser: | Standard Abbe condenser 1.25 NA with slot for darkfield and phase contrast sliders, with objective position scales |
Illumination: | 3W LED module or 6W/30W halogen module lighting, color tempeature and brightnss adjustable. The brightness of the entire field of view is uniform. The color temperature can be adjusted to the lighting effects as LED illumination or halogen illumination according to the user needs. Transmitted and fluorescent lighting button switch; identify and display the band on the LCD screen. |
LCD Screen: | The LCD screen on the front of the microscope displays the use status of the microscope, including magnification, light intensity, standby status, lock etc. |
ECO function: | The ECO function is able to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position for some time (the time can be pre-set as user need) |
Supplied with: | Dust cover, spare fuse, green filter, manual, immersion oil |
Power: | 100-240V, 50/60Hz |
2. Camera for Teacher Microscope
Model (for trinocular type) | TS8 | TS12 | TS20 |
Physical Resolution | 8.3MP | 12MP | 20MP |
Image sensor | Sony IMX334 CMOS | Sony IMX412 CMOS | Sony IMX147 CMOS |
Exposure mode | Rolling exposure | Rolling exposure | Rolling exposure |
Maximum resolution | 3840×2160 | 4000×3000 | 5184×3888 |
Sensor size | 1/1.8″ | 1/2.3″ | 1/2.3″ |
Pixel size | 2.0μm x 2.0μm | 1.55umx1.55u, | 1.2umx1.2um |
Spectral response | 380-650nm | 380-650nm | 380-650nm |
Exposure capability | Real-time automatic, manual adjustment | Real-time automatic, manual adjustment | Real-time automatic, manual adjustment |
White balance | Real-time automatic, manual adjustment | Real-time automatic, manual adjustment | Real-time automatic, manual adjustment |
Preview resolution | 30fps@3840×2160, 30fps@2592×1944 | 30fps@4000×3000, 30fps@3840×2160 | 10fps@5184×3888, 15fps@3840×2160 |
Integrated type power | DC 12V 4A | DC 12V 5A | DC 12V 5A |
Protocol supported | 5G WiFi IEEE802. 10ac | 5G WiFi IEEE802. 11ac | 5G WiFi IEEE802. 11ac |
3. Teacher Computer – Recommended PC Configurations
A computer based on the Windows operating system is an important part of the 5G WIFI interactive system, but it does not require very high configuration. Taking into account the application of microscope imaging, it is usually equipped with a better display for good color reproduction and a good GPU to enhance image processing capabilities and to ensure the smoothness of the system.
Operating System | Microsoft Windows 10 (64 bit) |
---|---|
CPU | i7 8th-generation or later version |
RAM | 200 GB or more |
ROM | 8 GB or more |
Graphics Card | Discrete graphics (NVIDIA GeFore) |
Network Card | 10/100/1000M self-adaptive |
Displayer | 24-inch 1080P FHD |
4. Robust Router and Commander
VM3500 is the signal transmission hub of the 5G WIFI interactive system, supporting multiple max. 120 student stations. It covers a wide range, up to a radius of 1000 meters in an open space. The high-performance low-power processor and Wave2 radio frequency semiconductor chip, sufficient heat flow and heat dissipation design, fast automatic recovery mechanism and industrial-grade built-in power supply ensure the performance and stability of the system under load.
Model | VM3500 |
---|---|
Interface | LAN: 4X 10/100/1000BASE-T Ethernet RJ45 Interface |
Antenna | 9 high-gain single-band antnnas |
Power in | AC100~240V/1.5A max. |
Wireless Protocol | 5G WiFi IEEE802.11ac |
Frequency | 5.180~5.825GHz |
Signal Rate | 2600 Mbps |
Transmission Security | WAP/WAP2, WPA-PSK/ WPA-PSK2 encryption |
WAN Type | Dynamic IP |
Protocol | Support IPV4 and IPV6 |
5. Software for Teacher Station
What Can Teacher Do With The System?
The WiFi teacher EDU software pre-installed on the teacher’s computer uses a highly recognizable UI design, which is easy to use and requires no special training. The software provides 9 powerful modules for communication, monitoring, demonstration, annotation, remote setting, image comparison, homework assignment and taking attendance.With these functions, teachers can realize real interactive teaching and improve teaching quality.
Software Operating Environment Requirements
System | CPU | Hard Disk | Memory | Graphics Card | Network Card |
Microsoft Windows 10 (64 bit) | i7 8th-generation or later version | 512GB or more | 16GB or more | HD Graphics | 10/100/1000M Self-adaptive |
More Software Details

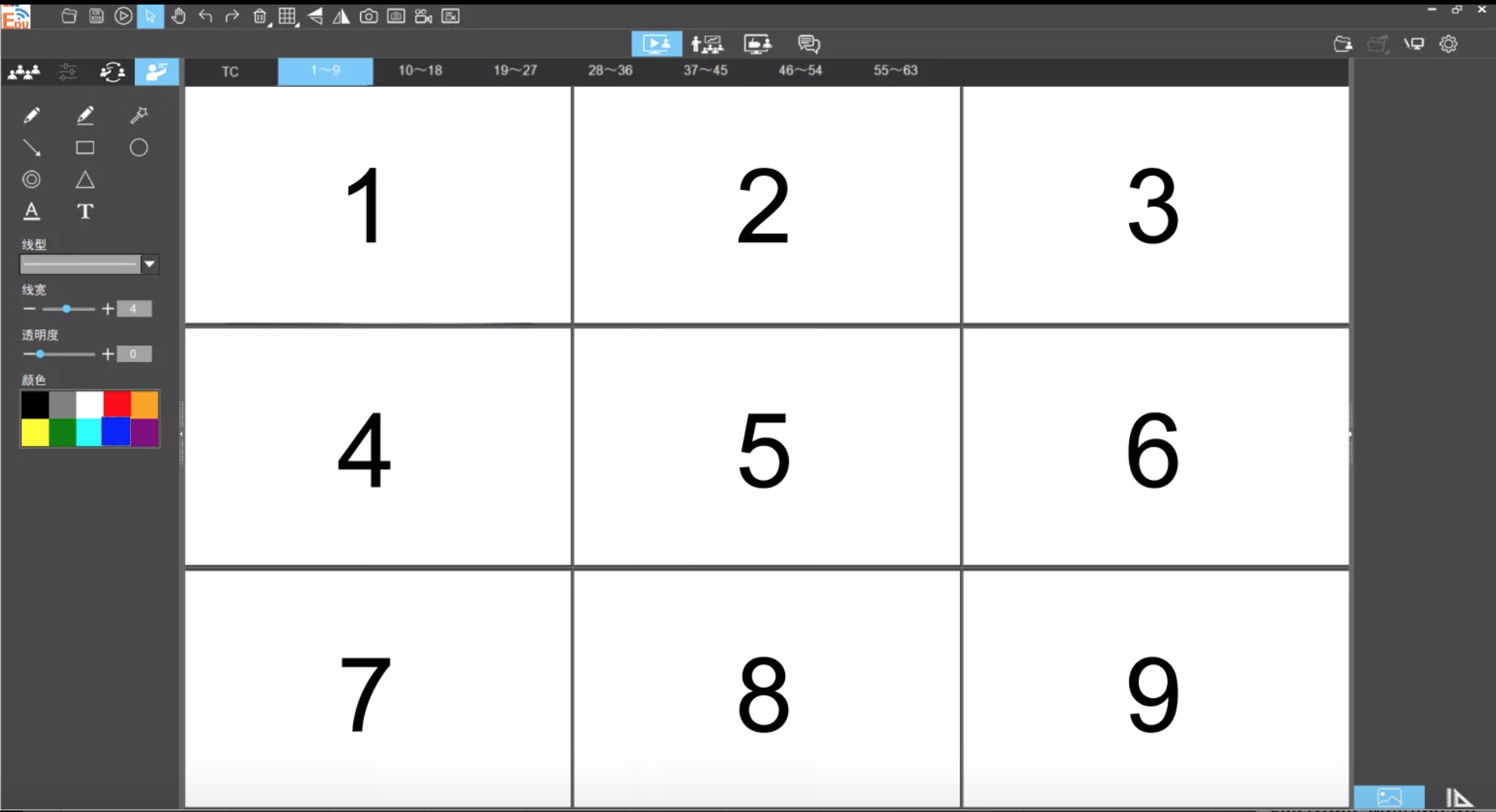

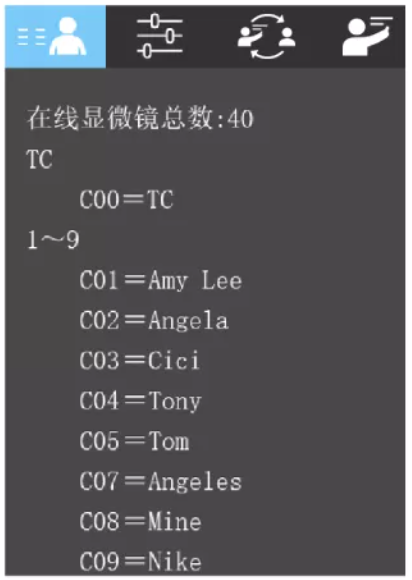

- 1. Monitor Image
- All microscopy images are automatically displayed on the teacher’s PC software, which allows control student images remotely.
- –

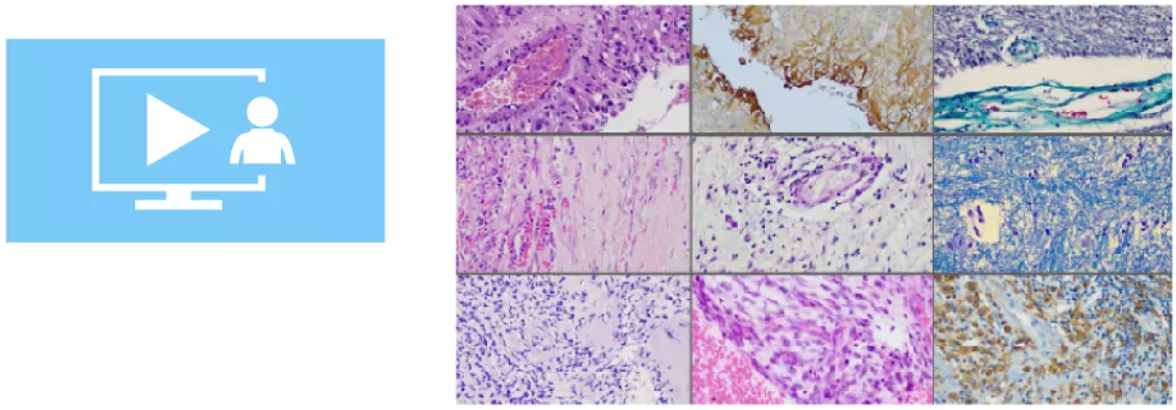

- 2. Lecturing
- The teacher’s PC screen or the selected student smart device screen is streamed to all student smart devices synchronously. Lecture materials in Word/Excel/PPT are displayed on student stations.
- –
- 3. Monitor Screen
- Real time monitor all screens of station to ensure all students participate in learning. Without teacher’s permission, student can not install any APP, nor exit the system.
- –

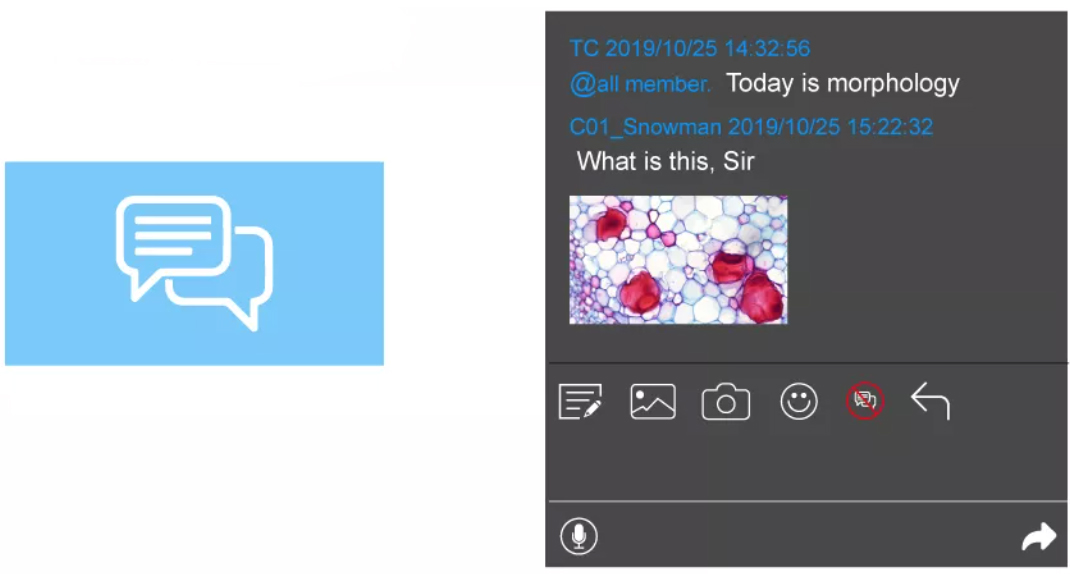

- 4. Messenger
- Instantly communicate with students with text or picture. One-click to collect images from all stations or to assign homework to each station.
- –

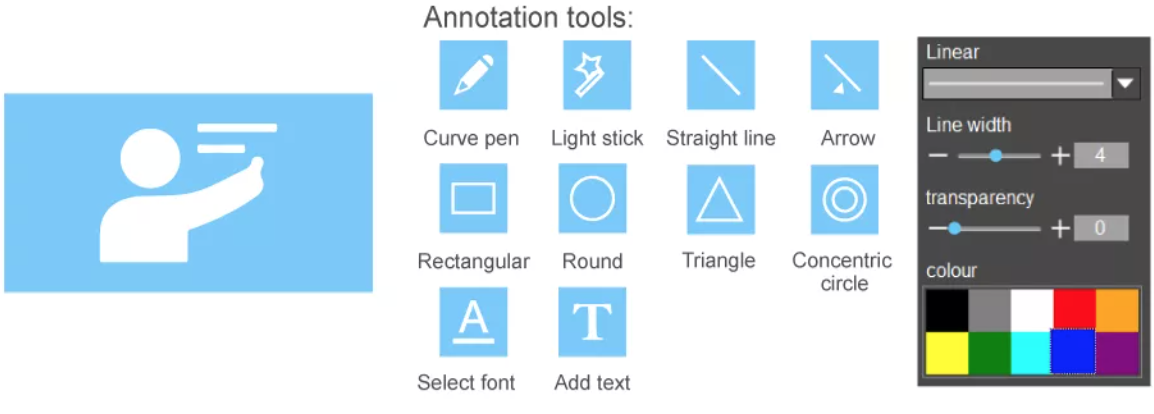

- 5. Annotation
- mark the key areas to remind student.
- –
- 6. Take Attendance
- Quick check the boot status and login status of each station. By only one lick, the teacher can download the attendance name list of the class.
- –
- 7. Electronic Whiteboard
- Comes with desktop annotation tools to mark key points.
- –

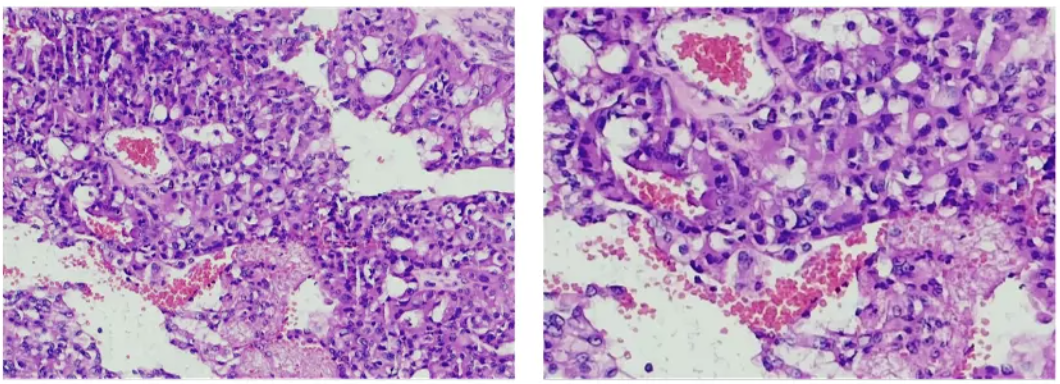

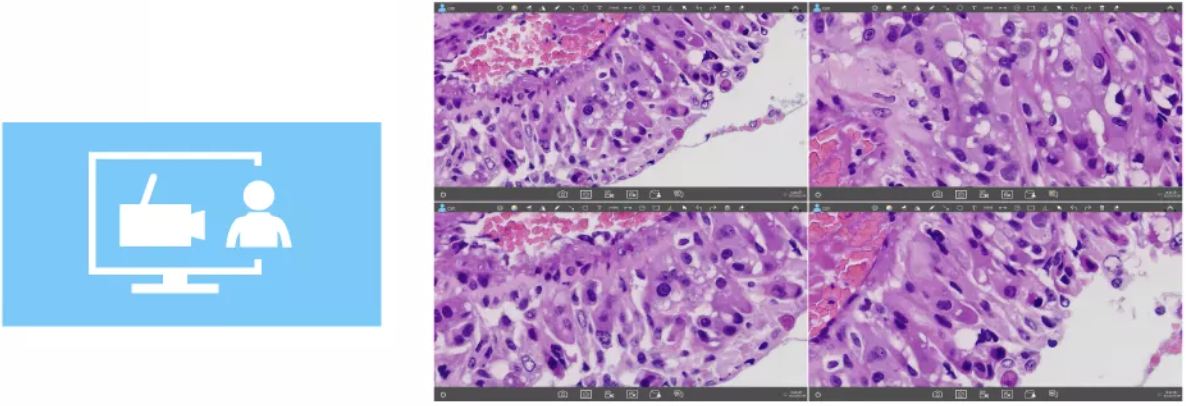

- 8. Image Comparison
- The teacher’s screen can display any two or four student images for analysis and comparison, supporting static image comparison, dynamic image comparison, static and dynamic mixed comparison supporting teacher station and selected student station comparison.
- –

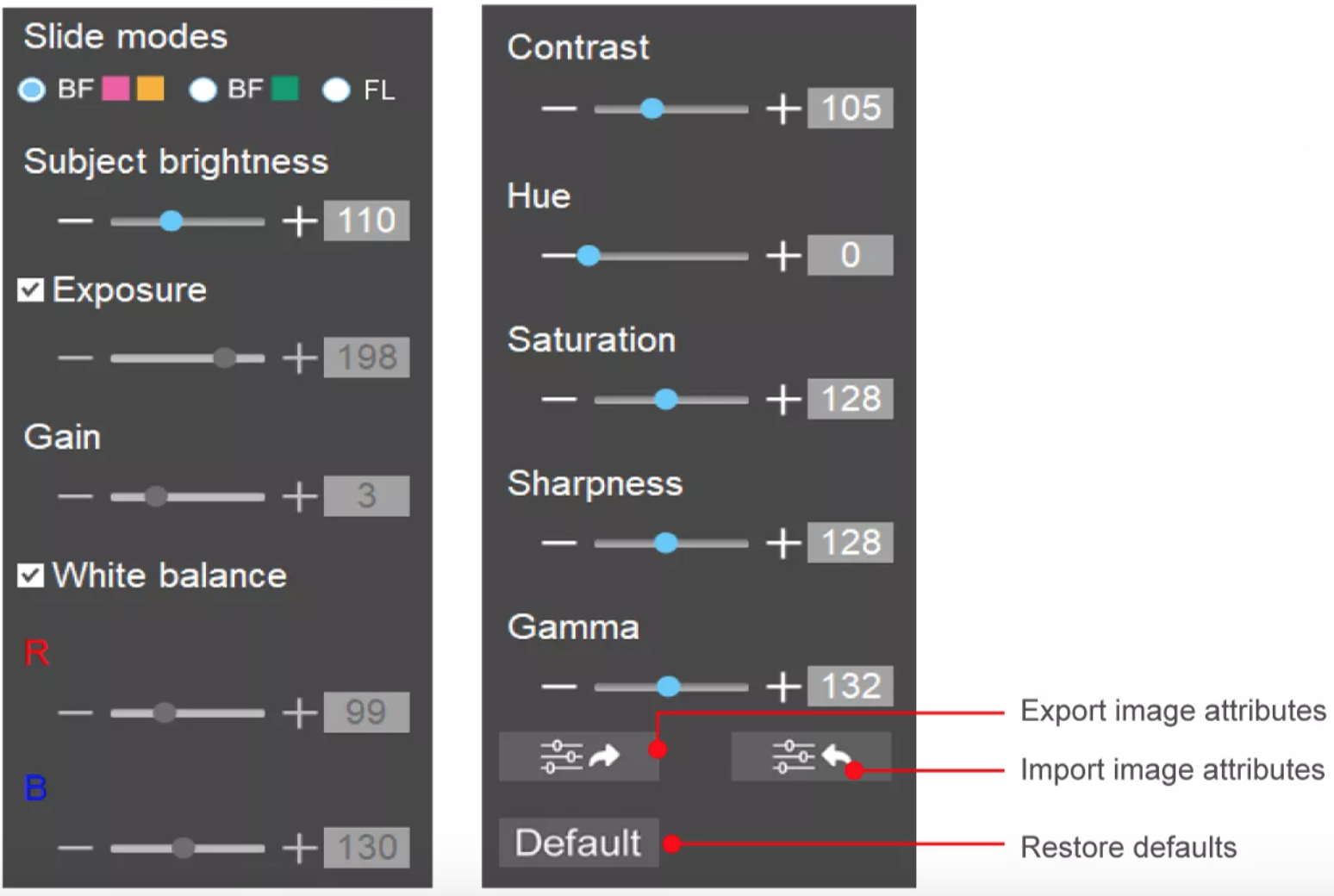

- 9. Image Attribute Adjustment
- –

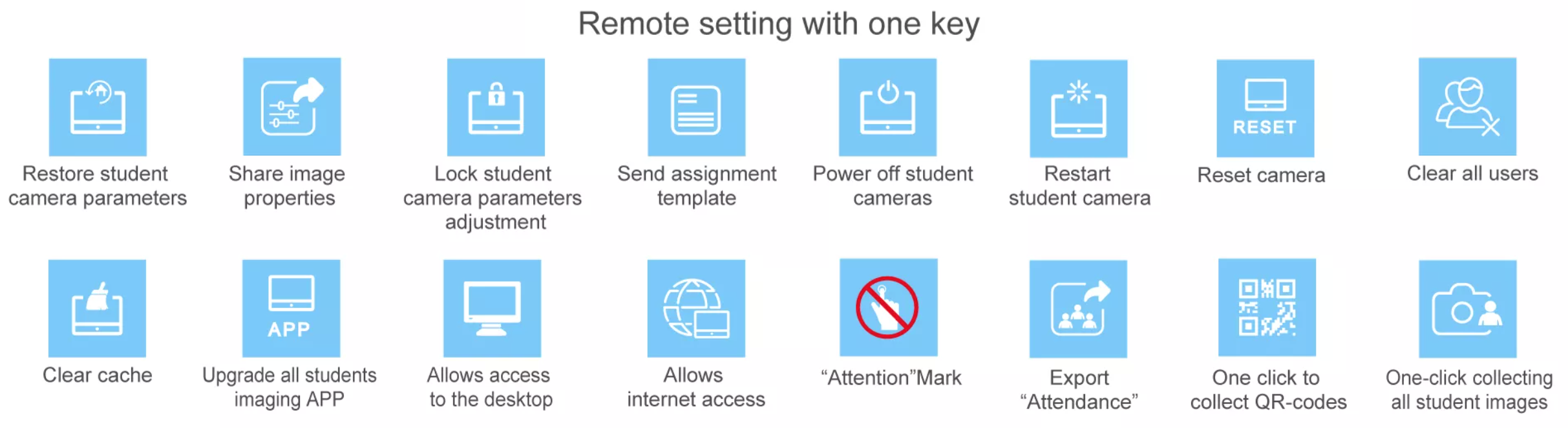

- 10. 16 Interactive Setting Tools.
Student-side solutions
Specifications of Recommended Student Microscope
Model | BM38UIT |
Viewing head: | Seidentopf trinocular viewing head inclined at 30°, interpupillary 47-78m, 360° rotation |
Eyepiece: | A pair of WF10x/18mm eyepiece |
Nosepiece: | Reversed quadruple ball bearings revolving nosepiece |
Objectives: | Plan achromatic objective 4x/0.10 |
Plan achromatic objective 10x/0.25 | |
Plan achromatic objective 40x/0.65, spring loaded | |
Plan achromatic objective 100x/1.25, spring loaded, oil | |
Stage: | Double layer mechanical stage, with size: 140x140mm, 75x50mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm |
Focusing: | Integrated design, coaxial focus system with upper limited and tension adjustment, coarse stroke 37.7mm per rotation, fine precision: 0.002mm moving range: 25mm, provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device |
Condenser: | Abbe N.A. 1.25 condenser with aperture diaphragm |
Illumination: | High brightness energy-saving S-LED illumination for long life, brightness adjustable |
Power: | Multi-plug 100-240Vac, 50/60Hz external power supply |
Others: | Dust cover, spare fuse, blue & green filters, slim and easy to carry, support to reduce the fatigue during use, with carrying handle |
We provide two types of solutions below:
1. Student Station All-in-one Integrated Type Solution
-
a). 15.6″ HD displayer with built-in customized operating system and imaging APP.
-
b). Embedded with 50/50 splitting prism, without destroying the original optical system.
-
c). Built-in high-power reduction lens for large field of view.
-
d). Accurate and simple focusing with screw rod, to realize parfocality.
-
e). 32GB RAM, support USB flash disk to export picture, video data.
-
f). Supports HDMI output to monitor, TV, projector.
-
g). Allows students to use smart devices to scan the dedicated seat QR code for wireless point-to-point connection to share live imaging.
-
h). The student microscope illuminator is directly powered by the All-in-one Smart Camera. Less cord and cable makes the desktop clean and neat. (This feature is only available on some microscopes)
-
i). Camera specifications
-
Camera Model SA8L SA12L SA20L Max. Resolution 8.3 megapixels (3840×2160) 12 megapixels (4000×3000) 20 megapixels (5184×3888) Preview resolution 3840×2160, 2592×1944, 1920×1080 4000×3000, 3840×2160, 2592×1944, 1920×1080 5184×3888, 3840×2160, 2592×1944, 1920×1080 Sensor type SONY IMX334 CMOS SONY IMX412 CMOS SONY IMX147 CMOS Sensor size 1/1.8 inch 1/2.3 inch 1/2.3″ Pixel size 2.0μm x 2.0μm 1.55μm x 1.55μm 1.2μm x 1.2μm Shutter type Electronic rolling shutter Spectral response 380~650nm Exposure Real-time automatic, manual adjustment White balance Real-time automatic, manual R B speparately ajusted Coupler type Dovetail groove of corresponding microscope Record format Picture: JPG, BMP, PNG, TIFF; Video: MP4 Power consumption USB 3.0 DC 5.0V 500mA Integrated type 15.6″ Display Parameters Effective area size 344.2176mm (horizontal) x193.6224mm (vertical) Number of pxiel 1920×1080 Pxiel arrangement RGB Vertical stripe Display number of colors 16.7M (8Bit) Surface treatment Anti-Glare SUrface hardness 3H Viewing angle range 178° horizontal, 78° vertical Contrast 1200 Brightness 425cd/m² (Five-point average)

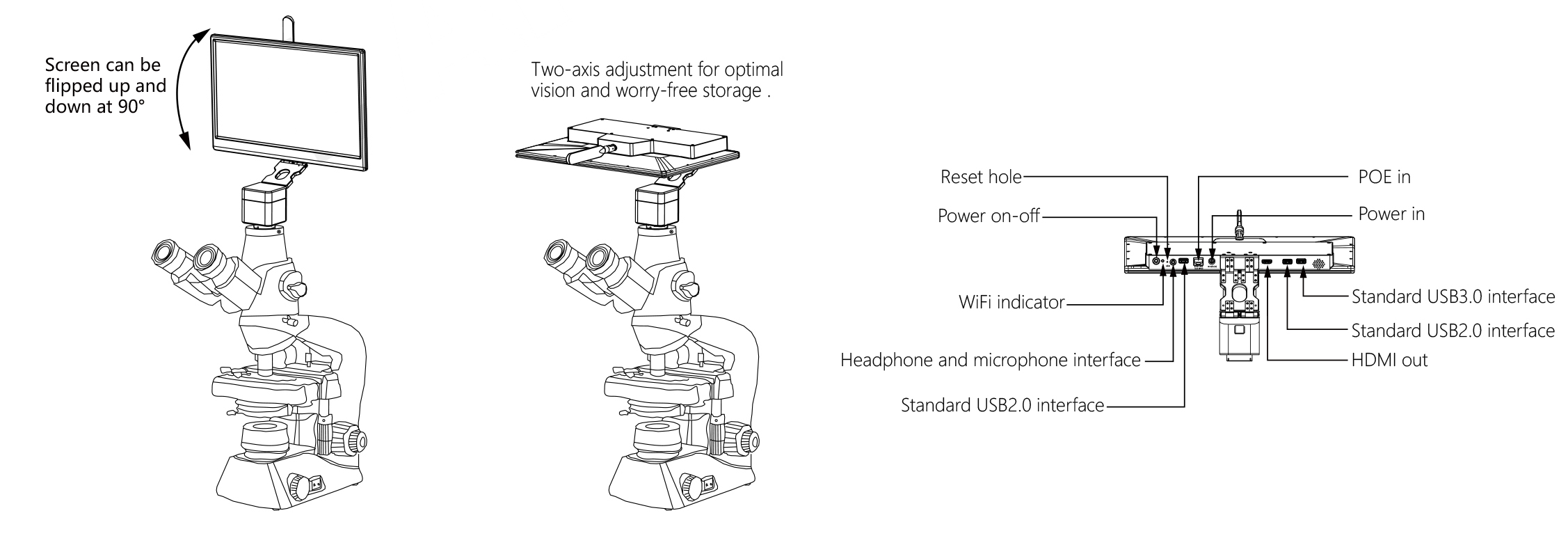

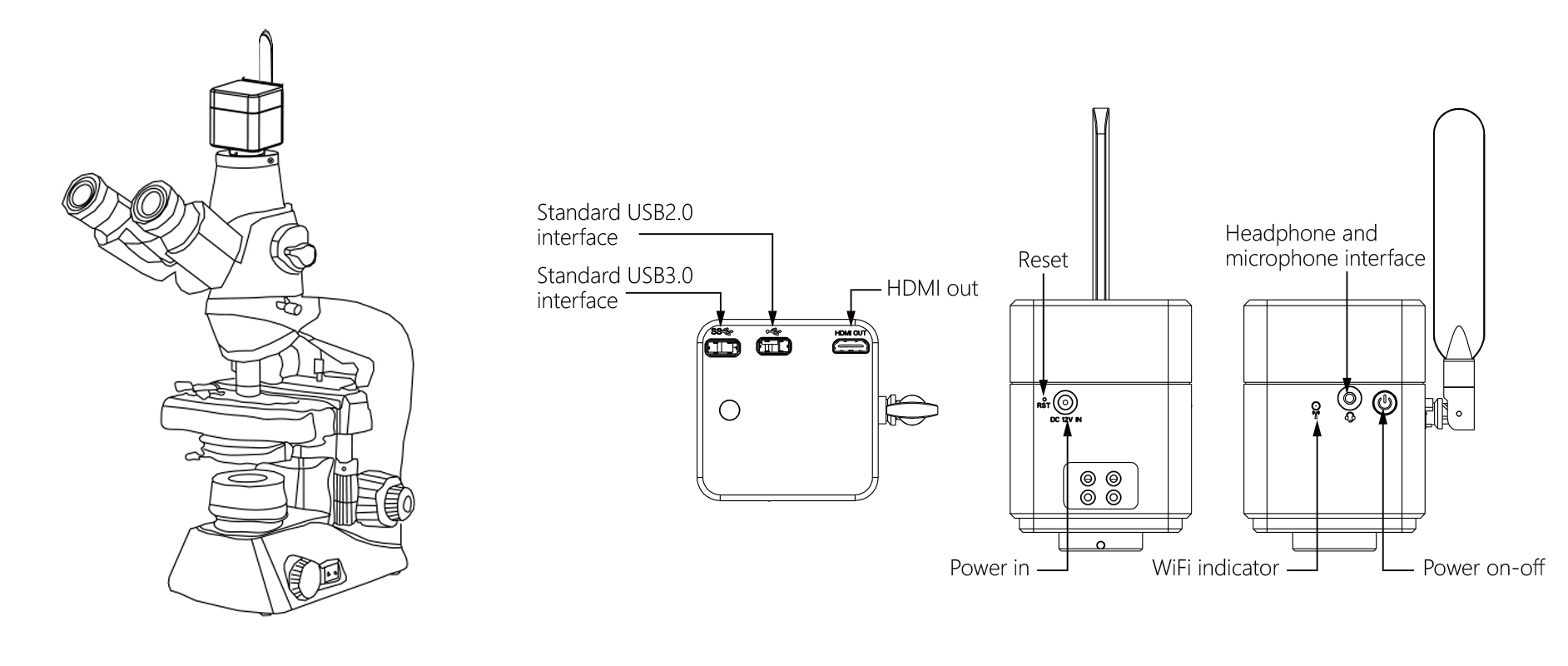

- J). 90 Degrees Hinged Folding Design
- The all-in-one embedded smart camera adopts two-axis 90-degree hinge folding design for LCD display, which is convenient for equipment management and storage.
- –

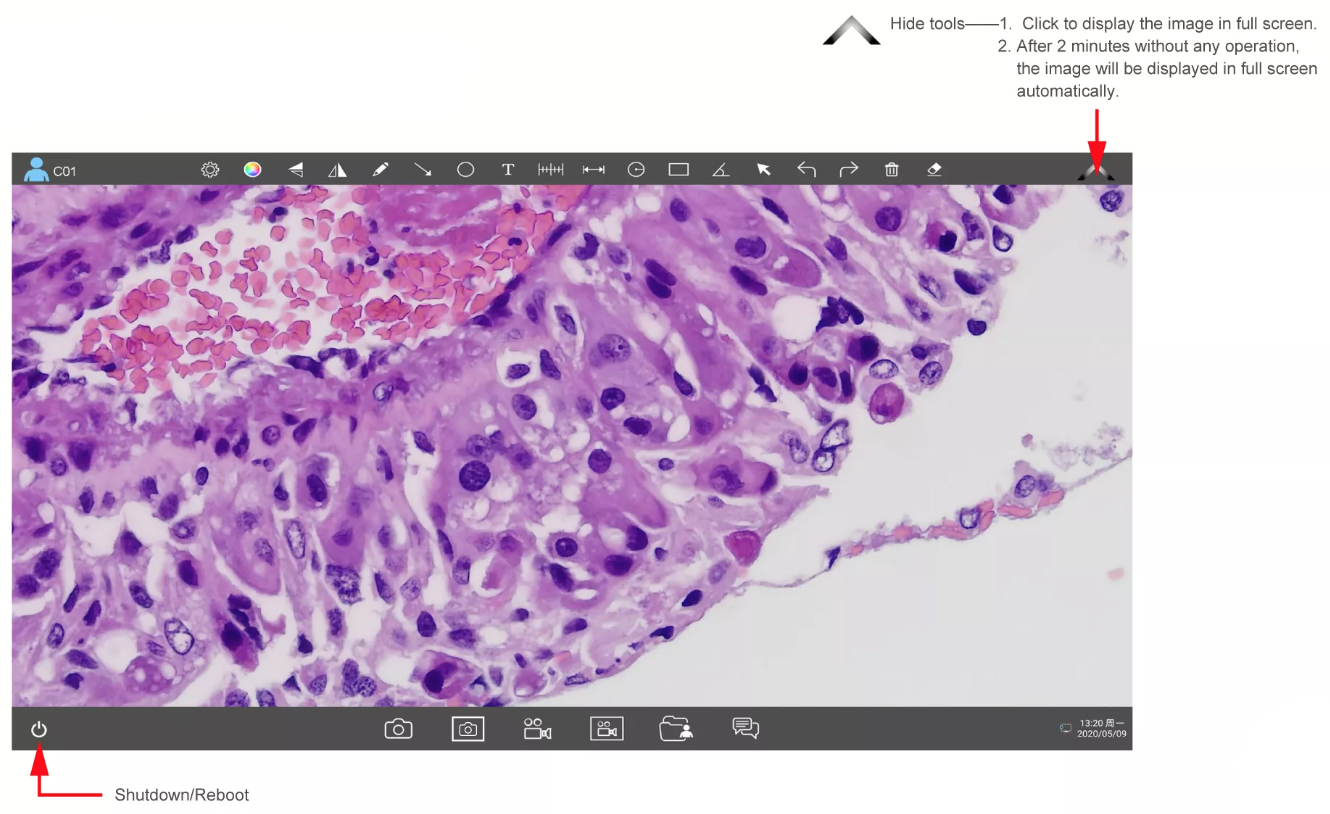

- Software Details
-

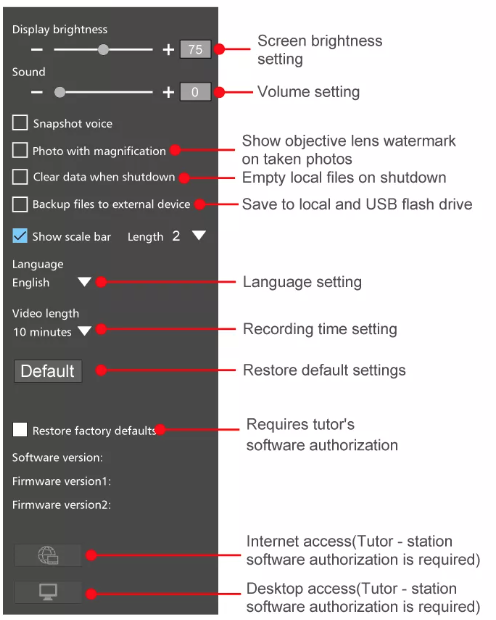

- 1. Personality Settings
- –

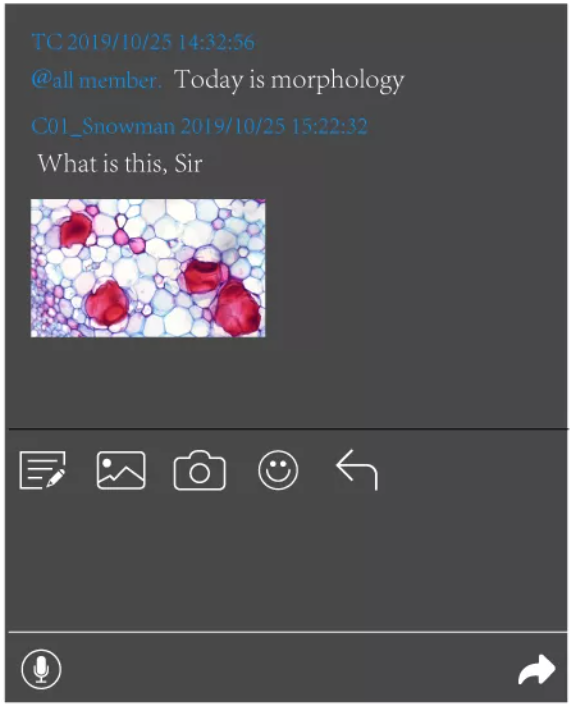

- 2. Messenger
- Teacher can communicate with students with text, picture and voice. Students capture live image and send to the teacher with one click and withdraw the wrong message with one click.
- –
- 3. Assignment Tools
- Picture, videos, and assignments can be transmitted to the tutor’s PC in one click, and the word/execl/PPT format assignment can be edited and uploaded to teacher’s PC.
- –

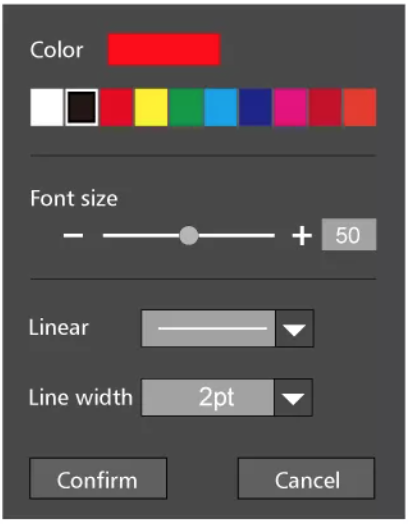

- 4. Color Tools
- Line, font color, font size, line style, line width settings
- –

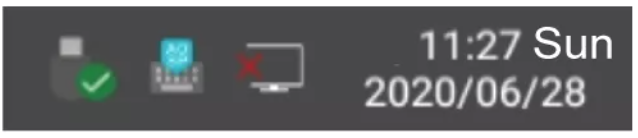

- 5. Taskbar Section
- a). U-disk access status
- b). Current input method
- c). State of connection between student and teacher
- d). Time and date of the current time zone
2. Student Solution Separate Type Solution
-
a). Built-in customized operating system coming with imaging APP.
-
b). Embedded with 50/50 splitting prism, without destroying the original optical system.
-
c). Built-in high-power reduction lens for large field of view.
-
d). Accurate and simple focusing with screw rod, to realize parfocality.
-
e). The USB ports for keyboard and mouse connection.
-
f). Supports HDMI output to monitor, TV, and projector.
-
g). Allows students to use their mobile phone or tablet to scan the dedicated seat QR code for wireless point-to-point connection to share live imaging.
- h). Camera specifications
-
Camera Model SS8 SS12 SS20 Max. Resolution 8.3 megapixels (3840×2160) 12 megapixels (4000×3000) 20 megapixels (5184×3888) Preview resolution 3840×2160, 2592×1944, 1920×1080 4000×3000, 3840×2160, 2592×1944, 1920×1080 5184×3888, 3840×2160, 2592×1944, 1920×1080 Sensor type SONY IMX334 CMOS SONY IMX412 CMOS SONY IMX147 CMOS Sensor size 1/1.8 inch 1/2.3 inch 1/2.3″ Pixel size 2.0μm x 2.0μm 1.55μm x 1.55μm 1.2μm x 1.2μm Shutter type Electronic rolling shutter Spectral response 380~650nm Exposure Real-time automatic, manual adjustment White balance Real-time automatic, manual R B speparately ajusted Coupler type Dovetail groove of corresponding microscope Record format Picture: JPG, BMP, PNG, TIFF; Video: MP4 Power consumption USB 3.0 DC 5.0V 500mA - i). Camera drawing

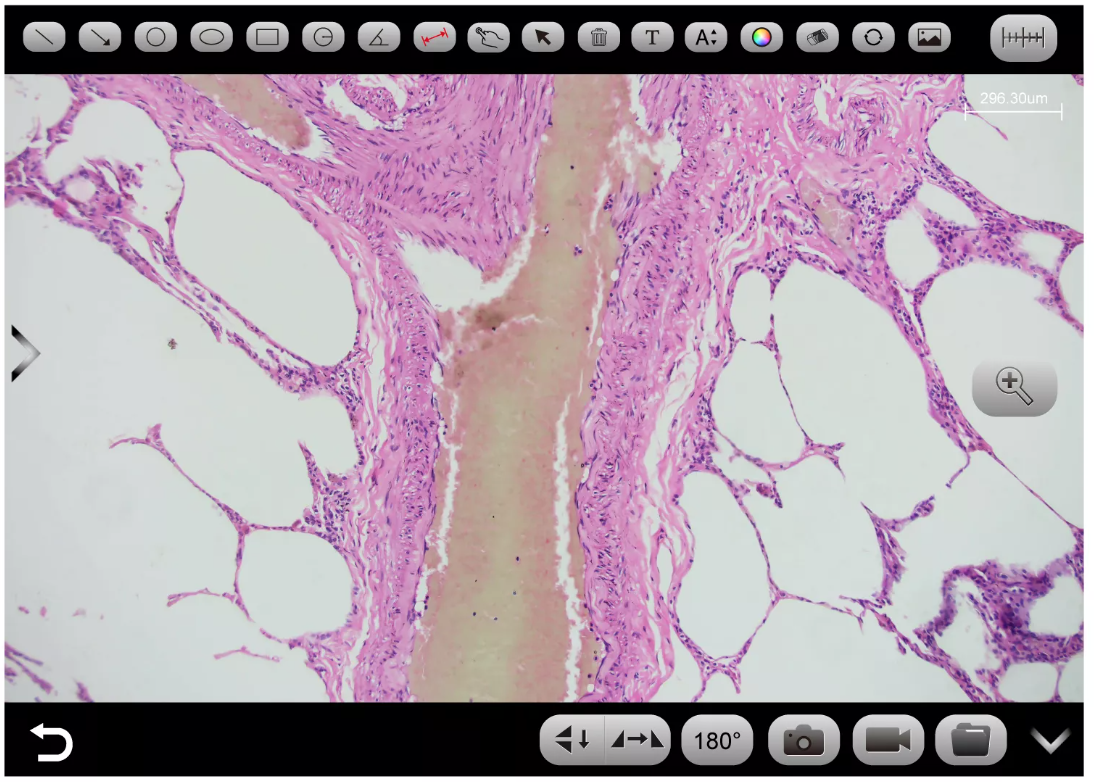

- App for Student-side Smart Camera
The STUDENT WiFi EDU is an App pre-installed on the student side smart camera. uses a highly recognizable UI design, which is easy to use and requires no special training. The App provides various of tools such as Assingment Tools, Messenger, Annotation, Image Processing & Editting. With these functions, students can easily operate the camera with microscope.
- Software operating environment requirements
-
System System version CPU Storage Menory Protocol Android 7.0 or later version Dual-core 1.7GHz or later version at least 3GB at least 32GB 5G WiFi IEEE 802.11 (ac) iOS 11.0 or later version Dual-core 1.8GHz or later version at least 2GB at least 32GB
- More Software Details

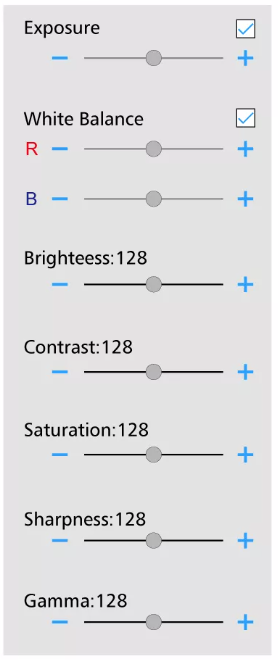

- 1. Image Attribute Adjustment
- –

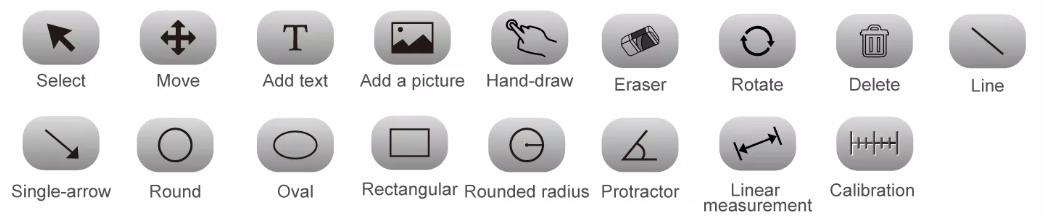

- 2. Annotation and Measuring Tools
