VM3D65HD Series 2D/3D HDMI Video Microscope

Home Microscopy Video Microscope Unit & System VM3D65HD Series 2D/3D HDMI Video Microscope

VM3D65HD Series 2D/3D HDMI Video Microscope

Video Microscope Unit & System, 3D Digital Inspection2023-09-10n50

Description

Features

1. VM3D65HD Series 3D video microscope body based on infinity optical system 0.6-5x optical zoom magnification

2. Support 2D/3D observation. 360 degree rotation 3D observation. 45 degree objective viewing angle. Working distance and center postion always maintain same when you swtich 2D to 3D observation. No need to adjust the focus again. Adjust to any magnification have a best image without adjustable

3. At minimum mangification, the field of view is full image without dark edge image, high resolution, large depth of view.



Models & Specifications

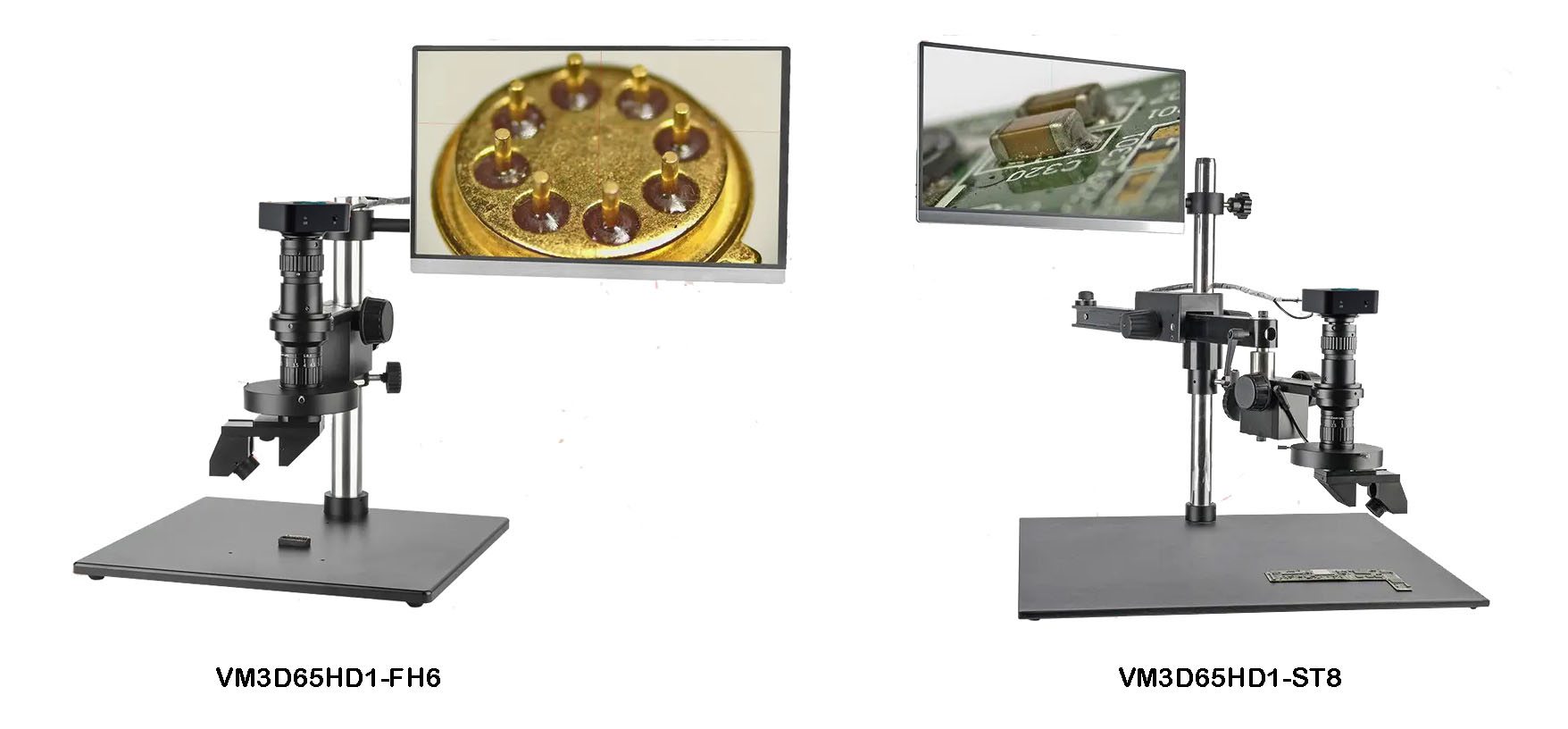

Model VM3D65HD1-FH6 VM3D65HD1-ST8
Lens parameter: Optical magnification: 0.6x-5x ✓ ✓
Total magnification: 11x-95x based of 12.5″ monitor
Working distance: 2D: 86mm, 3D: 50mm
Ratio: 1: 8.3
FOV: 24×13.5mm-2.88×1.62mm
Lens mount: Standard C mount
2D/3D viewer: With 2D/3D free push and pull switch,  ✓ ✓
The working distance remains the same when switching between 2D and 3D, and there is no need to refocus
Support 2D/3D observing
360 degree rotation, 45 degree objective viewing angle
Camera Image Sensor: 1/2” SONY CMOS ✓ ✓
Max magnification: 1920 x 1080
Pixel size: 3.75μm x 3.75μm
White balance: Manual and auto
Brightness control: Manual and auto
Memory function: Take photo and video to U disk
Output: HDMI
Monitor: Size: 12.5” ✓ ✓
Type: IPS
Resolution: 1920*1080
Color display: 16.7M (8-bit)
Brightness: 300 cd/m² (Typ.)
Contrast: 1000:1 (Typ.)
Power supply: DC:12V 2A
Input: VGA×1、HDMI×1
Light Source: Light Control: 4 zones control. Brightness adjust ✓ ✓
Light color: White
Quantity of LED: 208PCS LED
Intensity: 15000 Lux
Wavelength: 455-457.5nm
Output voltage: 12V
Output power: 8-10W
Working distance: 35-110mm
Material: Aluminum alloy
Diameter: Inner diameter 40mm,outer diameter 106mm, height 19mm
Stand FH6 Focus: Coarse focus on both side (fine focus is optional) ✓
Base size: 330*300mm
Diamter of scope holder: 50mm
Height of post: 320mm
Diamter of vetical post: Φ32 mm

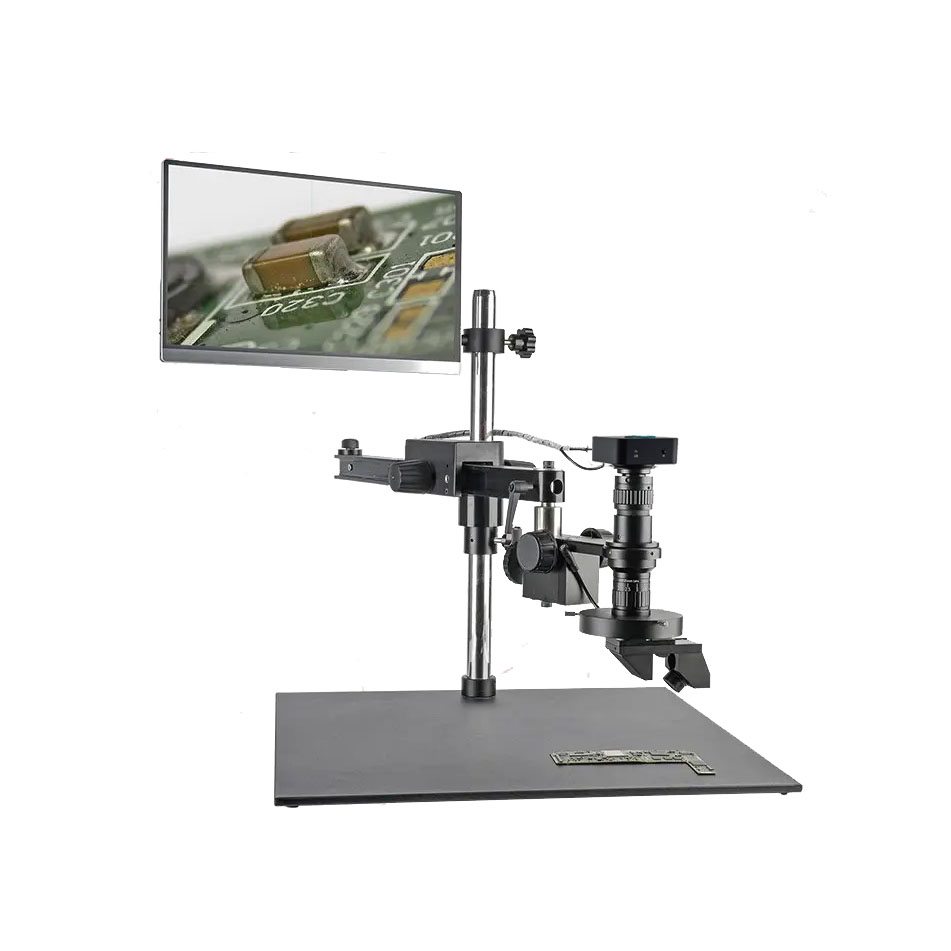

Stand ST8 Focus: Coarse focus on both side (fine focus is optional) ✓
Base size: 500*500mm
Diamter of scope holder: 50mm
Height of vertical post: 500mm
Diamter of vetical post: Φ32 mm
Length of horizontal bar: 320mm
