MEADOF-T20 Smart 3D-Super Depth of Field Microscope

Home Microscopy Digital Microscopes Tabletop Digital Microscope MEADOF-T20 Smart 3D-Super Depth of Field Microscope

MEADOF-T20 Smart 3D-Super Depth of Field Microscope

Tabletop Digital Microscope, 3D Digital Inspection, Featured Products2022-04-30n50

Description

MEADOF-T20 Smart 3D-Super Depth of Field Microscope

Greatly improve the microscopy observation, measurement and analysis efficiency!

The MEADOF-T20 is a smart stereo microscope, which is built with 3D and EDF technologies for the efficiency of microscopic researches and inspections. Its unique All-in-one design is equal to five professional equipment in one: a stereoscopic microscope, a camera, a microscopy software, a Z-axis electronic platform and a computer host.

  • – Smart 3D super depth of field microscope with 16X-160X Optical system.
  • – 8mm Diagonal FOV
  • – 1920 x1080 Resolution
  • – 3.75μm×3.75μm Pixel Size
  • – 60fps@2MP Frame Rate
  • – HDMI Data interface



System Upgrade

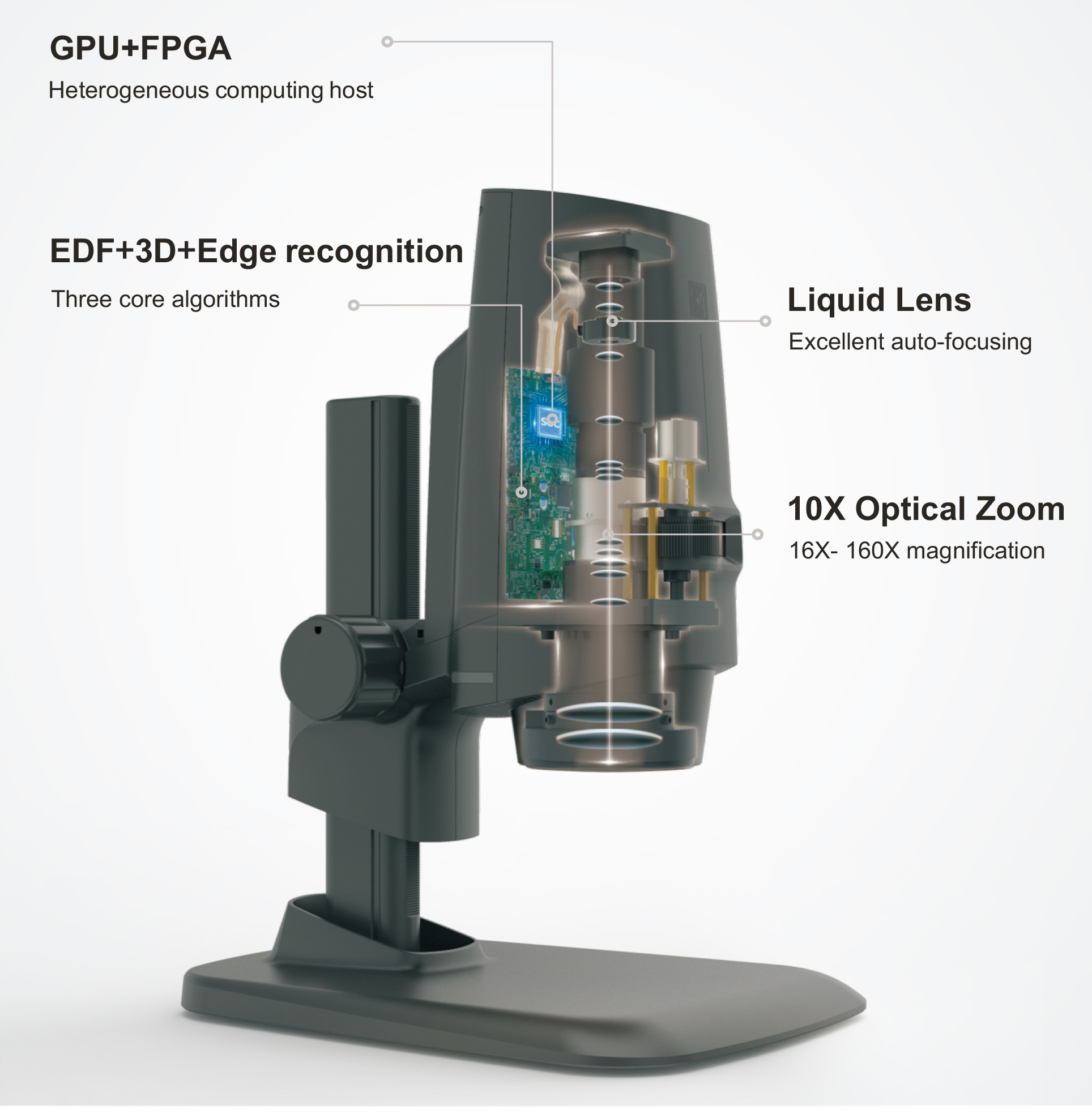

Core technology creates strong linkage performance



Simple but Powerful All-in-one Design

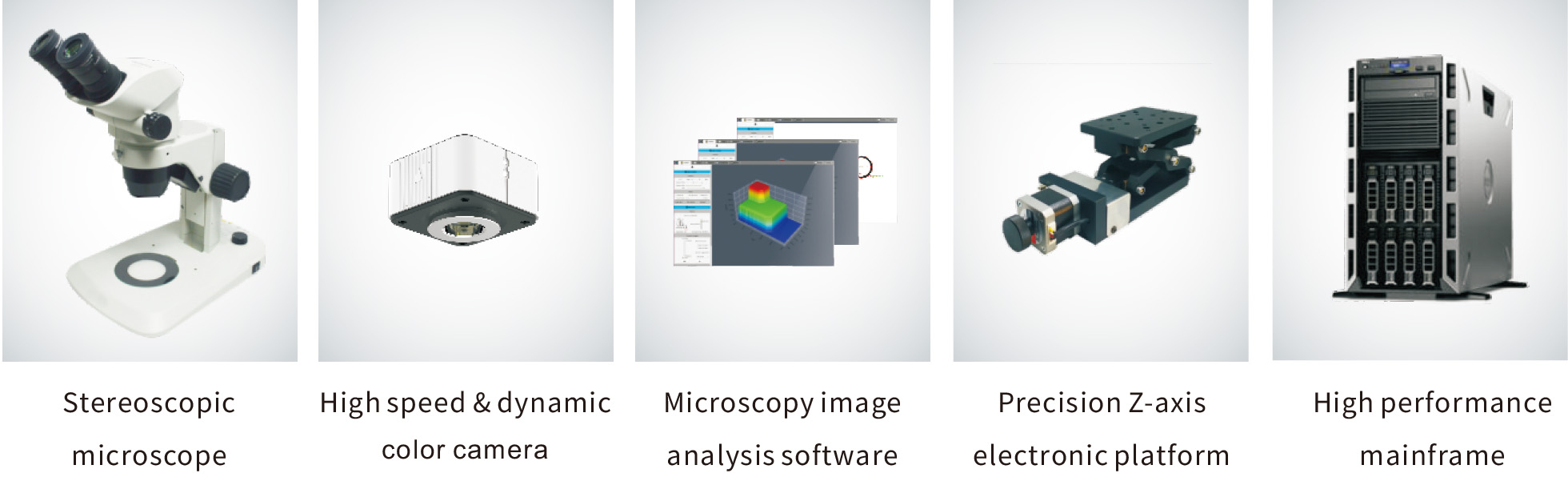

Highly integrated, equal to five professional equipment in one

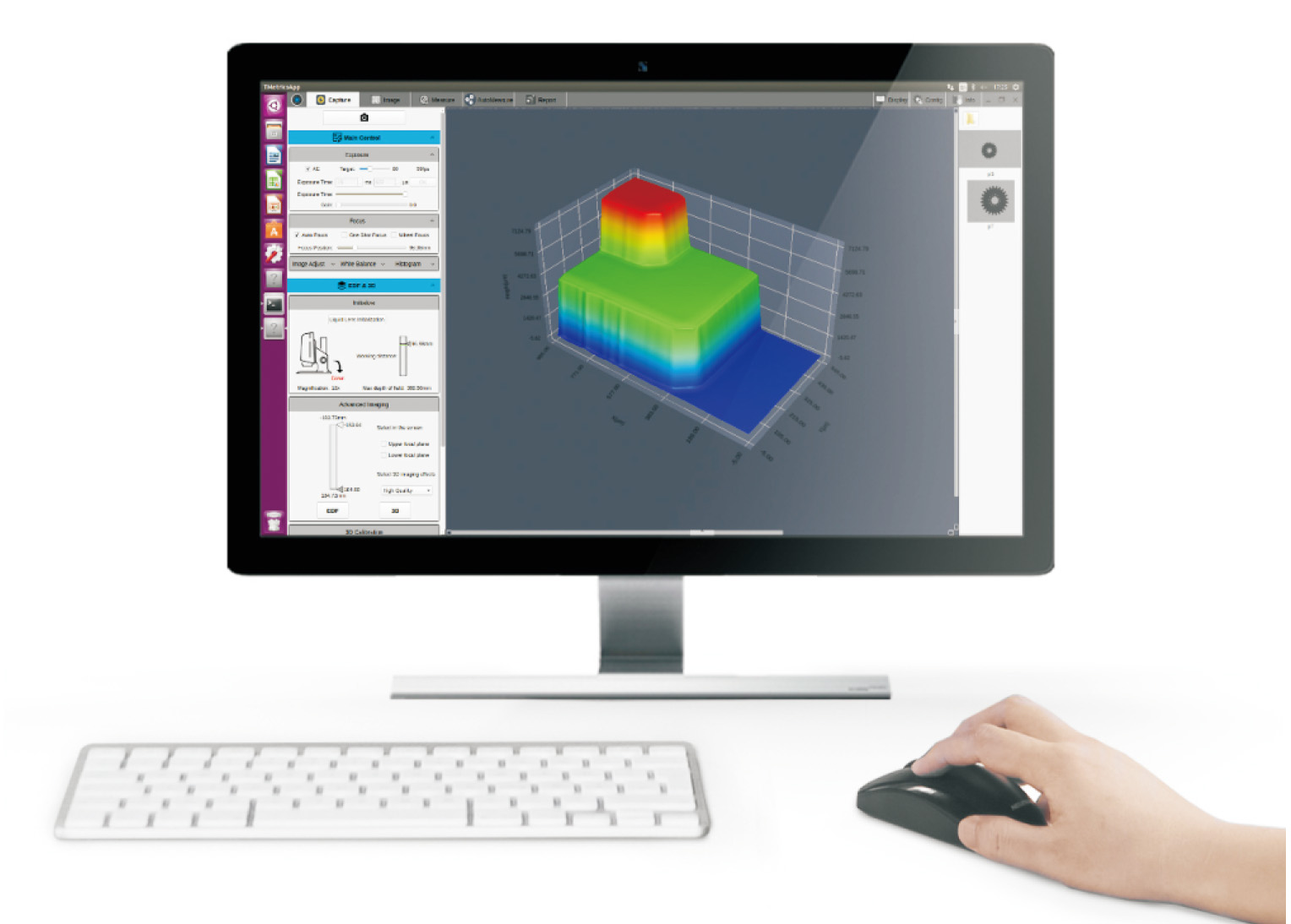

No computer is required, all functions can be completed by mouse



Observation Upgrade

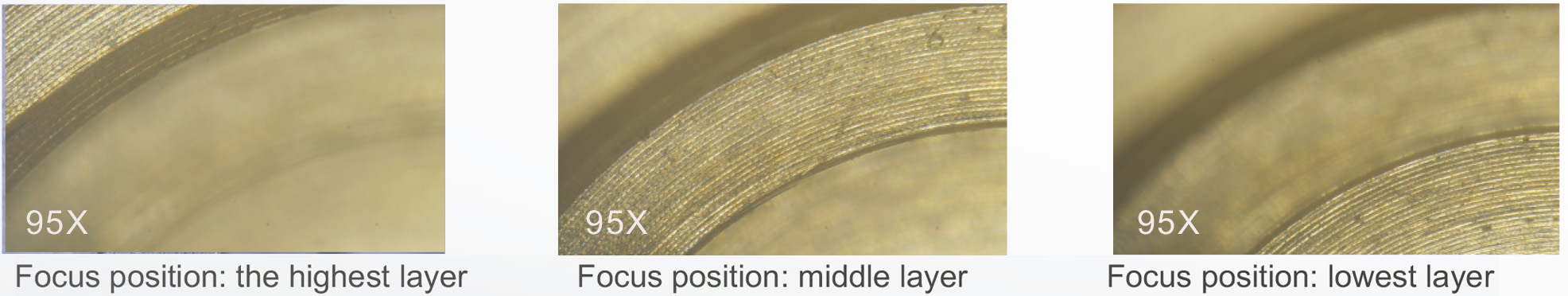

Observe under high magnification, microscope cannot focus on multiple layers at the same time.



16-160X magnification observation, high-speed auto focus throughout

  • When observing a sample with an ordinary microscope, manual focusing is required repeatedly, which is cumbersome and inefficient. MEADOF-T20 adopts liquid lens for high speed auto-focusing, supports 16-160x microscopic magnification observation, and instantly auto-focus at the mouse click, eliminating the need for repeated manual adjustments in the past, and microscopic observation is simpler and smoother.



Clear and Efficient Microscopic Observation

MEADOF-T20 super depth of field achieves clear and 3D microscopic observation

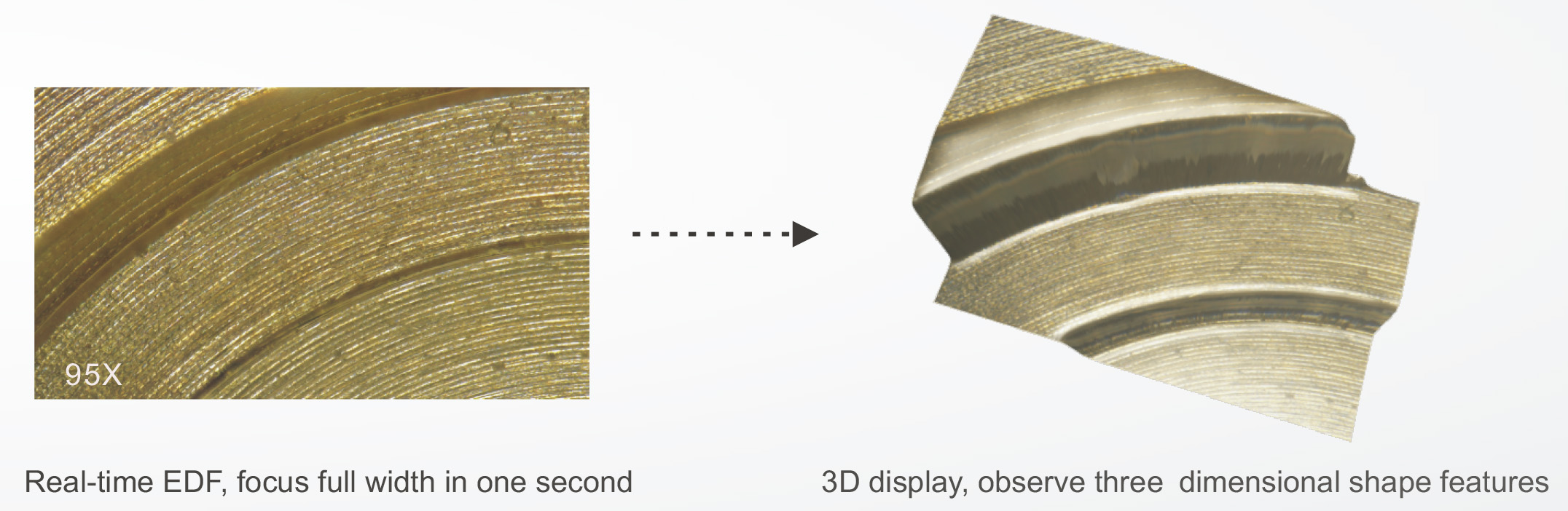

Real-time depth of field (EDF), reduce blurry and false images

  • It is easy to cause angle deviation, rotation and uneven focal plane when using third party software and hardware systems to expand the depth of field, MEADOF-T20’s optical mechanical- electrical integration structure and linkage algorithm technology can solve the above problems and obtain a clear and correct full-frame focus picture.



Real-time wide dynamic (WDR), effectively eliminate strong reflections on metal surface

  • The strong reflection of the metal surface can easily cause the loss of detailed information and affect the judgment. The MEADOF-T20 WDR mode can create images with perfect exposure and clear light and dark details by calculating the data of multiple images with different brightness in real time.



Measurement Upgrade

Real-time measurement, no need to recalibrate in auto focus and zoom mode



Automatic edge extraction to eliminate human error

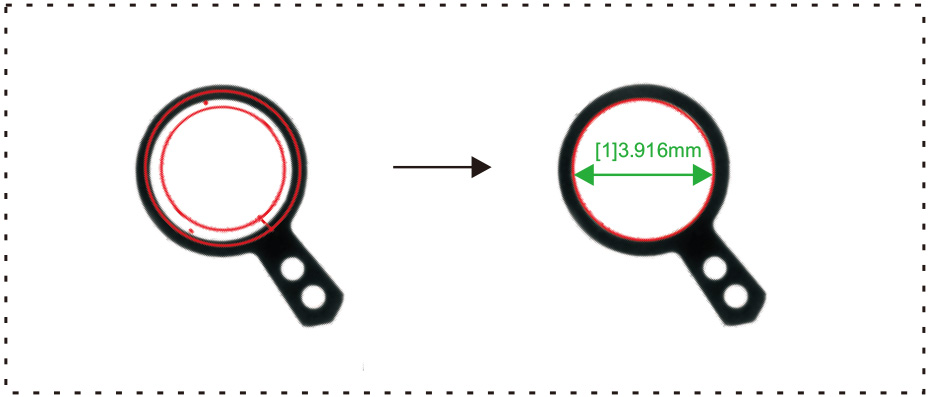

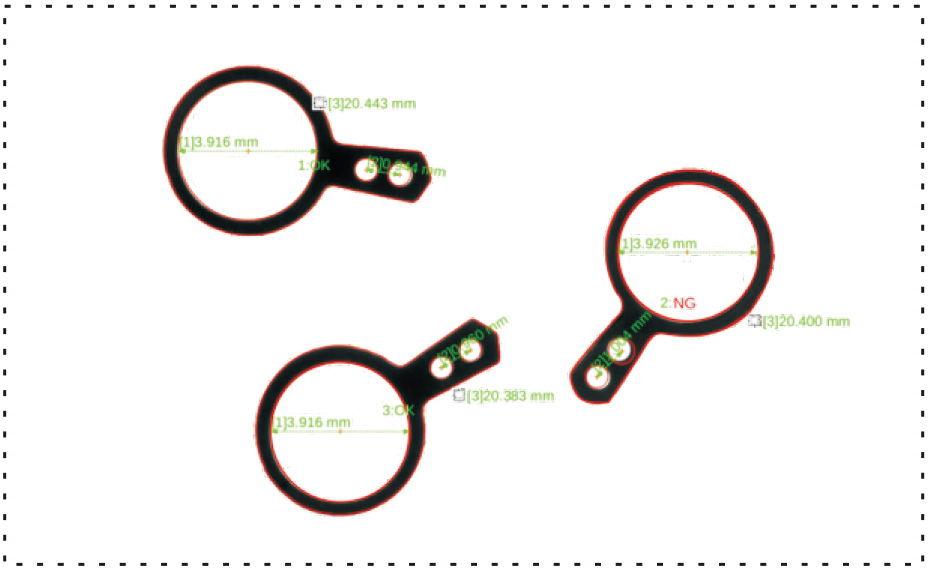

  • MEADOF-T20 automatic edge extraction function can quickly perform standard modeling work without manual precise positioning, 3 micron resolution, automatic measurement accuracy ≤ 5 microns, repeat accuracy ≤ 3 microns, effectively eliminating human operation errors.



Automatic batch measurement to improve work efficiency

  • After completing the standard modeling of small devices, T20 can quickly complete the batch measurement work of other samples, export data information of multiple samples in one time, greatly improve work efficiency.



Continuous and Complete Measurement Data Recording

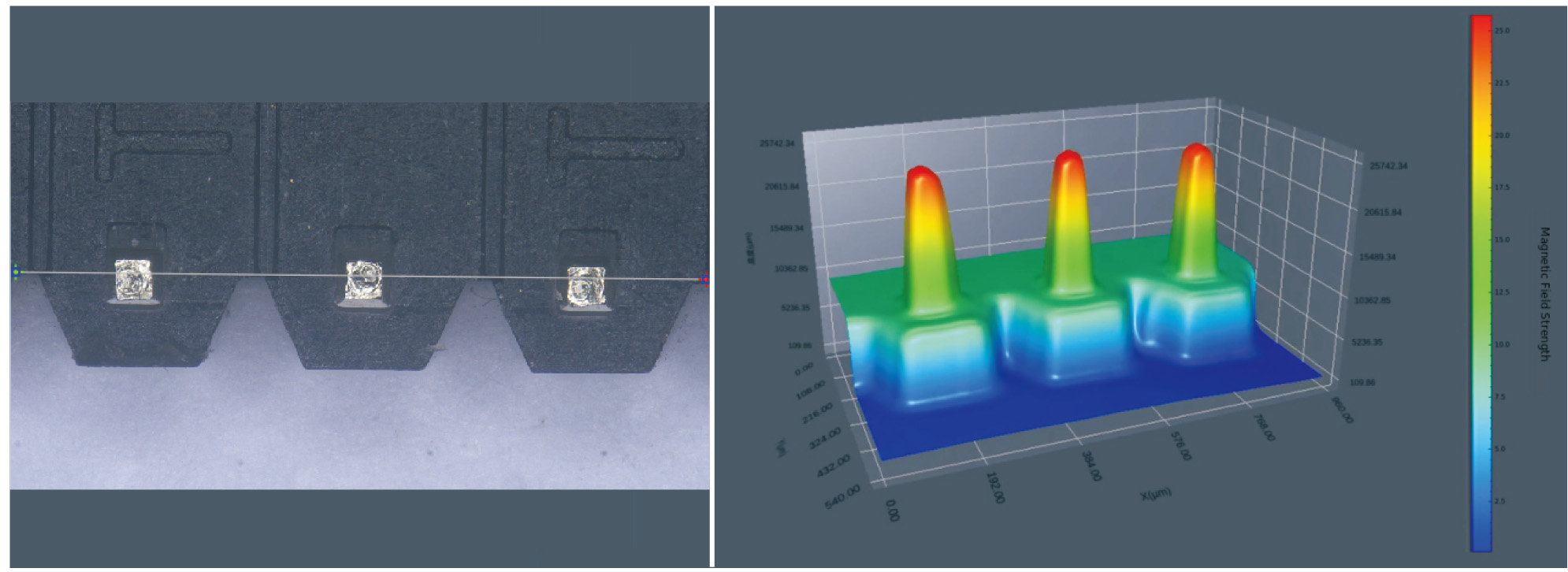

Available to do 3D measurement at any position



Diversified tools, real-time data recording

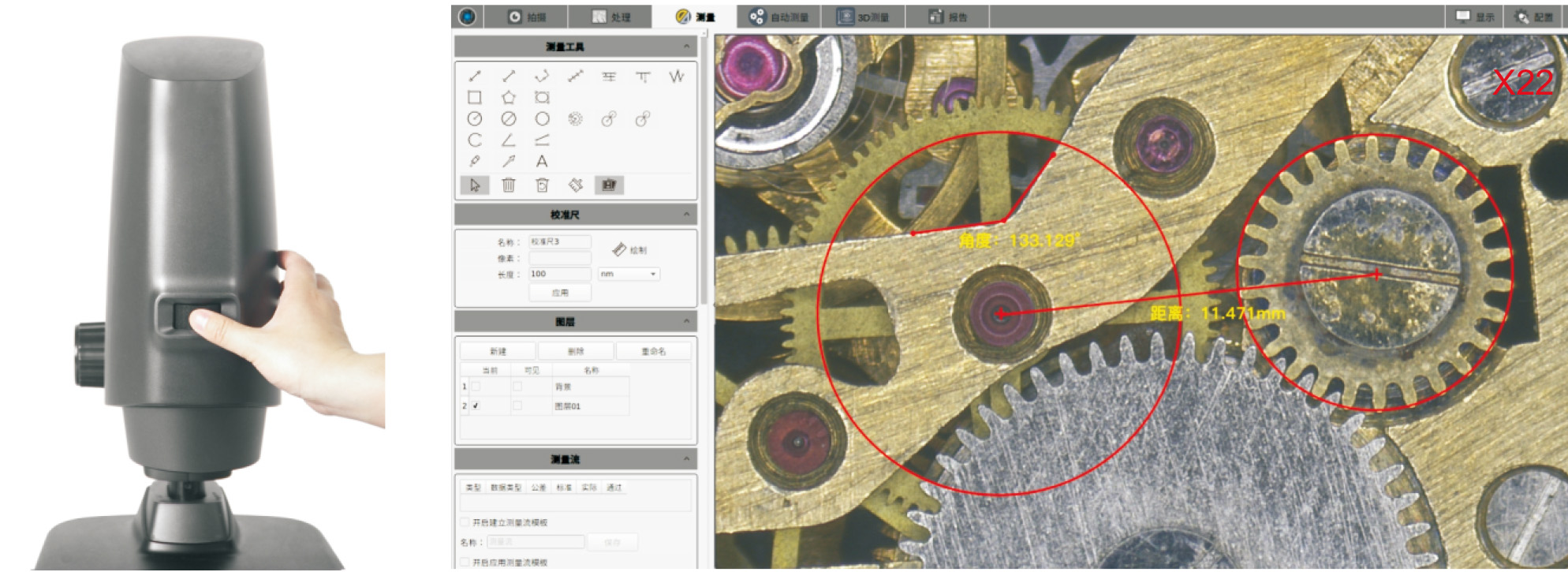

  • MEADOF-T20 provides a wealth of measurement and analysis tools, and can record data in real time. The Z-axis measurement accuracy of ≤50 microns and the repeatability of ≤5 microns can meet the needs of most microscopic measurement.

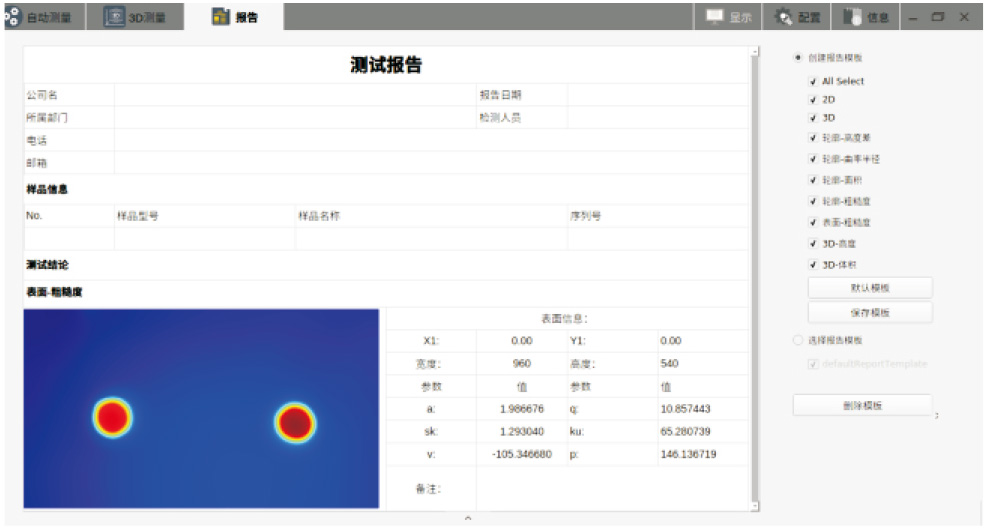

Data can be exported with automatically reports created

  • MEADOF-T20 can not only save image and video data, but also automatically create test reports with pictures and texts. All data in the workflow can be exported, when the operation is over, the work is completed, quite simple and easy!



Reference Cases



Product Specifications

Model MEADOF-T20
Camera Features Sensor Sony1/2″ color CMOS
Resolution 1080(1920×1080)
Pixel size 3.75μm×3.75μm
Shutter model Rolling
Scanning method Progressive scanning
Frame rate 60fps(Normal),30fps(WDR)
Gain Automatic / Manual
Exposure time Automatic: 0.1ms-16.6ms, manual: 0.0001s-1s
White balance Automatic/manual/area
Image storage TIFF/JPEG
Video format AVI/MP4(1080P)
Bit width 24bit
Optical parameters System magnification 16x-160x 16x-160x
Optical magnification 0.25-2.5X
Optical resolution 3μm
Working Distance Range: 35mm-220mm, Best: 81±1mm
Field of view size Minimum magnification: 28.8mmx16.2mmx200mm
  Maximum magnification: 2.88mmx1.62mmx4.5mm
Focus method Auto/Manual
Z axis adjustment method Manual
Z-axis adjustment stroke 200mm (single turn 23mm)
Light source Lighting Four-zone LED ring light
Lifetime 40000 hours
Color temperature around 6500K
Advanced Features (Embedded) Autofocus Continuous Auto/One-Shot Auto
magnification recognition Automatic
3D noise reduction Support
WDR Support
Real-time EDF Support
Edge enhancement Support
Gamma correction (contrast) Support
Color enhancement Support
Flat field correction Support
Effect mode Normal/Negative/Relief/Grayscale
3D Display Support
3D display and measurement Online calibration Support
3D display Pseudo-color/real scene display, grid lines, 360°rotation
3D histogram Support

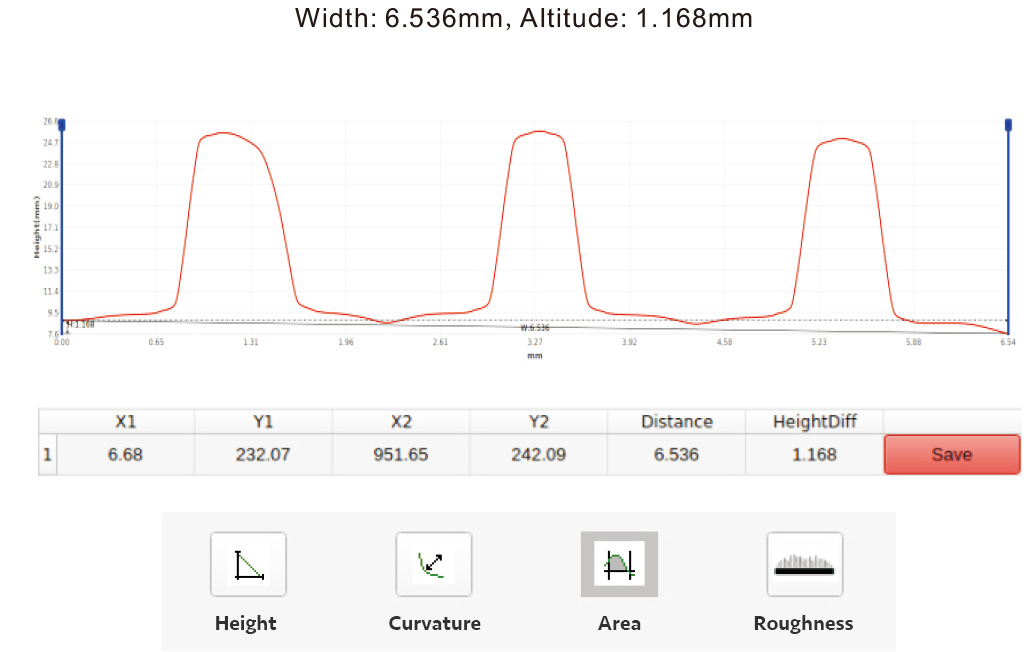

3D profile measurement Height difference, curvature, area, roughness
3D surface measurement Step height, volume, surface roughness
3D measurement accuracy (Max. mag.) ±50μm
3D repeatability (Max. mag.) ±5μm
3D measurement report Support, editable template
2D measurement 2D calibration ruler Support
2D manual measurement Point-point, point-line, line-line, Parallel, perpendicular, polygon, circle, arc, concentric circle, circle-circle, angle
Counter Manual
2D measurement accuracy (Min. mag.) ±20μm
2D repeatability (Min. mag.) ±13μm
2D measurement accuracy (Max. mag.) ±5μm
2D repeatability (Max. mag.) ±3μm
2D measurement report Support
Input Mouse input USB mouse
Keyboard input USB keyboard
Interface Video HDMI 2.0
Storage capacity Built-in 32G Emmc
Switch Yes
LED indicator blue light when turns on
Internet connection Fast Ethernet
USB USB2.0 x 2, USB3.0 x2
Power supply 12V 8A
Accessories Specifications Display  21.5-inch full HD HDMI interface display
Mouse and keyboard INPHIC V780 wireless set gray
Stage L*W*H: 105*105*30mm, Stroke: 40*40mm
Backlight L*W*H: 100*100*18mm, Luminous Color: White
Sample box Specification: 11.8*6.7*3.1mm, with sponge
Power supply 12V 8A
HDMI Cable Support
USB flash disk U disk 4G memory, USB3.0 interface
Others Weight 6.5kg
Appearance size (WxHxD) 276cmx402cm*363cm
Working environment 5℃-40℃ (temperature), 45%-85% (humidity)
Online update Support

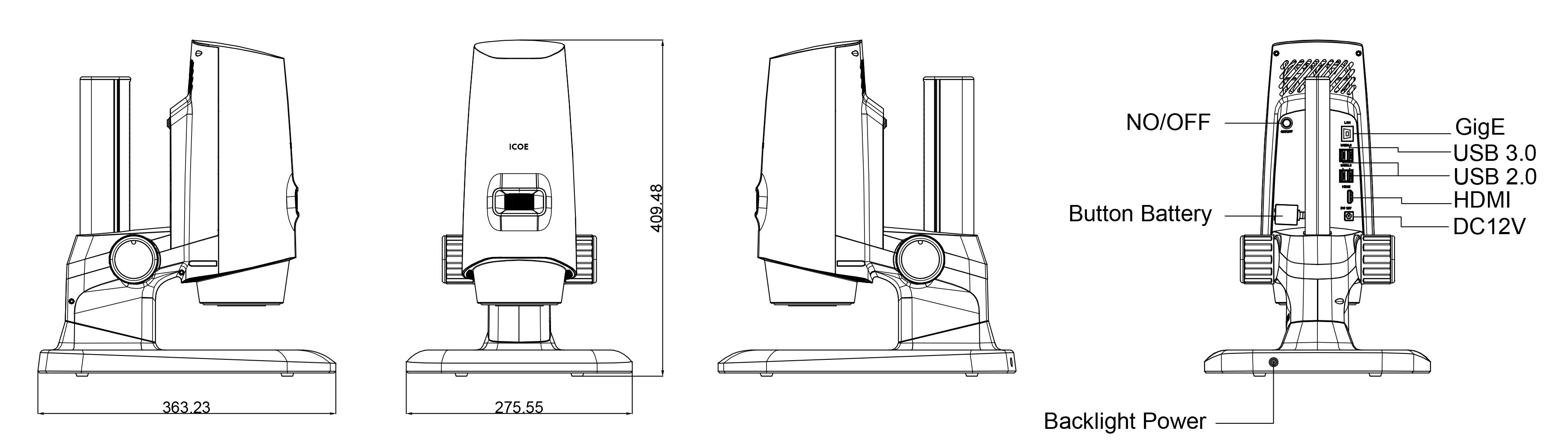

Product Dimensions
