IC2100F-LED Series Epi-LED Fluorescence Microscope with 1 Fluorescent Filter

Home Microscopy Fluorescence Microscopes Epi-LED Fluorescence IC2100F-LED Series Epi-LED Fluorescence Microscope with 1 Fluorescent Filter

IC2100F-LED Series Epi-LED Fluorescence Microscope with 1 Fluorescent Filter

Epi-LED Fluorescence2018-11-22n50

Description

Descriptions

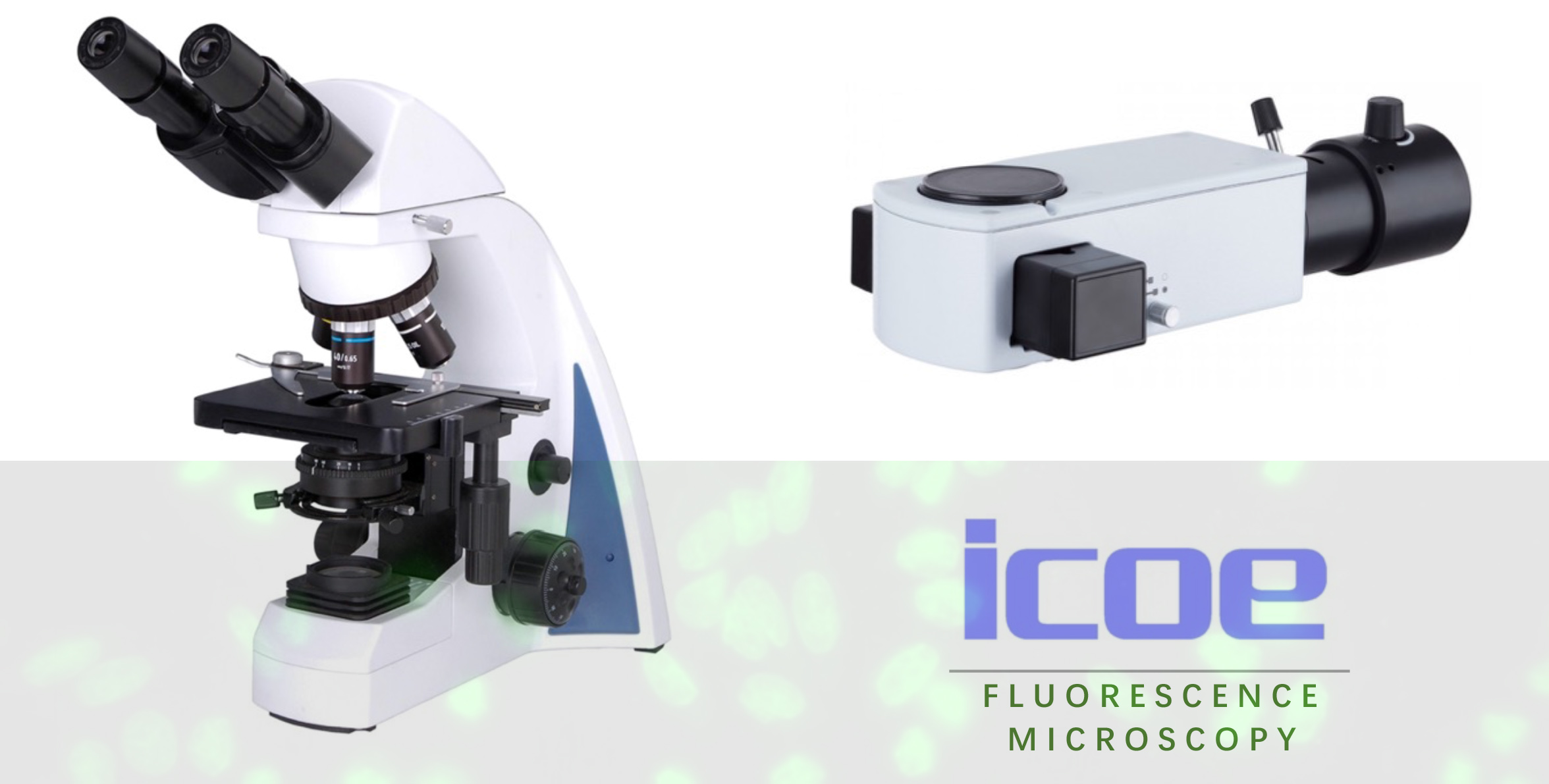

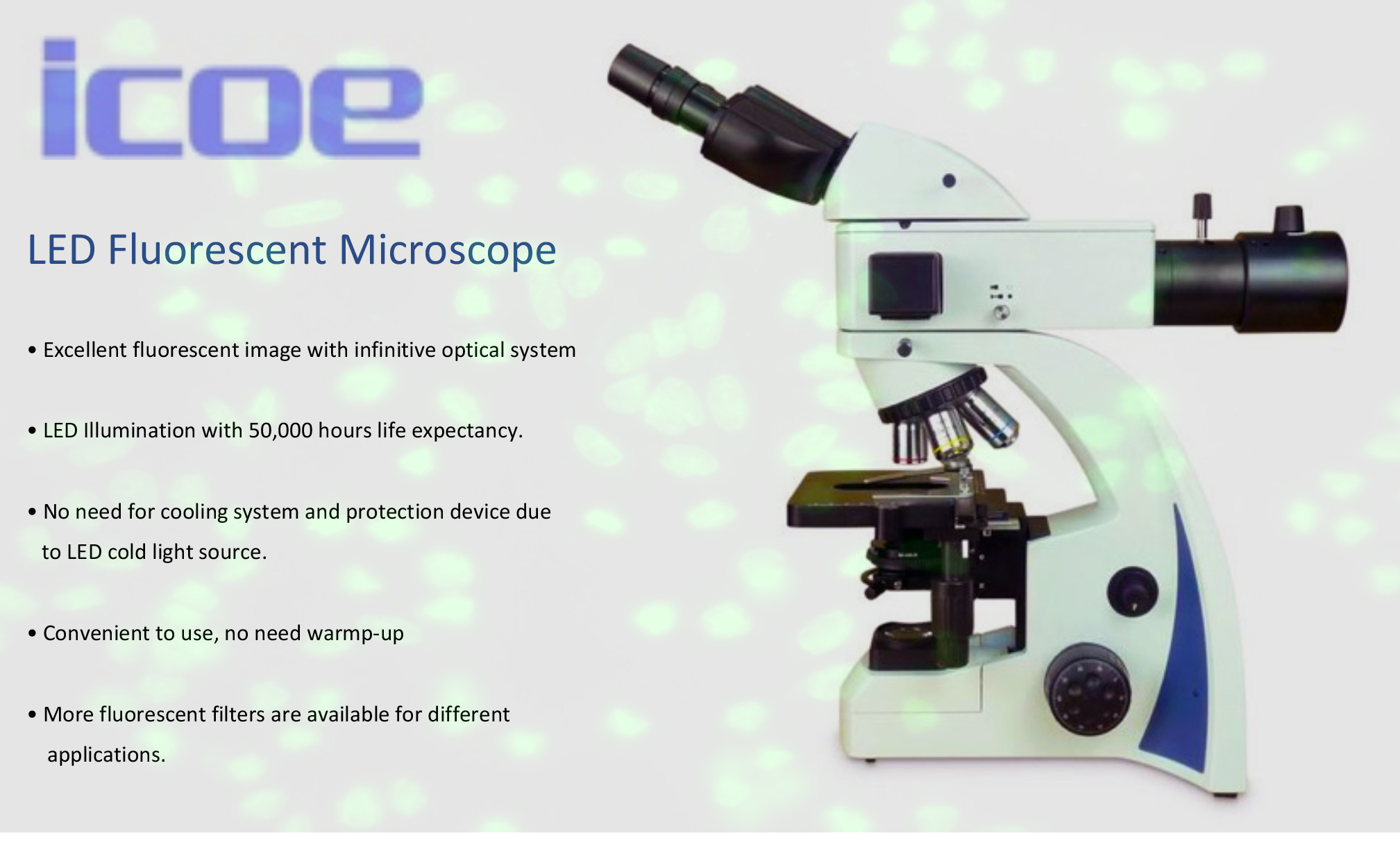

For users requiring a multi-purpose microscope for expanding health services, ICOE introduces the new IC2100F-LED LED Fluorescence microscope. With integrated LED technology for both bright field and epifluorescence microscopy, the IC2100F-LED offers superior clarity and crisp imaging – all at a price that allows even labs on a limited budget to benefit from the latest technological advances.

The F-LED epifluorescence module converts our standard IC2100F-LED IC2100F-LED microscope to a fully functional epifluorescence microscope. The resulting images rival those obtained from traditional, expensive epifluorescence systems.



Specifications

Model: IC2100F-LED

  • • Viewing head: Seidentopf binocular Head Inclined at 30°, 360° rotation
  •                           Interpupillary distance 55-75mm, diopter adjustment +/-5
  •                           Video adapter C mount 1X for digital camera
  • • Eyepiece: Extra wide field eyepiece EW10×/18
  • • Objective: Infinite EPLAN achromatic objective 4x
  •                    Infinite EPLAN achromatic objective 10×
  •                    Infinite EPLAN achromatic objective 40x
  •                    Infinite EPLAN achromatic objective 100x
  • • Nosepiece: Backward Quadruple Nosepiece
  • • Focusing system: Coaxial coarse & fine adjustment
  •                                 Fine division 0.002mm, coarse stroke 37.7mm per rotation
  •                                 Fine stroke 0.2mm per rotation, moving range 20mm
  • • Stage: Double Layers Mechanical Stage 140×140, moving range 75×50mm
  • • Condenser: Sliding-in centerable abbe condenser, NA1.25 iris diaphragm
  • • Transmitted illumination: S-LED illumination, brightness adjustable
  • • Reflected illumination: LED long-life light source, 3W LED , 465-475nm
  • • FL-LED Epi-Fluorescent Attachment: Blue Cube: Excitation: BP460~490, Dichroic Mirror DM: 505, Barrier Filter: BA515
  • • Fluorescent free oil

Options

  • • Seidentopf Trinocular, Inclined 30°, rotates 360°, Diopter adjustment
  • • 10X/20mm super WF HP eyepieces
  • • 15X/16mm eyepieces
  • • 20X/12mm eyepieces
  • • Backward quintuple nosepiece
  • • Infinite Plan achromatic objective 4x, 10x, 20x 40x, 60x, 100x
  • • Infinite fluorescent objective 4x, 10x, 20x, 40x, 100x
  • • Kohler illumination
  • • Halogen lamp 6V/20W, brightness adjustable
  • • Sliding phase contrast kit
  • • Turret Phase Contrast Kit
  • • Dark-field Condenser (Dry)
  • • Dark-field Condenser (Oil)
  • • 1x/0.5x C mount
  • • Temperature control system: 5W LED illumination, temperature controlling range: room temperature to 50°C
  • • LED long-life light source for FL-LED, 3W LED, 525-530nm
  • • Green Cube: Excitation: BP510~550, Dichroic Mirror DM: 570, Barrier Filter: BA590
