Description

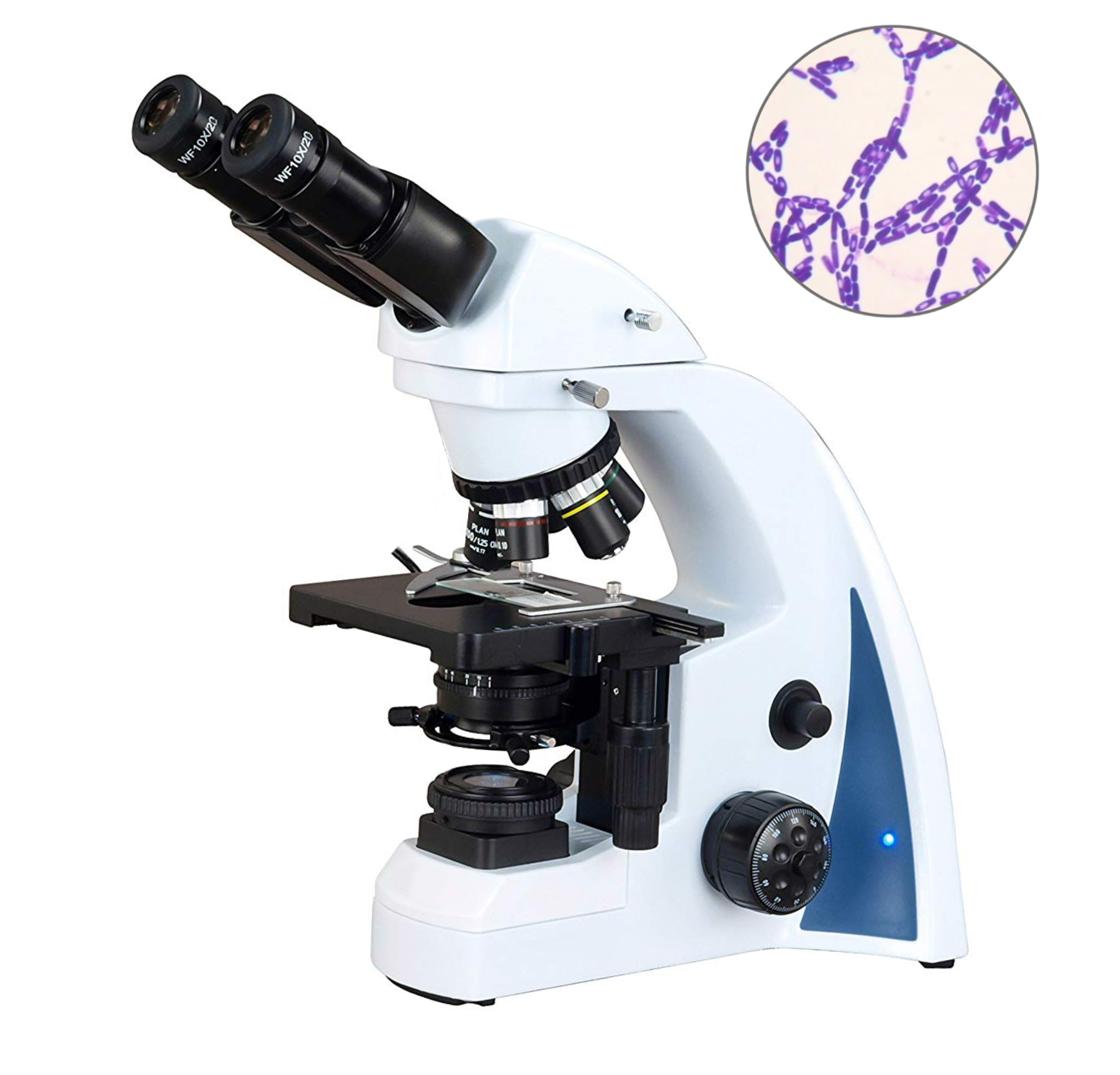

IC2100 Series, Classic Upright Microscopes

The IC2100 series is available in various configurations suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications. Besides the brightfield contrast method, configurations for phase contrast, darkfield, basic polarization and several epi-illumination sources for fluorescence applications can be used. IC2100 series models with multi-heads are also available for teaching purposes

ROUTINE IN UNIVERSITIES, LABS & INDUSTRIES                THE OPTIMAL PARTNER FOR ROUTINE TASKS

• Wide range to fulfil specific lab requirements.                          • Full planarity optics on FN 20mm

• Valuable solutions for life and material sciences                       • Koehler illumination for crisp and contrasted images

• Compliant with several observation methods                           • Rounded edge, rackless stage to prevent scratches

Product Details

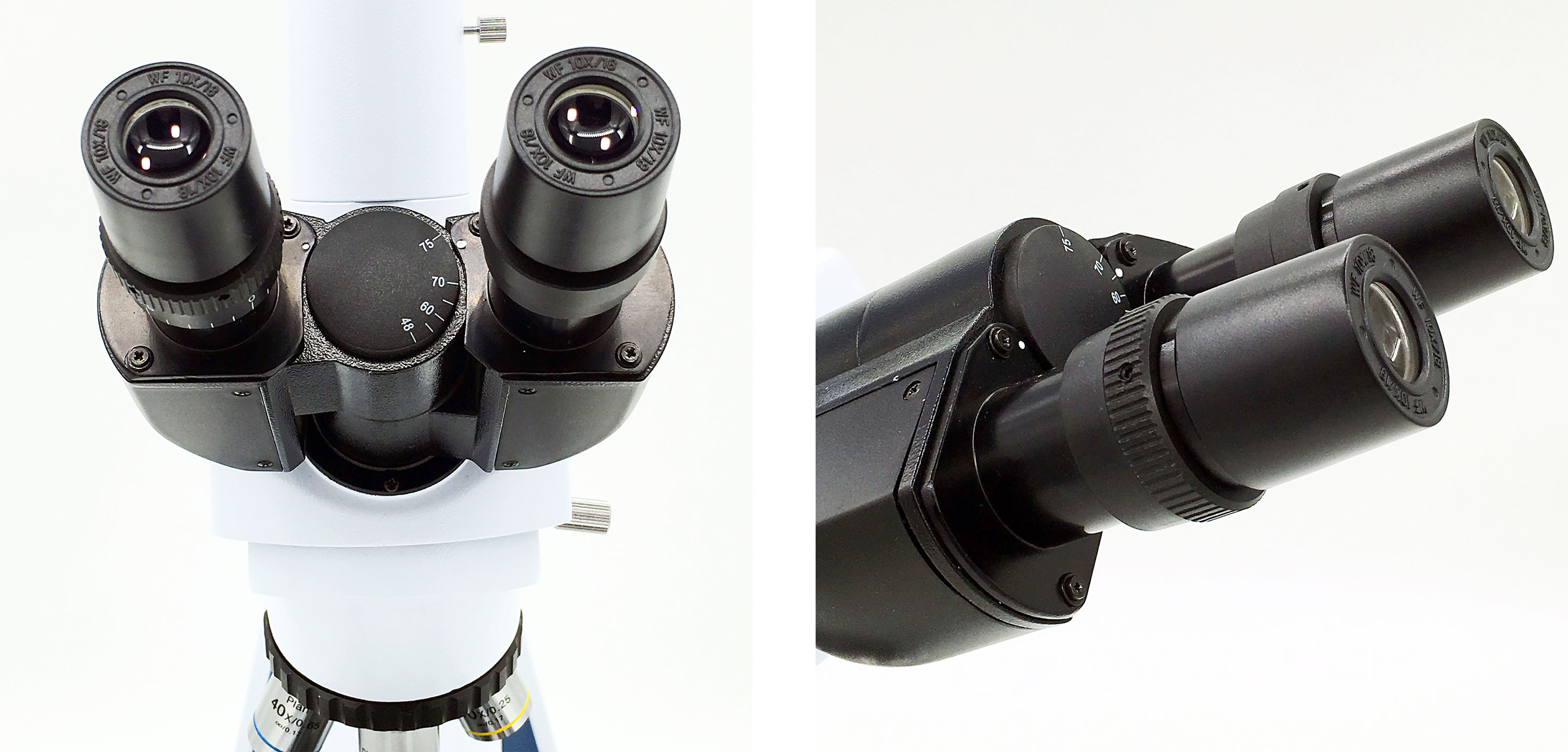

Wide Field Eyepiece WF 10×/18 (Extra Wide Field Eyepiece EW10×/20 are optional) with Diopter Adjustment

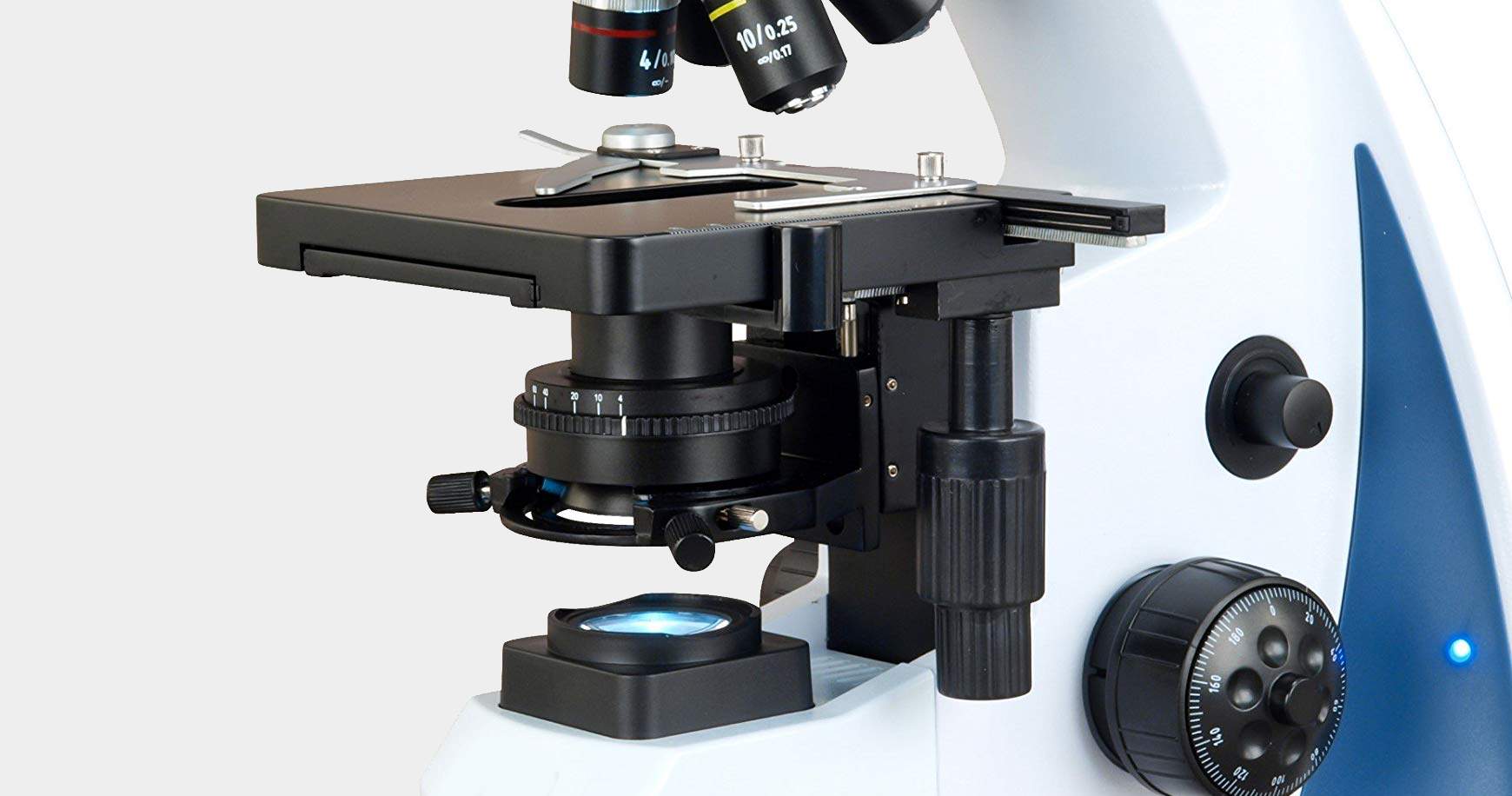

Fine Focus Konb, Coarse Focus Knob  and Tension Adjustment, there is also the Brightness Adjustment Knob, To make the Observation more Convenient, You Can Use the Locking Set (at left side) to Fix the Stage in a Vertical Direction.

From low magnification to high, koehler illumination system (optional) and infinity achromatic optics system ensure the sharpe and bright, high-quality image

Insert the dark-field spill into condenser  socket and pull dark-field diaphragm in and so on, then can fulfill simply dark-field observation. You can observe tozoon, bacterial flagellum, leptospira in dark-field at any time between 4x-40x without special dark-field condenser.

To insert a simple phase contrast flapper into the slot of condenser, then depending on the phase contrast objective, push the matching phase contrast can be observed, simple and practical, suitable for phase contrast observation of some basic occasions.
