Description
Features

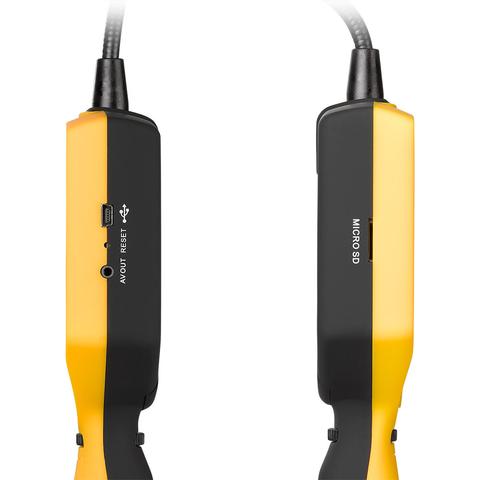

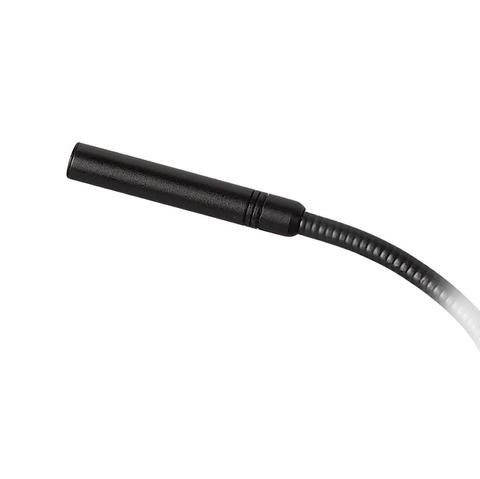

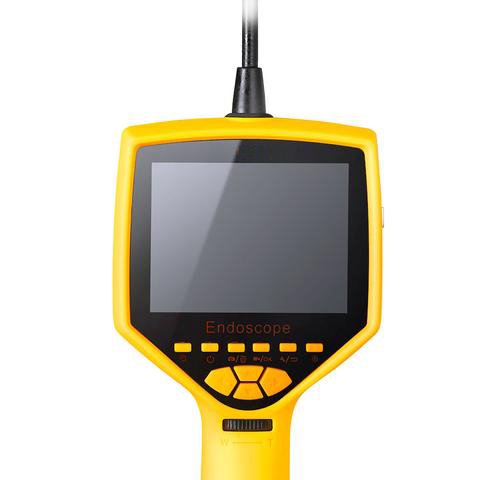

- ICOE “iBO M2” series inspection borescope use optoelectronic technology to investigate hard-to-reach area. It helps you to diagnose broken part, weld point and machine equipment to save time and increase productivity.
–
Applications
- Pipeline and automobile inspection
- lithofacies, industry, cylinder, container check
- Special for work environment with small holes or relatively low require.
–
Specifications
| Model | iBO M2A | iBO M2B |
| Magnification | 1~50 times | 50 times |
| Pixels | 0.3MP (real hardware) | |
| Operating System | Windows XP SP2 or above, including Win 8 32/64 bit, Mac OS × 10.5 or above, Linux | |
| Focus type: | Manual Focus | Fixed Focus |
| Interface | USB 2.0 | |
| Max Size | Ø9.5mm×5m | Ø9.5mm×8m |
| Cable | Flexible Cable | |
| Waterproof | IP67 | |
| Object Distance | 4mm ~ Infinity | |
| Monitor | 3.5 Inches Monitor | |
| Light Sources | 4 LED lights (adjustable) | |
| OSD language | English, Chinese, German, Japanese | |
| Software | ICOE Software with measurement and calibration function, For Mac, please use Photo Booth, FaceTime or QuickTime, For Linux, please use web camera software to open it | |
| Snapshot | By Software, By Hardware | |
| Still Image Resolution | 640X480, 320X240 | |
| Photo Format | JPEG | |
| Video | High compression, 11 hours long | |
| Video Capture Resolution | 640X320, 320X240 | |
| Video Format | WMV | |
| Display Speed | Maximum 30 f/s | |
| Package Size | 32 cm(L) × 27 cm(W) × 8 cm(H) | |
| Gross Weight | 1180g | 1250g |
| Net Weight | 280g | 350g |
| Including | 1 X Endoscope, 1 X Battery, 1 X Charger, 1 X AV Wire | |
