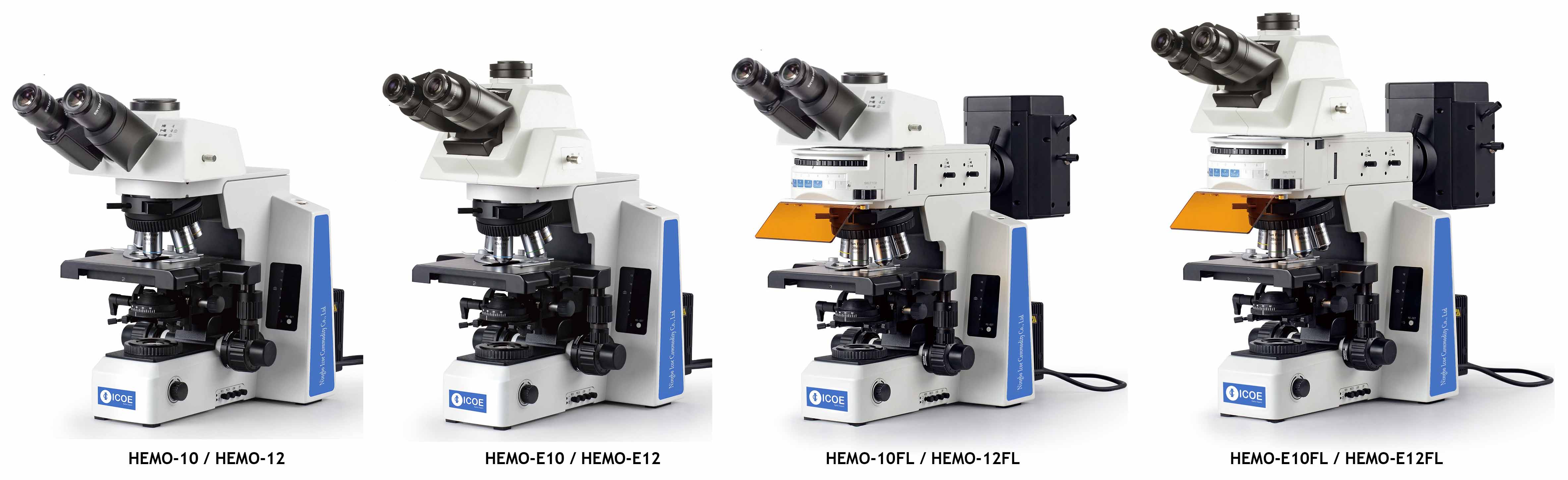

State-of-the-art Microscopes for Advanced Life Science Applications

After years of research and development in optical technology field, Hemo series biological microscope is designed to present a safe, comfortable and efficiency observation experience for users. With perfectly performed structure, high-definition optical image and simple operating system, Hemo series realizes professional analysis, and meets all the needs of research in scientific, medical and other fields.

It has excellent optical quality such as long working distance and strong chromatic aberration correction capability. The 25mm (or optional better 26.5mm) field of view of the eyepieces and the plan apochromatic objectives enable observations with perfect color rendering at high resolving power. It has reliable imaging, provides high contrast, clear and bright images, and helps you to conduct cutting-edge life science research. The Hemo series microscopes adopt a modular design, which can realize observation methods such as bright field, dark field, differential interference, fluorescence, and polarized light. It is an ideal tool for experimental teaching, scientific research, and medical testing.

Large stage with adjustment in either hand

1). In order to correct the shortcoming of horizon guide rail, new stage is designed with double-way linear driving mechanism. This change protects the stage from overload at the end of both rails, improves the rigidity and performance of the stage.

2). The handle of the stage can be set at each side based on users’ preference. The X, Y biaxial adjustments are designed with low position for comfortable operation.

3). Two slices can be hold on the stage by using damping-type double clips, easy for comparative study. Moving range: 80mm X55mm; precision: 0.1mm.

4). Processed with special craft, the surface of the stage is anticorrosive and anti-friction. The platform with an arc transition design reduces the stress concentration and damage from impact.

5). Light barrier, which can effectively reduce the stray light, improves the image contrast in fluorescence observation.

Modular frame, improving the system compatibility

Hemo Series with modularization design, separated cross arm and main body, improves the system compatibility of biological and fluorescence frame.

Highly sensitive coaxial coarse and fine adjustment

Coaxial adjustment adopts double-stage driving, with adjustable tension tightness and upper limit stop, coarse range is 25mm and fine precision is 1μm. Not only accurately focus but also precision measurement is available.

Viewing head with multi-splitting ratio

Hemo series viewing head is designed of multiple options for splitting ratio. with wide beam imaging system, 26.5mm super wide filed of view is available.

Trinocular head with inverted image, splitting ratio Binocular: Trinocular=100:0 or 20:80 or 0:100. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time. Trinocular head with erect image, splitting ratio Binocular:Trinocular= 100:0 or 0:100. The moving

Quintuple/sextuple/septuple nosepiece for option.

12V100W halogen lamp house provides transmitted light.

Illuminator center is preset, without adjustment after replacing the lamp.

N.A.0.9 swing-out type achromatic condenser

With iris diaphragm and aperture scale, provides sufficient and uniform light for full-field observation in different magnifications. It is able to work with 2x objective.

• Optional:
  1. Condenser for phase contrast: in height adjustable N.A.1.25 Zernike phase contrast condenser with phase annuli for 10/20/S40x and S100x-oil objectives
  2. Dark field condenser (dry) & dark field condenser (oil) are optional for dark field application
  3. Rotating DIC and BF disc condenser, work along with one or more DIC-prisms & slider with prism for nosepiece & DIC polarizer for transmitted light

Objectives

Infinite corrected plan achromatic objectives N-PLN (application for clinical routine laboratories)

• 4x/0.10, WD: 30mm,
• 10x/0.25, WD: 10.2mm,
• 20x/0.40, WD: 12.0mm,
• S40x/0.65, WD:0.7mm,
• S100x/1.25 (oil immersion), WD: 0.2mm
• Optional: 2x/0.06, WD: 7.5mm; S50x/0.95, (oil immersion) WD: 0.19mm and S60x/0.80, WD: 0.30mm
• –
• Other types objectives optional 1:
• Infinity corrected plan phase objectives (applications for phase contrast)
• 10x/0.25, WD: 10.2mm,
• 20x/0.40, WD: 12mm,
• S40x/0.65, WD: 0.7mm,
• S100x/1.25 (oil immersion), WD: 0.2mm
• –
• Other types objectives optional 2 (applications for fluorescence applications)
• Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 4x/0.13, working distance 16.5mm
• Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 10x/0.30, working distance 8.1mm
• Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 20x/0.50, working distance 2.1mm
• Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 40x/0.75, working distance 0.7mm
• Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 100x/1.30, oil immersion, W.D.: 0.15mm
• –
• Other types objectives optional 3 (applications for fluorescence applications)
• Plan Apochromatic infinity corrected objective, PlanF Apo 2x/0.08, working distance 6.1mm
• Plan Apochromatic infinity corrected objective, PlanF Apo 4x/0.16, working distance 12.8mm
• Plan Apochromatic infinity corrected objective, PlanF Apo 10x/0.40, working distance 3.2mm
• Plan Apochromatic infinity corrected objective, PlanF Apo 20x/0.75, working distance 0.6mm
• Plan Apochromatic infinity corrected objective, PlanF Apo 40x/0.95, working distance 0.15mm
• Plan Apochromatic infinity corrected objective, PlanF Apo 60x/0.90, oil immersion, W.D.: 0.26mm
• Plan Apochromatic infinity corrected objective, PlanF Apo 60x/1.25, oil immersion, W.D.: 0.14mm
• Plan Apochromatic infinity corrected objective, PlanF Apo 100x/1.35, oil immersion, W.D.: 0.13mm
• –
• Other types objectives optional 4 (applications for fluorescence applications & phase contrast applications)
• Plan Phase infinity corrected objective, Plan 10x/0.25 Ph, working distance 10.2 mm
• Plan Phase infinity corrected objective, Plan 20x/0.40 Ph, working distance 12 mm
• Plan Phase infinity corrected objective, Plan 40x/0.65 Ph, working distance 0.7 mm
• Plan Phase infinity corrected objective, Plan 100x/1.25 Ph, oil immersion working distance 0.2 mm
• Plan Apochromatic Phase infinity corrected objective, PlanF 4x/0.16 Ph, working distance 12.8 mm
• Plan Apochromatic Phase infinity corrected objective, PlanF 10x/0.40 Ph, working distance 3.2mm
• Plan Apochromatic Phase infinity corrected objective, PlanF 20x/0.75 Ph, working distance 0.60mm
• Plan Apochromatic Phase infinity corrected objective, PlanF 40x/0.95 Ph, working distance 0.15mm
• Plan Apochromatic Phase infinity corrected objective, PlanF 60x/0.90 Ph, working distance 0.26mm
• Plan Apochromatic Phase infinity corrected objective, PlanF 100x/1.35 Ph, working distance 0.13 mm
