Hemera.FL Series Fluorescence Microscope

Home Microscopy Fluorescence Microscopes Hemera.FL Series Fluorescence Microscope

Hemera.FL Series Fluorescence Microscope

Fluorescence Microscopes, Epi-Fluorescence, Featured Products2021-01-17n50

Description

State-of-the-art Microscopes for Advanced Life Science Applications

The Hemera Series Microscopes are specifically designed for life science research and can meet the needs of various microscopic imaging in the laboratory.

The mechanical structure is stable, compact, ergonomic design, reasonable layout, comfortable to use, and can operate the microscope in a natural posture. The ergonomic design and outstanding state-of-the-art NIS60 objectives make the Hemera series the ideal microscope for advanced life science applications such as cytology and anatomopathology.

It has excellent optical quality such as long working distance and strong chromatic aberration correction capability. The 25mm field of view of the eyepieces and the plan apochromatic objectives enable observations with perfect color rendering at high resolving power. It has reliable imaging, provides high contrast, clear and bright images, and helps you to conduct cutting-edge life science research. The Hemera series microscopes adopt a modular design, which can realize observation methods such as bright field, dark field, differential interference, fluorescence, and polarized light. It is an ideal tool for experimental teaching, scientific research, and medical testing.



ERGONOMIC DESIGN, COMFORTABLE OPERATION

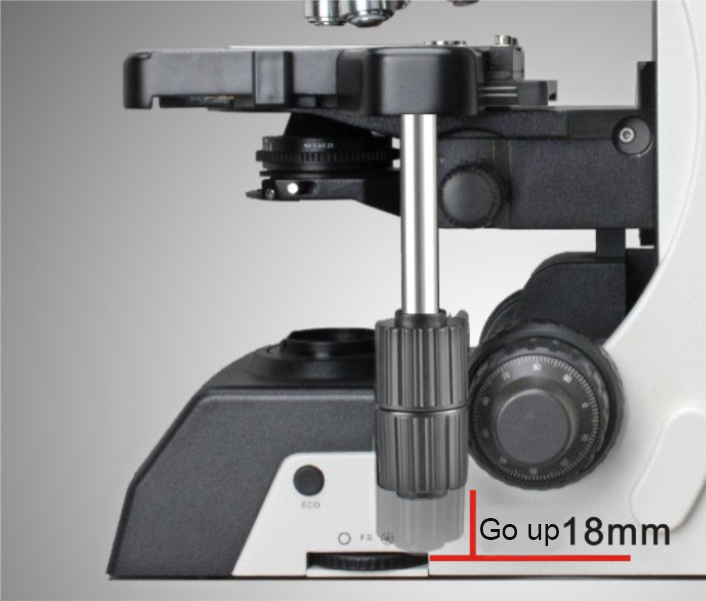

Low-position control knobs

  • The height of the stage control knobs can be adjusted up or down by 18mm to ensure a comfortable hand position, and with adjustable tension control.

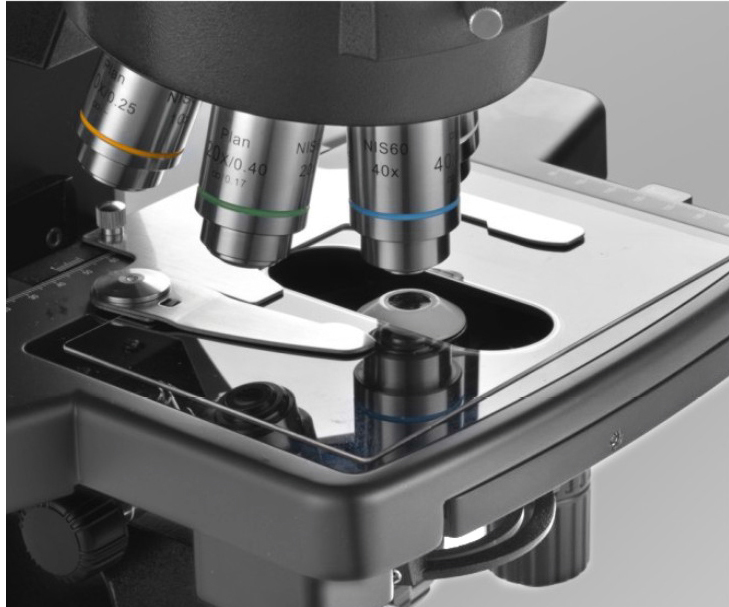

Glass stage insert

  • Mechanical stage with a gorilla glass insert is endurable and allows operators to easily clear the stage. We have sapphire glass for your optional choice.

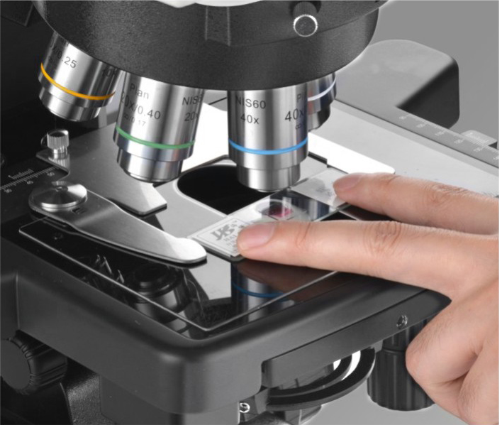

Put slices by one hand

  • It is easy for operators to put slides by one hand due to the convex point guide mechanism.

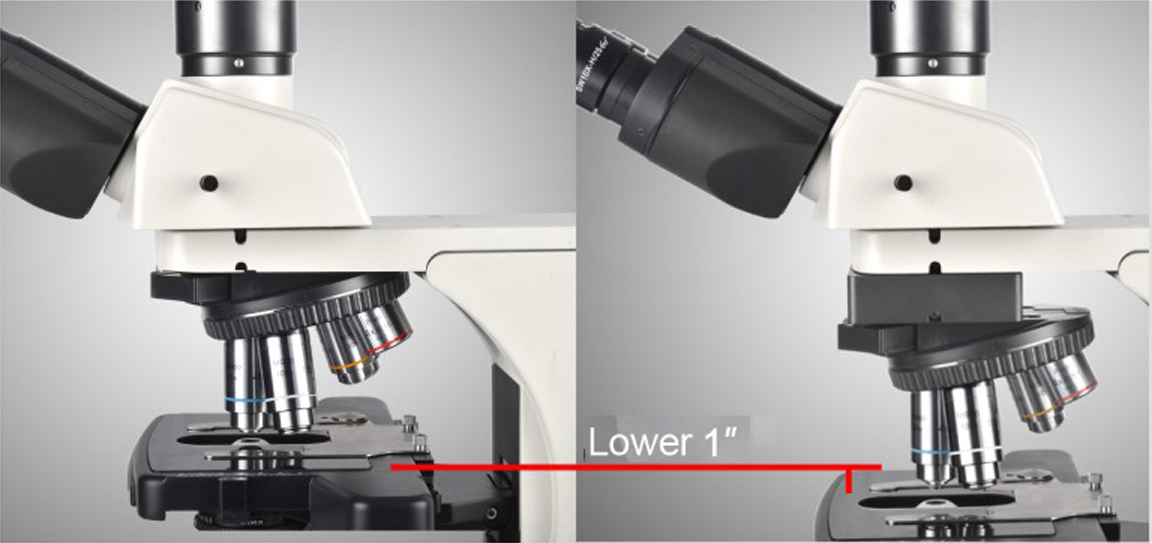

Adapter to lower stage position

  • To lower the stage by “1”, by adding a block up the nosepiece, so that operators can change the slides position easily and comfortably.

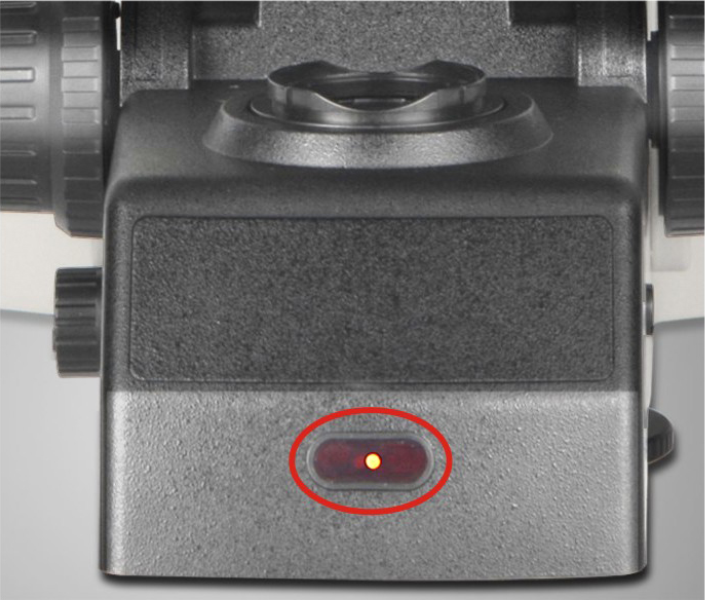

ECO function

  • The transmitted light would be off automatically after 30 minutes from operators leave. It can not only save energy, but also keep the lamp life.

The function of light intensity management (optional)

  • The management system can automatically adjust to the suitable light intensity according to the different setup of objectives from the low to high magnifications, and reduce the eye fatigue at the same time. The long-life LED lamp can keep the light intensity and easy for maintenance.

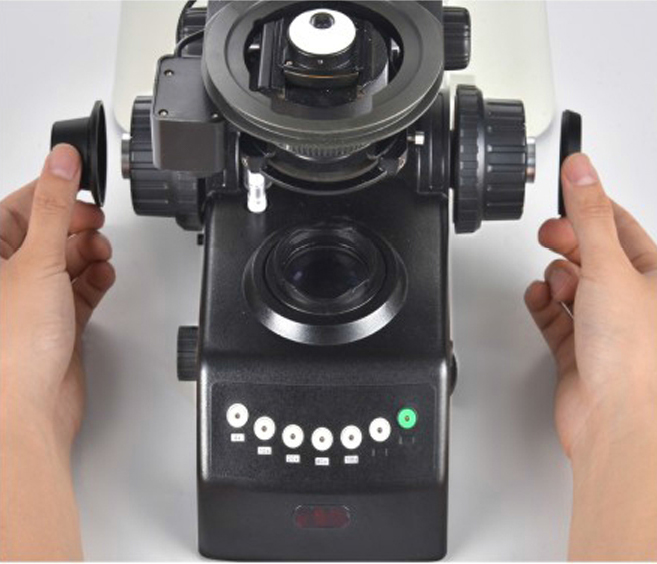

Customized available

  • Customers can choose the position of the fine focusing knob to be right or left, according to preferences.

Ergo tilting trinocular head

  • Eye tube can be adjustable from 0-35 trinocular tube can be connected to SLR camera and digital camera, having a 3-position beam splitter (0:100, 100:0, 80:20), the splitter bar can be assembled on the either side according to user’s requirement.

MODULAR DESIGN, MULTIPLE OBSERVATONS ACHIEVABLE

Observation Method Brightfield Darkfield Phase Contrast Fluorescence Polarization DIC
Hemera Microscope ● ● ● ● ● ●



Viewing Head

Siedentopf trinocular with 30° inclined tubes Interpupillary distance adjustable between 47 and 78mm  3-Position beamsplitter (100:0/80:20/0:100) diopter adjustment on both eyepieces

  • Optional:
  • 1. Ergonomic tilting head
  • 2. Face-to-face dual head
  • 3. Multi head system with 2, 3, 5 or 10 heads



Eyepiece

DIN Super Wide field SWF 10x/25mm, Ø30mm eyepieces

  • Optional:
  • 1. DIN Super Wide Field EWF 10x/22mm, Ø30mm eyepieces also available on special request
  • 2. Wide field WF 12.5x/17.5mm eyepiece, Ø30mm tube
  • 3. Wide field WF 15x/16mm eyepiece, Ø30mm tube
  • 4. Wide field WF 20x/12mm eyepiece, Ø30mm tube
  • 5. Eyecups for eyepieces



Nosepiece

Revolving sextuple reversed nosepiece on ball-bearings

  • Optional:
  • 1. Revolving septuple reversed nosepiece on ball-bearings
  • 2. Motorized nosepiece: a motorized revolving sextuple reversed nosepiece can be optional, which is a essential part to upgrade to Hemera-Auto Series (motorized model). A precise step-motor allows the user to switch from objective by a simple push on a button. Another button allows quick switching between two pre-selected objectives. Standard with this nosepiece comes a motorized condenser



Objectives

Infinite corrected plan achromatic objectives N-PLN (application for clinical routine laboratories)

  • 4x/0.10, WD: 30mm,
  • 10x/0.25, WD: 10.2mm,
  • 20x/0.40, WD: 12.0mm,
  • S40x/0.65, WD:0.7mm,
  • S100x/1.25 (oil immersion), WD: 0.2mm
  • Optional: 2x/0.06, WD: 7.5mm; S50x/0.95, (oil immersion) WD: 0.19mm and S60x/0.80, WD: 0.30mm
  • –
  • Other types objectives optional 1:
  • Infinity corrected plan phase objectives (applications for phase contrast)
  • 10x/0.25, WD: 10.2mm,
  • 20x/0.40, WD: 12mm,
  • S40x/0.65, WD: 0.7mm,
  • S100x/1.25 (oil immersion), WD: 0.2mm
  • –
  • Other types objectives optional 2:
  • Infinity plan fluorescence objectives (applications for fluorescence applications)
  • 4x/0.10, WD: 30mm,
  • 10x/0.25, WD: 10.2mm,
  • 20x/0.40, WD: 12.0mm,
  • S40x/0.65, WD:0.7mm,
  • S100x/1.25 (oil immersion), WD: 0.2mm
  • –
  • Other types objectives optional 3:
  • Infinity corrected plan semi-apochromatic objectives (applications for Anatomo- and histopathology laboratories)
  • 4x/0.13, WD: 16.5mm,
  • 10x/0.30, WD: 8.1mm,
  • 20x/0.50, WD 2.1mm,
  • S40x/0.75, WD: 0.70 mm,
  • S100x/1.30 (oil immersion), WD: 0.15 mm



Stage

The Hemera series is equipped with a large rackless mechanical stage without sharp edges protruding from the sides of the microscope for improved safety. With size 190x152mm, moving 78x32mm integrated right-handed mechanical adjustable handle. The standard supplied Gorilla glass makes this stage extremely scratch-resistant. The stage can be optionally supplied with Sapphire glass or as a left-handed version.

  • Optional:
  • 1. 190x152mm stage with 78x32mm integrated left-handed mechanical stage
  • 2. Optional Sapphire glass available on request
  • 3. Optional stage lowering unit

Focusing

  • Coaxial coarse and fine adjustment, 100 graduations, 1µm precision, 100μm per rotation, total travel approximately 35mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control



Condenser for brightfield

In height adjustable N.A. 0.90/1.25 Abbe swing-out condenser with numerical aperture identification marks. Models with a motorized nosepiece are supplied with a motorized condensor that automatically flips out the front lens of the condenser when the 4x objective is used

  • Optional:
  • 1. Condenser for phase contrast: in height adjustable N.A.1.25 Zernike phase contrast condenser with phase annuli for 10/20/S40x and S100x-oil objectives
  • 2. Dark field condenser (dry) & dark field condenser (oil) are optional for dark field application
  • 3. Rotating DIC and BF disc condenser, work along with one or more DIC-prisms & slider with prism for nosepiece & DIC polarizer for transmitted light



Transmitted illuminations

Two illumination versions (LED and halogen) are available for the Hemera microscope: The standard confirguation is transmitted intensity adjustable 100W halogen illumination with internal 100-240V power supply. The transmitted halogen illumination comes with 2 push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kind of samples

  • Optional:
  • 1. Transmitted intensity adjustable 3W LED illumination with internal 100-240V power supply. The transmitted LED illumination comes with 1 neutral density filter.



Transmitted LED Illumination

The innovative LED design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:

  1. More oblique light from the LED light source can be captured, which increases the light output significantly
  2. Less energy is required to achieve this level of light intensity
  3. 3. The larger aperture of LED allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics



ECO function

The unique sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off after users step away from their position for 30 minutes.



Another optional accessories:

  • 1. Illumination for fluorescence
  • The Hemera series fluorescence microscopes are equipped with a 6-position rotating attachment with 100W mercury vapor light source for broad powerful light spectrum, UV protection shield, integrated safety shutter and a 100-240V external power supply with indication of the lifetime of the 100W HBO lamp.
  • The 6-position rotating attachment can be supplied with general purpose fluorescence filters for routine applications for blue, green, violet and ultra-violet excitation or with advanced fluorescence filters optimized for specific fluorophores
  • All Hemera fluorescence filter sets are supplied with state-of-the-art sputtered and hard coated band-pass excitation filters, high-efficiency dichroic mirrors with very high slopes for superior spectral separation and high blocking long-pass emission filters, all mounted in anodized metal cubes
  • –
  • 2. C-mount for recommendation with microscope cameras
  • C-mount with 1x for C-mount camera
  • C-mount with high resolution relay 0.35x objective for 1/3″ C-mount camera
  • C-mount with high resolution relay 0.50x objective for 1/2″ C-mount camera
  • C-mount with high resolution relay 0.63x objective for 2/3″ C-mount camera
  • –
  • 3. Polarization kits
  • Simple polarization kit, consisting of transmitted polarizer in slider and transmitted analyzer
  • Bertrand lens for conoscopy observation. Swing-out type, focusable and centrable
  • Compensator Slider
  • Optical compensator: 1° order red (1 lambda), (gypsum)
  • Optical compensator: 1/4λ guarter-wave plate (mica)
  • Optical compensator: Quartz wedge
  • Simple polarization kit, consisting of reflected polarizer in slider and reflected analyzer
  • Round stage for polarization microscope, diameter Φ190mm, center adjustable, 360° scale, minimum divison 1°, minimum reading 6′ by means of vernier scale, 45° click stop knob
  • –
  • 4. DIC application
  • Turrent DIC condenser (rotating DIC and BF, without DIC prisms)
  • DIC prism for turrent condenser (used with plan semi-apo 10x objective)
  • DIC prism for turrent condenser (used with plan semi-apo 20x objective)
  • DIC prism for turrent condenser (used with plan semi-apo 40x objective)
  • DIC prism for turrent condenser (used with plan semi-apo 100x objective)
  • Slider with DIC prism for nosepiece (used with plan semi-apo 10x and 20x objectives)
  • Slider with DIC prism for nosepiece (used with plan semi-apo 40x and 100x objectives )
  • –
  • 5. Phase contrast application
  • Zernike Phase contrast Abbe condenser with 4 phase annuli
  • Plan Phase infinite objectives 10x/20x/S40x/S100x,
  • Telescope for phase contrast alignment, Ø 30 mm tube
  • Green filter
  • –
  • 6. Dark field applications:
  • Dark field condenser (Dry)
  • Dark field condenser (Oil)
  • Plan achromatic infinity corrected objective 100x/1.25 oil immersion, with built-in iris diaphragm for darkfield applications, working distance 0.2 mm
  • 7. Attachment kits of multi-viewing microscopes
  • Attachment kits of multi-viewing microscopes for 5 users
  • Attachment kits of multi-viewing microscopes for 2 users
  • Attachment kits of multi-viewing microscopes for 2 users (face to face)
  • Attachment kits of multi-viewing microscopes for 3 users
  • Attachment kits of multi-viewing microscopes for 10 users



PACKAGING

Supplied with power cord, dust cover, spare fuse, user manual and a bottle of 5 ml immersion oil
