Description
Models & Specifications

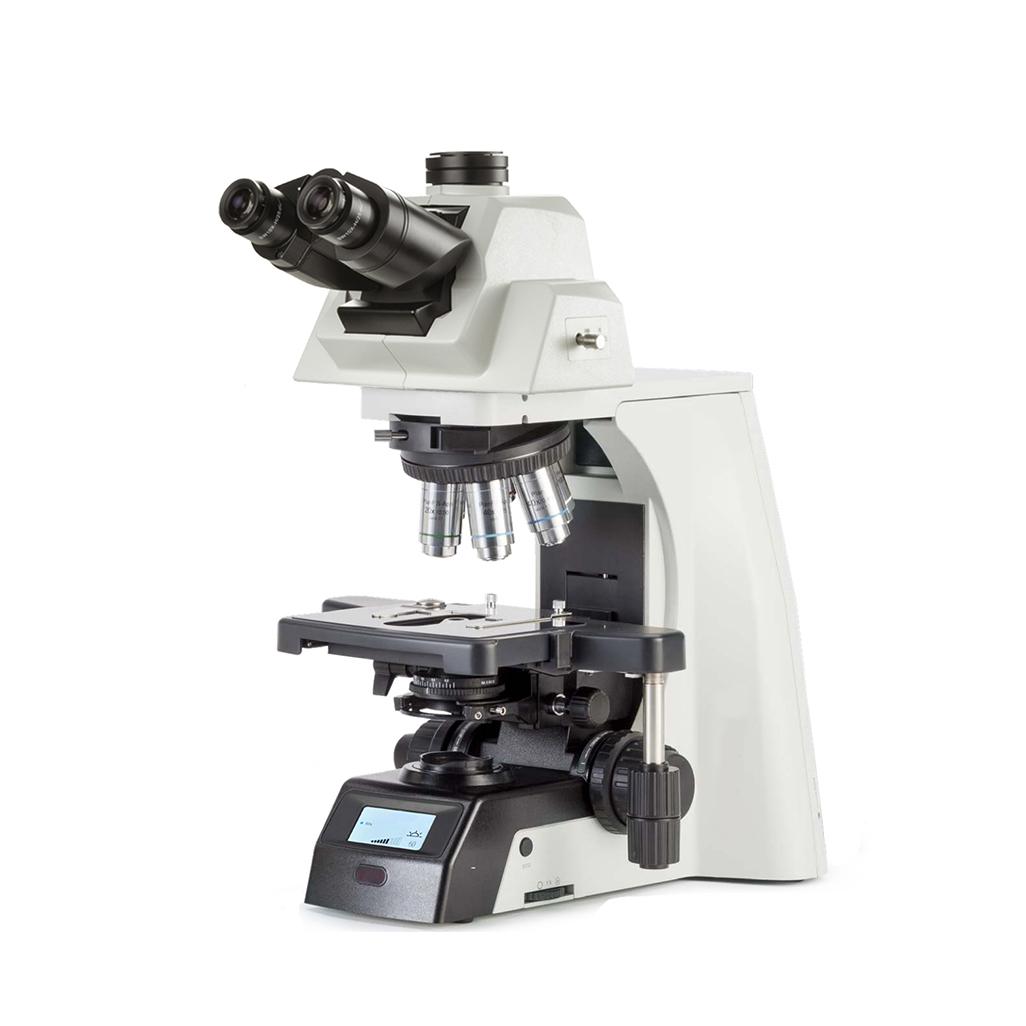

| Model | Hemera-12PHS | Hemera-E12PHS | |
| Optical system: | Infinite corrected optical system | • | • |
| Viewing head: | Siedentopf trinocular with 30° inclined tubes Interpupillary distance adjustable between 47 and 78mm, 3-Position beam splitter (100:0/80:20/0:100) diopter adjustment on both eyepieces | • | |
| Ergo tilting trinocular head, eye tube can be adjustable from 0° to 35°, interpupilary distance 47-78mm, trinocular tube can be connected to SLR camera and digital camera, having a 3-position beam splitter (0:100, 100:0, 80:20), the splitter bar can be assembled on the either side according to user’s requirement. | • | ||
| Eyepiece: | Super wide field SW10x/25 mm eyepiece, Ø30mm tube | •• | •• |
| Nosepiece: | Backward Sextuple Coding Nosepiece, which remembers the illumination brightness when using each objectives. When different objectives are switched between each other, the light intensity is automatically adjusted to reduce visual fatigue and improve work efficiency. | • | • |
| Objective: | Infinite plan achromatic objective, Plan 4x/0.10, working distance 30 mm | • | • |
| Infinite plan achromatic objective, Plan 20x/0.40, working distance 1.2 mm | • | • | |
| Infinite plan semi-apochromatic phase contrast objective, Plan S-AP 10x/0.30 ph, working distance 15.8mm | • | • | |
| Infinite plan semi-apochromatic phase contrast objective, Plan S-AP 20x/0.50 ph, working distance 2.7 mm | • | • | |
| Infinite plan semi-apochromatic phase contrast objective, Plan S-AP 40x/0.75 ph, working distance 1.35 mm | • | • | |
| Infinite plan semi-apochromatic phase contrast objective, Plan S-AP 100x/1.40 ph, working distance 0.18 mm | • | • | |
| Stage: | Double layer mechanical stage 230×152/78x32mm with Gorilla glass insert, with right handle | • | • |
| Focusing: | Coaxial focusing system with low-postion X-Y coaxial control knob, the ergonomic design provides operators comfortable experience, fine division 1um, moving range 35mm | • | • |
| Condenser: | Universal turret phase contrast set, with phase contrast positions and rings for 10/20/S40/S100x objectives and bright field position | • | • |
| Phase telescope: | Telescope for phase contrast alignment, Ø 30 mm tube | • | • |
| Illumination: | 5W LED lighting, with Full-Köhler illuminaton, color tempeature and brightnss adjustable. Matrix lens for uniform field illumination. The color temperature can be adjusted. Identify and display the band on the LCD screen. | • | • |
| LCD screen: | The LCD screen on the front of the microscope displays the use status of the microscope, including magnification, light intensity, standby status, lock etc. | • | • |
| ECO function: | The unique sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off after users step away from their position for 30 minutes. | • | • |
| Others: | Dust cover and user manual, oil immersion | • | • |
