Glint114S Telescope, Newtonian reflector, A114/F500

Home Telescope Reflector Telescope Glint114S Telescope, Newtonian reflector, A114/F500

Glint114S Telescope, Newtonian reflector, A114/F500

Newtonian reflector, Aperture: 114mm, Focal length: 500mm

Reflector Telescope, Featured Products2026-06-22n50

Description

Descriptions

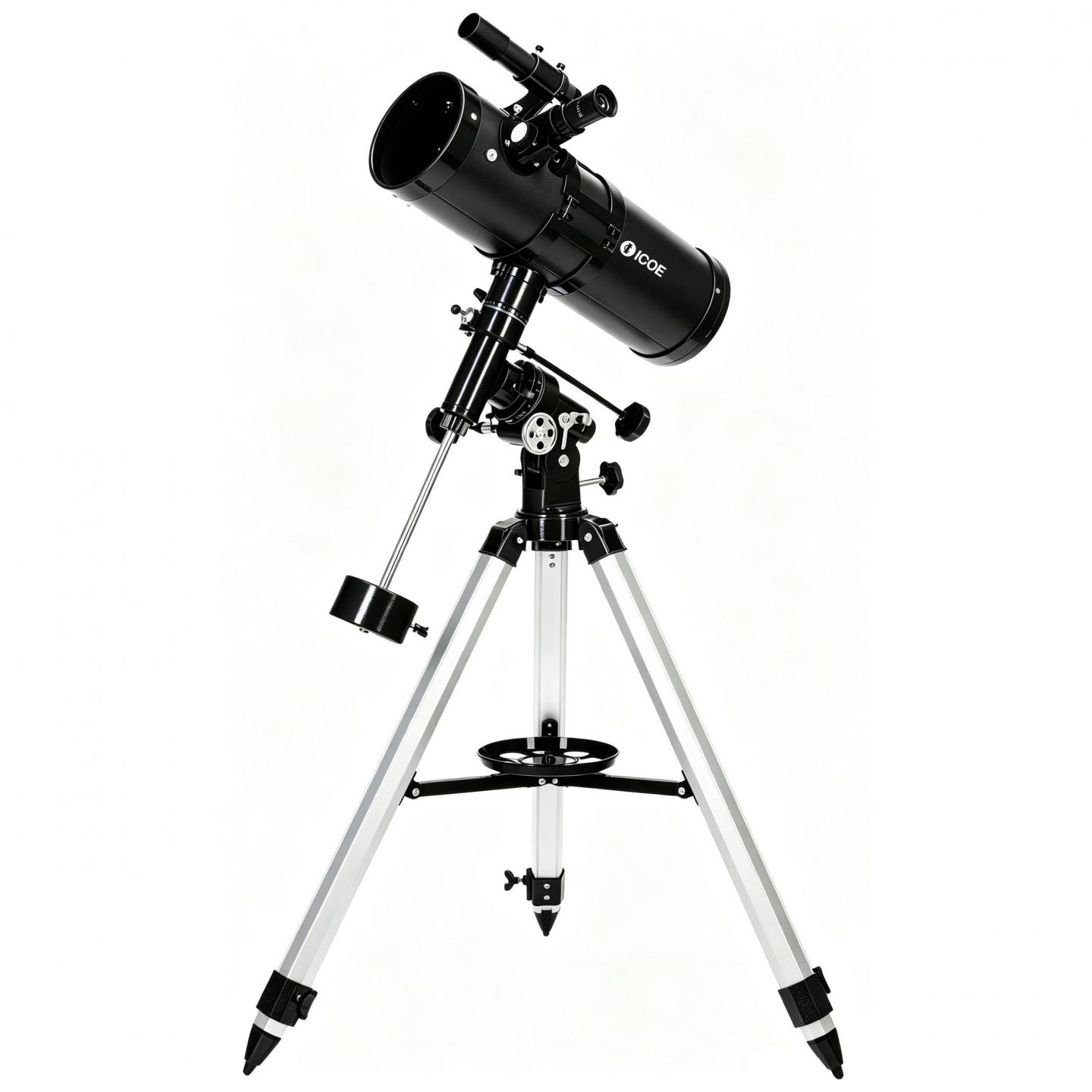

The ICOE Glint114S telescope is a short-focus Newtonian reflector for exploring deep-sky objects as well as astrophotography. Due to its high resolution, it renders a sharp and detailed picture of deep-sky and solar system objects. The compact size of the telescope allows you to take it with you on trips to suburban astronomers meetings.

The reflector features a spherical primary mirror. The lenses are made of glass with an anti-reflective coating. Up to the highest practical power, a sharp and detailed image with low distortion can be observed through the telescope. The telescope features an equatorial mount with manual operation. The mount is installed on an aluminum tripod.

You can place an accessory tray (included) on it. The legs of the tripod feature adjustable height so that the telescope is easy to adapt to users of different heights.



Feaatures

  • – Short-focus Newtonian reflector
  • – Suitable for professional astrophotography
  • – Excellent choice for observing outer space and especially deep-sky objects
  • – Equatorial mount allows for accurate and smooth tracking
  • – Optical accessories included



The kit includes

  • – Telescope optical tube
  • – K 10mm eyepiece
  • – K 25mm eyepiece
  • – 2x Barlow lens
  • – Lunar filter
  • – Finder 6×30
  • – Equatorial mount
  • – Slow-motion control knobs
  • – Counterweight bar
  • – Counterweight
  • – Tube ring
  • – Aluminum tripod with an accessory tray
  • – User manual



Specifications

Item No. NRG1145001
Optical design newtonian reflector
Optics material optical glass
Optics coating anti-reflective
Primary mirror diameter (aperture), mm 114 (4.5-inch)
Lens shape (a mirror) spherical
Focal length, mm 500
Highest practical power, x 228
Focal ratio f/4.4
Resolution threshold, arcseconds 1
Stellar magnitude limit 12.38
Eyepieces K10mm (50x), K25mm (20x)
Eyepiece barrel diameter, mm 31.75 (1.25-inch)
Barlow lens 2x
Finderscope optical, 6×30
Focuser rack & pinion
Filter included lunar
Tripod aluminum
Tripod height (adjustable), mm 610–1040
Accessory tray Yes
Telescope control manual
Mount equatorial, EQ3
Optical tube mounting mode fastening rings
Optical tube material metal
User Level beginners, experienced users
Assembly and installtioin difficulty level complicated
Observed objects deep-sky objects
Extended kit Yes
Package size (LxWxH), mm 775x250x370mm
Shipping Weight 11.8kg
