Description
Introduction

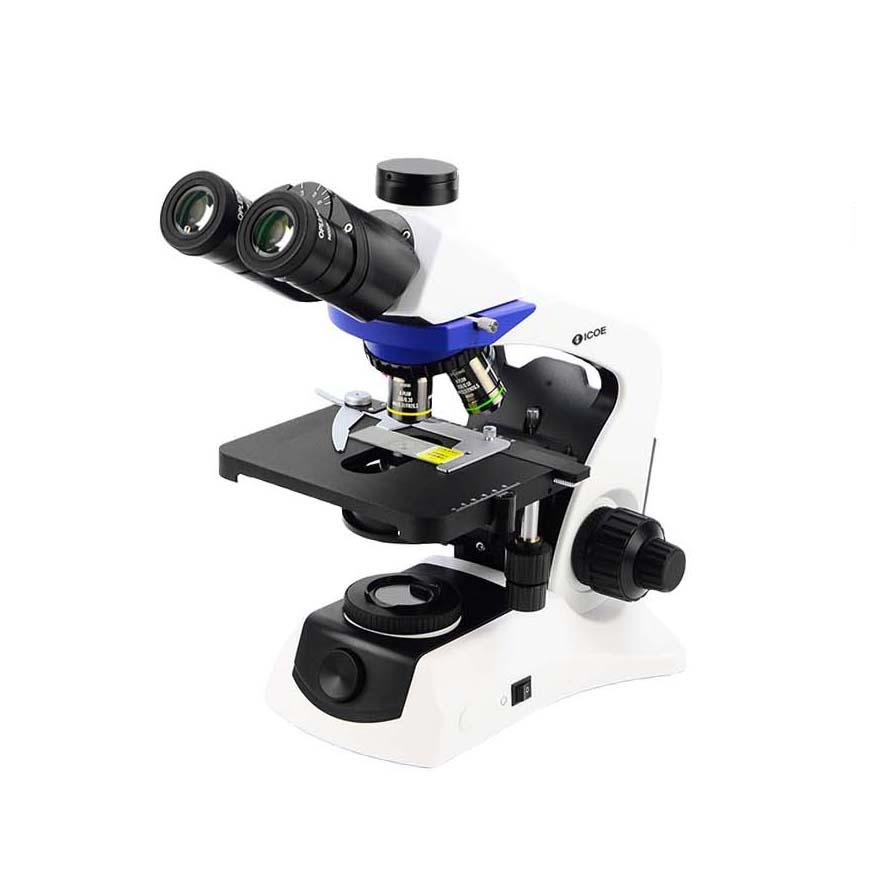

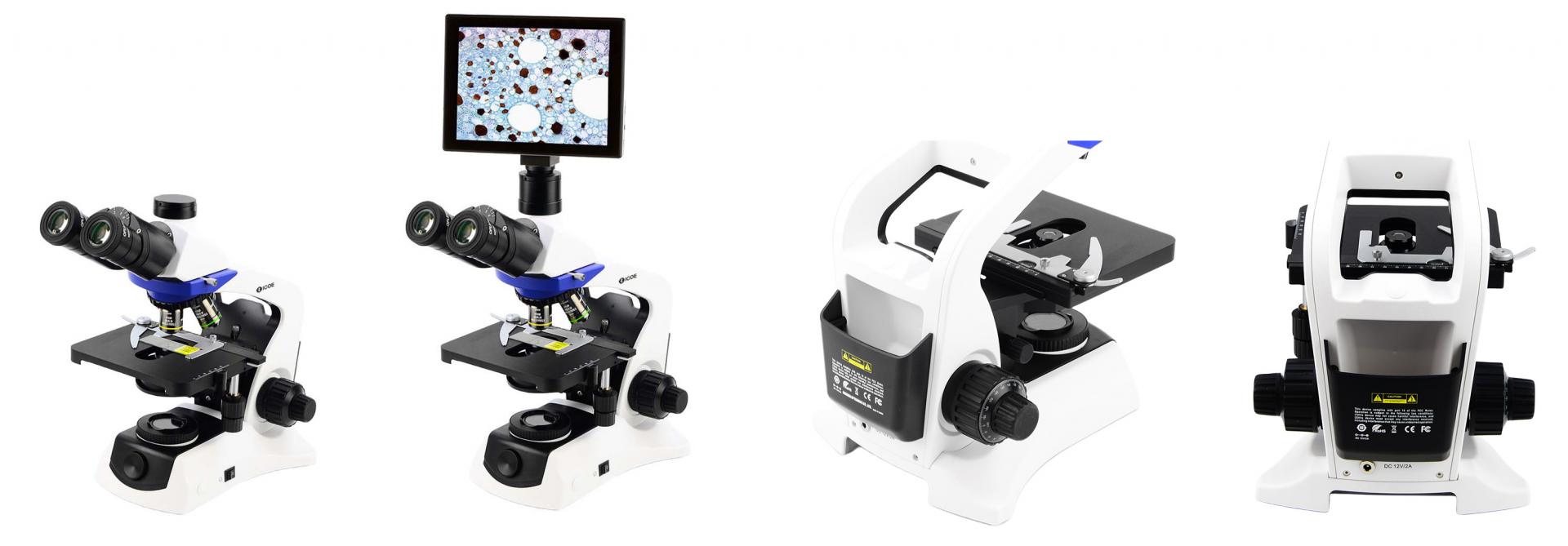

The EXEC30 series microscopes are designed for biological applications in professional and educational settings. Its infinity-corrected optical system ensures reliable, low-distortion magnification, with semi-plan, achromatic corrections for accurate colors and improved sharpness. The powerful LED illumination system provides bright, evenly-distributed light for maximum contrast and definition. This model is a popular choice for veterinarians and university laboratories.
Features
1. Optical system: Enhanced infinity bidirectional chromatic aberration correction optical system, parfocal distance 45mm
2. Body structure: Aluminum alloy one-piece molding technology is used to wrap the ABS environmentally friendly material body. Adapt to 100~230V wide voltage power supply.
3. Lighting system: Built-in LED lighting system, 3W output color temperature 6500K constant, light source life is not less than 30,000 hours; white light illumination, light outlet supports installation of 45mm filter.
4. Focusing system: Both left and right hands have coarse and fine adjustment synchronously adjustable, power-assisted fine adjustment minimum step accuracy 2μm, maximum stroke 20mm, with tension adjustment, anti-collision height limit device.
5. Stage: Right-hand low-position double-layer mechanical stage, adopts gear rack transmission structure, sturdy and durable
6. Slice clamp: Slow rebound left-hand slice clamp, can drive heavy samples such as cell counting pool and counting plate.
7. Condenser: Pre-centered Kohler condenser with aperture indicator scale mark, supports bright field, polarized light and other lighting methods.
8. Observation tube: 30° hinged trinocular observation tube, 50/50 split, adjustable eye point height, pupil distance adjustment range 48-76mm.
9. Eyepiece: 30mm diameter wide field of view 10X/field of view number ≥22, binocular diopter (-5~+5) adjustable.
10. Objective turret: The microscope body has an integrated inward-tilted four-hole objective turret, RMS international standard objective thread interface.
11. Objective lens: Plan-field achromatic objective lens set 4X (N.A.≥0.10, 10X (N.A.≥0.25), 20X (N.A.≥0.40) (optional), 40X (N.A.≥0.60), 100X (N.A.≥1.25)
12. Camera interface: 0.5X adjustable synchronous standard C-type port
14. Fluorescence device: Pull-out LED fluorescence Illuminator, 30,000 hours maintenance-free. Compatible with all conventional dye excitation blocks: DAPI, FITC, TRITC, TxRed, etc.
15. Anti-mold device: The optical imaging components such as the observation tube, eyepiece, and objective lens are all treated with antibacterial and anti-mold treatment.
16 Environmental protection: All optical components used are made of environmentally friendly lead-free glass, which complies with the RHoS environmental protection directive.
Models & Specifications

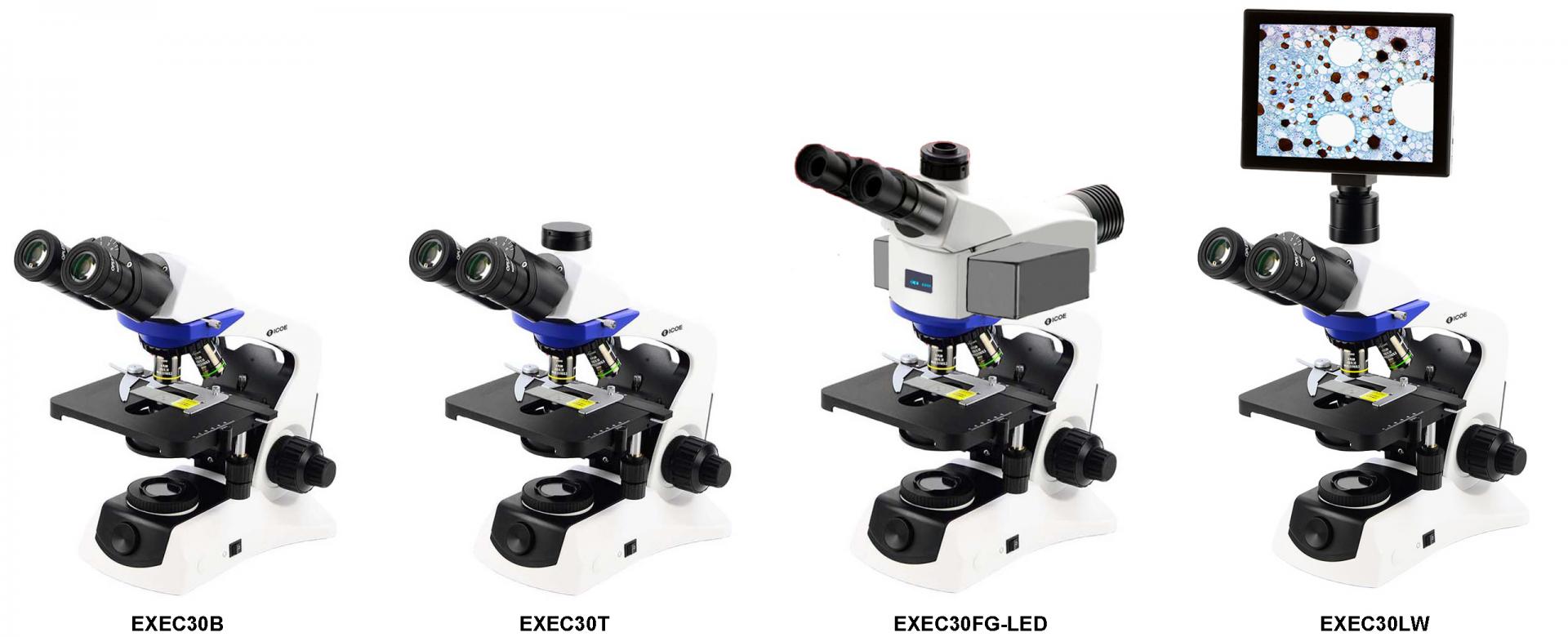

| Model | EXEC30B | EXEC30T | EXEC30FG-LED | EXEC-30LW | |
| Optical system: | Infinite corrected optical system | • | • | • | • |
| Viewing head: | Seidentopf binocular head with 30° inclined Ø 30 mm eyetubes, interpupillary distance is adjustable between 48 and 75mm,360° rotatable and secured with a screw, equipped with a ±5 diopter adjustment on the left tube | • | |||
| Seidentopf trincoular head with 30° inclined Ø 30 mm eyetubes, interpupillary distance is adjustable between 48 and 75mm,360° rotatable and secured with a screw, equipped with a ±5 diopter adjustment on the left tube, with a fixed light path beamsplitter 50:50 | • | • | • | ||
| Eyepiece: | A pair of WF10x/22mm eyepiece | • | • | • | • |
| Nosepiece: | Reversed quadruple nosepiece on ball bearings. | • | • | • | • |
| Objectives: | All with anti-fungus treatment. | • | • | • | • |
| Infinite plan achromatic objective 4x/0.10 | • | • | • | • | |
| Infinite plan achromatic objective 10x/0.25 | • | • | • | • | |
| Infinite plan achromatic objective 20x/0.40 | ○ | ○ | ○ | ○ | |
| Infinite plan achromatic objective 40x/0.65, spring loaded | • | • | • | • | |
| Infinite plan achromatic objective 60x/0.85, spring loaded | ○ | ○ | ○ | ○ | |
| Infinite plan achromatic objective 100x/1.25, spring loaded, oil | • | • | • | • | |
| Stage: | Double layer mechnical stage 180 x 145mm with mechanical 77 x 52 mm X-Y translation stage | • | • | • | • |
| Focusing: | Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, total travel approximately 20mm, supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control | • | • | • | • |
| Condenser: | Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder |
• | • | • | • |
| Illumination: | High brightness 3W LED illumination for long life, brightness adjustable. Köhler Illuminator is optional | • | • | • | • |
| Power: | Power supply with integrated 100-240 V | • | • | • | • |
| Others: | Dust cover, green filter, slim and easy to carry, user manual and immersion oil | • | • | • | • |
| Fluorescent Attachment: | FG-LED LED Epi-fluorescent Attachment, supplied with 3W Epi-fluorescent illumination device including 3 channels (2 channel for fluorescent cubes and 1-channel for brightfield observation) and a UV protection shield; Digital screen shows light intensity 0~100%; Instant on-off, no need waiting of pre-heating or cooling. remember light intensity of each color light source; Light source synchronous switching with filter groups. Equipped with 2 fluorescent filter set for Blue filter & Green filter (other filters optional) Blue filter: Long-pass EX475/30nm, DM500nm, EM510nmLP | ○ | ○ | • | ○ |
| C mount: | 0.5x C mount adapter for digital camera | ○ | ○ | ○ | |
| Digital tablet: | 9.5″ LCD Attachment with integrated display camera, with IMX307, 1/2.8″ sensor, 2.9×2.9um, 2m Mega pixel, CMOS chip, 1x USB2.0 port for connecting USB flash drive/mouse, 1x USB2.0 port for connecting mouse, 1 x USB2.0 port for connecting to computer, 1 x HDMI port to connecting screen monitor, Image: 1920×1080@60FPS, Video: 1920×1080@30FPS, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS, White Balance: Auto and Manual and ROI Mode, Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | ○ | ○ | ○ | |
| 10.5″ LCD touch screen with integrated display camera, with IMX307, 1/2″ sensor, 2.0×2.0um, 8MP 4K, CMOS chip, 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS, White Balance: Auto and Manual and ROI Mode, Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | ○ | • | |||
Optional Accessories
| Cat. Number | Descriptions |
| EXECU1002 | Seidentopf binocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75mm, equipped with a ±5 diopter adjustment on the left tube |
| EXECU1002 | Seidentopf trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75mm, equipped with a ±5 diopter adjustment on the left tube, with a fixed light path beamsplitter 50:50 |
| EXECU1003 | WF10x/22mm eyepiece |
| EXECU1004 | WF10x/22mm micrometric eyepiece |
| EXECU1005 | WF15x/16mm eyepiece |
| EXECU1006 | WF20x/12mm eyepiece |
| EXECU1007 | Quadruple nosepiece |
| EXECU1008 | Infinite achromatic objective 4x/0.10 |
| EXECU1009 | Infinite achromatic objective 10x/0.25 |
| EXECU1010 | Infinite achromatic objective 20x/0.40 |
| EXECU1011 | Infinite achromatic objective 40x/0.65, spring loaded |
| EXECU1012 | Infinite achromatic objective 60x/0.85, spring loaded |
| EXECU1013 | Infinite achromatic objective 100x/1.25, spring loaded, oil |
| EXECU1014 | Infinite semi-plan achromatic objective 4x/0.10 |
| EXECU1015 | Infinite semi-plan achromatic objective 10x/0.25 |
| EXECU1016 | Infinite semi-plan achromatic objective 20x/0.40 |
| EXECU1017 | Infinite semi-plan achromatic objective 40x/0.65, spring loaded |
| EXECU1018 | Infinite semi-plan achromatic objective 60x/0.85, spring loaded |
| EXECU1019 | Infinite semi-plan achromatic objective 100x/1.25 spring loaded, oil |
| EXECU1020 | Infinite plan achromatic objective 4x/0.10 |
| EXECU1021 | Infinite plan achromatic objective 10x/0.25 |
| EXECU1022 | Infinite plan achromatic objective 20x/0.40 |
| EXECU1023 | Infinite plan achromatic objective 40x/0.65, spring loaded |
| EXECU1024 | Infinite plan achromatic objective 60x/0.85, spring loaded |
| EXECU1025 | Infinite plan achromatic objective 100x/1.25, spring loaded, oil |
| MFLEDA2 | “FG” LED Epi-fluorescent Attachment, supplied with 3W Epi-fluorescent illumination device including 4 channels (3 channels for fluorescent cubes and 1-channel for brightfield observation) and a UV protection shield; Digital screen shows light intensity 0~100%; Instant on-off, no need waiting of pre-heating or cooling. remember light intensity of each color light source; Light source synchronous switching with filter groups. Equipped with 2 fluorescent filter set for Blue & Green filters |
| MFLEDA3 | “FG” LED Epi-fluorescent Attachment, supplied with 3W Epi-fluorescent illumination device including 4 channels (3 channels for fluorescent cubes and 1-channel for brightfield observation) and a UV protection shield; Digital screen shows light intensity 0~100%; Instant on-off, no need waiting of pre-heating or cooling. remember light intensity of each color light source; Light source synchronous switching with filter groups. Equipped with 3 fluorescent filter set for Blue, Green & UV filters |
| MFLEDBLF | Blue filter: Long-pass EX475/30nm, DM500nm, EM510nmLP |
| MFLEDBBF | Blue filter: Band-pass EX475/30nm, DM505nm, EM530/40nm |
| MFLEDRYB | Royal blue filter: Long-pass EX450/40nm, DM: 500nm, EM510nmLP |
| MFLEDGLF | Green filter: Long-pass EX: 530/40nm, DM: 570nm, EM575nmLP |
| MFLEDGBF | Green filter: Band-pass EX: 530/40nm, DM: 565nm, EM605/55nm |
| MFLEDYLF | Yellow filter: Long-pass EX: 560/40nm, DM: 600nm, EM610nmLP |
| MFLEDVLF | Violet filter: Long-pass: EX: 400/40nm, DM: 430nm, EM: 430nmLP |
| MFLEDULF | UV filter: Long-pass: EX: 355/50nm, DM: 410nm, EM: 420nmLP |
| MFLEDUBF | UV filter: Band-pass: EX: 375/30nm, DM: 415nm, EM: 460/50nm |
| MFLEDRBF | Red filter: Band-pass EX: 620/50nm, DM: 655nm, EM692/45nm |
| EXECU1039 | Green filter for transmitted light |
| EXECU1040 | 3W LED replacement unit |
| EXECU1041 | Köhler attachment |
| EXECU1047 | 0.5x C-Mount projection lens |
| EXECU1048 | 1x C-Mount projection lens |
| EXECU1049 | Heating stage (stage warmer), stage size: 152mm x 134mm, Preset Temp. Control Range: 15º C to 55º C. Actual Stage Temp: 20º to 52º C. Temp. Setting Increments: +/-0.1º C. Temp. Display Divisions: Temp. Display Divisions. Input: 110V/220V (back panel switch): Output: 50W |
| EXECU1050 | Anti-theft slot: At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft |
| EXECU1051 | Aluminum case |
| DETECO5A | Digital eyepiece TECO-5A, 5.1MP, USB port |
| DCKOTI5A | Digital camera KOTI-5A, 5.1MP, CMOS USB2.0 |
| DTX195L2 | Digital tablet DX1, 9.5″ LCD display, 2MP, CMOS, 3 x USB2.0 ports, 1 x HDMI port, with image process software |
| DP1105L8 | Digital tablet DP1-Pro, 10.5 tablet with touch screen, 8MP, CMOS, 4K. with 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, support blue tooth, with image process software |
| *** | More digital cameras are available and optional, please refer to the brochure of ICOE digital cameras |
