Description
Models & Specifications

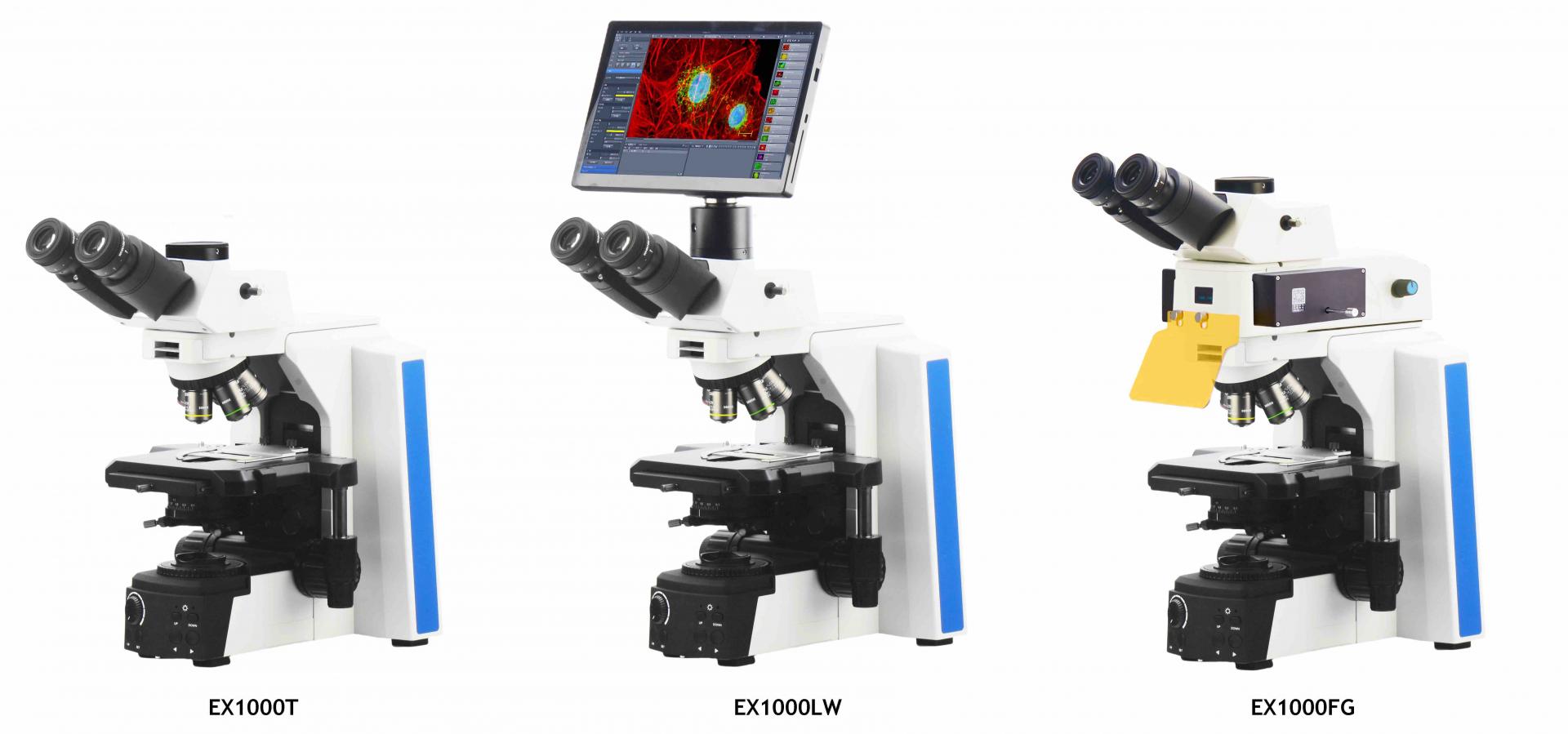

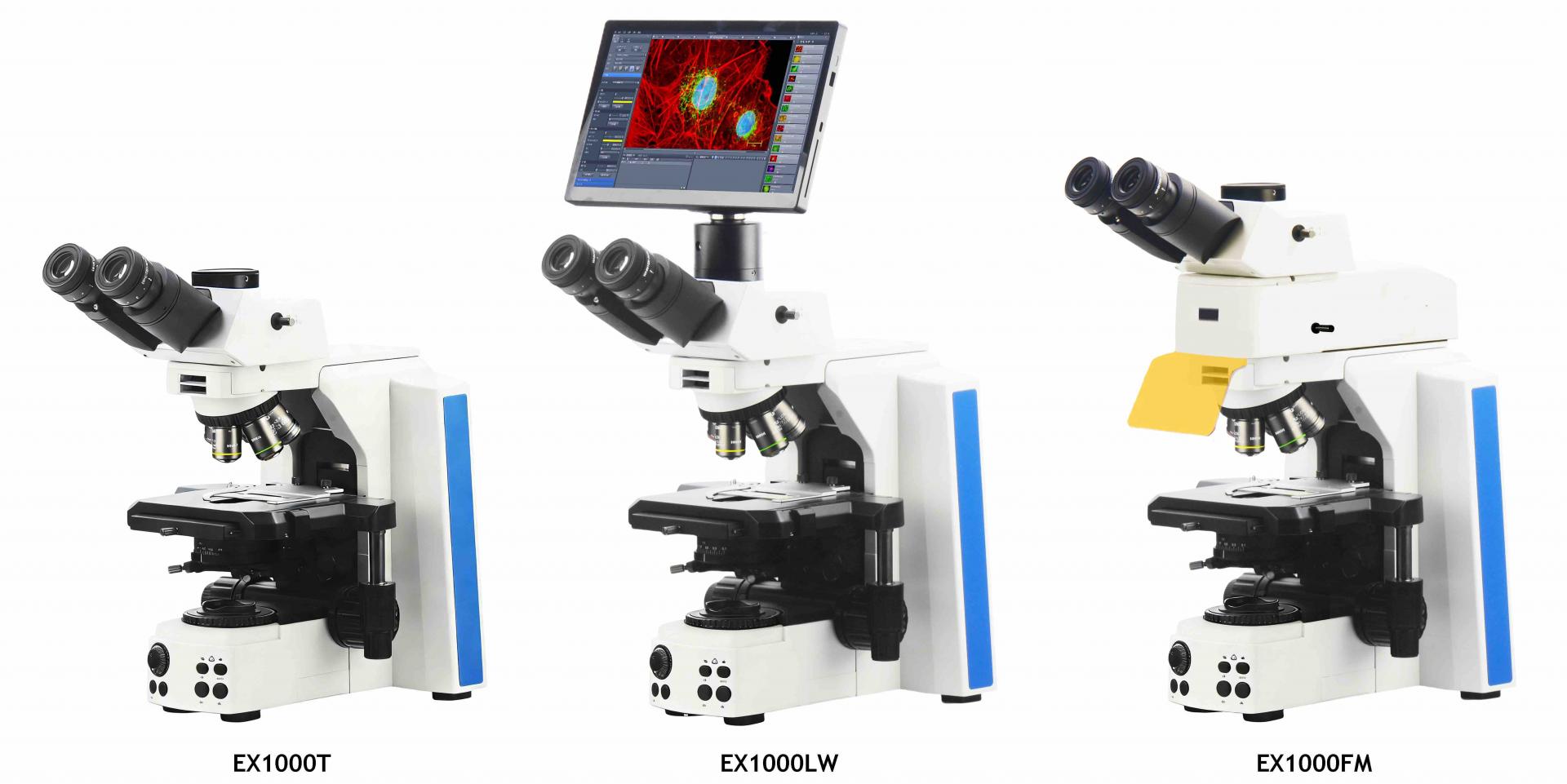

| Model | EX1000T | EX1000PH | EX1000FG2 | EX1000LW | |
| Optical System: | Infinity Corrected Optical System, The optical imaging components such as the observation tube, eyepiece and objective lens have all undergone antibacterial and anti-mold treatments. | • | • | • | • |
| Microscope frame: | The all-metal streamlined body is made of high-quality aluminum alloy through one-time forming technology. It is equipped with a wide-voltage power adapter ranging from 90 to 230V. The entire machine is equipped with USB control output. The panel supports ECO energy-saving and brightness following (LIM light intensity management) functions. It supports stepless brightness setting, dual lighting power supply, two-level touch switch, and computer recognition of the objective lens hole position. The software automatically switches the scale and automatically loads the preset parameters. | • | • | • | • |
| Viewing head: | Trinocular tube with super-wide field of view 26.5 mm, adjustable interpupillary distance from 45 to 76 mm, light path distribution eyepieces/photo output (0/100, 50/50) | • | • | • | • |
| Ergo. titling trinocular head, adjustable from 0° to 45°, interpupilary distance 48-75mm, beam split ratio for eyepiece/camera port=100:0/0:100 | ○ | ○ | ○ | ○ | |
| Nosepiece: | Backward Quintuple Coding Nosepiece | • | • | • | • |
| Eyepiece: | Wide field eyepiece WF10x/23mm, diopter adjustment | •• | •• | •• | •• |
| Wide field eyepiece WF10x/25mm, diopter adjustment | ○○ | ○○ | ○○ | ○○ | |
| Wide field eyepiece WF10x/26.5mm, diopter adjustment | ○○ | ○○ | ○○ | ○○ | |
| Objectives: | Infinity plan achromatic objective, 2x/0.06, working distance 5mm | ○ | ○ | ○ | ○ |
| Infinite Plan Achromatic Objective 4x, NA 0.10, WD: 15mm | • | • | • | • | |
| Infinite Plan Achromatic Objective 10x, NA 0.25, WD: 10.8mm | • | ○ | • | • | |
| Infinite Plan Achromatic Objective 20x, NA 0.40, WD: 1.5mm | • | ○ | • | • | |
| Infinite Plan Achromatic Objective 40x, NA 0.65, spring loaded, WD: 0.8mm | • | ○ | • | • | |
| Infinity plan achromatic objective, 60x/0.85, working distance 0.30mm | ○ | ○ | ○ | ○ | |
| Infinite Plan Achromatic Objective 100x, NA 1.25, spring loaded, oil, WD: 0.21mm | • | ○ | • | • | |
| Infinity plan achromatic phase contrast objective, 10x/0.25, working distance 10.8mm | ○ | • | ○ | ○ | |
| Infinity plan achromatic phase contrast objective, 20x/0.40, working distance 1.5mm | ○ | • | ○ | ○ | |
| Infinity plan achromatic phase contrast objective, 40x/0.65, working distance 0.80mm | ○ | • | ○ | ○ | |
| Infinity plan achromatic phase contrast objective, 100x/1.25, working distance 0.18mm | ○ | • | ○ | ○ | |
| Infinite Plan Semi-Apochromatic Fluorescent Objective, PlanF S-Apo 4x, 10x, 20x, 40x & 100x | ○ | ○ | ○ | ○ | |
| Infinite Plan Apochromatic Objective, Plan Apo 2x, 4x, 10x, 20x, 40x, 60x & 100x | ○ | ○ | ○ | ○ | |
| Infinite Plan Apochromatic Phase Contrast Objective, Plan Apo 4x, 10x, 20x, 40x & 100x | ○ | ○ | ○ | ○ | |
| Stage: | Double-layer steel wire drive coaxial stage with right hand low drive control, with rotating mechanism and torque adjustment mechanism, adjustable movement force along the X and Y axes, movement range 80×55 mm; with slow rebound left-hand slide holder, supporting double slides, capable to carry heavy samples such as cell counting pools and counting plates. | • | • | • | • |
| Focusing: | Low-hand position coarse and fine coaxial focusing mechanism on left/right sides, fine focusing accuracy: 1um, max. focal disatnce 34mm, With adjusting elastic device and upper limit, with platform up and down adjustment mechanism, Magnetic fine-tuning knob, interchangeable between the left and right hands. | • | • | • | • |
| Condenser: | Pre-centered Kohler condenser NA 1.1 with diaphragm indicator scale mark, supports bright field, polarized and other observations | • | ○ | • | • |
| Turret phase contrast condenser NA1.25 with BF, PH4X-100X | ○ | • | ○ | ○ | |
| Turret phase contrast condenser NA1.25 with BF, PH & DF positions | ○ | ○ | ○ | ○ | |
| Universal turrent condenser NA0.9, can be used for BF, PH, DF, PL, FL, DIC observations. The disc with | ○ | ○ | ○ | ○ | |
| Illumination: | Built-in Koehler illumination, 10W High luminescent white LED illminator, with light intensity management (LIM) system, ECO mode | • | • | • | • |
| LIM system: | The illumination brightness can each objectives can be pre-set, when using each objectives. When different objectives are switched between each other, the light intensity is automatically adjusted to reduce visual fatigue & improve work efficiency. | • | • | • | • |
| ECO function: | The ECO function is able to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position for some time | • | • | • | • |
| C mount: | 0.5x C mount for digital camera | ○ | ○ | ○ | • |
| Fluorscent attachment: | “FG” LED Epi-fluorescent Attachment, supplied with 3W Epi-fluorescent illumination device including 4 channels (3 channels for fluorescent cubes and 1-channel for brightfield observation) and a UV protection shield; Digital screen shows light intensity 0~100%; Instant on-off, no need waiting of pre-heating or cooling. remember light intensity of each color light source; Light source synchronous switching with filter groups. | ○ | ○ | ○ | ○ |
| Equipped with 2 fluorescent filter set for Blue, Green excitation filters | ○ | ○ | ○ | ○ | |
| Blue filter: Long-pass EX475/30nm, DM500nm, EM510nmLP | ○ | ○ | ○ | ○ | |
| Blue filter: Band-pass EX475/30nm, DM505nm, EM530/40nm | ○ | ○ | • | ○ | |
| Royal blue filter: Long-pass EX450/40nm, DM: 500nm, EM510nmLP | ○ | ○ | ○ | ○ | |
| Green filter: Long-pass EX: 530/40nm, DM: 570nm, EM575nmLP | ○ | ○ | ○ | ○ | |
| Green filter: Band-pass EX: 530/40nm, DM: 565nm, EM605/55nm | ○ | ○ | • | ○ | |
| Yellow filter: Long-pass EX: 560/40nm, DM: 600nm, EM610nmLP | ○ | ○ | ○ | ○ | |
| Violet filter: Long-pass: EX: 400/40nm, DM: 430nm, EM: 430nmLP | ○ | ○ | ○ | ○ | |
| UV filter: Long-pass: EX: 355/50nm, DM: 410nm, EM: 420nmLP | ○ | ○ | ○ | ○ | |
| UV filter: Band-pass: EX: 375/30nm, DM: 415nm, EM: 460/50nm | ○ | ○ | ○ | ○ | |
| Red filter: Band-pass EX: 620/50nm, DM: 655nm, EM692/45nm | ○ | ○ | ○ | ○ | |
| Digital tablet: | 10.5″ LCD touch screen with integrated display camera, with IMX307, 1/2″ sensor, 2.0×2.0um, 8MP 4K, CMOS chip; 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS; White Balance: Auto and Manual and ROI Mode; Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | ○ | ○ | ○ | • |
| Supplied with: | Dust cover, manual, immersion oil | • | • | • | • |
Optional Accessories
| Order code | Descriptions |
| BEX100001 | Seidentopf trinocular head, inclined at 30°, interpupilary distance 45-76mm, beam split ratio for eyepiece/trinocular port=100:0/50:50 |
| BEX100002 | Ergo. titling trinocular head, adjustable from 0° to 45°, interpupilary distance 48-75mm, beam split ratio for eyepiece/camera port=100:0/0:100 |
| BEX100003 | Wide field WF10x/23mm eyepiece, with diopter adjustment -5~+5, Ø30mm tube |
| BEX100004 | Super wide field WF10x/25 mm eyepiece |
| BEX100005 | Super wide field WF10x/26.5 mm eyepiece |
| BEX100006 | Wide field WF 12.5x eyepiece, Ø30mm tube |
| BEX100007 | Wide field WF 15x/16mm eyepiece, Ø30mm tube |
| BEX100008 | Wide field WF 20x/12mm eyepiece, Ø30mm tube |
| BEX100009 | Wide field WF 30x/8mm eyepiece, Ø30mm tube |
| BEX100010 | Reticle for eyepiece |
| BEX100011 | Eyecup for eyepiece |
| BEX100012 | Micrometer for stage |
| BEX100013 | Quintuple coding reversed nosepiece |
| BEX100014 | Infinity plan achromatic objective, 2x/0.06, working distance 5mm |
| BEX100015 | Infinity plan achromatic objective, 4x/0.10, working distance 15mm |
| BEX100016 | Infinity plan achromatic objective, 10x/0.25, working distance 10.80mm |
| BEX100017 | Infinity plan achromatic objective, 20x/0.40, working distance 1.5mm |
| BEX100018 | Infinity plan achromatic objective, 40x/0.65, working distance 0.80mm |
| BEX100019 | Infinity plan achromatic objective, 60x/0.85, working distance 0.30mm |
| BEX100020 | Infinity plan achromatic objective, 100x/1.25, working distance 0.21mm |
| BEX100021 | Infinity plan achromatic phase contrast objective, 10x/0.25, working distance 10.8mm |
| BEX100022 | Infinity plan achromatic phase contrast objective, 20x/0.40, working distance 1.5mm |
| BEX100023 | Infinity plan achromatic phase contrast objective, 40x/0.65, working distance 0.80mm |
| BEX100024 | Infinity plan achromatic phase contrast objective, 100x/1.25, working distance 0.18mm |
| BEX100025 | Infinite Plan Semi-Apochromatic Fluorescent Objective, PlanF S-Apo 4x/0.13, working distance 16.4mm |
| BEX100026 | Infinite Plan Semi-Apochromatic Fluorescent Objective, PlanF S-Apo 10x/0.30, working distance 8.10mm |
| BEX100027 | Infinite Plan Semi-Apochromatic Fluorescent Objective, PlanF S-Apo 20x/0.50, working distance 2.00mm |
| BEX100028 | Infinite Plan Semi-Apochromatic Fluorescent Objective, PlanF S-Apo 40x/0.75, working distance 0.74mm |
| BEX100029 | Infinite Plan Semi-Apochromatic Fluorescent Objective, PlanF S-Apo 100x/1.28, working distance 0.14mm |
| BEX100030 | Infinite Plan Apochromatic Objective, Plan Apo 2x/0.08, working distance 6.1mm |
| BEX100031 | Infinite Plan Apochromatic Objective, Plan Apo 4x/0.16, working distance 12.8mm |
| BEX100032 | Infinite Plan Apochromatic Objective, Plan Apo 10x/0.40, working distance 3.2mm |
| BEX100033 | Infinite Plan Apochromatic Objective, Plan Apo 20x/0.75, working distance 0.6mm |
| BEX100034 | Infinite Plan Apochromatic Objective, Plan Apo 40x/0.95, working distance 0.15mm |
| BEX100035 | Infinite Plan Apochromatic Objective, Plan Apo 60x/0.90, working distance 0.26mm |
| BEX100036 | Infinite Plan Apochromatic Objective, Plan Apo 60x/1.25, working distance 0.14mm |
| BEX100037 | Infinite Plan Apochromatic Objective, Plan Apo 100x/1.35, working distance 0.13mm |
| BEX100038 | Infinite Plan Apochromatic Phase Contrast Objective, Plan Apo 4x/0.16 Ph, working distance 12.8mm |
| BEX100039 | Infinite Plan Apochromatic Phase Contrast Objective, Plan Apo 10x/0.40 Ph, working distance 3.2mm |
| BEX100040 | Infinite Plan Apochromatic Phase Contrast Objective, Plan Apo 20x/0.75 Ph, working distance 0.60mm |
| BEX100041 | Infinite Plan Apochromatic Phase Contrast Objective, Plan Apo 40x/0.95 Ph, working distance 0.15mm |
| BEX100042 | Infinite Plan Apochromatic Phase Contrast Objective, Plan Apo 60x/0.90 Ph, working distance 0.26mm |
| BEX100043 | Infinite Plan Apochromatic Phase Contrast Objective, Plan Apo 100x/1.35 Ph, working distance 0.13mm |
| BEX100044 | Simple polarizing kit, analyzer 360 rotatable, poalrzer and analyzer can be out of light path |
| BEX100045 | NA0.9 swing-out type achromatic condenser, with scale indication |
| BEX100046 | NA1.2/0.22 swing-out type achromatic condenser, with scale indication |
| BEX100047 | NA0.9 dark field condenser (dry) |
| BEX100048 | NA1.25 dark feild condenser (oil) |
| BEX100049 | Ground glass group (work with 2x objective together) |
| BEX100050 | Abbe condenser NA1.1, with adjustable aperture diaphragm |
| BEX100051 | Turret phase contrast condenser NA1.25 with BF & PH positions |
| BEX100052 | Turret phase contrast condenser NA1.25 with BF, PH & DF positions |
| BEX100053 | Universal turrent condenser NA0.9, can be used for BF, PH, DF, PL, FL, DIC observations. The disc with |
| BEX100054 | 8 hole positions (3 small hole position, 5 bigger hole position), in which 3 small hole position can be |
| BEX100055 | built-in phase contrast annulus, 2 bigger hole position can be built-in drk field annulus or DIC annulus, |
| BEX100056 | the rest 3 bigger hole positions can be built-in DIC annulus. |
| BEX100057 | NA0.2 lens of small condenser (used for low magnification, for universal condenser) |
| BEX100058 | NA0.9 lens of small condenser (for dry objectives, for universal condenser) |
| BEX100059 | NA1.4 lens of small condenser (for oil objectives, for universal condenser) |
| BEX100060 | 10x phase contrast annulus (used for universal condenser) |
| BEX100061 | 20x, 40, 60x phase contrast annulus (used for universal condenser) |
| BEX100062 | 100x phase contrast annulus (used for universal condenser) |
| BEX100063 | 4x phase contrast annulus (used for universal condenser) |
| BEX100064 | Dark field annulus (dry, suitable for objective with NA not larger than 0.75, used for universal condenser) |
| BEX100065 | Dark field annulus (oil suitable for objective with NA not larger than 0.95, used for universal condenser) |
| BEX100066 | Transmitted DIC sliding-plate group |
| BEX100067 | 10x DIC annulus for turrent condenser (used with universal condenser) |
| BEX100068 | 20x DIC annulus for turrent condenser (used with universal condenser) |
| BEX100069 | 40x/60x DIC annulus for turrent condenser (used with universal condenser) |
| BEX100070 | Transmitted analyzer annulus plate |
| BEX100071 | Telescope for phase contrast alignment, Ø 30 mm tube |
| BEX100072 | Double layer mechanical stage |
| MFLEDA2 | “FG” LED Epi-fluorescent Attachment, supplied with 3W Epi-fluorescent illumination device including 4 channels (3 channels for fluorescent cubes and 1-channel for brightfield observation) and a UV protection shield; Digital screen shows light intensity 0~100%; Instant on-off, no need waiting of pre-heating or cooling. remember light intensity of each color light source; Light source synchronous switching with filter groups. Equipped with 2 fluorescent filter set for Blue & Green filters |
| MFLEDA3 | “FG” LED Epi-fluorescent Attachment, supplied with 3W Epi-fluorescent illumination device including 4 channels (3 channels for fluorescent cubes and 1-channel for brightfield observation) and a UV protection shield; Digital screen shows light intensity 0~100%; Instant on-off, no need waiting of pre-heating or cooling. remember light intensity of each color light source; Light source synchronous switching with filter groups. Equipped with 3 fluorescent filter set for Blue, Green & UV filters |
| MFLEDBLF | Blue filter: Long-pass EX475/30nm, DM500nm, EM510nmLP |
| MFLEDBBF | Blue filter: Band-pass EX475/30nm, DM505nm, EM530/40nm |
| MFLEDRYB | Royal blue filter: Long-pass EX450/40nm, DM: 500nm, EM510nmLP |
| MFLEDGLF | Green filter: Long-pass EX: 530/40nm, DM: 570nm, EM575nmLP |
| MFLEDGBF | Green filter: Band-pass EX: 530/40nm, DM: 565nm, EM605/55nm |
| MFLEDYLF | Yellow filter: Long-pass EX: 560/40nm, DM: 600nm, EM610nmLP |
| MFLEDVLF | Violet filter: Long-pass: EX: 400/40nm, DM: 430nm, EM: 430nmLP |
| MFLEDULF | UV filter: Long-pass: EX: 355/50nm, DM: 410nm, EM: 420nmLP |
| MFLEDUBF | UV filter: Band-pass: EX: 375/30nm, DM: 415nm, EM: 460/50nm |
| MFLEDRBF | Red filter: Band-pass EX: 620/50nm, DM: 655nm, EM692/45nm |
| IMOFLFRE | Immersion Oil FL Free |
| MFXE900 | Epi-Fluorescent Attachment “FX-900”, equipped with a rotating block which contain max. 6 filter cubes. Supplied with 30W LED lamp. Protection barrier to resist the ultraviolet light, standard supplied with standard fluorescence filters sets for Blue excitation and Green excitation, with fluorescence Free Oil |
| M1240073 | Yellow filter |
| M1240074 | Green filter |
| M1240075 | Blue filter |
| M1240076 | Neutral filter |
| M1240077 | 0.5x C-Mount lens for digital camera |
| M1240078 | 0.67x C-Mount lens for digital camera |
| M1240079 | 1x C-Mount lens for digital camera |
| M1240080 | LED illuminator replacement unit for transmitted light |
| YTCSRT50 | Temperature Control System: Temperature Controlling Range: Room Temperature to 50°C, with digital control box |
| DITA001 | DP1 tablet with 10.5″ touchscreen, integrated with 4K 8MP camera, 1/2″ sensor, 2.0×2.0um, CMOS chip, with 1 x HDMI port, 2 x USB3.0 ports, 1 x USB2.0 port, 1x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, with Android OS system, built-in image process software |
| DITA002 | DP2 tablet with 10.5″ touchscreen, integrated with 16MP camera, 1/2.33″ sensor, 1.85×1.85um, CMOS chip, with 1 x HDMI port, 2x USB2.0 port, 1TF card port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@4632×3488, support 1080 video, with windows 10 OS system, built-in image process software |
| *** | Various digital camera optional (please refer to ICOE digital camera brochure) |
