Description
Central Zoom Objective

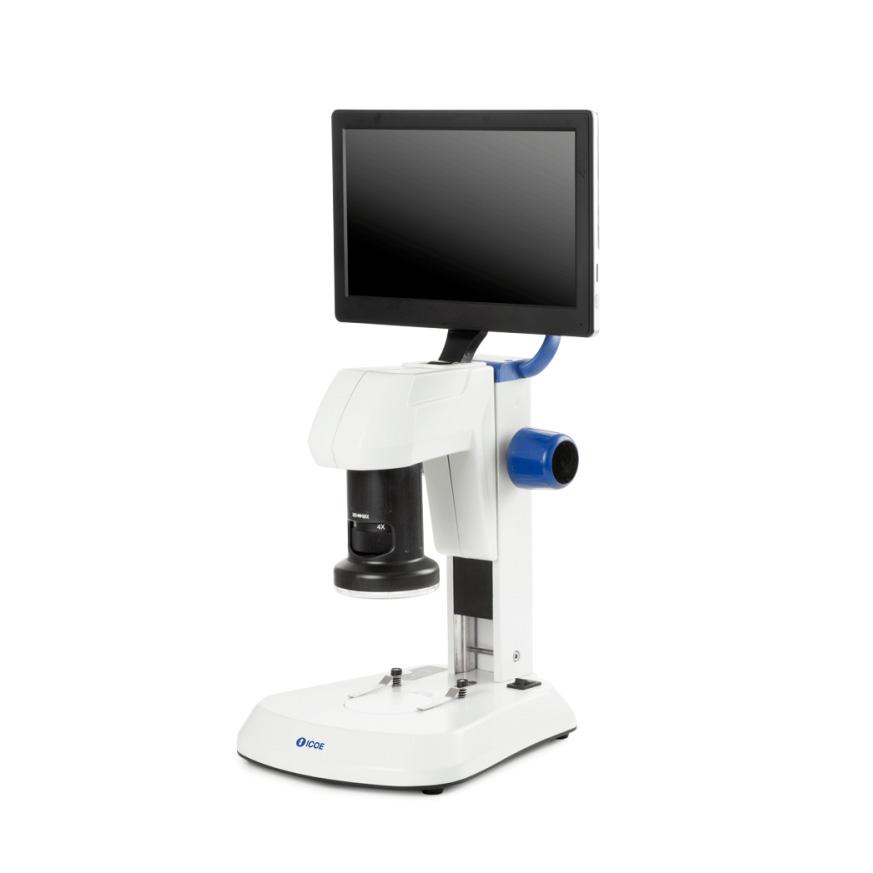

The EL745 LCD features a single optical zoom objective with a 0.7x to 4.5x zoom magnification. This allows an on-screen magnification from 8x to 54x. Zoom adjustments engravings on 0.7x 0.8x 1x 1.5x 2x 3x 4x and 4.5x. The working distance is 91 mm. A digital zoom up to 10x is available within the software, allowing a digital magnification upto 540x
Stand
The central zoom objective with attached screen and LED ring light is mounted on a rack and pinion system that sits on a 30 x 180 mm metal stand
Illumination
Two types of illumination are available;
• An integrated 21 LED incident ring light illumination (between 5500K-6000K) with five intensity positions
• A 7 LED transmitted illumination (between 5500K-6000K) with two intensity positions, integrated in the base
Built-in Camera
Built-in HD 5 MP CMOS high speed camera with attached 9” screen, 2592*1944@60fps. (Frame rates have been determined at optimal conditions). There is one USB port for a max. 16 GB SD storage card for captured images. The operator can take and save images to the SD card by pressing on a capture button at the left side of the screen. Images are saved in the .jpg format and videos are saved in .avi format
Built-in Software
The built-in on screen software is driven by the supplied computer mouse and features functions such as Capture image, Freeze image, Automatic white balance, Automatic exposition, File manager, Grids. Also camera settings such as Exposure time, Gain, Saturation, Contrast, Sharpness and HDR
Package Content
Supplied with 16 GB SD card, black/white object plate, a glass transparent, object plate and external 12V / 2A power supply
Specifications
| Model | EL745 | |
| Digital part: | 9-inch tilting LCD screen | • |
| Camera with advanced Sony IMX335 image sensor, sensor size 1/2.8′ | ||
| Enables a resolution of 5 megapixels | ||
| The pixel size is 2.0µm | ||
| Display resolution: 1024x600px | ||
| Come with microSD memory cards 16GB | ||
| Objective: | stepless zoom 0.7x–4.5x, | • |
| Magnification: | With a digital zoom 8x–54x | • |
| Field ov view: | Field of view at lowest magnification 17.5mm x 10.0mm | • |
| Field of view at highest magnification 4.7mm x 2.5mm | • | |
| Illumination: | Bright ring illumination with 21 LEDs for incident light without shadows | • |
| Transmitted light for transparent slides, separately switchable and dimmable | • | |
| Stand: | Stage with clips, with coarse and fine focusing on both side of vetical column, with reflected LED ring light and transmitted LED light | • |
| Package dimensions: | 33x30x25cm | • |
| Gross weight: | 2.8kg | • |
| Package content: | Digital microscope with integrated zoom lens and screen Built-in LED illumination (incident light and transmitted light) Contrast disk and transmitted light disk Instruction manual USB mouse Dust cover Micro SD card (16 GB) Power supply 12V 2A |
• |
