DZS75 Series Digital/LCD ZOOM stereo microscopes

Home Microscopy Stereo Microscopes Digital Stereo DZS75 Series Digital/LCD ZOOM stereo microscopes

DZS75 Series Digital/LCD ZOOM stereo microscopes

Digital Stereo, Tabletop Digital Microscope2018-12-04n50

Description

One-piece design, without a tangled mess of wires, save space and easy to carry

• One-piece design

  • Integrated zoom optical module with high definition camera, DZS75 embodies the beauty of compact. Display, camera and ring lamp with one power supply, avoid the mess of mixed wires.

• Multiplex signals collection

  • DZS75 with multi-channel signals transmission, support for USB/HDMI output at the same band without interference on each other.

• High definition camera

  • Built-in CMOS camera with 4.0 mega pixels, restore the real color of image with high sharpness and contrast. The frame rate of full HD reaches to 30fps, simultaneously satisfy the demand of speed and clarity.

• Adjustable zoom lens

  • DZS75 with zoom lens 0.7-5x, magnification 7:1, working with big plan base, focusing range 225mm, is able to inspect large and different samples, working distance 170mm max.

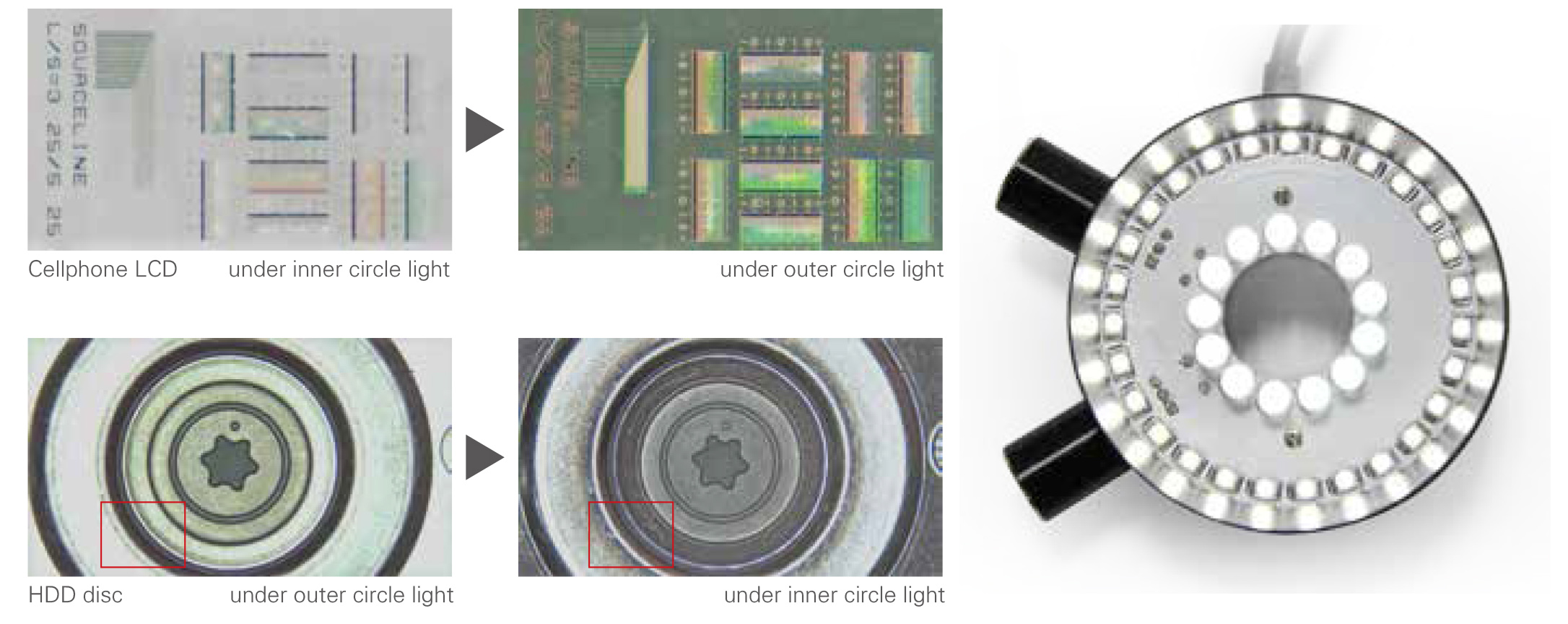

• LED ring lamp with two circle bulbs

  • Separated switches for intensity control of inner and outer circle light. Outer circle as obligue illumination, is available to present more details. Inner circles as near coaxial light, improve the accuracy and reproducibility of visual expression.



Product Specifications

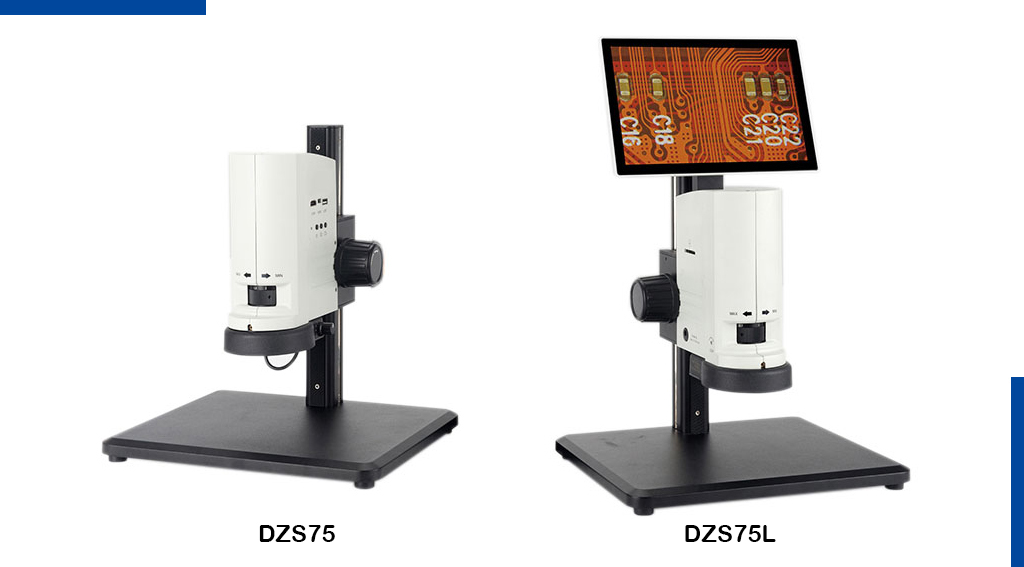

Model DZS75 DZS75L

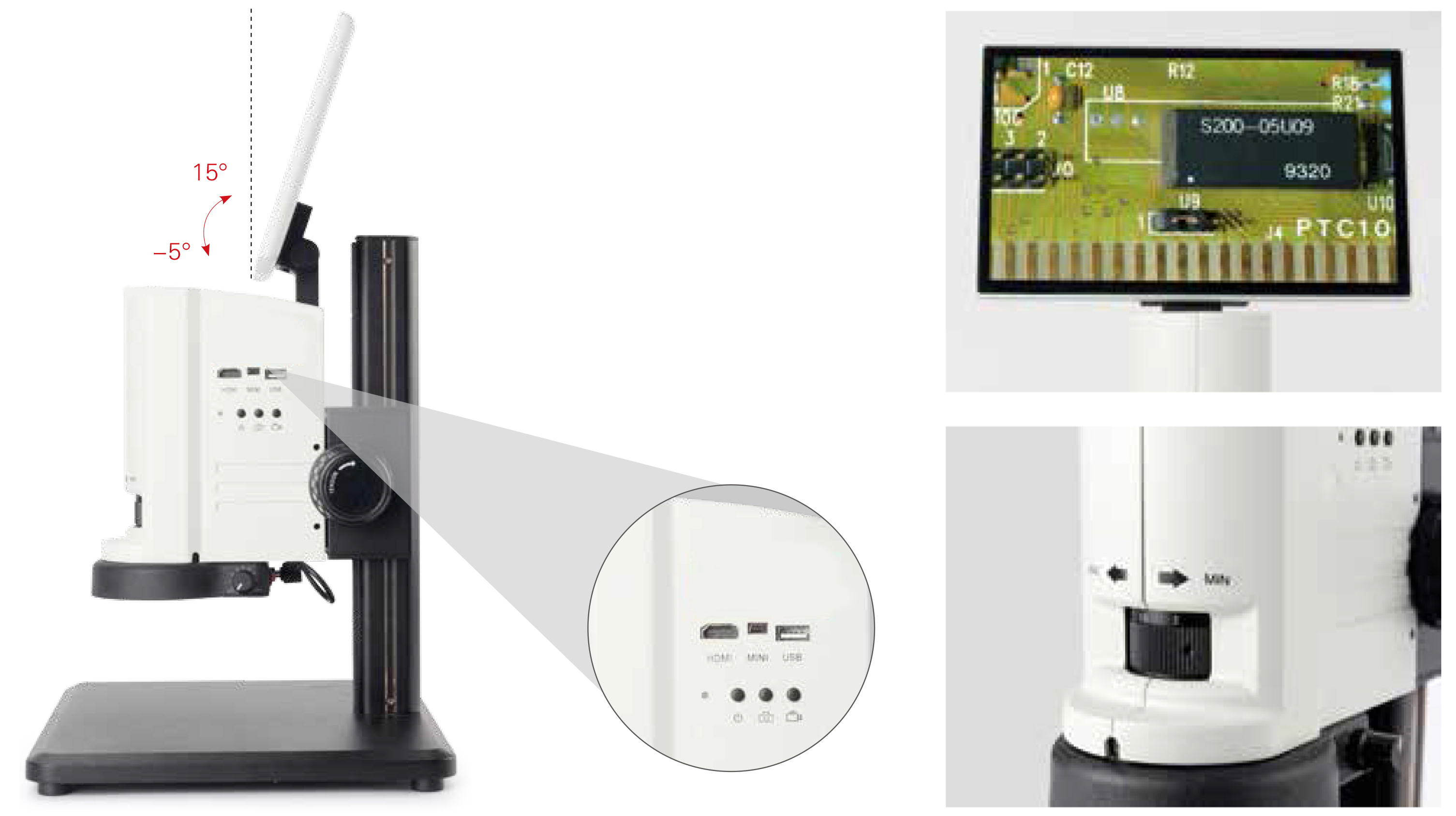

LCD / IPS 10 inch Touch-screen, -5~15 degree adjustable.
Body Zoom lens 0.7x-5x; built-in camera with HDR image, OSD manual, 1/3″ CMOS, 4.0 mega pixels, 16G memory; HDMI/USB2.0/Mini USB output; support for SD card / wireless keyboard and mouse.
Magnifcation 11.46~81.87x
Main Objective 1x main objective, WD=105mm
Illumination LED ring lamp with 56 bulbs, intensity adjustable, color temperature 5000-5500K
Base Big plan base, lifting range 225mm
Accessories 12V 3.3A Power Adapter



Options

Cat. No. Descriptions Picture
M25201001 IPS 10 inch Touch-screen, -5~15 degree adjustable.
M25201002 Zoom lens 0.7x-5x; built-in camera with HDR image, OSD manual, 1/3″ CMOS, 4.0 mega pixels, 16G memory; HDMI/USB2.0/Mini USB output; support..
M25201003 1x main objective, WD=105mm
M25201004 1.4x main objective, WD=100mm
M25201005 0.5x main objective. WD=170mm
M25201006 LED ring lamp with 56 bulbs, intensity adjustable, color temperature 5000-5500K
M25201007 LED ring lamp with two circles, intensity separately adjustable, color temperature 5000-5500K
M25201008 Big plan base, lifting range 225mm
M25201009 12V 3.3A Power Adapter
M25201010 1.5m USB cable
M25201011 5m HDMI cable
M25201012 16G SD card

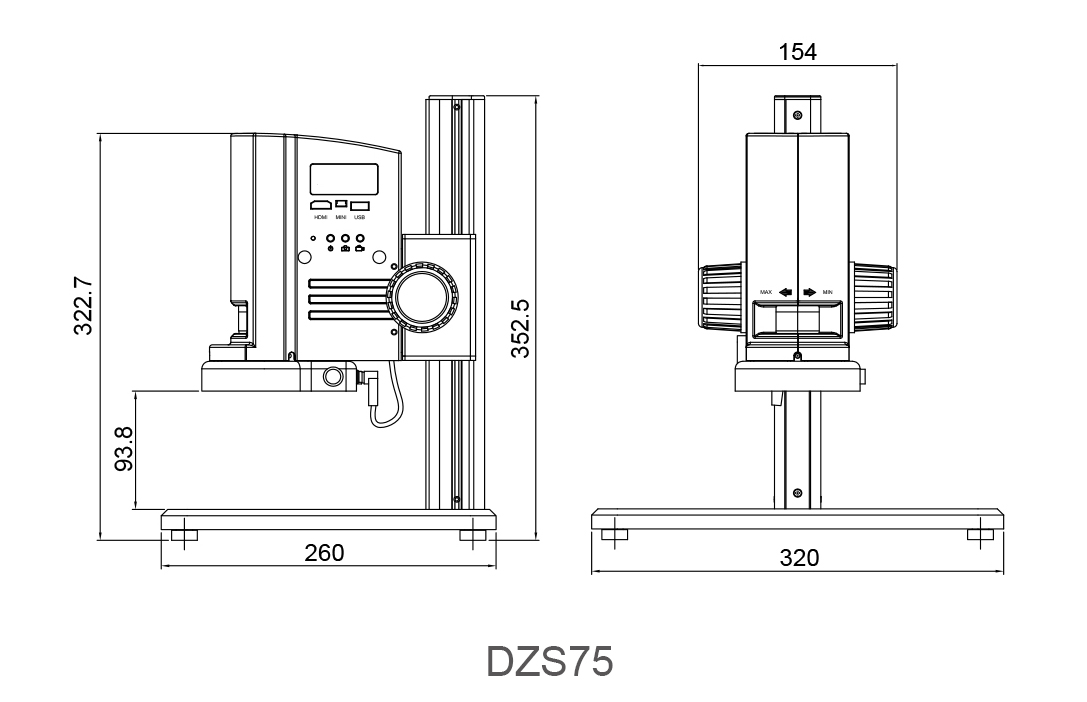

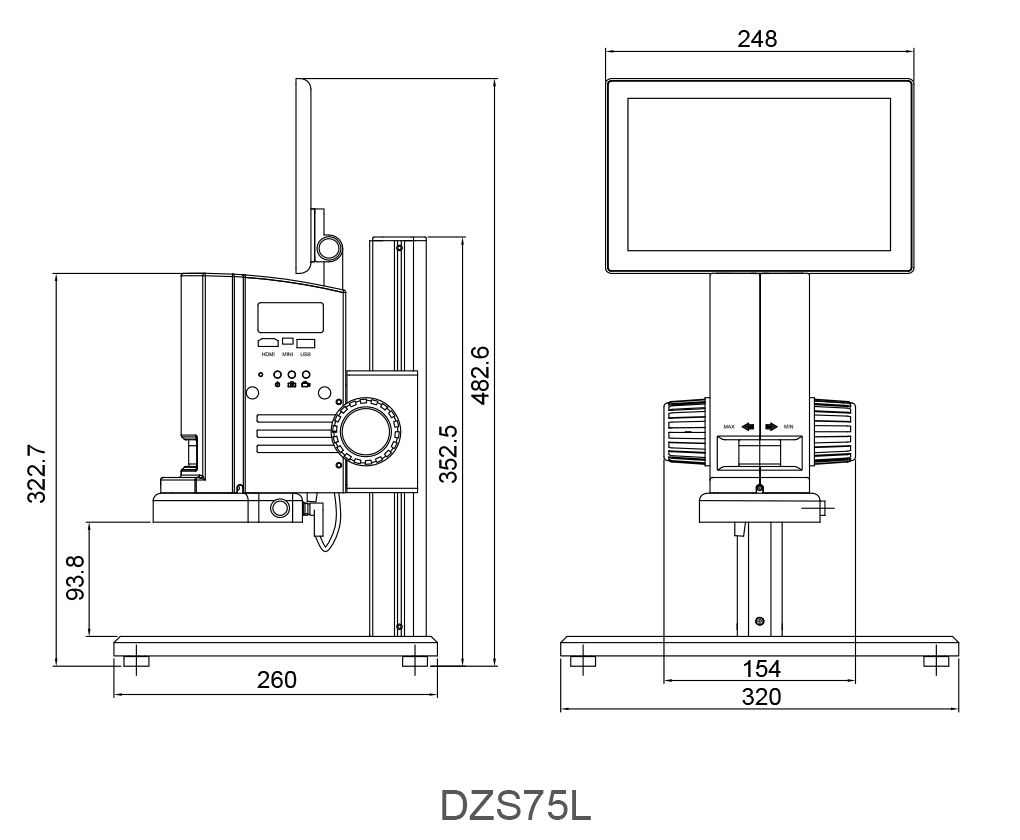

Product Dimensions
