Description

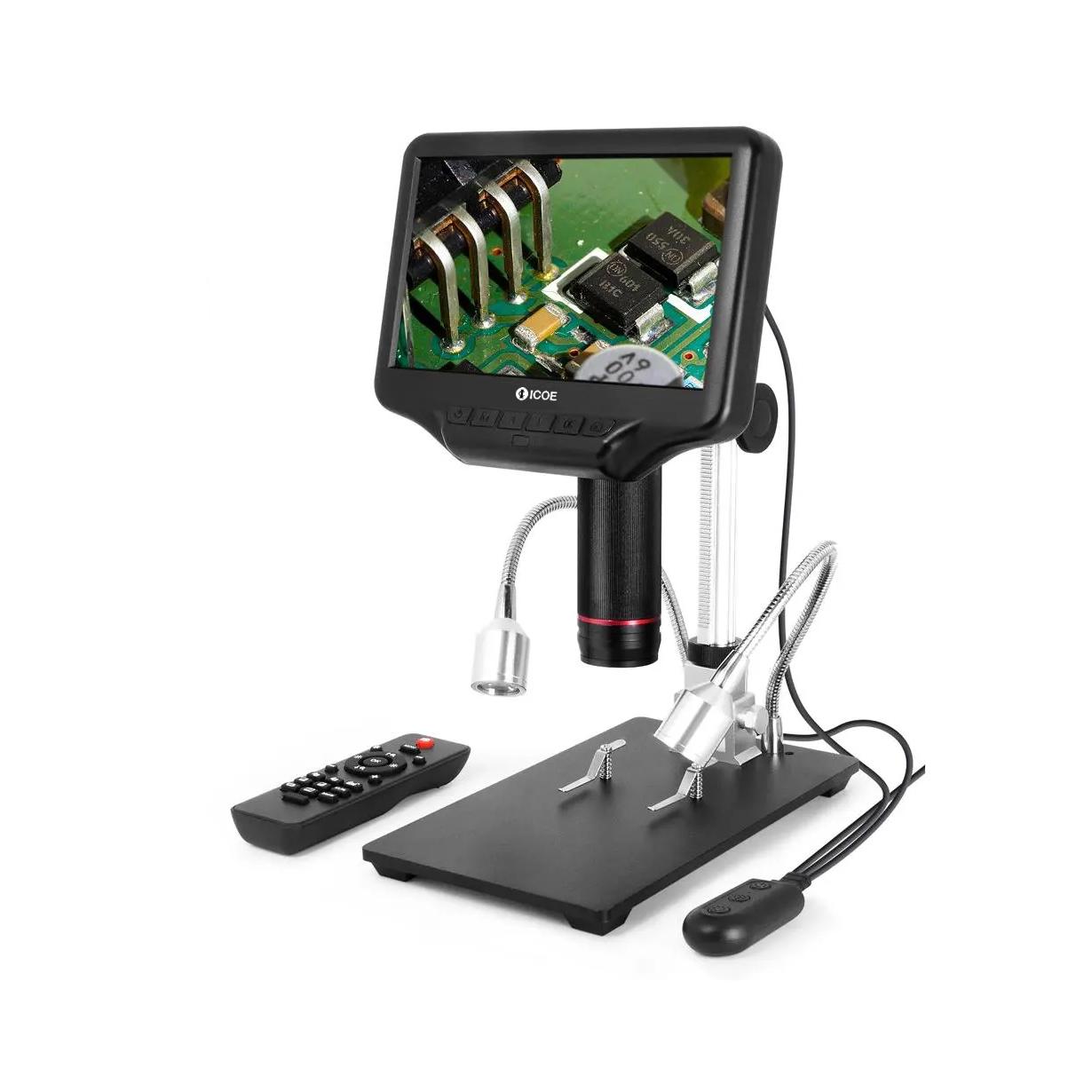

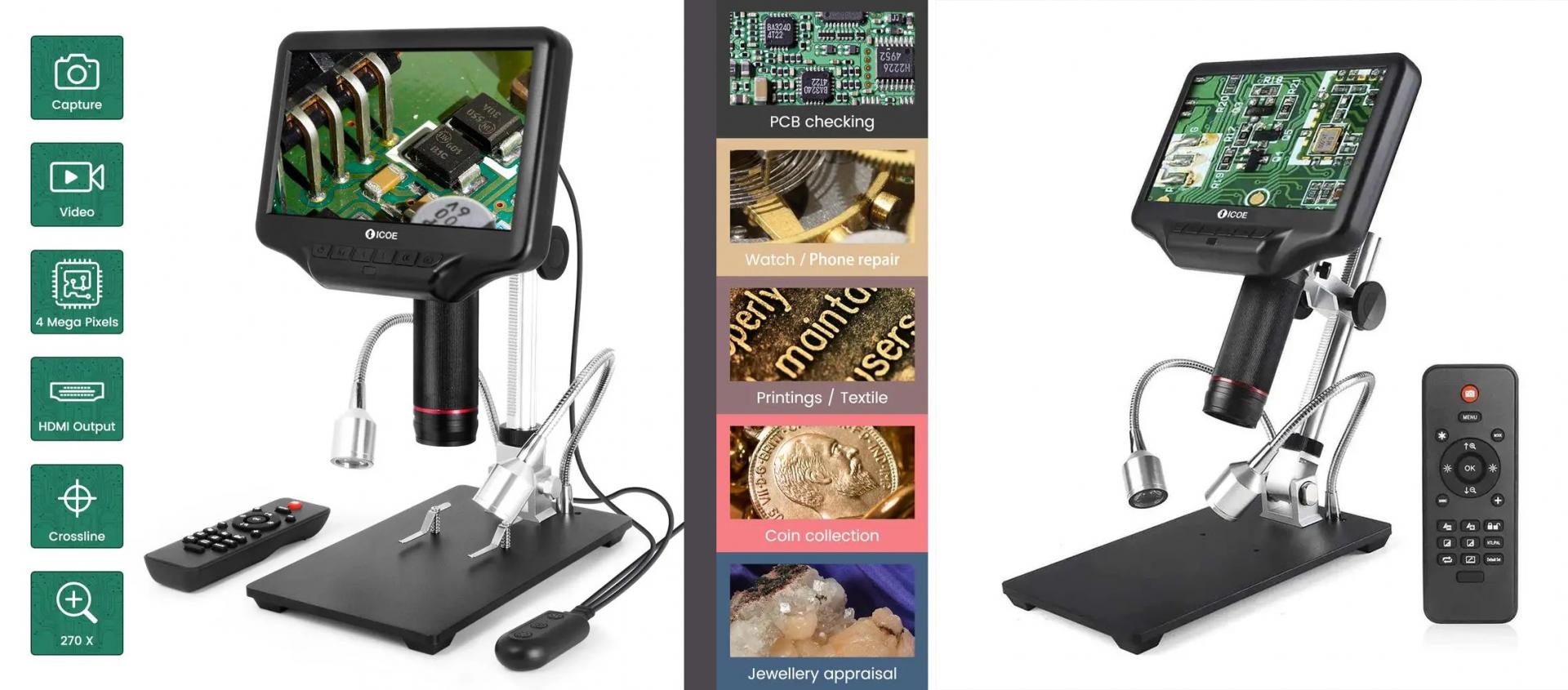

The ICOE CPMH-E7 series Remote Controlled Microscope allows you to study samples under magnification as well as capture images and record videos of research. The image quality is excellent: The built-in sensor enables you to take photos and videos in Full HD resolution! Such optical and digital capabilities allow you to capture all the details of the observed objects and study them in as much detail as possible. The microscope is an excellent assistant for repairing electronics and equipment, evaluating jewelry, and studying geological samples.
Large rotatable LCD screen
The built-in screen features a 7-inch diagonal. The image from the objective is displayed in color, and it is contrast and easy-to-read. The screen can be tilted at a small angle for convenient operation. The overall magnification can be adjusted in the range of 5x to 270x, and an optical part of the magnification varies from 5x to 40x. The image can also be displayed on an external screen using a connection via an HDMI port.
High resolution photos and video
The ICOE CPMH-E7 series microscope enables you to save your research data in digital format. The recording quality is impressive: You can take photos at 5600×4200 pix and videos at 1920×1080 (Full HD). Based on the video resolution, the frame rate can vary from 24 to 120 frames per second. Images and videos are recorded on a memory card (not included).
The lighting system on flexible holders
The lighting system consists of two LED spotlights with adjustable brightness. They are fixed on flexible holders, which allow for directing the light at the object as accurately as possible. The spotlights are controlled (brightness adjustment, on/off mode) by a small switch on the power cable.
Multifunctional remote control
A wireless remote control provides access to a variety of options, allowing you to remotely adjust lighting and magnification as well as capture images and videos. The remote control is particularly practical during presentations or group research.
Models & Specifications
| Model | CPMH-E7A | CPMH-E7B |
| Image Sensor | 4 Mega Pxels HD Sensor | |
| Video Resolution: | UHD2880×2160 24FPS; FHD1920×1080 60FPS/30FPS; HD1280×720 120FPS; | |
| Video format: | MP4;real time play via HDMI w/o recording; | |
| Magnification: | Up to 270 times (HDMI monitor 27 inch) | |
| Photo resolution: | Max 24M(5600×4200) | |
| Photo format: | JPG | |
| Focus range: | Minimum 5cm | |
| Frame rate: | Max 120FPS | |
| Video-output: | HDMI | |
| Storage: | Micro-SD card,Up to 64G(optional, not included) | |
| PC support: | Yes, for Windows 7/8/10/11, PC software with Measurement | |
| Power source: | DC 5V, 2A | |
| Light source: | 2 LED with the stand | |
| Screen size & resolution: | 7 inch ， 1024×600 | |
| Stand size: | 12×20×19cm; | 18×20×32cm |
| Language support | 10 types, English/Simplified Chinese/Traditional Chinese/Japanese/French/German/Italian/Portuguese/Spanish/Russian | |
| Package contents: | Microscope×1 Metal stand×1 UVfilter (already assembled in the lens)×1 Instructions×1 IR remote×1 Switch cable×1 Power adapter×1 HDMI cable ×1 |
|
| Package data: | 32×22×10cm/1.6kg | 30×26×15cm/2.1kg |
