TECO Series Digital Eyepiece, CMOS, USB2.0, 2.1MP-12MP

Home Microscopy Digital Cameras & Tablets USB2.0 CMOS Cameras TECO Series Digital Eyepiece, CMOS, USB2.0, 2.1MP-12MP

TECO Series Digital Eyepiece, CMOS, USB2.0, 2.1MP-12MP

USB2.0 CMOS Cameras2021-07-31n50

Description

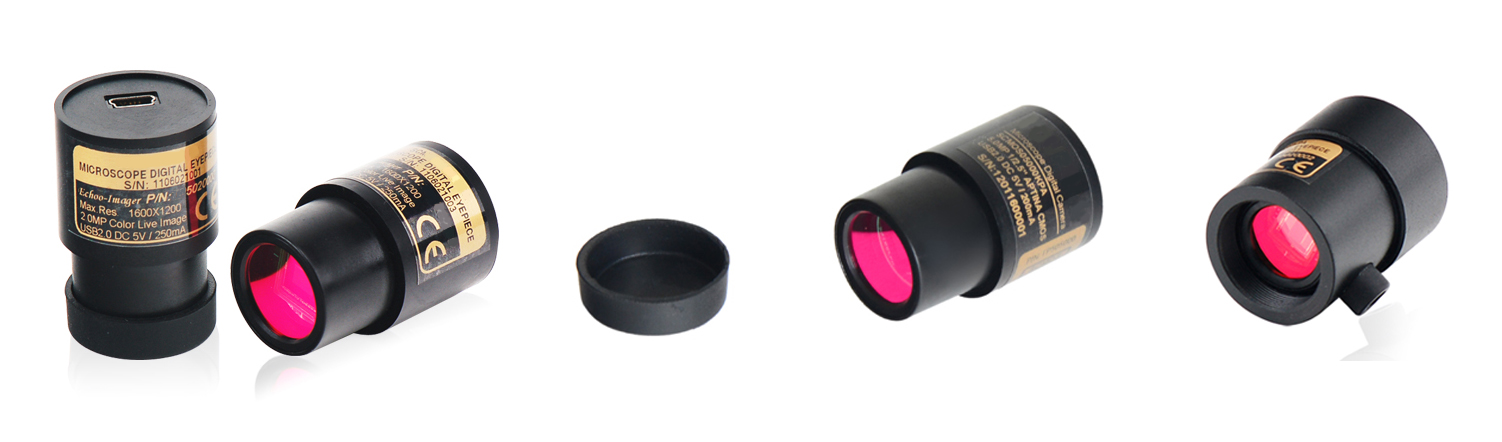

COE Series USB2.0 CMOS Digital Eyepiece Camera

TECP series is an economic version with simple and compact structure CMOS eyepiece camera.

Microscope digital eyepiece camera with 23.2 diameter and compact size;

The TECO series digital eyepiece camera comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;

Also the TECO series comes with advanced video & image processing software ImageView;

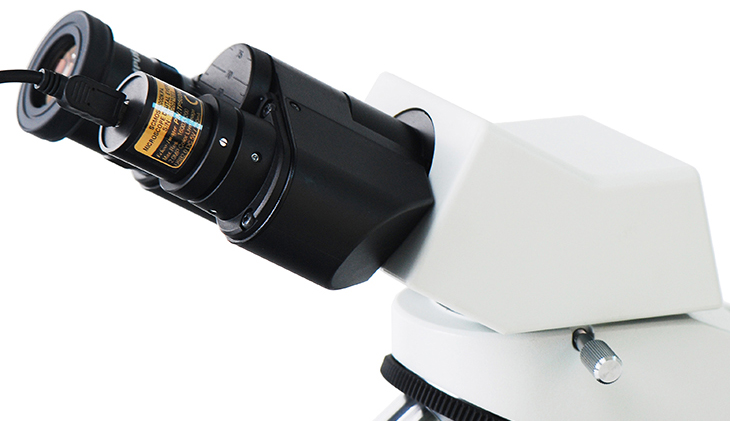

The TECO series can be widely used to upgrade the monocular or binocular student microscopes to digital microscope.

With 23.2 to 30mm or 23.2 to 30.75 convert ring, the TECO digital eyepiece camera can also upgrade the stereo microscope to digital stereo microscope.



Model Details

Order Code Sensor & Size

(mm)

Pixel

(μm)

G Sensitivity

Dark Signal

FPS/Resolution Binning Exposure
TECO-12A 12M/IMX577(C)
1/2.3″(5.95×4.71)
1.55×1.55 250LSB
70dB
43dB
20@3840×3040
20@1920×1520
20@960×760
1×1
1×1
1×1
0.1~2000ms
TECO-092 0.92M/OV9732(C)
1/4″ (3.888×2.208)
3×3 2.066V/lux-sec
72dB@8x gain
39dB
30@1280×720
30@640×360
1×1
1×1
0.1~650ms
TECO-8A 8.3M/IMX274(C)
1/2.5″(6.22×3.50)
1.62×1.62 236mV
70dB
43dB
30@3840×2160
30@1920×1080
30@1280×720
30@960×540
1×1
1×1
1×1
0.1~2000ms
TECO-5A 5.1M/AR0521(C)
1/2.5″(5.70×4.28)
2.2×2.2 18.8ke-/lus
73dB
40dB
30@2592×1944
30@1280×960
30@640×480
1×1
1×1
1×1
0.1~1000ms
TECO-5B 5.1M/IMX335(C)
1/2.8″(5.18×3.89)
2.0×2.0 505mV
73dB
43dB
26@2592×1944
26@1280×960
26@640×480
1×1
1×1
1×1
0.1~2000ms
TECO-3A 3.1M/Aptina(C)
1/2.5″(5.73×4.30)
2.8×2.8 18.8ke-/lus
73dB
40dB
30@2048×1536
30@1024×768
1×1
1×1
1×1
0.1~1000ms
TECO-2A 2.1M/IMX307(C)
1/2.8″(5.73×4.30)
2.9×2.9 1300mV
73dB
43dB
38@1920×1080
38@960×540
1×1
1×1
1×1
0.1~2000ms
TECO-8B 8.3M/IMX415(C)
1/2.8″ (5.57×3.13)
1.45×1.45 300mV
70dB
44dB
30@3840×2160
30@1920×1080
30@1280×720
30@960×540
1×1
1×1
1×1
1×1
0.1~2000ms
TECO-2B 2.1M/SC2332(C)
1/3″ (5.18×2.92)
2.7×2.7 4510mV/lux-s
74dB
38.5dB
38@1920×1080
38@960×540
1×1
1×1
1×1
0.1~2000ms



Other Hardware Configuration

Spectral Range 380-650nm (with IR-filter)
White balance Auto/ROI/Manual White Balance(New Model)
Color Rendering Technique NA
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
Recording System Still Picture and Movie
Cooling System* Natural



Operation Environment

Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port



Software Environment

Operating System Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit)
OS X (Mac OS X), Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17″ or Larger
CD-ROM
