Description
Descriptions
- Supply high quality and contrast image with special strain free objective.
- Single polarization, orthogonal polarization and conoscopic observation.
- Transmitted light and reflect light, 24V/100W long life halogen lamp.
- Stage with 45°located, attachable mechanical stage with large moving range, high efficiency by no interference
when turning objectives.

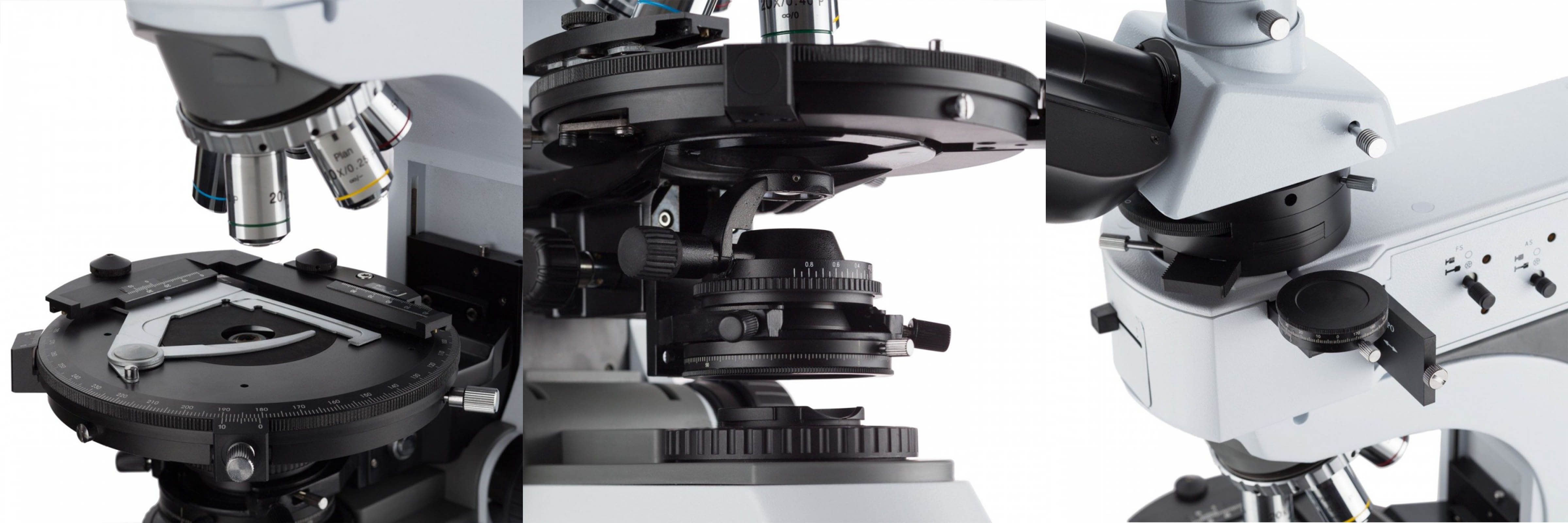

Product Details

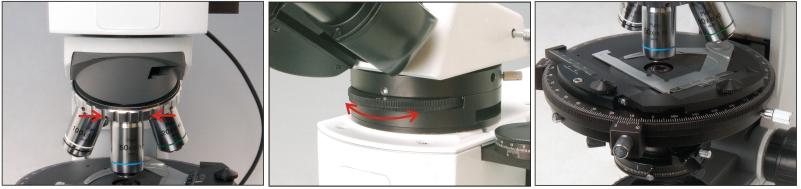

- Rotatable analyzer with graduation 0°-90
- Quickly switch between orthoscopic and conoscopic observation.
- Precisely and quickly interference images adjustment.
- Center adjustable quintuple nosepiece
- High-precision revolving rouond stage, Attachable mechanical stage, make the sample move finely.
–
Specifications
| Model | CB800PR | CB800PRT |
| Optical System | Infinite optical system | |
| Viewing Head | Seidentopf trinocular head inclined at 30°, Interpupilary 48-75mm | |
| Eyepiece | Plan eyepiece EW10X/22, Plan eyepiece with scale of crosshair, Plan eyepiece with cross, Plan eyepiece with gridding | |
| Objective | Infinite Strain-Free Plan Achromatic Objective
— 5X/0.12/∞/- WD 15.5mm 10X/0.25/∞/- WD 10.0mm 20X/0.4/∞/0 WD 5.8mm 50X/0.75/∞/0 WD 0.32mm 100X/0.8/∞/0 WD 2mm |
Infinite Strain-Free Plan Achromatic Objective
— 5X/0.12/∞/- WD 15.5mm 10X/0.25/∞/- WD 10.0mm 20X/0.4/∞/0 WD 5.8mm 50X/0.75/∞/0 WD 0.32mm 100X/0.8/∞/0 WD 2mm 40X/0.65/∞/0.17 WD 0.54mm 100X/1.25/∞/0.17 WD 0.13mm |
| Nosepiece | Backward quintuple nosepiece, Center adjustable | |
| Analyzer | 360° dial rotation Minimum scale reading：0.1°(Vernier scale) | |
| Conoscopic Observation | Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable | |
| Optical Compensator | First-order red plate, Guarter-wave plate, Quartz wedge | |
| Polarizing Rotatable Stage | Diameter Φ170mm, Center adjustable, 360° scale, Minimum divison 1°, Minimum reading 6 by means of vernier scale, 45° Click stop knob | |
| Condenser | Strain-free swing condenser NA0.9/0.25 | |
| Focusing | Coaxial coarse & fine adjustment, Range 32mm, Fine division 0.001mm, Coarse stroke 37.7mm per rotation, Fine stroke 0.1mm per rotation | |
| Polarizer | / | Transmitted: 360° Rotatable 0° position adjustable |
| Reflected: Fixed | Reflected: Fixed | |
| Illumination | Reflected light: 24V/100W Halogen lamp, Brightness adjustable | |
| / | Transmitted light: 24V/100W Halogen lamp, Brightness adjustable | |
| Filter | / | Blue filter Φ45mm |
–
Options
| Cat. Number | Descriptions | EXW Price |
| M5202002 | Attachable Stage, Moving Range: 30x40mm | |
| M5202003 | ND6 Neutral density filter Φ45mm | |
| M5202004 | ND25 Neutral density 25 filter Φ45mm | |
| M5202005 | Blue filter Φ25mm | |
| M5202006 | ND6 Neutral density filter Φ25mm | |
| M5202007 | ND25 Neutral density filter Φ25mm | |
| M5202008 | 0.01mm Micrometer | |
| M5202009 | 1X C mount | |
| M5202010 | 0.5X C mount |
