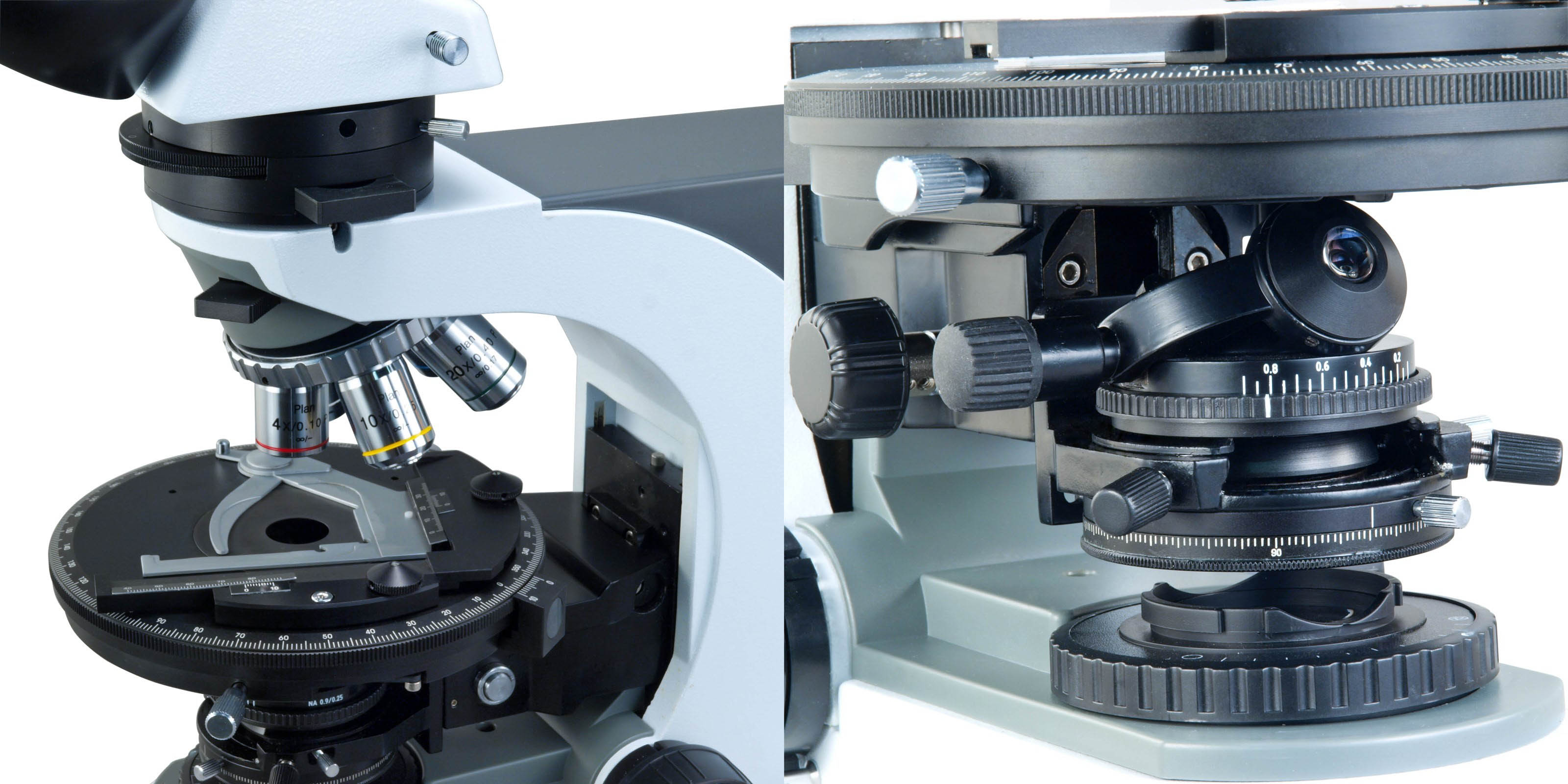

Description
Descriptions
- Supply high quality and contrast image with special strain free objective.
- Single polarization, othorgonal polarization and conoscopic observation.
- Transmitted light and reflect light, 24V/100W long life halogen lamp.
- Stage with 45°located, attachable mechanical stage with large moving range, high efficiency by no interference
when turning objectives. - Professional polarizing microscope for geology, petroleum, chemicals, polymer, LED field.
Product Specifications
| Model | CB800PM |
| Optical System | Infinite optical system |
| Viewing Head | Seidentopf trinocular head inclined at 30°, Interpupilary 48-75mm |
| Eyepiece | Plan eyepiece EW10X/22, Plan eyepiece with scale of crosshair, Plan eyepiece with cross, Plan eyepiece with gridding |
| Objective | Infinite Strain-Free Plan Achromatic Objective 4X/0.10/∞/- WD 17.3mm, 10X/0.25/∞/0.17 WD 10.0mm, 40X/0.65/∞/0.17 WD 0.54mm, 100X/1.25/∞/0.17 WD 0.13mm |
| Nosepiece | Backward quintuple nosepiece, Center adjustable |
| Analyzer | 360° dial rotation Minimum scale reading：0.1°(Vernier scale) |
| Conoscopic Observation Device | Switch between orthoscopic and conoscopic observation, Bertrand lens position adjustable |
| Optical Compensator | First-order red plate, Guarter-wave plate, Quartz wedge |
| Polarizing Rotatable Stage | Diameter Φ170mm, Center adjustable, 360° scale, Minimum divison 1°, Minimum reading 6 by means of vernier scale, 45° Click stop knob |
| Condenser | Strain-free swing condenser NA0.9/0.25 |
| Focusing | Coaxial coarse & fine adjustment, Range 32mm, Fine division 0.001mm, Coarse stroke 37.7mm per rotation, Fine stroke 0.1mm per rotation |
| Polarizer | 360° Rotatable 0° position adjustable |
| Illumination | 24V/100W Halogen lamp, Brightness adjustable |
| Filter | Blue filter Φ45mm |
–
Options
| Cat. Number | Descriptions | EXW Price |
| M5201001 | Infinite Strain-Free Plan Achromatic Objective 20X/0.40/∞/0.17 WD 5.10mm | |
| M5201002 | Attachable Stage, Moving Range: 30x40mm | |
| M5201003 | ND6 Neutral density filter Φ45mm | |
| M5201004 | ND25 Neutral density 25 filter Φ45mm | |
| M5201005 | 0.01mm Micrometer | |
| M5201006 | 1X C mount | |
| M5201007 | 0.5X C mount |
