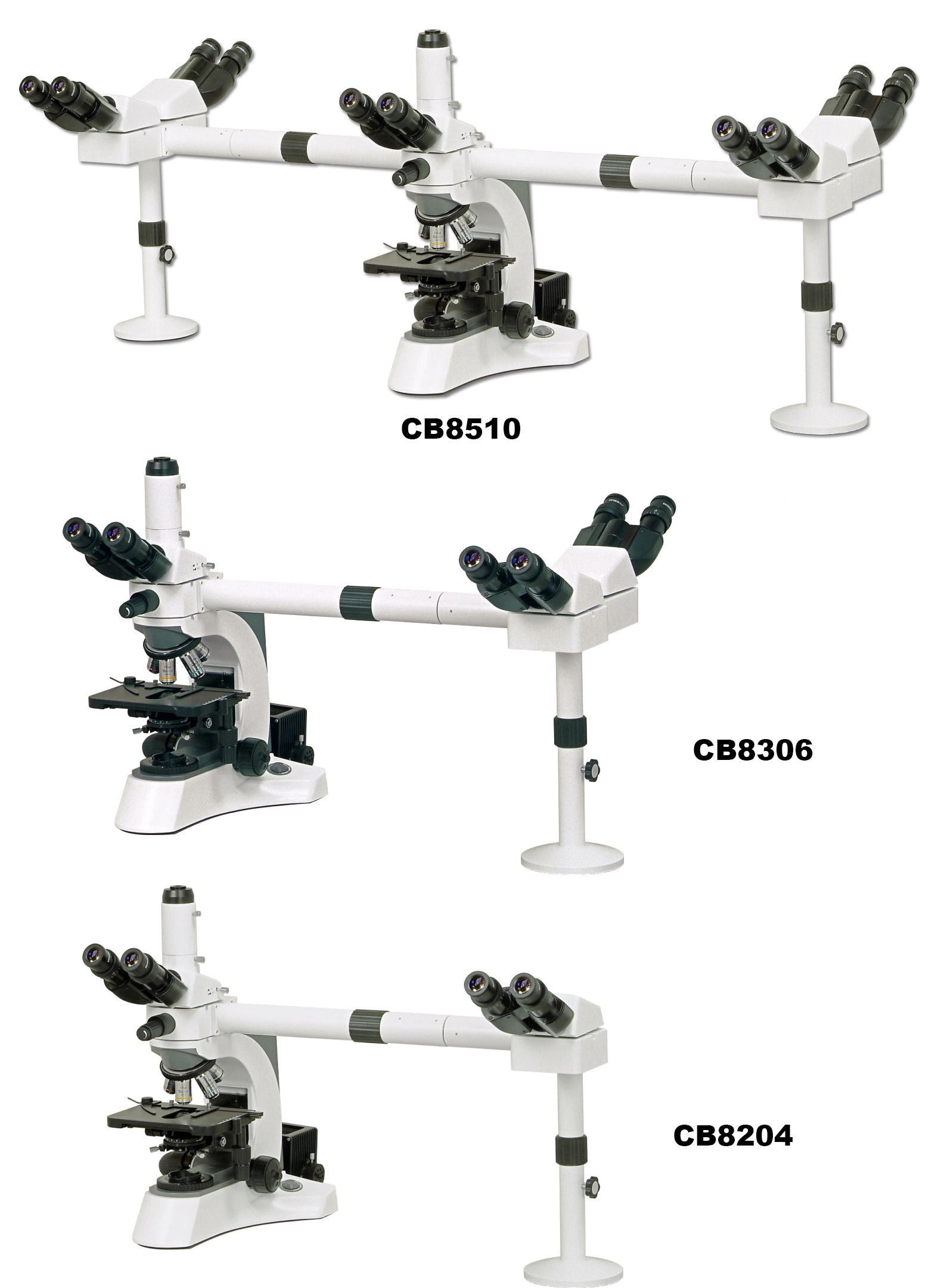

CB800 Series Infinity Multi-viewing Microscope

Home Microscopy Biological Microscopes CB800 Series Infinity Multi-viewing Microscope

Description

Descriptions

  • • Multi-viewing microscopes allow few people to observe specimen at the same time.
  • • With the features of infinite optical system, effective illumination, LED pointer and images coherence, it is widely used in clinic, scientific research and teaching demonstration.

–

Features

  • • The basic product features can be referred in the details of CB800 Series infinity microscope.

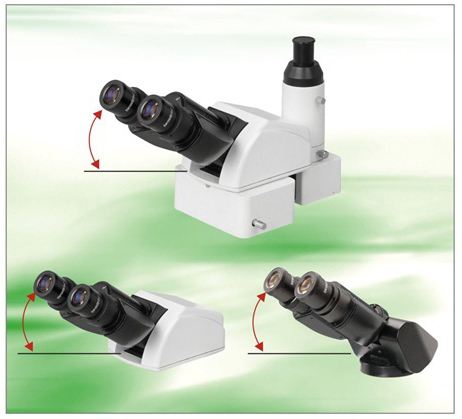

  • • 0~35° The tilting head is optional item (please refer to below picture)

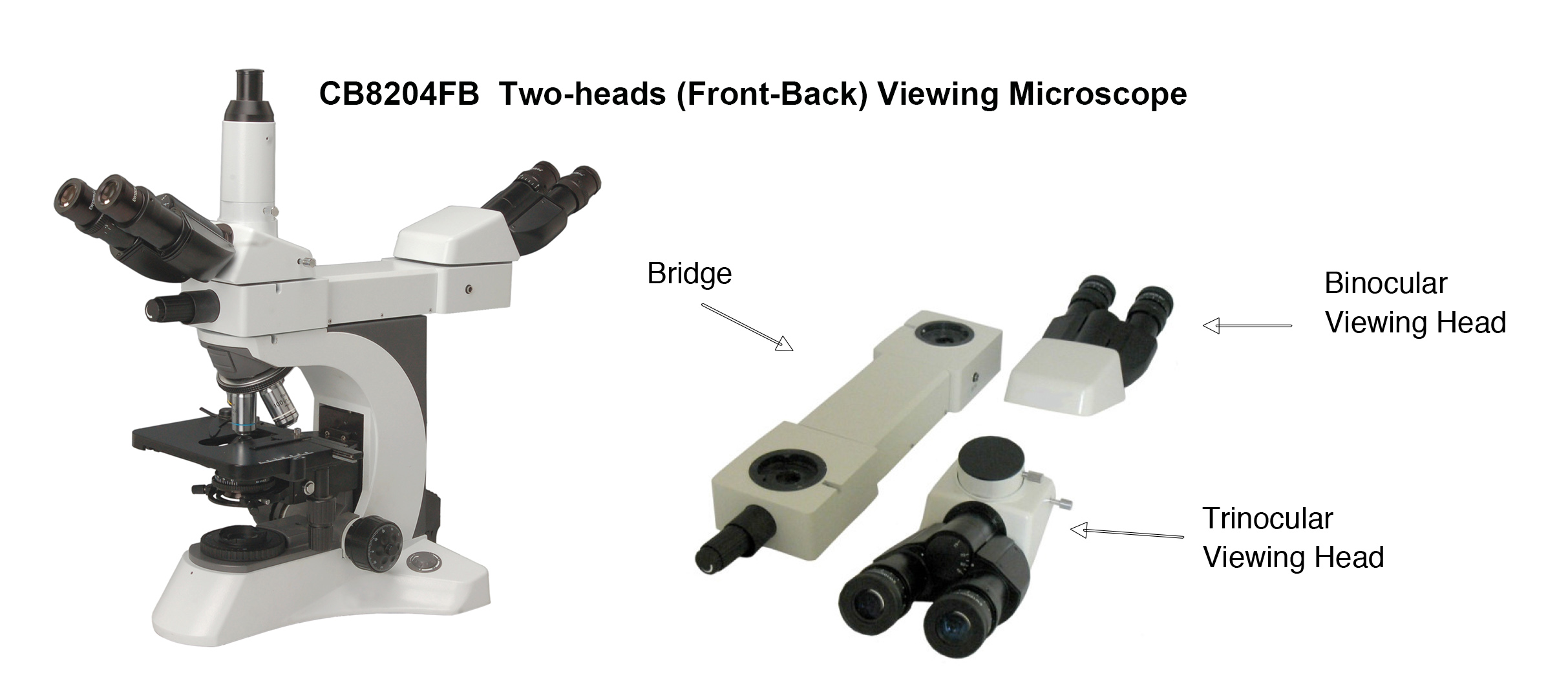

  • • Equipped with N-204F front and back multi-viewing bridge, it can be two-heads viewing microscope (see below picture)

–

Technical Specifications

Model CB8510 CB8306 CB8204 CB824FB
Optical System Infinite Optical System ● ● ● ●
Viewing Head Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 1PC 1PC 1PC 1PC
Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 4PCS 2PCS 1PC 1PC
Eyepiece Extra Wide Field Eyepiece EW10×/22, Eyepiece Tube Diameter 30mm 10PCS 6PCS 4PCS 4PCS
Nosepiece Backward Quintuple Nosepiece ● ● ● ●
Backward Sextuple Nosepiece 　 　 　 　
Objective Infinite Plan Achromatic Objective 4x ● ● ● ●
Infinite Plan Achromatic Objective 10x ● ● ● ●
Infinite Plan Achromatic Objective 20x ○ ○ ○ ○
Infinite Plan Achromatic Objective 40x ● ● ● ●
Infinite Plan Achromatic Objective 100x ● ● ● ●
Condenser Swing Condenser N.A.0.9/ 0.25 ● ● ● ●
Focusing Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm ● ● ● ●
Stage Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm ● ● ● ●
Kohler Illumination External Illumination, Aspherical Collector, Halogen Lamp 24V/ 100W ● ● ● ●
External Illumination, Aspherical Collector, Halogen Lamp 24V/ 101W ○ ○ ○ ○
3W LED Illumination ○ ○ ○ ○
5W LED Illumination ○ ○ ○ ○
Pointer Green LED Pointer , Brightness Adjustable ● ● ● ●
Dual Color Pointer , Brightness Adjustable ○ ○ ○ ○
Accessories Photo Attachment ○ ○ ○ ○
Video Adapter C Mount 1× ○ ○ ○ ○
C Mount 0.5× ○ ○ ○ ○
Polarization Attachment ○ ○ ○ ○
Turret Phase Contrast Kit ○ ○ ○ ○
Dark Field Attachment Dark Field Condenser (Oil) ○ ○ ○ ○
Dark Field Condenser (Dry) ○ ○ ○ ○
Note: ●Standard Outfit, ○Optional

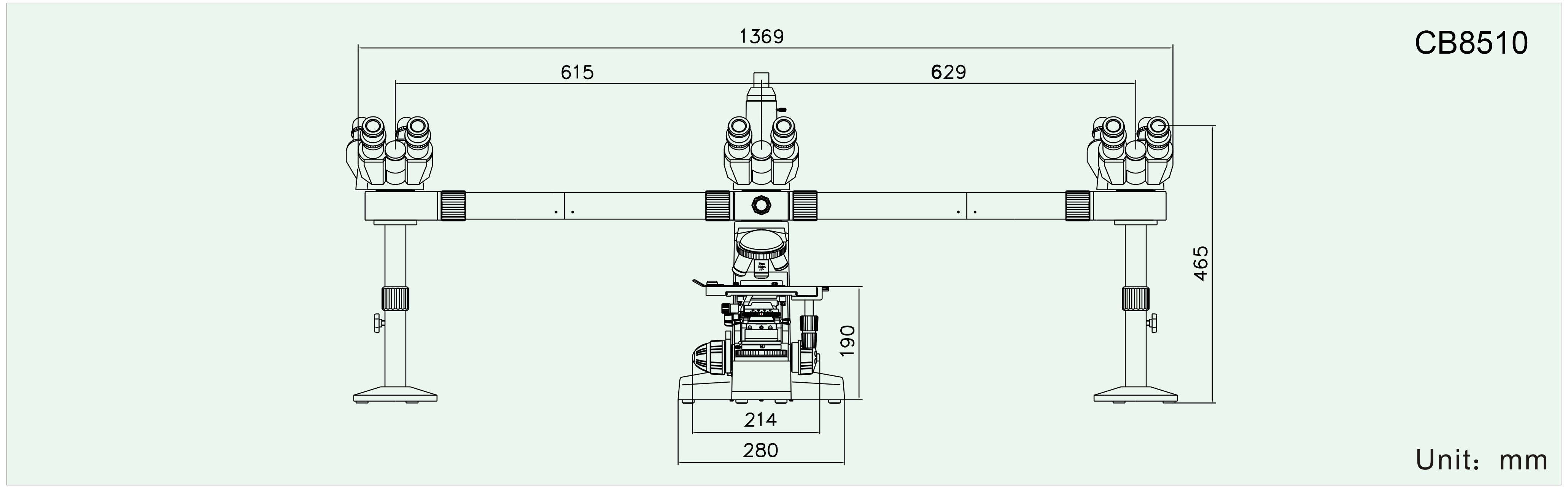

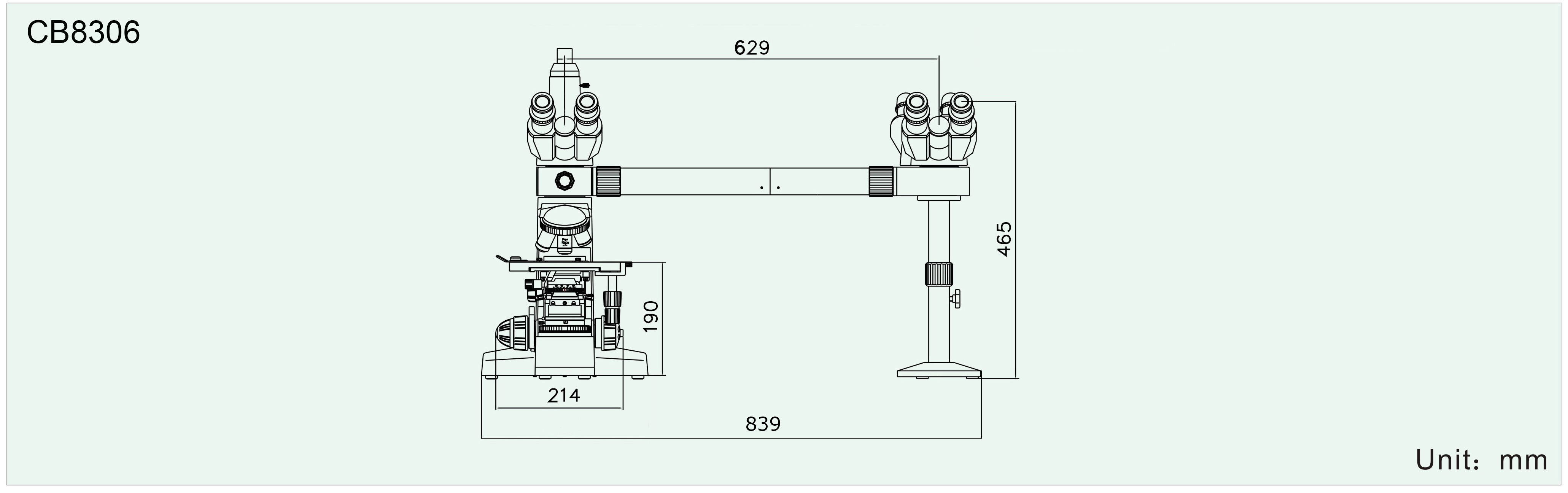

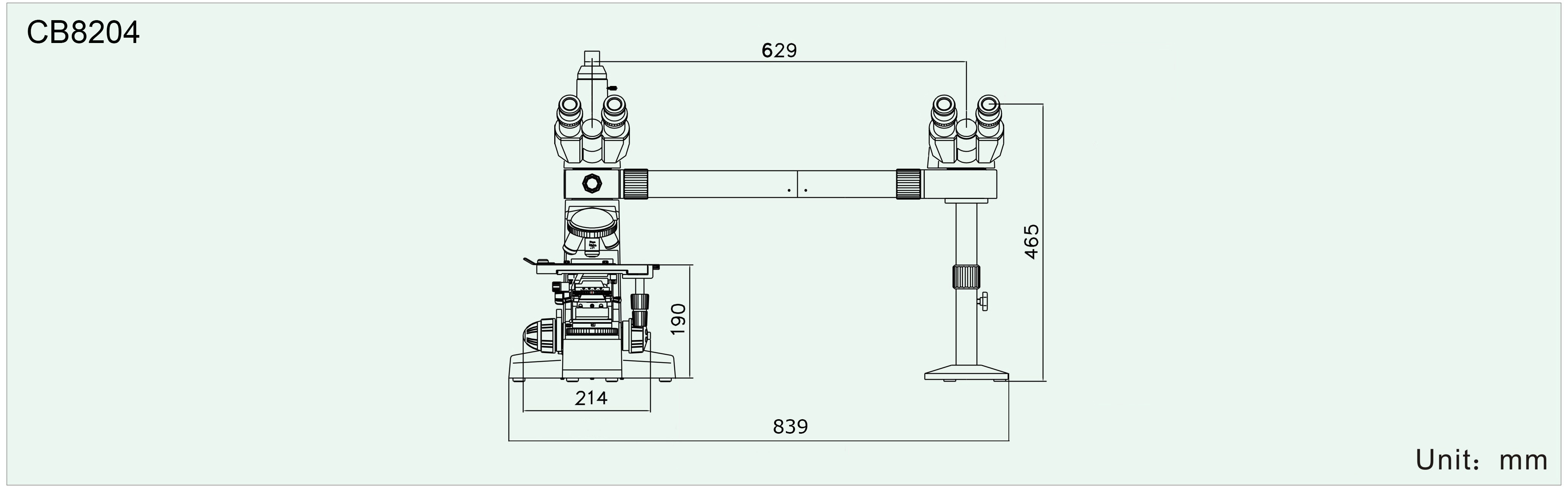

Product Dimensions
