CB800 Infinite Laboratory Research Microscope

Home Microscopy Biological Microscopes Infinity Biological Microscopes CB800 Infinite Laboratory Research Microscope

CB800 Infinite Laboratory Research Microscope

Infinity Biological Microscopes2018-11-21n50

Description

Descriptions

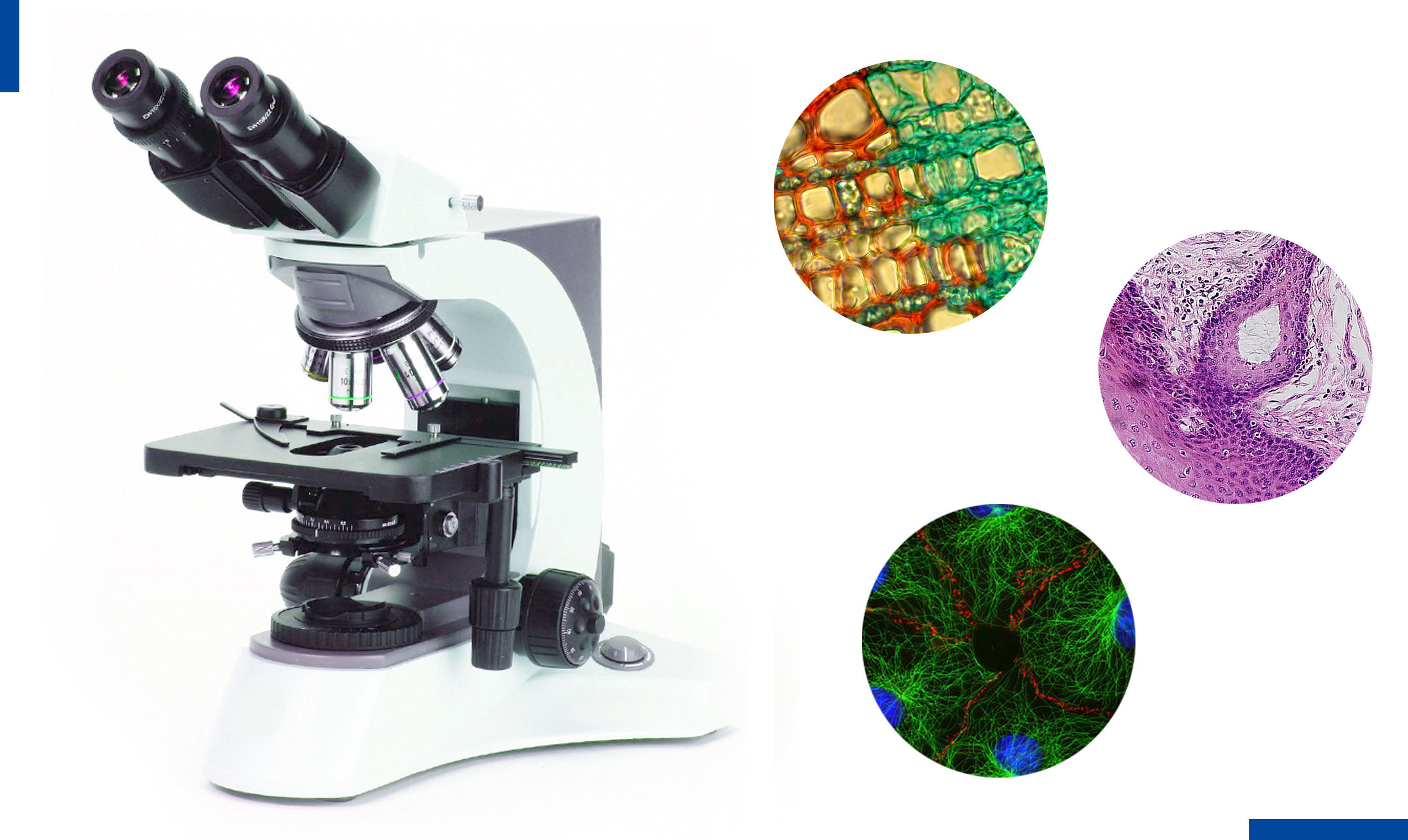

ICOE CB800 Series represents the ideal, ultra-modern, advanced routine microscope for efficient analysis in transmitted light applications, carefully engineered considering all the relevant aspects for users.

This series offers user-friendly operations, robustness, durability and superb resolution, delivering contrasted and sharp images through the impressive infinity corrected & wide plan optics. The Infinity Corrected Optics (IOS) providing the best cost-effective choice for high contrast and resolution, matching all the requirements of labs requiring good quality routinely optics and designed to ensure field flatness up to F.N. 22.

The full Köhler system, with aspherical collector, halogen lamp 6V/30W house (Halogen Lamp 24V/100W, 3W LED Illumination, 5W LED Illumination lighting source are optional) optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts.



Product Details

• Bright-field Observation

  • Transmitted bright-field illumination is one of the most commonly used observation method in optical microscopy, and is ideal for fixed, stained specimens or other types of samples having high natural absorption of visible light. CB800 is designed for the best outcome when users doing bright observation.

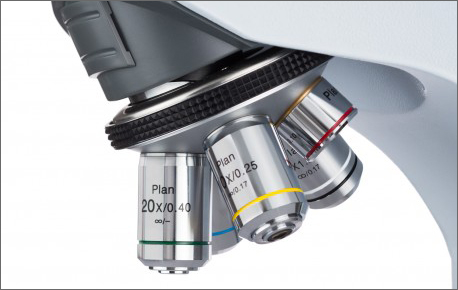

• Laboratory Grade Optics

  • The Infinity Corrected Optics (IOS) with new design high contrast infinite plan achromatic objectives, high numerical apertures, and with more than 95% flat field, significant optical correction, low field curvature and distortion. Fully N.A.0.9 Swing-out condenser for precise light control









• Extra Wide Specimen View (22mm FOV)

  • Enjoy a 22 mm field of view ensures you to gain peripheral view and comfort when observing the specimen. This means more efficient inspections and allows a natural and easy view, particularly needed in a laboratory environment.

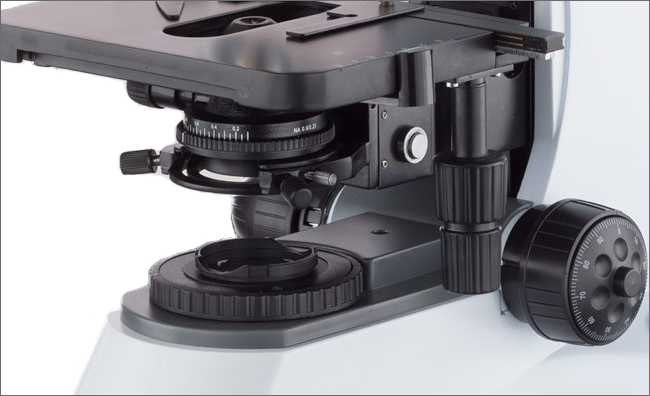

• KÖHLER illumination – Best Resolution, color and contrast

  • CB800 Series is equipped with Köhler which optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, reflections and glares. In this way, you will achieve the full control over the illumination aperture to reach the best compromise between resolution and contrast and for some enhancements on the depth of field.

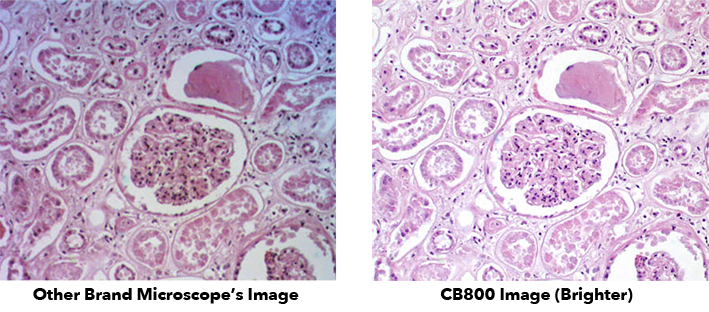

• Excellent Lamp house increases the light intensity

  • Achieve bright images, improved color fidelity, pure white color temperature, excellent halogen lamp 6V/30W house is able to increase light intensity. (Halogen Lamp 24V/100W, low energy consumptions and longer lifespan with the ICOE 3W/5WLED technology are optional), able to double the light intensity for incomparable performance.





Specifications

Model CB800B CB800T
Optical system Infinite optical system
Viewing head Compensation free binocular head inclined at 30°, 360° rotation, Interpupillary distance 48-75mm, diopter adjustment +/-5 Compensation free trinocular head inclined at 30°, 360° rotation, Interpupillary distance 48-75mm, diopter adjustment +/-5, Video adapter C mount 1X for digital camera
Eyepiece Extra wide field eyepiece EW10×/22, eyepiece tube 30mm
Objective:  Infinite High Contrast Plan Achromatic Objective 4x, 10x, 40x, 100x
Nosepiece Backward Quintuple Nosepiece
Focusing system Coaxial coarse & fine adjustment, Fine division 0.001mm, coarse stroke 37.7mm per rotation, Fine stroke 0.1mm per rotation, moving range 24mm
Stage Double Layers Mechanical Stage 185×142, moving range 75×55mm
Condenser Swing-out achromatic Condenser NA 0.9/0.25
Transmitted illumination Kohler illumination, aspherical collector, halogen lamp 6V/30W house
Filter Blue filter & green filter

Options

Cat. Number Descriptions Picture
M11251001 Digital Viewing Head Inclined at 30°, 5M pixels, Support Wifi
M11251002 Digital Viewing Head Inclined at 30°, 5M pixels, 8” LCD, Android OS
M11251003 Ergonomic Titable Binocular head 5~35° (black)
M11251004 Ergonomic Titable Binocular head 5~35° (white)
M11251005 Ergonomic Titable Binocular head 5~35° (white) with Trinocular adapter
M11251006 Eyepiece WF10× with pointer
M11251007 Eyepiece WF20x/12
M11251008 Eyepiece WF15x/16
M11251009 Backward Sextuple Nosepiece
M11251010 Infinite Plan Achromatic objective 20x
M11251011 Infinite Plan Achromatic objective 60x
M11251012 242x158mm X-Y axis Low Hand Position Double Mechanical Stage, 76x50mm, Precision 0.1mm, Damped Double Slide Clamp
M11251013 230x150mm X-Yaxis Low Hand Position, Graphite Coating Double Mechanical Stage, 76x50mm, Precision 0.1mm, Damped Double Slide Clamp
M11251014 External illumination, Aspherical Collector, Halogen Lamp 24V/100W
M11251015 3W LED Illumination
M11251016 5W LED Illumination
M11251017 Dark Field Condenser NA0.7-0.9 (Dry)
M11251018 Dark Field Condenser NA1.25-1.36  (Oil)
M11251019 Turret Phase Contrast Kit
M11251020 Simple Polarization Set: Polarizer & Analyzer
M11251021 Tmeperature Control System: 5W LED Illumination, Temperature Controlling Range: Room Temperature to 50°C
M11251022 LED Epi-fluorescent Attachment FL-LED
M11251023 Epi-fluorescent Attachment FL-800
M11251024 1X C mount
M11251025 0.5X C mount

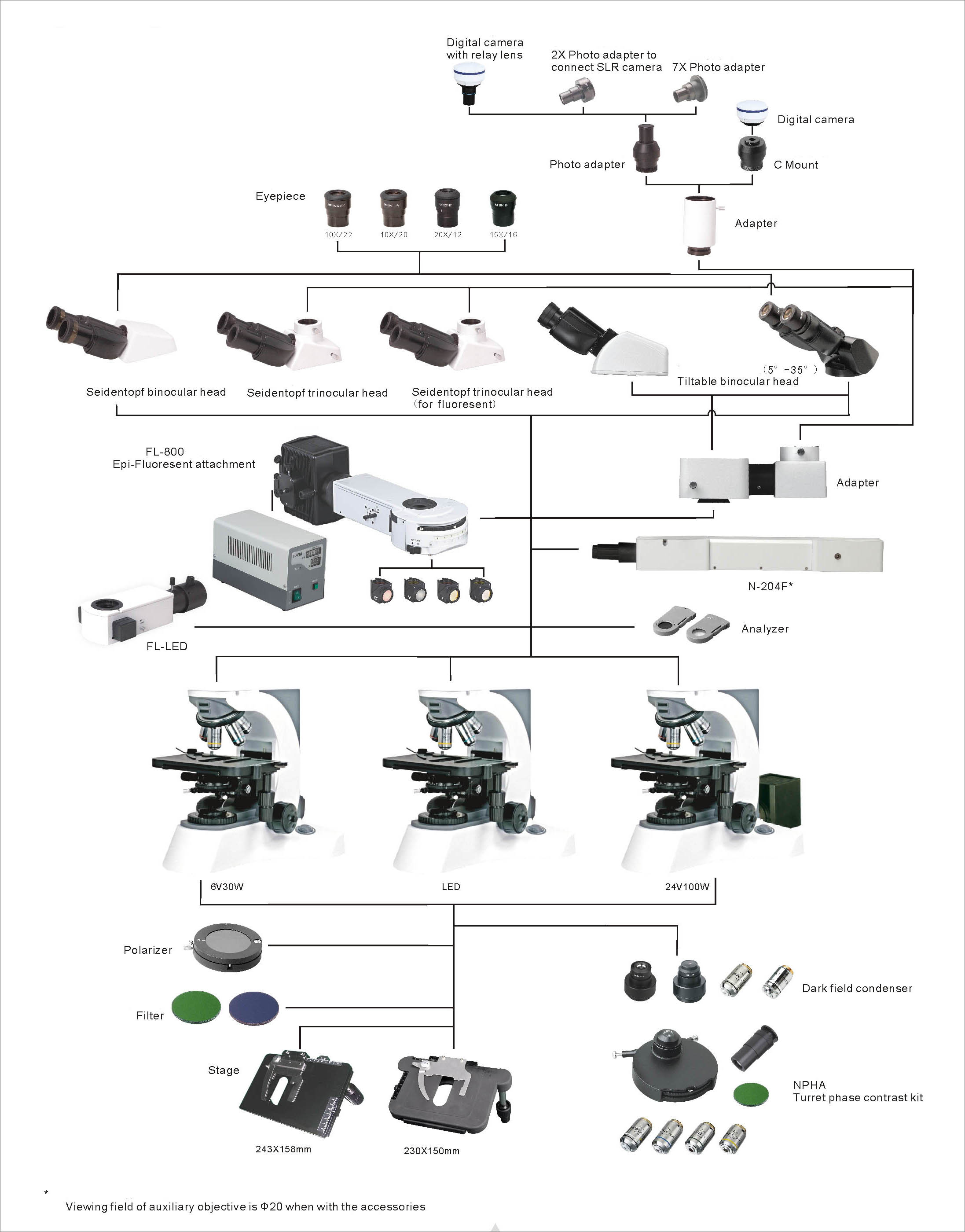

System Digram
