Description

1. Overview

Intelligent, convenient, comfortable and efficient

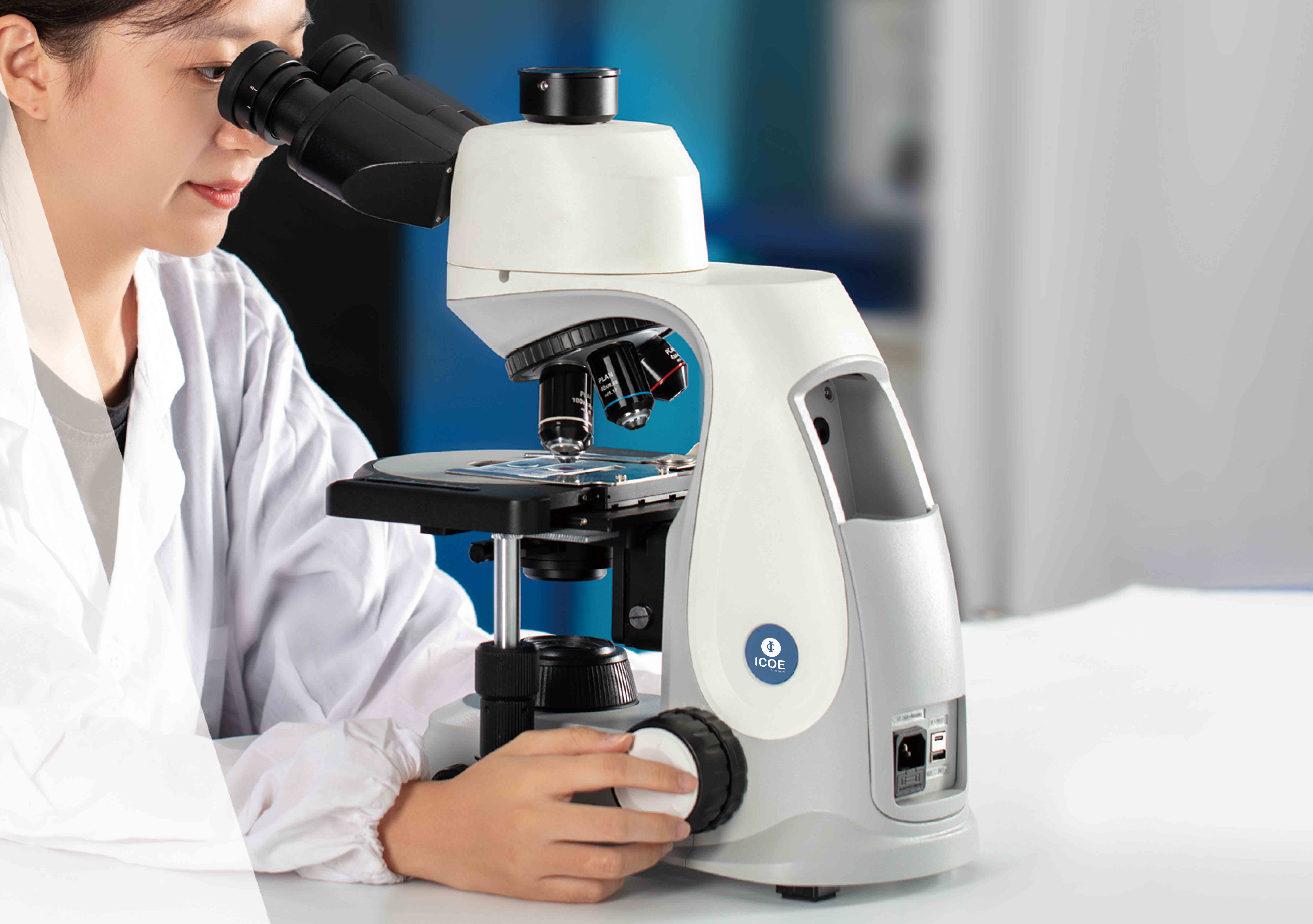

The new BX600 biological microscope, designed for universities or laboratories of biomedicine and other fields, can be used for teaching experiments and medical testing. Innovative design style, high quality and convenient, to bring you a simple and comfortable use experience; Excellent optical system and complete accessories, you can achieve a variety of observation such as light and dark field and phase contrast, to presenting you with wonderful images beyond your expectations. With intelligent lighting management system and ECO function, make your work easy and efficient.

2. Excellent Optical Performance for Flat Images

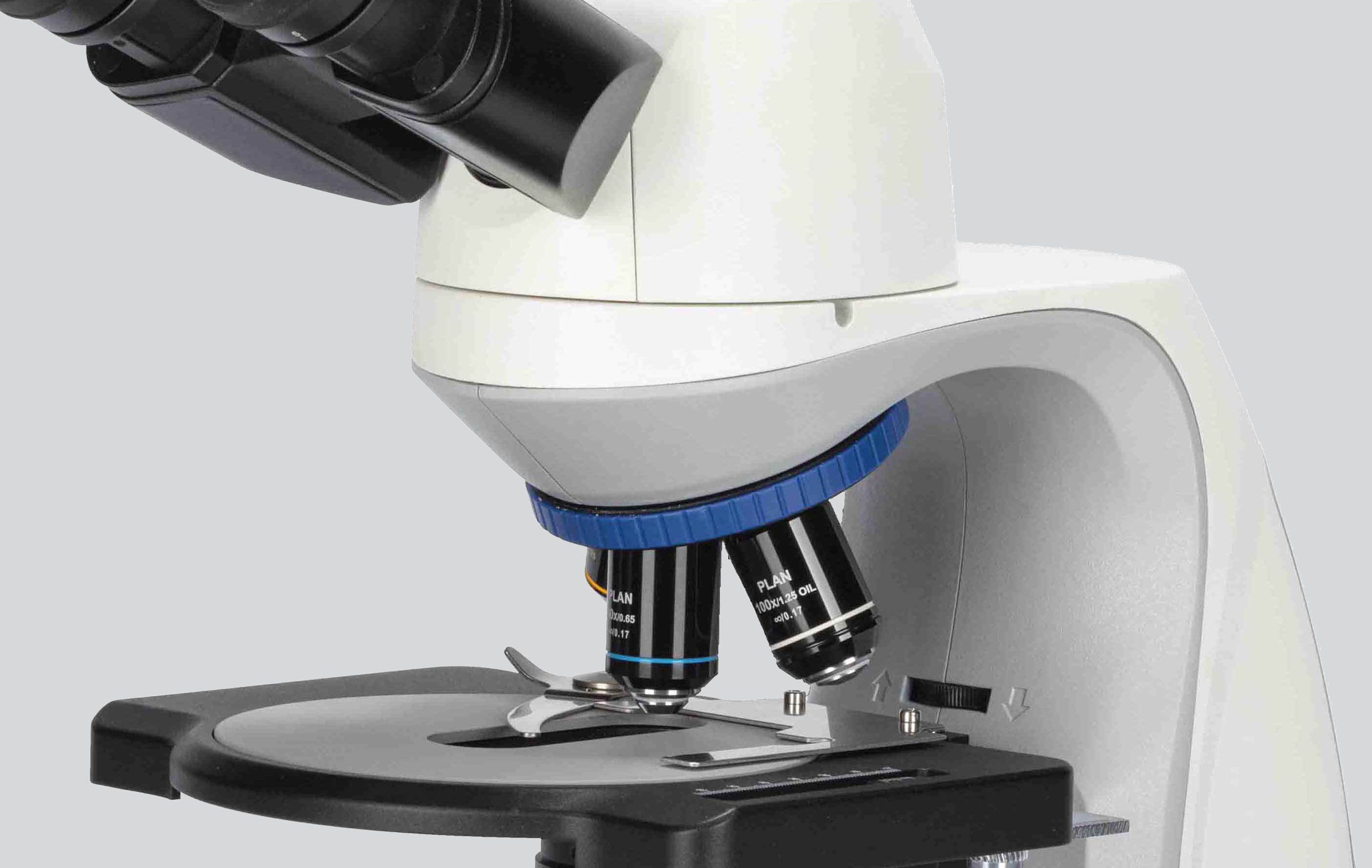

BX600 microscopes can be used with plan achromat objectives, which provide clear images with high image flatness over a wide field of view. You can view specimens clearly with even illumination during routine observations.

1). Outstanding Infinity color corrected optical system

Infinity color corrected system, professional plan achromatic objectives and cutting-edge microscopy technology, provide microscopic images with high resolution, high definition and high contrast.

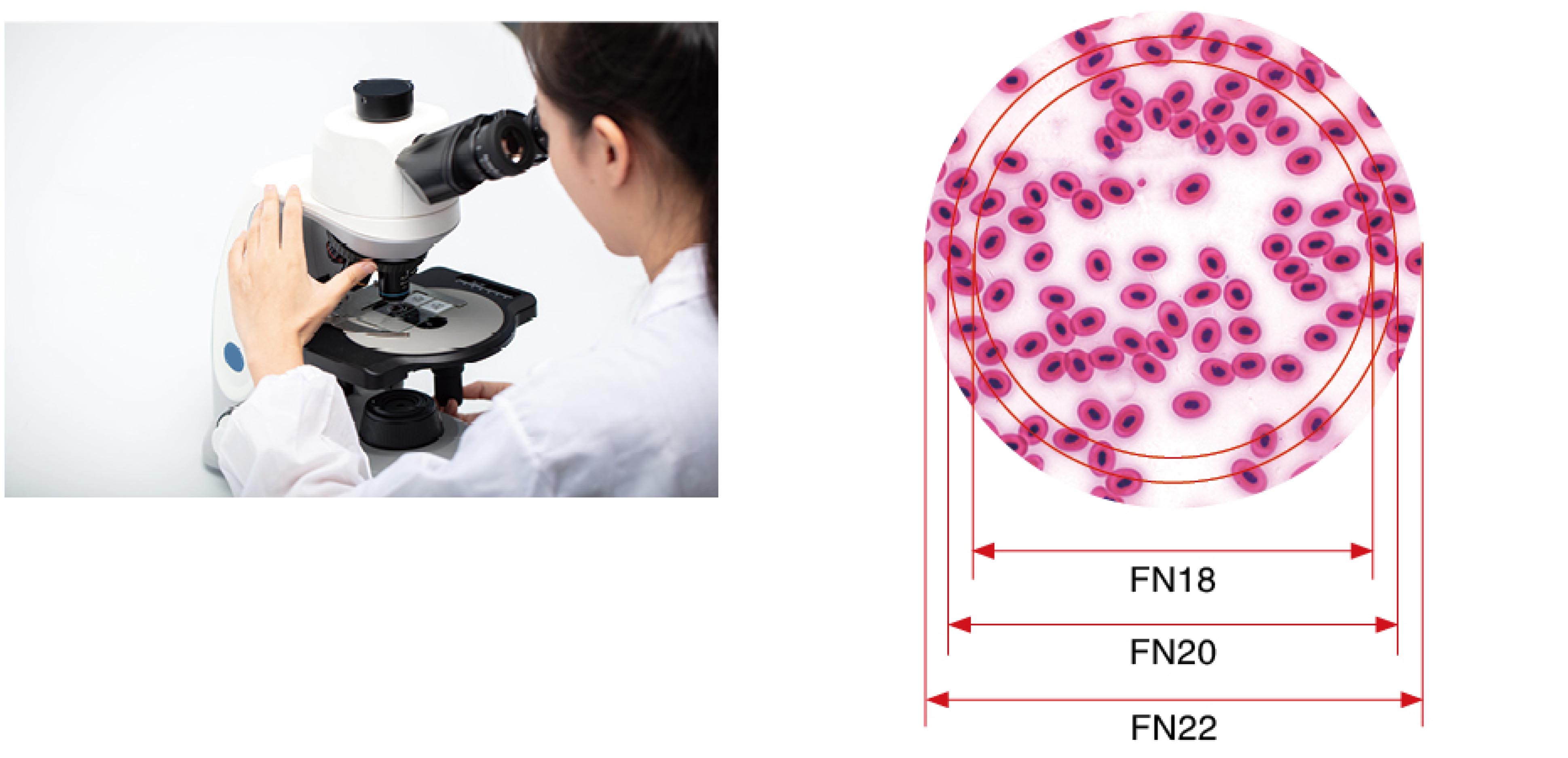

2). 22mm wide-field

• The BX600 biological microscope can achieve a wide field of view 22mm under 10X eyepiece, which is more efficient and perfect for observation.

• Professional high eye point and wide field plan eyepiece can effectively correct edge distortion and chromatic aberration.

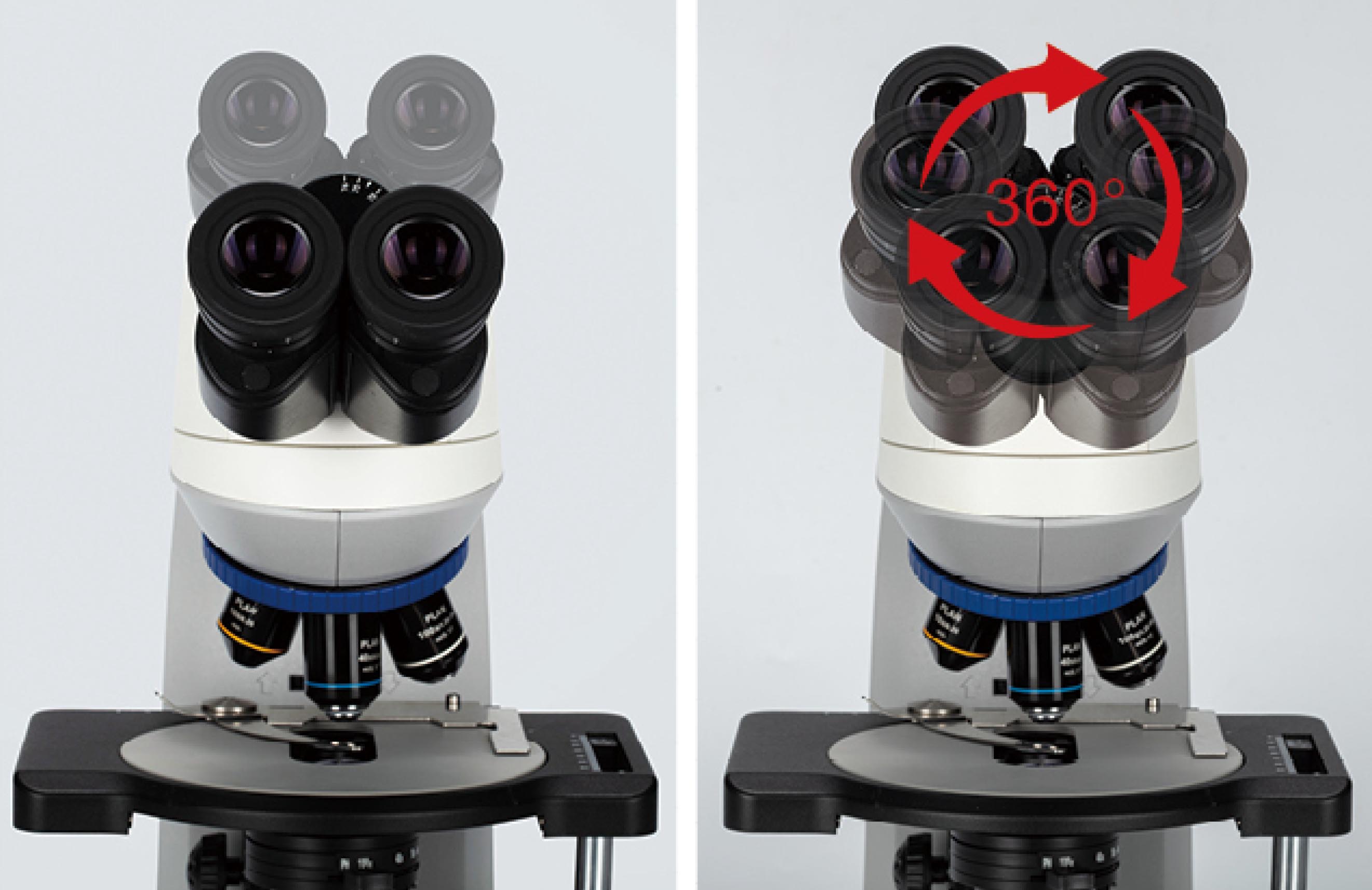

3). Rotatable viewing tube

BX600 viewing tube with gemel group 360° rotation function, adjustable pupil distance, eye point height, for different height of the operator to provide a more flexible and comfortable experience.

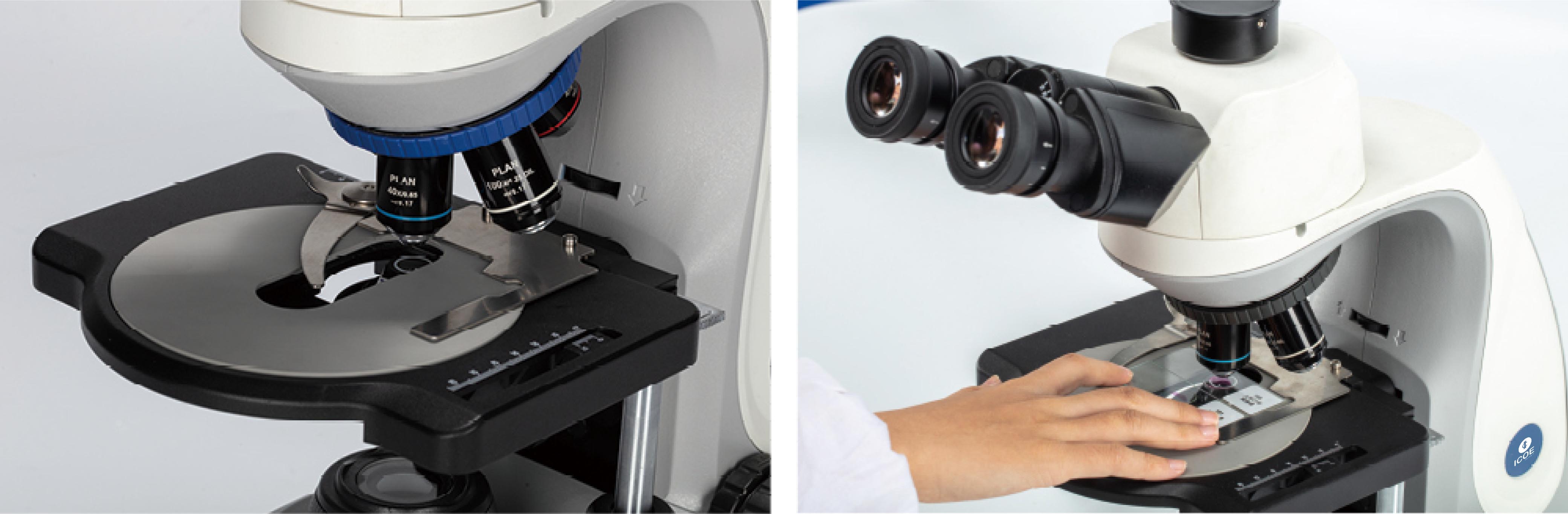

4). Super large ceramic rackless stage

Double-layer mechanical stage, large arc shape, no angular design; the stage surface adopts ceramic paint process, high hardness, corrosion resistance; Damping-type double clips can be placed two slices at the same time, for inspection and comparative analysis .

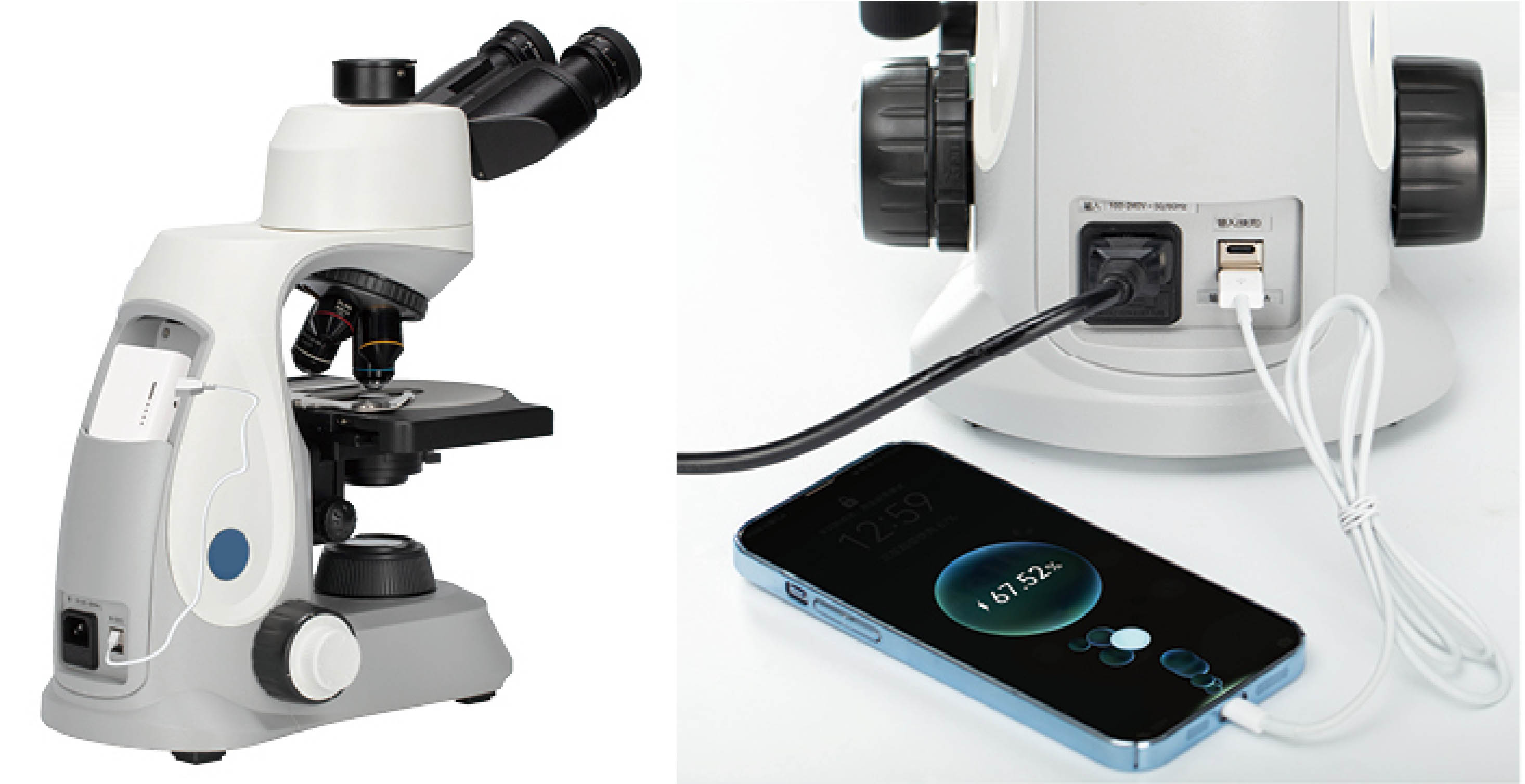

5). Super endurance function

The body is equipped with a Type-c interface, which allows the microscope to use a portable battery as a power source. The microscope thus frees itself from dependence on power outlets, enabling easy use outdoors or in power outages. The body comes with a standard USB port, that allows the microscope to charge a phone or tablet.

3. Intelligent management of light intensity and ergonomic design

1). With ECO energy-saving working mode

Build-in ECO function, no operation for 30 minutes, the system will automatically turn off and into the standby mode. Users can automatically wake up the light source by touching the dimming knob.

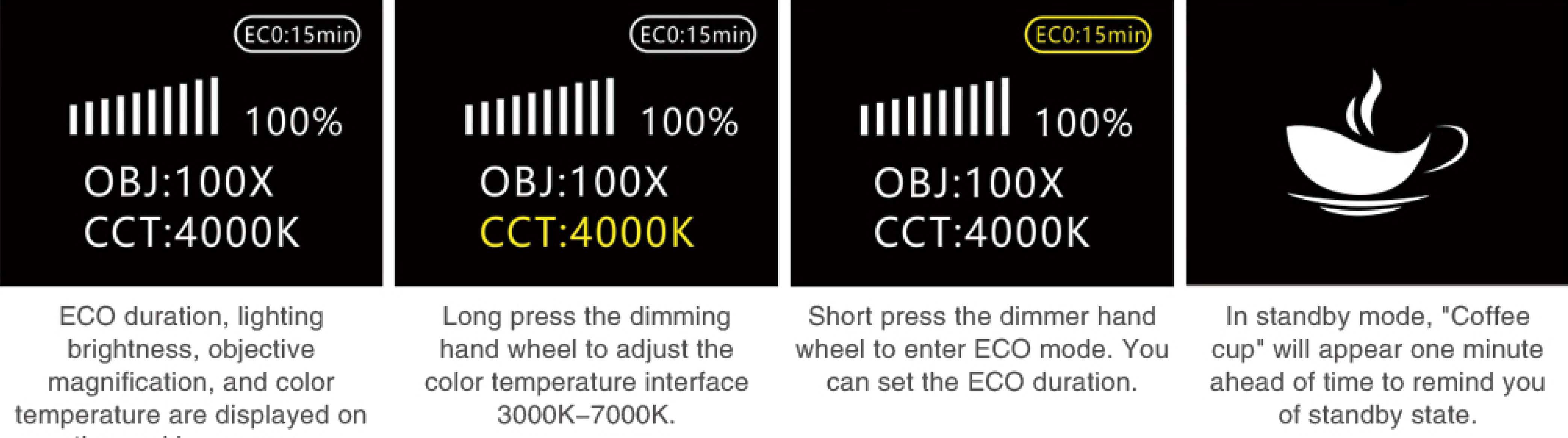

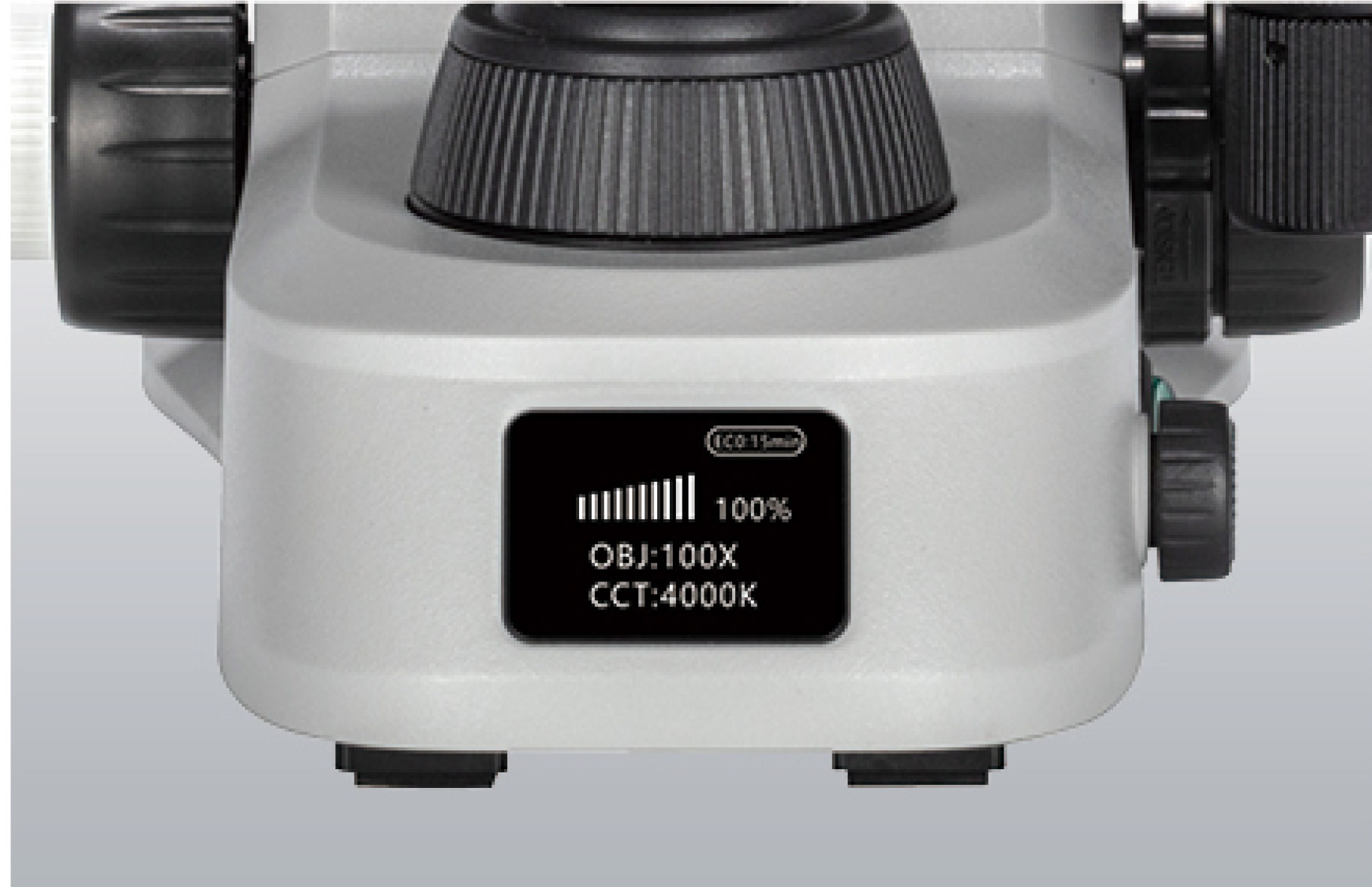

The BX620 has a front LCD display, which displays the current lighting brightness, color temperature and magnification, so that the user can intuitively judge the working status and improve working efficiency. At the same time, the BX620 has ECO function which gives a prompt whether to hibernate. Users can manually cancel, saving energy and improving user experience. The hibernation waiting time is 5-60 minutes.

2). Brightness memory function

BX600 can be equipped with code nosepiece, able to remember the illumination brightness of each objective. Users is able to freely adjust the light source brightness of each objective and the system automatically remembers, not only to improve efficiency, but also to reduce visual fatigue.

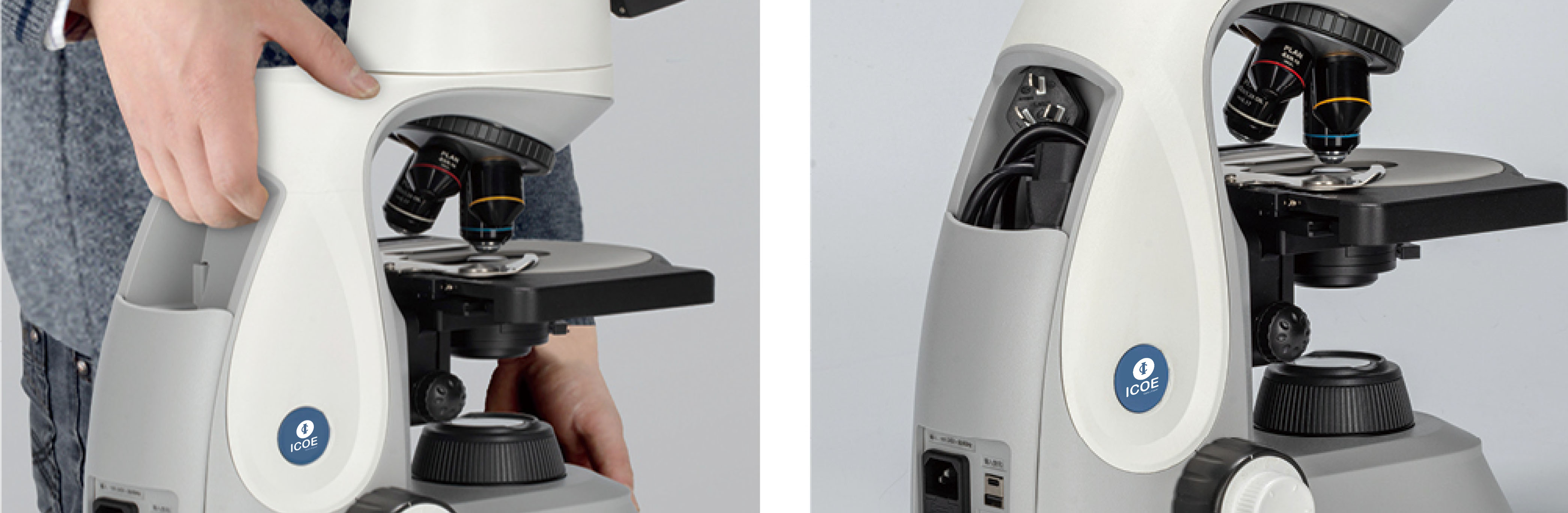

3). User-friendly design increases comfort and safety

• The BX600 is equipped with a secure handle for moving.

• Fully concealed locking design eliminates all sharp edges.

• Low hand coarse and fine coaxial focus system is ergonomically designed to give the user maximum comfort.

• There is a storage device at the back of the body to ensure the cleanliness,, saving storage space and improving portability.

4. Flexibility for Multiple Applications

Various observations such as bright field, dark field and phase contrast can meet the needs of routine teaching and experimental observation.

1). Brightfield

The professional plan achromatic objective, with the use of the Kohler illumination system, adjusts the image to the best condition by adjusting the aperture diaphragm and the field diaphragm. High-resolution, high-contrast microscopic images can be obtained whether at low or high magnification.

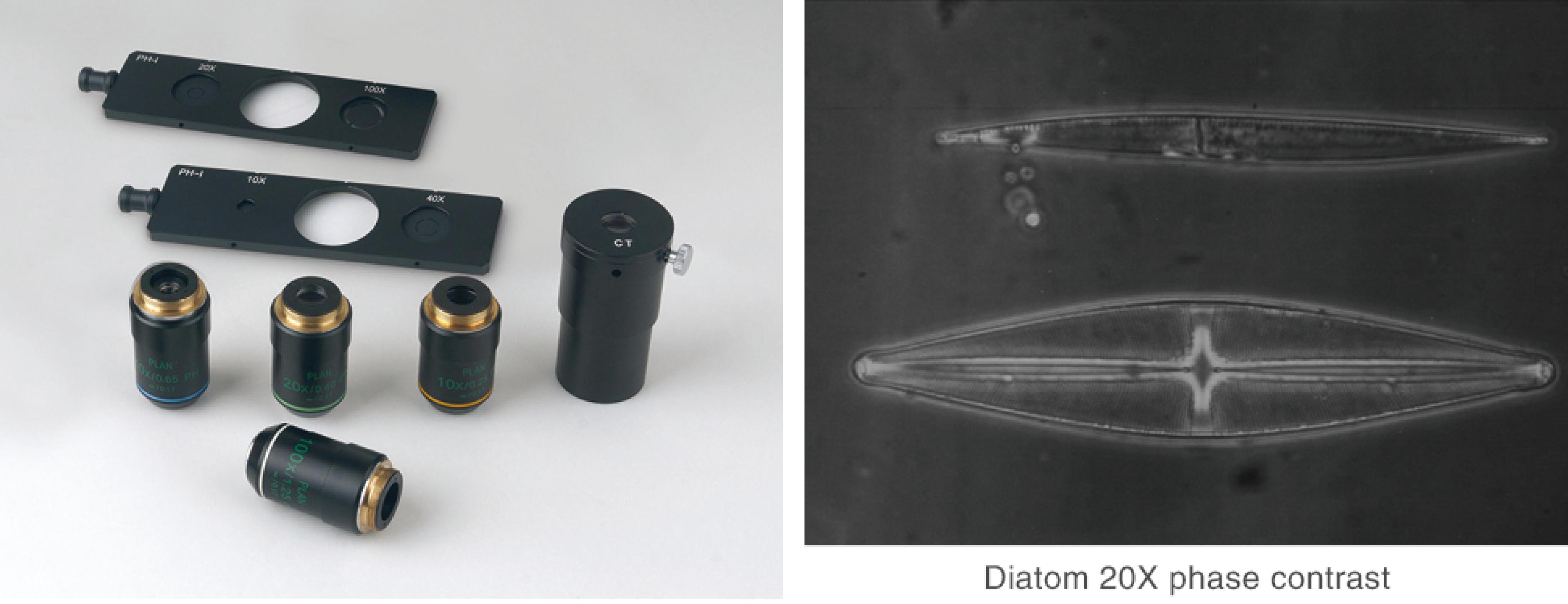

2). Phase contrast

It is suitable for observing samples with high transparency, such as cells, bacteria and other tiny, transparent objects in biological specimens

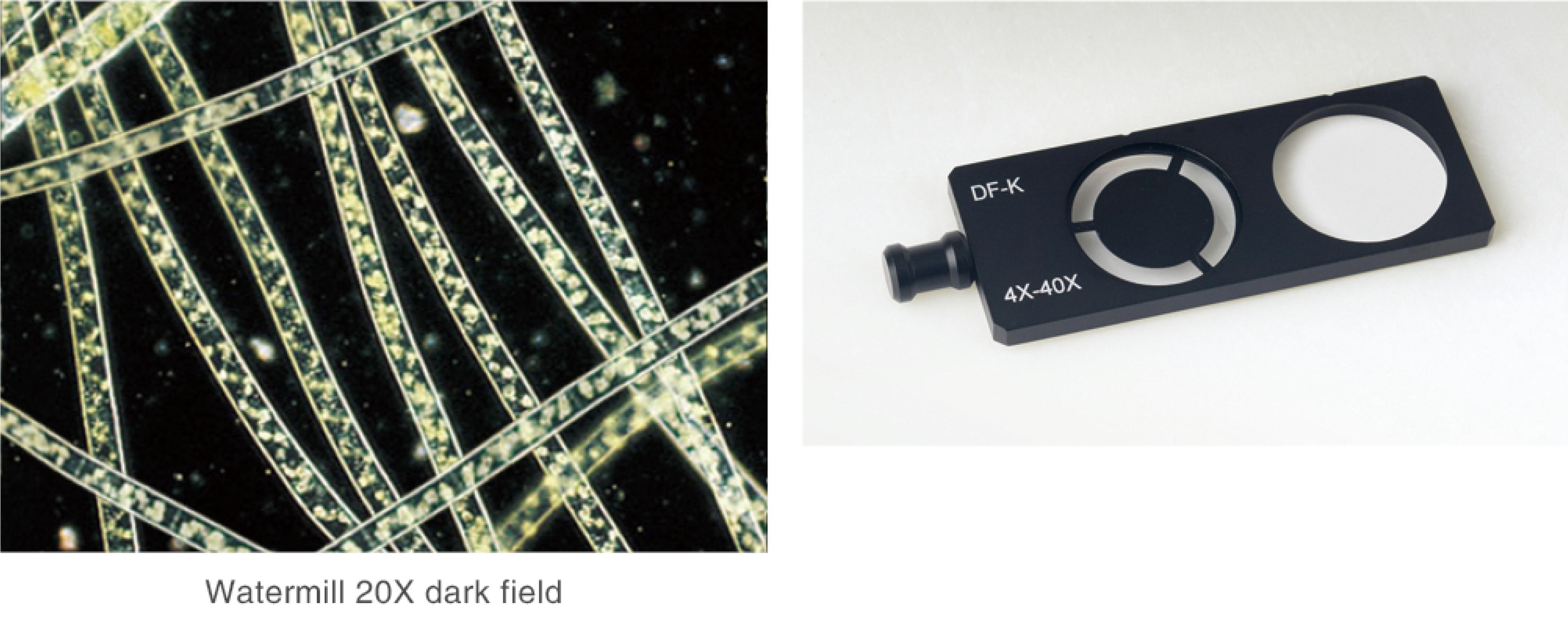

3). Darkfield

Insert the dark field kit into the socket of the condenser and push the dark field diaphragm into the optical path to achieve simple dark field observation. Without replacing the special dark field condenser, dark field observation can be performed on any magnification objective in the range of 4X-40X, which can be used to observe protozoa, bacterial flagella, spirochetes and other substances.

4). Fluorescence observation

Provide you with highly stable, low-radiation, ultra-long-life fluorescent modules to help you output efficient and professional diagnostic solutions.

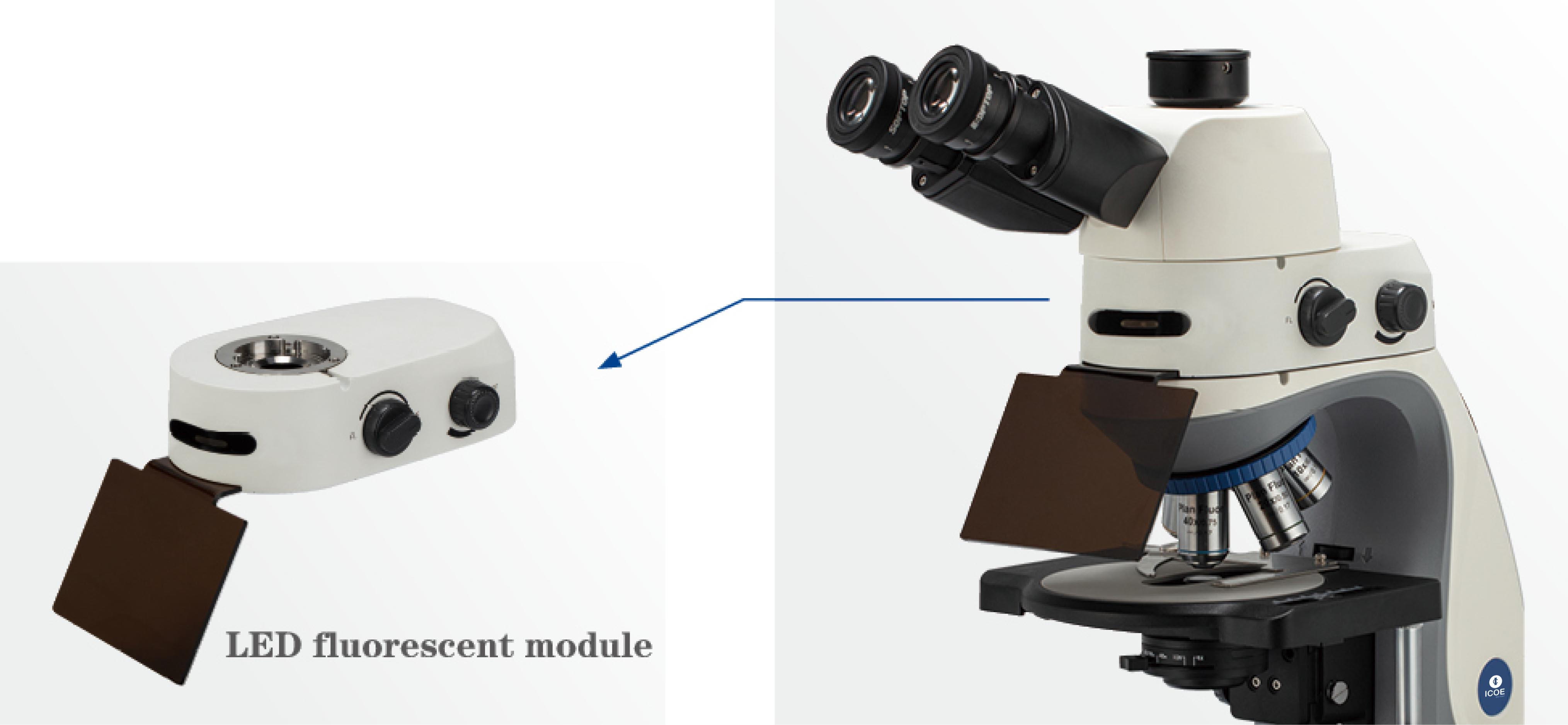

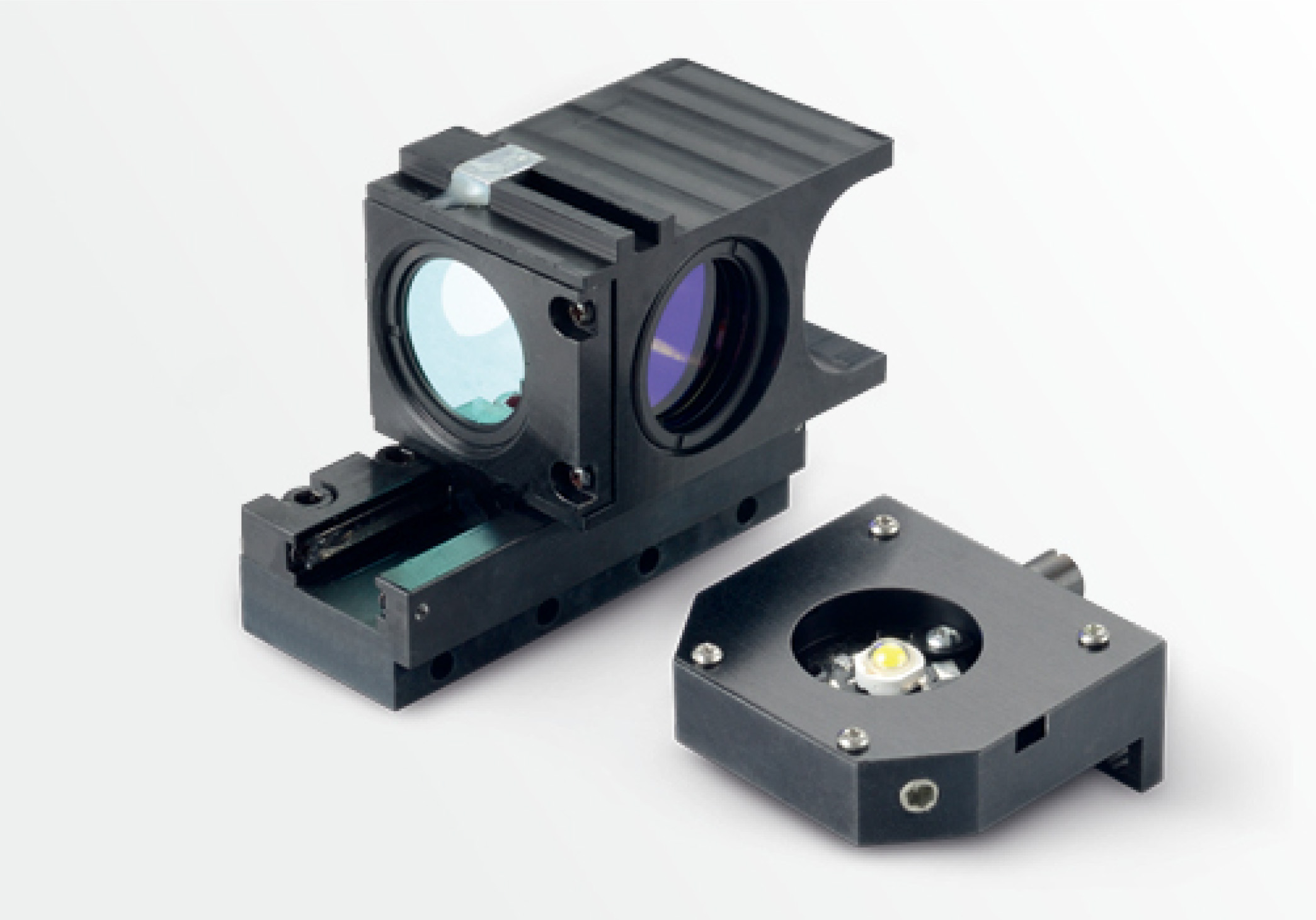

Flexible manipulation of the LED fluorescent module

The innovative reflected LED fluorescence device greatly simplifies the operation process of the fluorescence microscope, making the microscopy experiment more simple, safe and efficient.

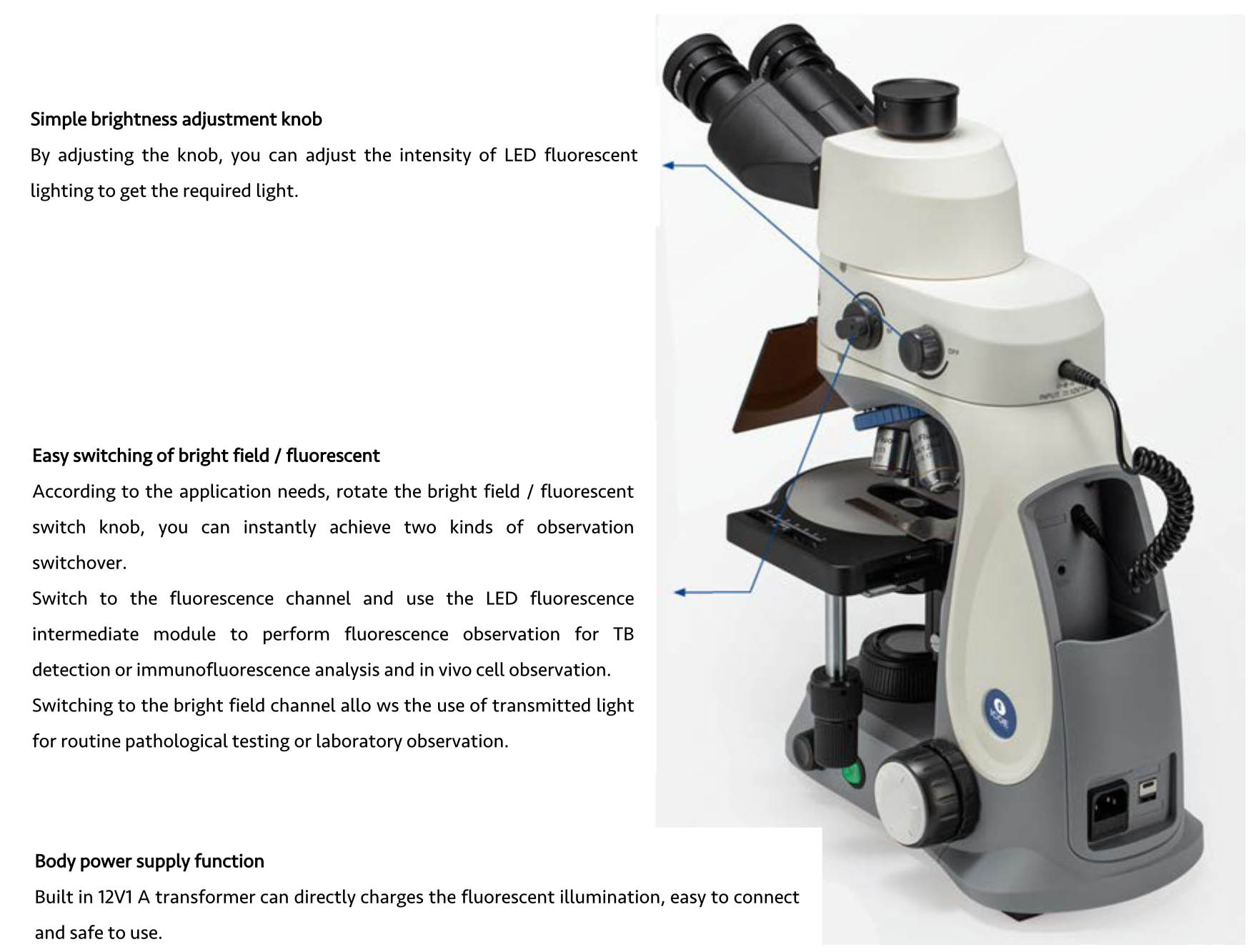

With light source brightness adjustment knob, according to the characteristics of different specimens to set the appropriate illumination brightness; Rotating bright field / fluorescence switch knob, convenient for users to achieve easy conversion between transmitted light illumination and reflected fluorescence illumination.

Note: other types of fluorescentLED modules can be selected according to customer’s requirements.

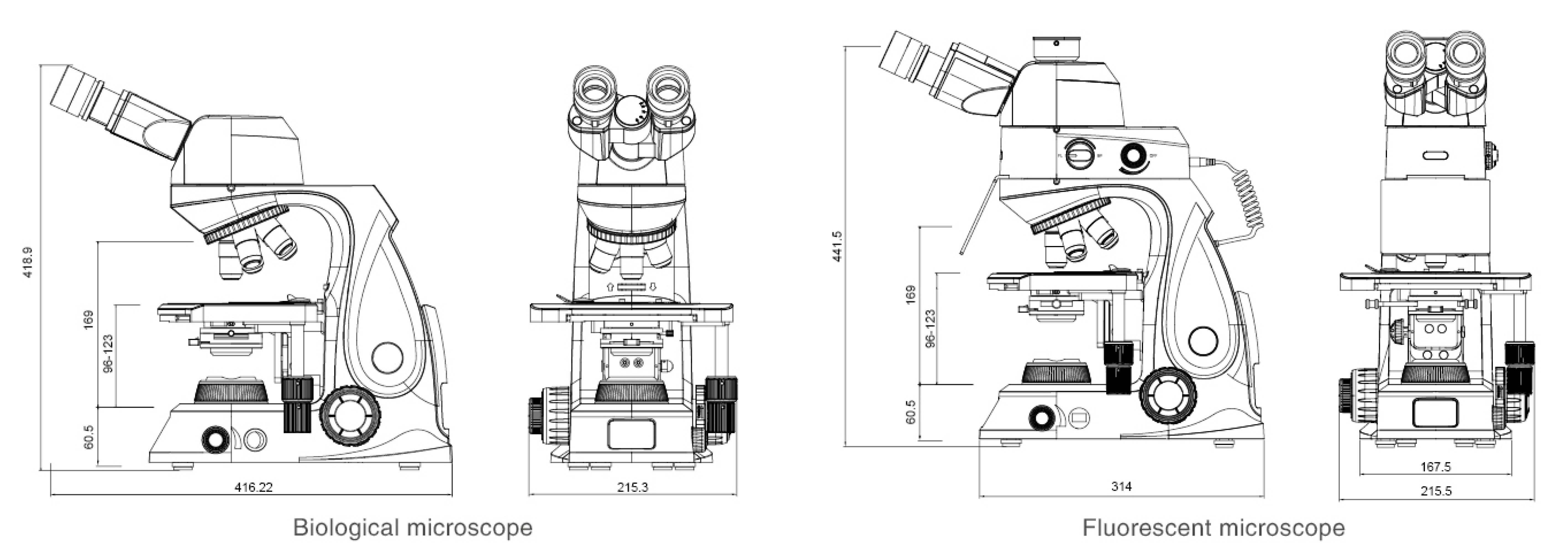

5. Product Dimensions

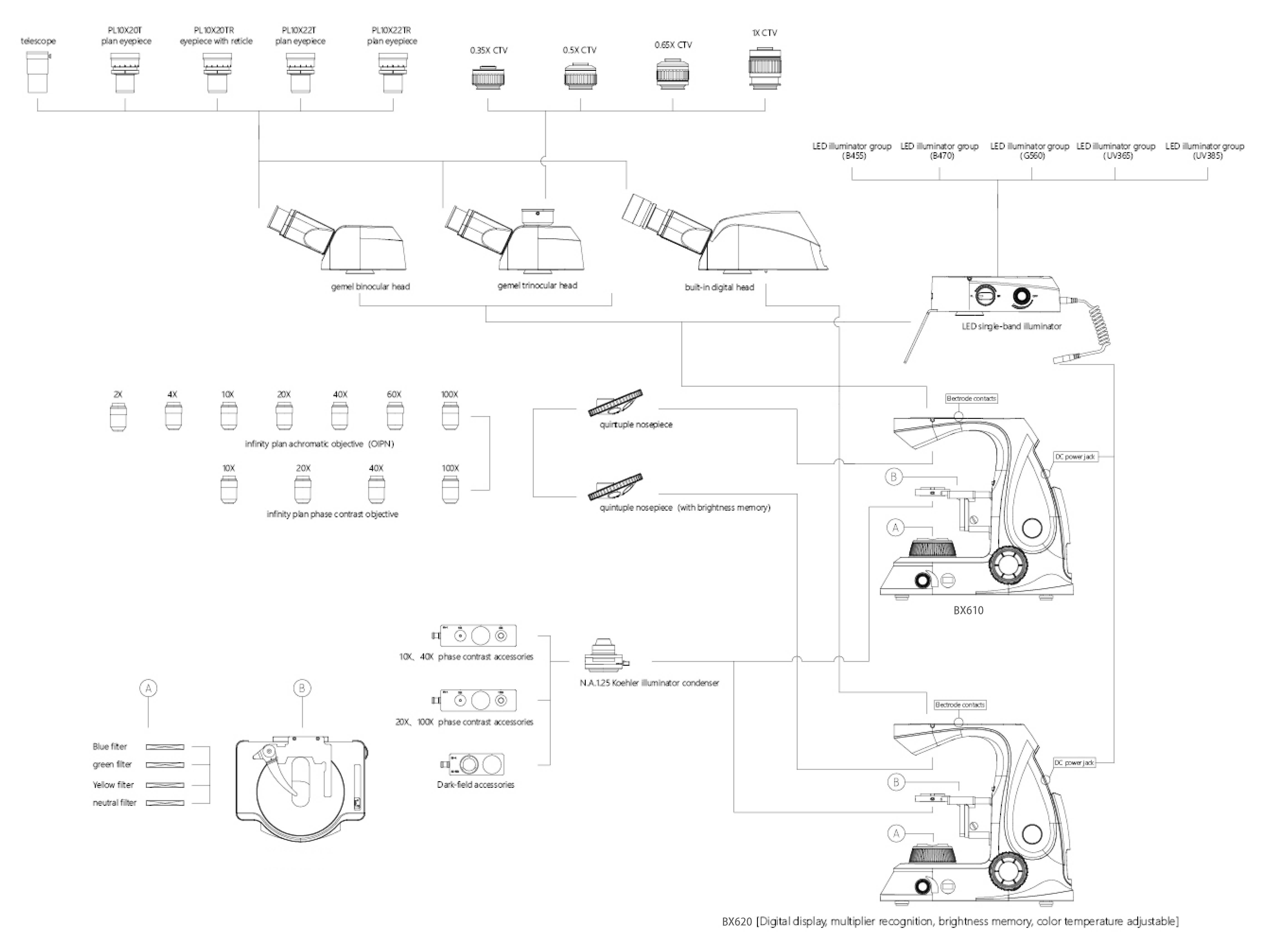

6. System Configuration Chart

7. Product Models & Specifications

Optional Accessories
