BM38U Series Infinite Biological Microscope

Home Microscopy Biological Microscopes Infinity Biological Microscopes BM38U Series Infinite Biological Microscope

BM38U Series Infinite Biological Microscope

Infinity Biological Microscopes2018-11-06n50

Description

Descriptions

As a clinician, lab supervisor or medical tech, you need a better biological microscopes that fit your needs and job demands, BM38U Series infinite microscopes adopt infinite optical system, which are ideal for clinical, university and institutional applications. After adopt optional phase contrast accessories, BM38U is best for viewing bacteria and blood cells. The phase contrast objectives and condenser allow the user to view particles that are the same color as background they are on.

Product Details

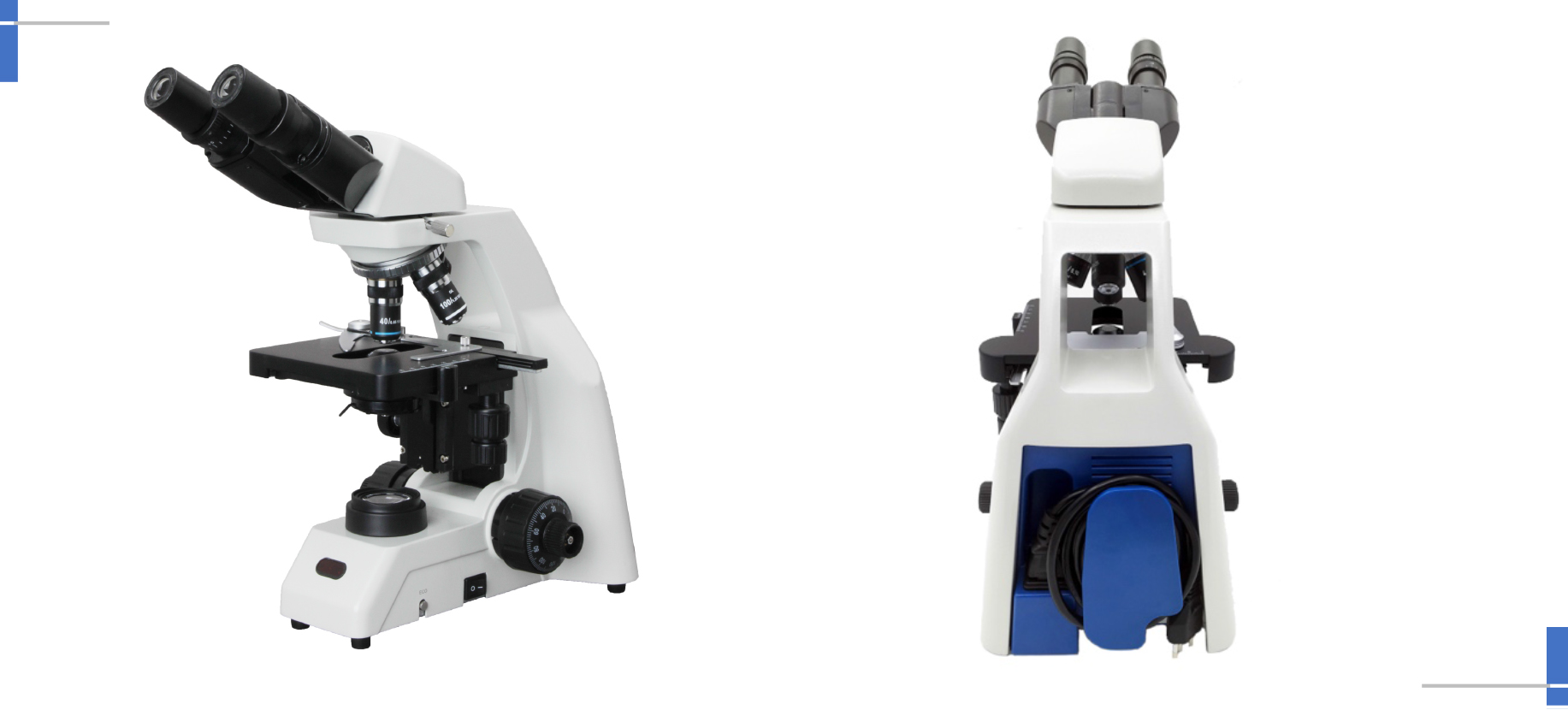

Compact, lightweight body, and easy to use

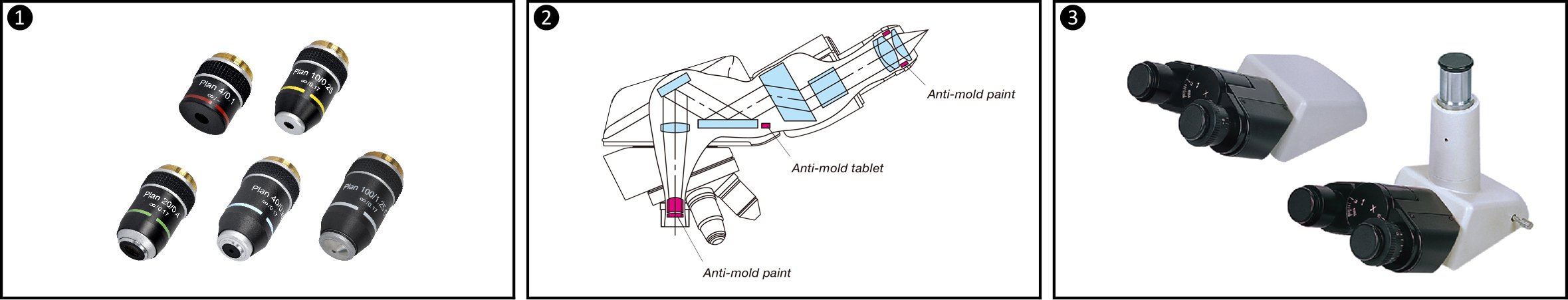

1. Objectives for flat images

icoe has developed the CPI Plan objectives, which features superior image flatness for BM38U, Chromatic aberration and field curvature are corrected over the entire field of view. Images are clear and bright at every magnification. The BM38 provides first class optical quality at a modest price.

2. Anti-mold design

Anti-mold paint and an anti-mold tablet are used in the objectives, eyepieces and tubes to prevent mold forming in high-humidity environments.

3. Binocular and trinocular heads are available

The BM38U adopt Siedentopf-type head that provides a constant and accurate tube length. Both binocular and trinocular are available. A digital camera can be attached to the trinocular tube.

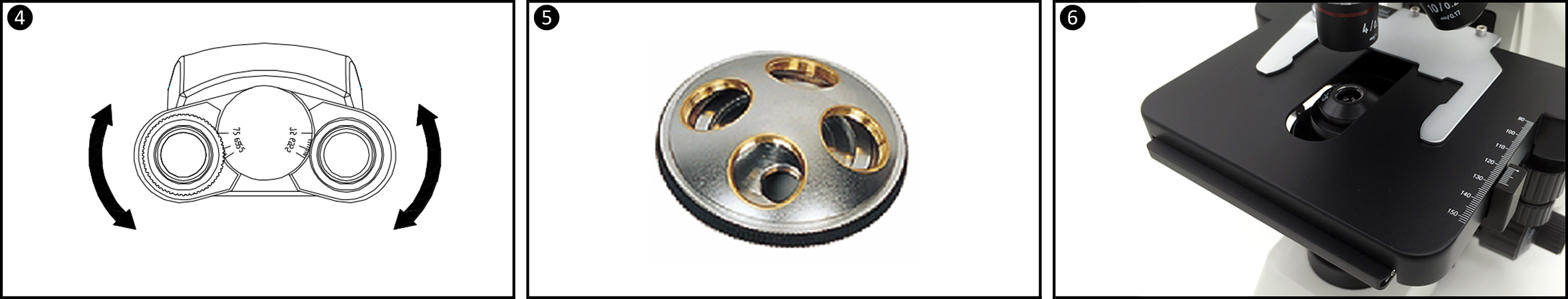

4. Observation with comfort

The tube is inclined at 30°, allowing comfortable viewing in a natural posture. By simply swinging the front part of the tube, the user can change the eye-point height. With a pupillary distance is 64mm, for example, it can be moved 34mm upward or downwards. In addition, the interpupillary distance adjustment from 47~78mm and the diopter adjustment ring are designed to accommodate a wide range of operators.

5. Smooth rotation quadruple nosepiece

The high-quality revolving nosepiece has a superior internal detent click-stop mechanism. A knurled elastic covered grip around the base of the nosepiece makes the nosepiece easy to rotate and eliminates the need to touch the objectives.

6. Double-plate mechanical stage

The built-in stage has a double-plate mechanism with an XY dual travel control. The large, flat stage surface facilitates easy specimen handling. Because the height of the X-axis guide rail is level with the stage surface and the stage surface is flat and smooth glass slides move easily over the surface. A spring-loaded slide holder is included.

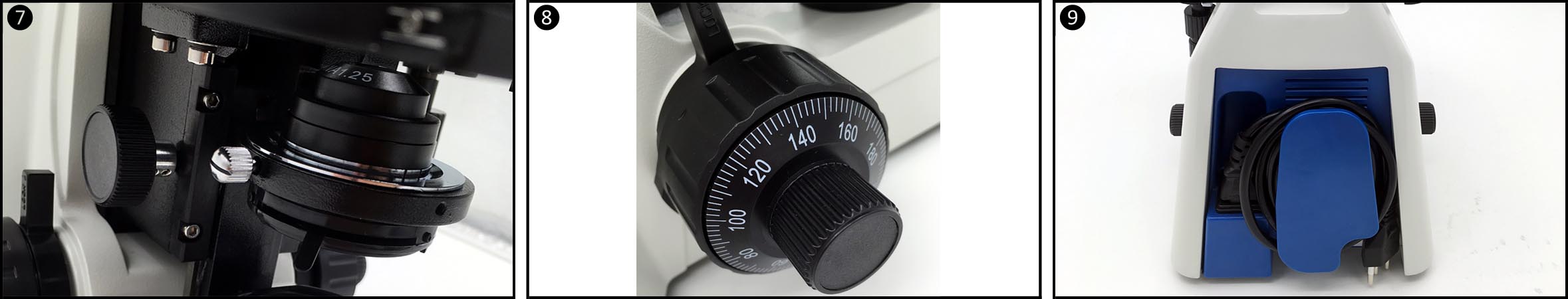

7. Condenser

The N 1.25 Abbe condenser comes with an aperture diaphragm to make operations quick and easy, ensuring perfect specimen images. The condenser position can also be adjusted.

8. Coaxial coarse/fine focus knob

The coaxial coarse/fine focus knob is comfortably located at desk-height level. The focus knob and the stage handle are ergonomically designed and are located equidistant from the operator, meaning they can both be easily adjusted from a normal sitting position. In addition, the torque of the coarse focus knob can be adjusted.

9. Cord hanger

The power cord can be simply wound up when not in use.

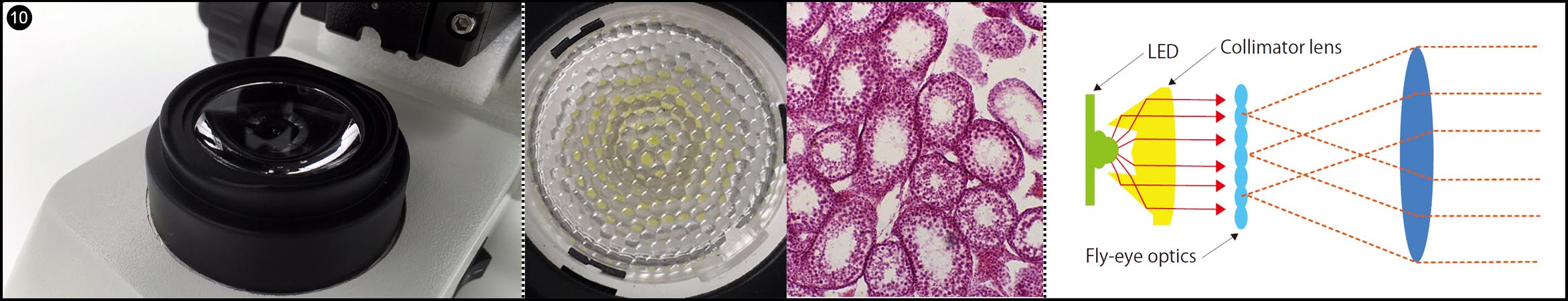

10. High-intensity LED Illumination

icoe microscope’s LED illumination provides enough brightness for phase contrast observation. With a fly-eye lens in the illuminator, uniform brightness is provided in the entire field of view. Using environmentally friendly long-life LEDs, LED illumination boasts a long lifetime of 60,000 hours and reduces the need for frequent lamp replacement. A halogen illumination model is also available.



Accessories corresponding to a wide variety of applications


Phase contrast attachment

Simple phase contrast observation at 10X and 40X is possible with a single phase annulus slider. The aperture diaphragm automatically opens when the slider is inserted into the condenser.

Mirror unit

A mirror unit is available for observation where there is no access to power source. Removal of the field lens unit and insertion of the mirror unit in its place is easy.

Trinocular head

Siedentopf-type trinocular head is available. A digital camera can be attached to the trinocular tube.

Condenser

An Abbe condenser for brightfield observation and a phase condenser for phase contrast and darkfield

ECO function

The microscope with ECO: The equipment can induct the front surroundings in 1m. At the moment, it light red and light source keeping working. When people left and no object within the front 1m, the red light would flashed. After 15 minutes, light source stop working.

Digital camera for microscopes

When the trinocular tube is used, a digital camera can be attached. You may refer to the our microscope camera lines in page “microscope cameras”



Specifications

Model BM38UB BM38UIB
Optical System  Infinite Optical System
Viewing head Seidentopf Binocular Viewing Head Inclined at 30°, interpupillary 47-78m, 360° Rotation
Nosepiece Backward Quadruple Nosepiece
Eyepiece Wide Field Eyepiece WF10X/20
Objectives Infinite semi-plan achromatic objective:

—

4x/0.10

10x/0.25

40x/0.65, spring loaded

100x/1.25, spring loaded, oil

Infinite plan achromatic objective:

—

4x/0.10

10x/0.25

40x/0.65, spring loaded

100x/1.25, spring loaded, oil

Stage Rackless Double Layer Mechanical Stage 150X139mm, Moving Range 75X52mm
Focusing Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 25mm
Condenser NA1.25 Abbe Condenser with Aperture Diaphragm
Illumination LED illumination for long life, brightness adjustable
Supplied with Dust cover, spare fuse, blue & green filters
Power 100-240V, 50/60Hz



Optional Accessories and Functions Details


Order No. Description Picture
BM38U.HM01 Monocular Viewing Head Inclined at 30°
BM38U.HB02 Seidentopf Trinocular Viewing Head Inclined at 30°
BM38U.HD03 Digital Viewing Head Inclined at 30°, 5M pixels, Support Wifi
BM38U.HD04 Digital Viewing Head Inclined at 30°, 5M pixels, 8” LCD, Android OS
BM38U.E1001 WF eyepiece 10x/20 with Pointer
BM38U.E1002 WF eyepiece 10x/20 with Micrometer
BM38U.E1003 WF eyepiece 10x/22
BM38U.E1504 Eyepiece 15x/16
BM38U.NQ05 Backward Quintuple Nosepiece
BM38U.SO20 Infinite Semi-Plan Objective 20x
BM38U.SO60 Infinite Semi-Plan Objective 60x
BM38U.PO20 Infinite Plan Objective 20x
BM38U.PO60 Infinite Plan Objective 60x
BM38U.HI6201 Halogen Lamp 6V/20W
BM38U.LI02 S-LED Illumination with Recharger
BM38U.KI03 Collector, Field Iris Diaphragm and Auxiliary Lens for Koehler Illumination
BM38U.MI04 Plane-concave Mirror
BM38U.ECO05 Eco-function
BM38U.DC0901 Dark Field Condenser (Dry) NA 0,9
BM38U.DC3602 Dark Field Condenser (Oil) NA 1,36-1,25
BM38U.DO1003 Dark Field Objective 100X
BM38U.PS01 Polarization Set
BM38U.PC02 Phase Contrast kit, insert type. Consisting of Phase Contrast Infinity Plan-achromatic Objectives 10X, 40X(S) or 100X (S,Oil), Phase Contrast Condenser with Slide Plate 10X/40X or Slide Plate 100X/BF, if no special note in order, 10X, 40X will be provided.
BM38U.PC03 Phase Contrast kit, dial type. Consisting of Phase Contrast Infinity Plan-achromatic Objectives 10X, 40X(S), 100X(S,Oil), Turret Annular Phase Contrast Condenser, green filter
BM38U.PC04 Phase Contrast kit, dial type. Consisting of Phase Contrast Infinity Plan-achromatic Objectives 10X, 20X, 40X(S), 100X(S,Oil), Turret Annular Phase Contrast Condenser, green filter
BM38U.EF01 XY-2 Epi-Fluoresence attachment, power supply, mercury lamp, blue and green filter
BM38U.EF02 Epi-Fluoresence attachment FL-LED, with B excitation filter (465-475 nm blue) and LED lamp
BM38U.DXXX Cameras  system (please refer to web page microscope cameras)

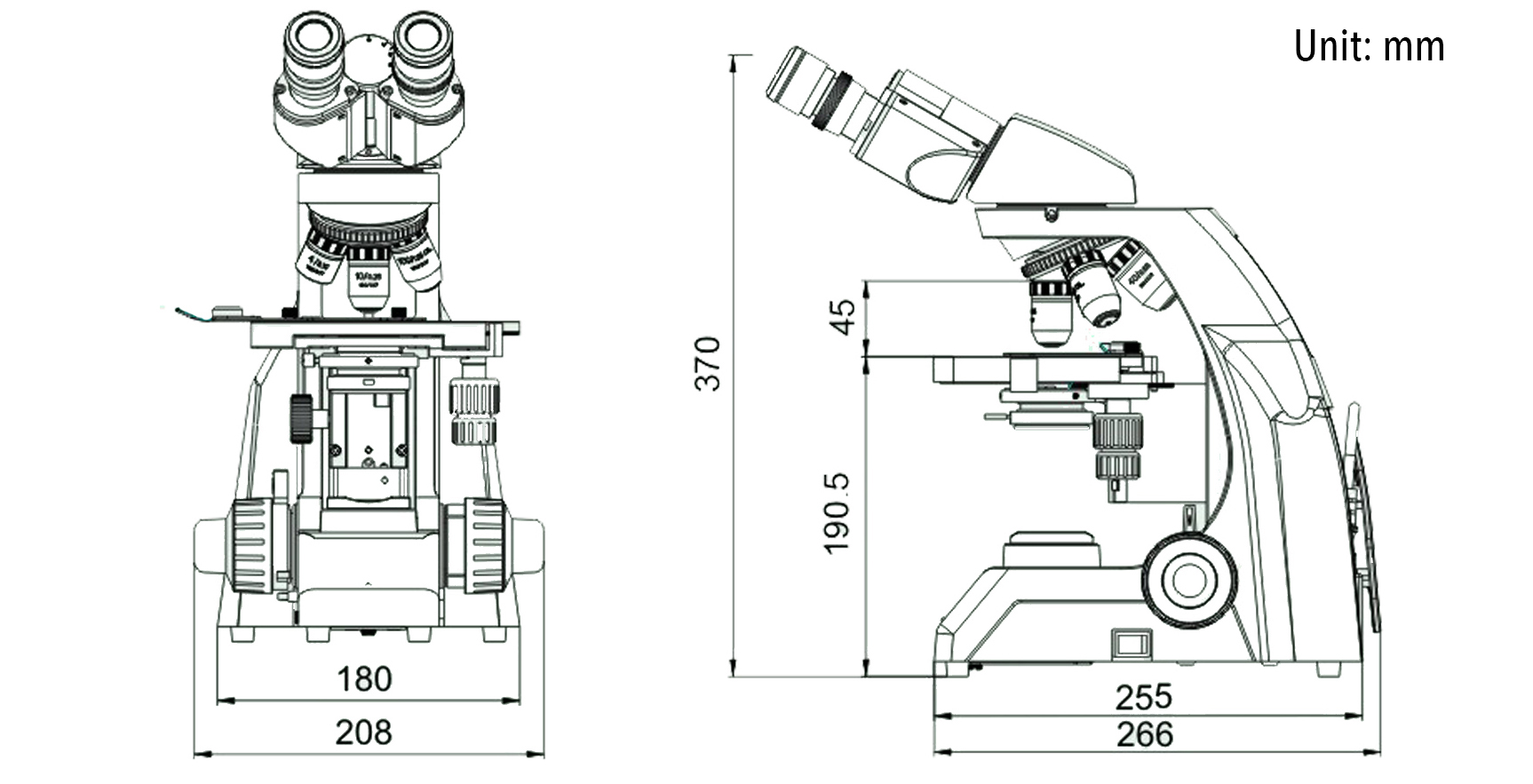

Product Dimensions
