BM36U Series Infinite Biological Microscope

Home Microscopy Biological Microscopes Infinity Biological Microscopes BM36U Series Infinite Biological Microscope

BM36U Series Infinite Biological Microscope

Infinity Biological Microscopes2023-04-05n50

Description

Descriptions

As a clinician, lab supervisor or medical tech, you need a better biological microscopes that fit your needs and job demands, BM36U Series infinite microscopes adopt infinite optical system, which are ideal for clinical, university and institutional applications. It can be expanded for applications of phase contrast, fluorescent observations by selecting corresponding accessories.



Features (Compact, lightweight body, and easy to use)

1. Infinite-corrected Optical System

An infinity-corrected optical system basically has the following advantages because a parallel light beam passes between the objective lens and tube lens.
A magnification does not change even if the distance between the objective lens and tube lens is changed. Even if a parallel flat plate is inserted between the objective lens and tube lens, the parfocal point remains unchanged and delivers no image shifting occurs.
The two advantages above-mentioned are extremely significant ones on the occasion of configuring a microscope optical system, and it has been said for a long time that “an infinity-corrected optical system is an ideal microscope optical system”. If you make the most of these advantages, you can configure an optimal optical system by optionally taking in and out an intermediate lens unit within the parallel beam section between the objective lens and tube lens.

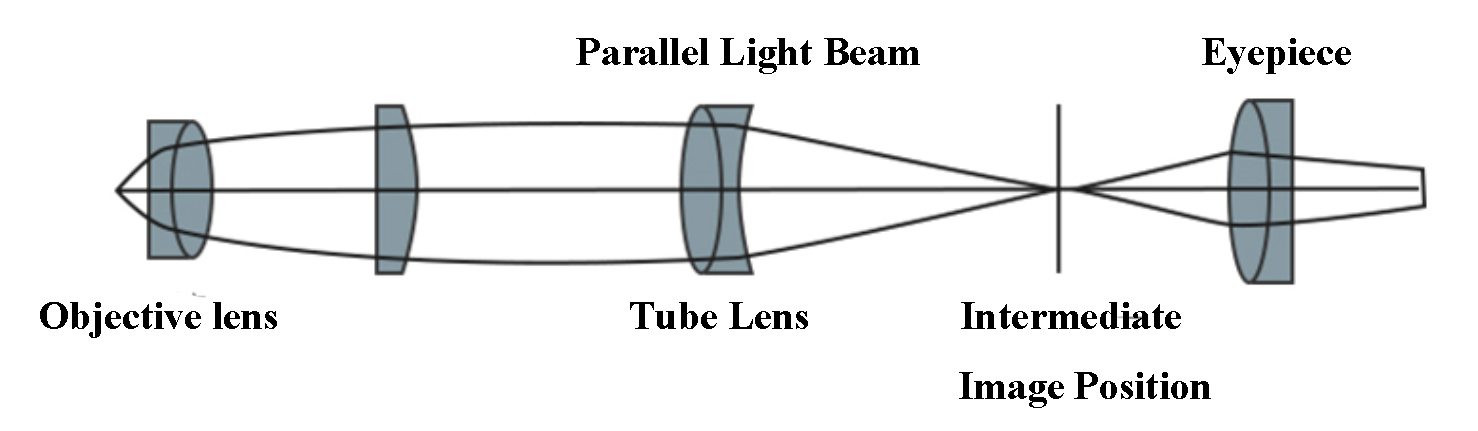

Principle Diagram of Infinity-corrected Optical System

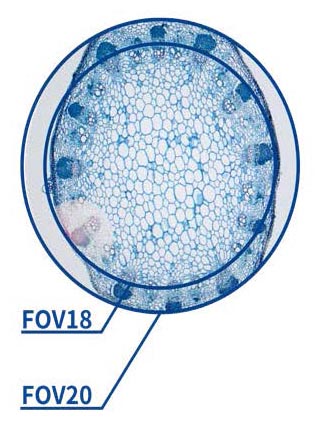

2. 10x/20mm wide field eyepiece

Full-coated wide-angle eyepiece, low-distortion multi-layer coating ultra-wide field, 10 times magnification 20mm wide-field observation, the effect is clearer

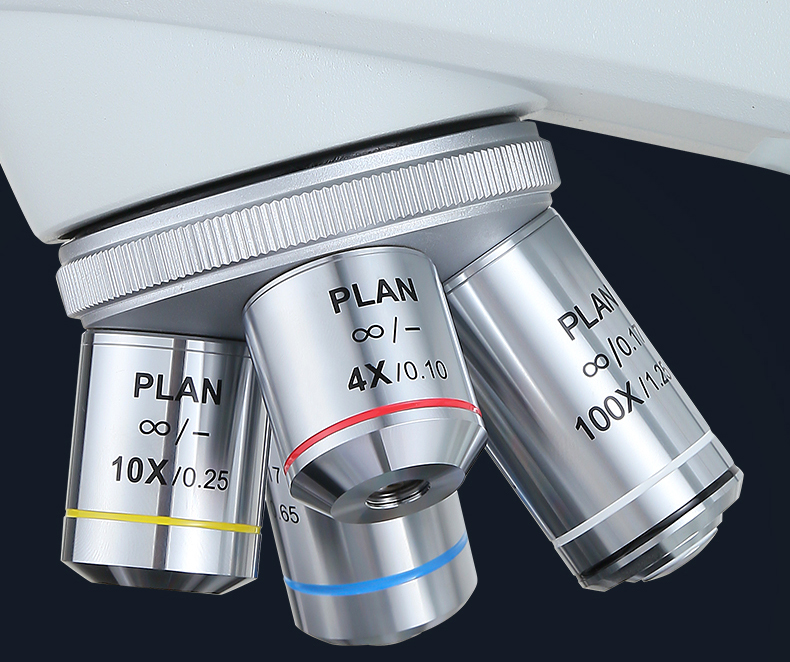

3. Objectives for flat images

ICOE has developed the infinite plan achromatic objectives, which features superior image flatness for BM36U, Chromatic aberration and field curvature are corrected over the entire field of view. Images are clear and bright at every magnification. The BM36U provides first class optical quality at a modest price.



4. Anti-mold design

Anti-mold paint and an anti-mold tablet are used in the objectives, eyepieces and tubes to prevent mold forming in high-humidity environments.

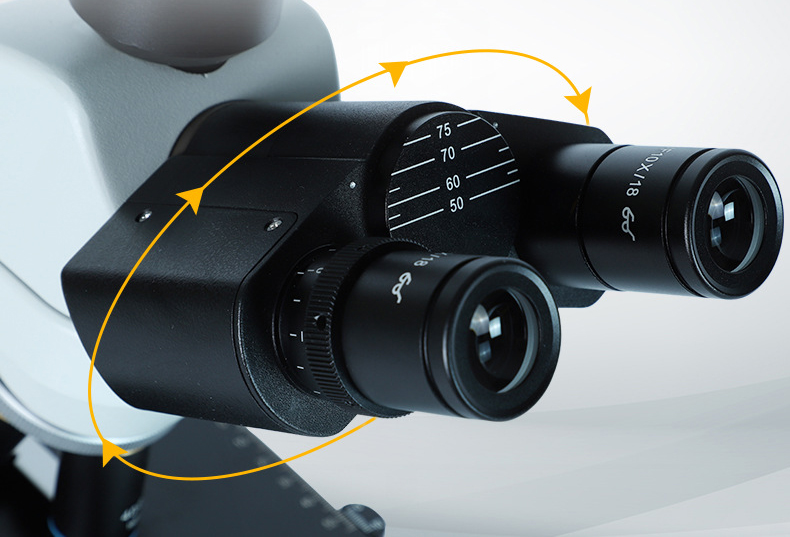

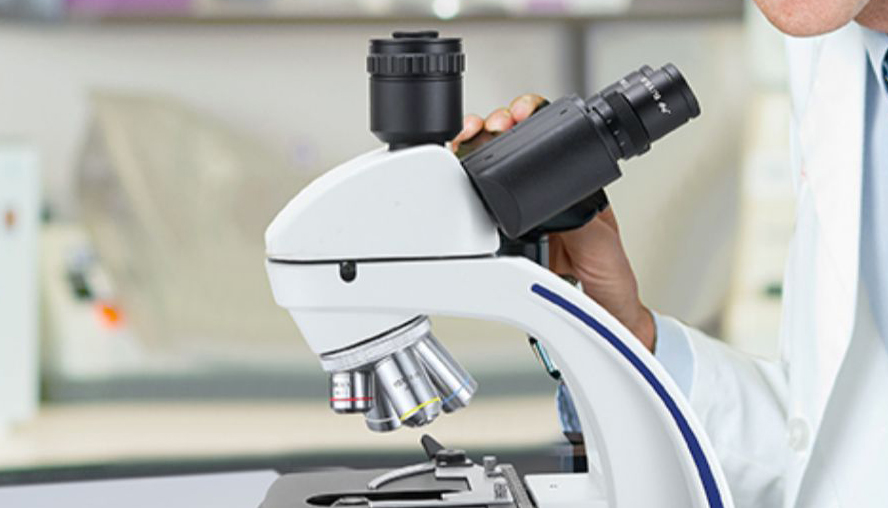

5. Binocular and trinocular heads are available

The BM36U adopt Siedentopf-type head that provides a constant and accurate tube length. Both binocular and trinocular are available. A digital camera can be attached to the trinocular tube.



6. Observation with comfort

The tube is inclined at 30°, allowing comfortable viewing in a natural posture. By simply swinging the front part of the tube, the user can change the eye-point height. With a pupillary distance is 62.5mm, for example, it can be moved 34mm upward or downwards. In addition, the interpupillary distance adjustment from 50~75mm and the diopter adjustment ring are designed to accommodate a wide range of operators.



7. Smooth rotation quadruple nosepiece

The high-quality revolving nosepiece has a superior internal detent click-stop mechanism. A knurled elastic covered grip around the base of the nosepiece makes the nosepiece easy to rotate and eliminates the need to touch the objectives.

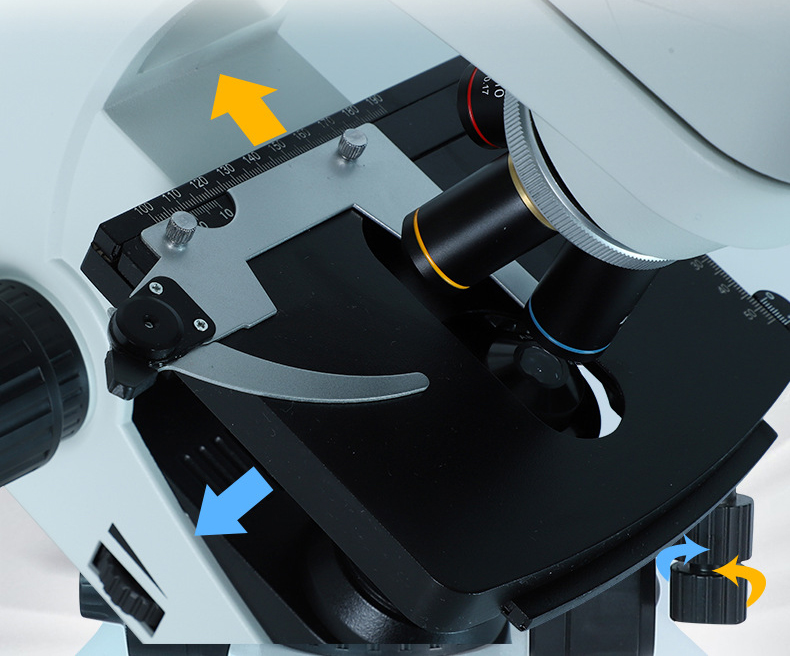

8. Double-plate mechanical stage

The built-in stage has a double-plate mechanism with an XY dual travel control. The large, flat stage surface facilitates easy specimen handling. Because the height of the X-axis guide rail is level with the stage surface and the stage surface is flat and smooth glass slides move easily over the surface. A spring-loaded slide holder is included.

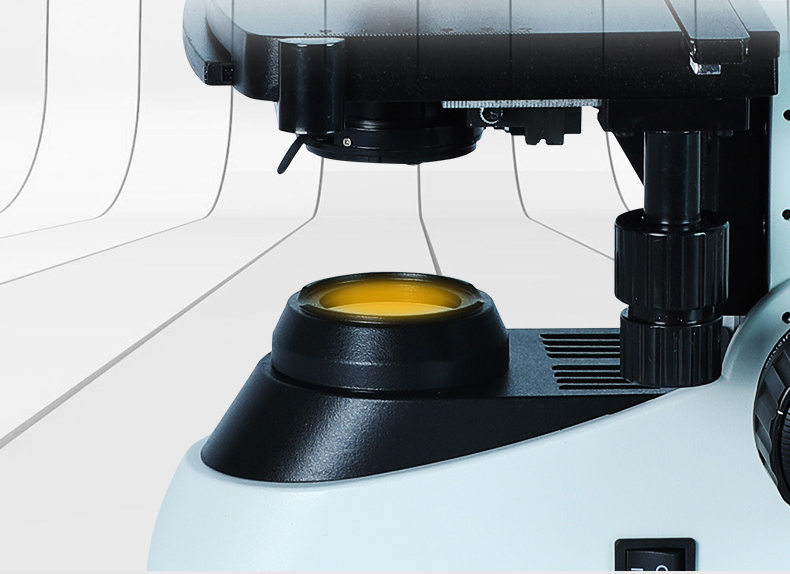

9. Condenser

The N 1.25 Abbe condenser comes with an aperture diaphragm to make operations quick and easy, ensuring perfect specimen images. The condenser position can also be adjusted.

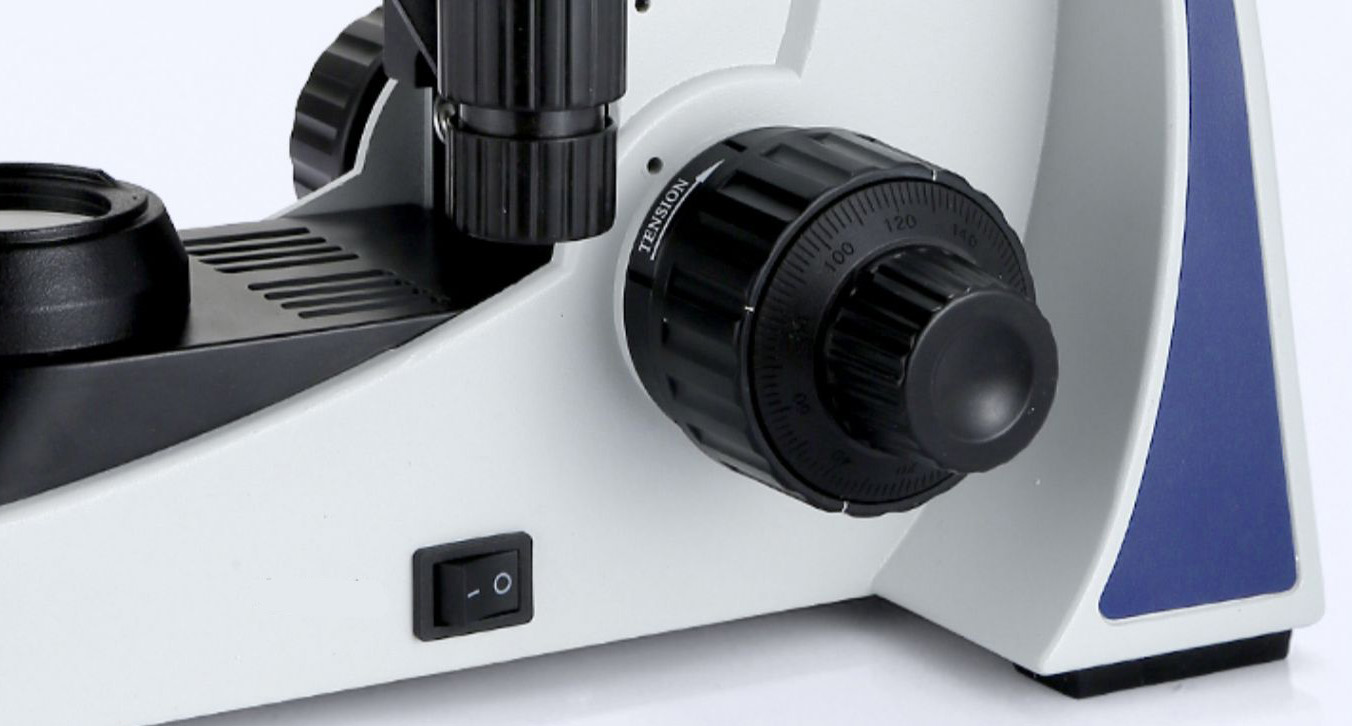

10. Coaxial coarse/fine focus knob

The coaxial coarse/fine focus knob is comfortably located at desk-height level. The focus knob and the stage handle are ergonomically designed and are located equidistant from the operator, meaning they can both be easily adjusted from a normal sitting position. In addition, the torque of the coarse focus knob can be adjusted.



11. High-intensity LED Illumination

ICOE microscope’s LED illumination provides enough brightness for bright-field, phase contrast observation. With a fly-eye lens in the illuminator, uniform brightness is provided in the entire field of view. Using environmentally friendly long-life LEDs, LED illumination boasts a long lifetime of 60,000 hours and reduces the need for frequent lamp replacement. A halogen illumination model is also available.



12. Various observations

1). Phase contrast observation

2). Dark field observation

3). Simple polarization observation

4). Fluorescence observation



Specifications

Model

BM36UB

BM36UT BM36UIB

BM36UIT

Optical system Infinite color corrected optical system

●

● ●

●

Viewing head 30° inclined binocular head, interpupillary distance: 50-75mm, ±5 diopter adjustable

●

●

30° inclined trinocular head, splitting ratio R:T=80:20, interpupillary distance: 50-75mm, ±5 diopter adjustable

●

●

Eyepiece Wide field plan eyepiece PL10X/20mm

●●

●● ●●

●●

Eyepiece 15x

○

○ ○

○

Eyepiece 20x

○

○ ○

○

Reticle

○

○ ○

○

Pointer

○

○ ○

○

Objective



Infinite achromatic objective 4X

●

●

Infinite achromatic objective 10X

●

●

Infinite achromatic objective 40X, spring

●

●

Infinite achromatic objective 100X, spring, oil

●

●

Infinite plan achromatic objective 4X

●

●

Infinite plan achromatic objective 10X

●

●

Infintie plan achromatic objective 40X, spring

●

●

Infinite plan achromatic objective 100X, spring, oil

●

●

Nosepiece Quadruple nosepiece

●

● ●

●

Stage Stage 155mmX142mm double layers mechanical stage, moving range: 76mmX50mm, precision: 0.1mm.

●

● ●

●

Focusing Coaxial coarse and fine adjustment, with coarse adjustment stop and tightness adjustment, range: 25mm, precision: 0.002mm.

●

● ●

●

Illumination 3W LED, center presetting, intensity adjustable, external wide voltage AC adapter, 100V-240V_AC50/60Hz input

●

● ●

●

Condenser N.A.1.25 Abbe condenser with iris diaphragm

●

● ●

●

Others Filters for transmitted light: blue/yellow/green

●

● ●

●

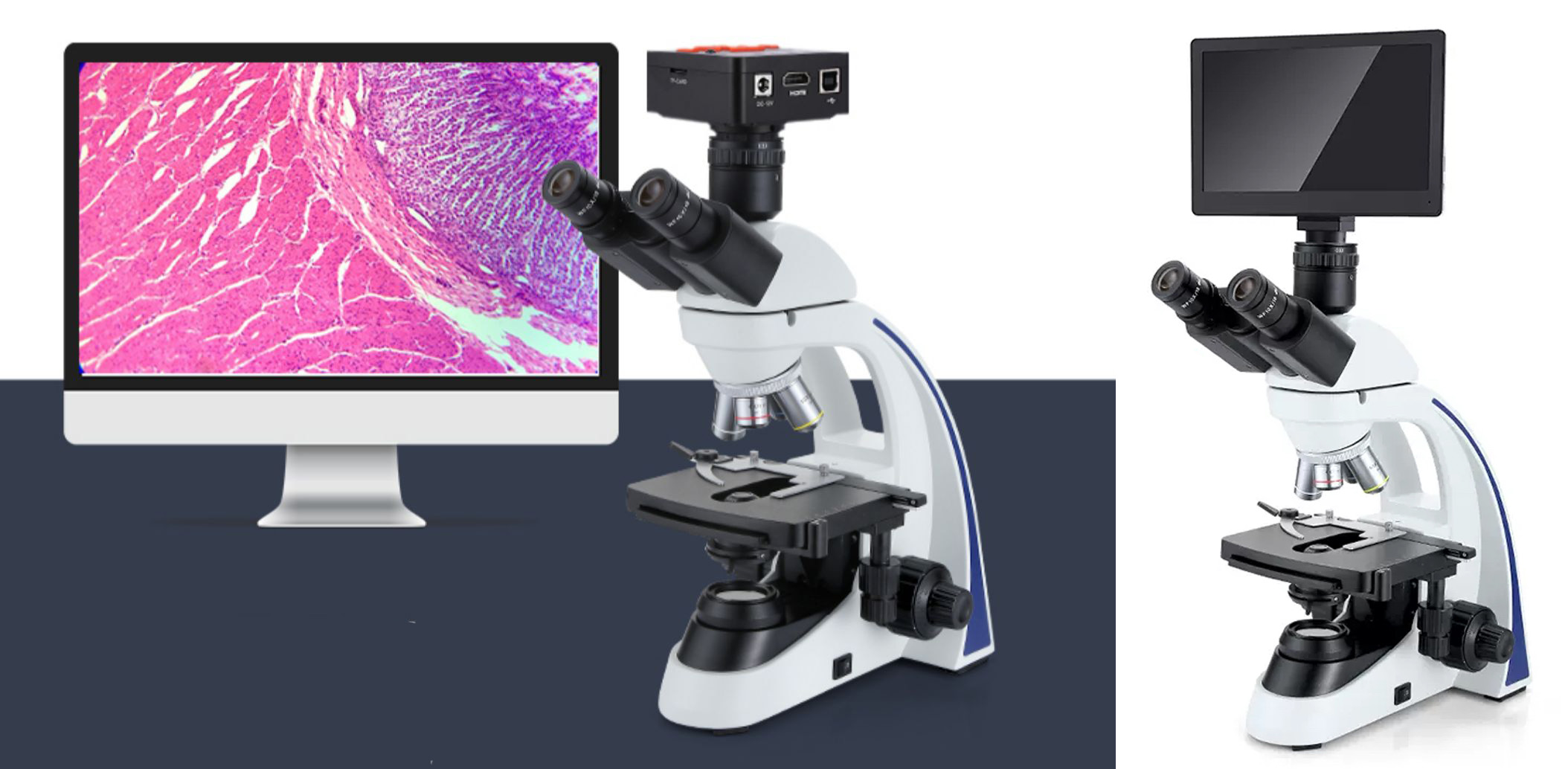

Camera accessories: 0.35X/0.5X/1X focusing C-mount

○

○ ○

○

Fluorescence attachment LED fluorescence attachment (B, G, U, V, R fluorescent filters are available)

○

○ ○

○

Phase contrast Phase Contrast kit set

○

○ ○ ○



Optional Accessories

Cat. Number Descriptions
M12BM36001 Monocular head
M12BM36002 Binocular head
M12BM36003 Trinocular head
M12BM36004 WF10x eyepiece
M12BM36005 WF10x micrometric eyepiece
M12BM36006 WF10x eyepiece, with pointer
M12BM36007 WF15x eyepiece
M12BM36008 WF20x eyepiece
M12BM36009 Quadruple nosepiece
M12BM36010 Quintuple nosepiece
M12BM36011 Infinite achromatic objective 4x/0.10
M12BM36012 Infinite achromatic objective 10x/0.25
M12BM36013 Infinite achromatic objective 40x/0.65, spring loaded
M12BM36014 Infinite achromatic objective 100x/1.25, spring loaded, oil
M12BM36015 Infinite plan achromatic objective 4x/0.10
M12BM36016 Infinite plan achromatic objective 10x/0.25
M12BM36017 Infinite plan achromatic objective 40x/0.65, spring loaded
M12BM36018 Infinite plan achromatic objective 100x/1.25, spring loaded, oil
M12BM36019 NA 1.25 Abbe Condenser with Iris Diaphragm
M12BM36020 Simple Polarising set
M12BM36021 0.35x C-Mount projection lens
M12BM36022 0.5x C-Mount projection lens
M12BM36023 0.75x C-Mount projection lens
M12BM36024 Recharagable device

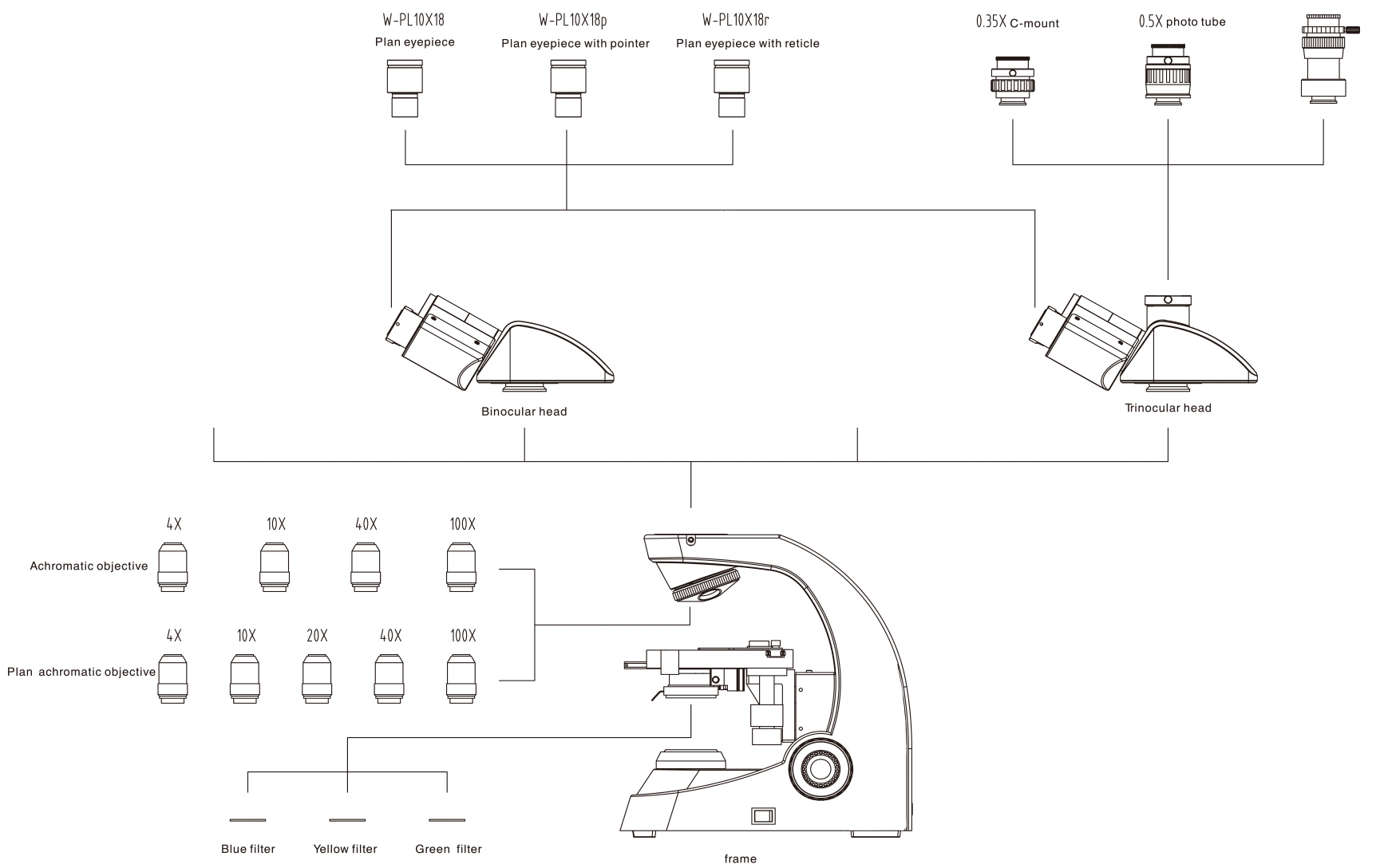

Product System Digram



Product Dimensions



Digital Models
