BM25U Series Infinite Biological Microscope

Home Microscopy Biological Microscopes Infinity Biological Microscopes BM25U Series Infinite Biological Microscope

BM25U Series Infinite Biological Microscope

Infinity Biological Microscopes2018-11-23n50

Description

Descriptions

BM25U series infinite microscopes are upgraded versions of BM25 series. BM25U series are designed as economic infinite microscopes. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural, laboratory and clinical daliy-use.



Product Details

• Bright Field Observation

  • New infinite EPLAN/infinite PLAN achromatic objective supply the sharp image after adjusting Iris diaphragm. You can get high resolution and contrast ratio image at low or high magnification. 1W Single LED illuminator supplies bright background.







• High-powered single LED cold light illuminator

  • It maintains constant color temperature and closes to sun light. It can apply bright white back-ground. The illuminator supplies stable brightness and temperature difference never occurred even long time worked. Comparing with halogen lamp, LED has lower power dissipation.Brightness is adjustable freely by the rotatable key at lower left side.



• Eyepiece Tube

  • Seidentopf Binocular Head, Inclined at 30°, Interpupillary distance is adjustable from 55mm to 75mm. The right eyepiece tube is ±5 diopter adjustable.







• Stage and Focusing

  • Double Layers Mechanical Stage 132X142mm/75x40mm
  • Coaxial Coarse and Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 32.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm

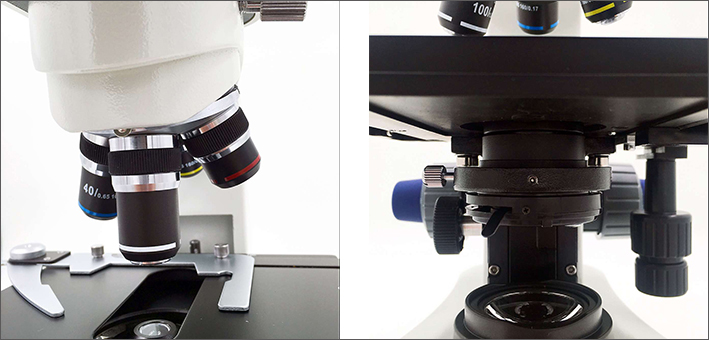

• Objectives & Condenser

  • With quadruple nosepiece, it is equipped with Infinite Semi-Plan/Plan Achromatic Objectives:4X,10X,40X(S),100X(S, Oil), NA 1.25 Abbe Condenser with Iris Diaphragm is able to acquire light brighter.



Specifications

Model BM25UB BM25UIB
Viewing head Seidentopf Binocular Head, Inclined at 30°, Interpupillary 55-75mm, 360° Rotation
Nosepiece Backward Quadruple Nosepiece
Eyepiece Wide Field Eyepiece WF10X/18
Objectives Infinite semi-plan achromatic objective:

—

4x/0.10

10x/0.25

40x/0.65, spring loaded

100x/1.25, spring loaded, oil

Infinite plan achromatic objective

—

4x/0.10

10x/0.25

40x/0.65, spring loaded

100x/1.25, spring loaded, oil

Stage Double Layers Mechanical Stage 132x142mm/75x40mm
Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 32.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm
Condenser NA 1.25 Abbe Condenser with Iris Diaphragm
Illumination LED illumination for long life, brightness adjustable
Supplied with Dust cover, spare fuse, blue & green filters
Power 100-240V, 50/60Hz


Options

  • • Viewing head: Monocular head
  • • Trinocular head
  • • Digital head
  • • Eyepiece P16×, Eyepiece WF10× with pointer;
  • • Infinite semi-plan achromatic objective 20x, 60x; Infinite plan achromatic objective 20x, 60x
  • • Halogen Lamp 6V/20W, Brightness Adjustable
  • • Dark-field Attachment: NA0.7-0.9 Dark Field Condenser (Dry); NA1.25-1.36 Dark Field Condenser (Oil)
  • • Phase Contrast Kit: Single Phase Contrast Kit; Sliding Phase Contrast Kit
  • • Simple Polarization Set: Polarizer & Analyzer
  • • Epi-fluorescent Attachment

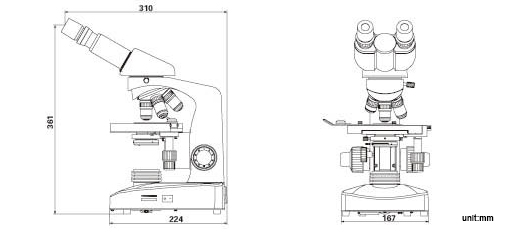

Dimensions
