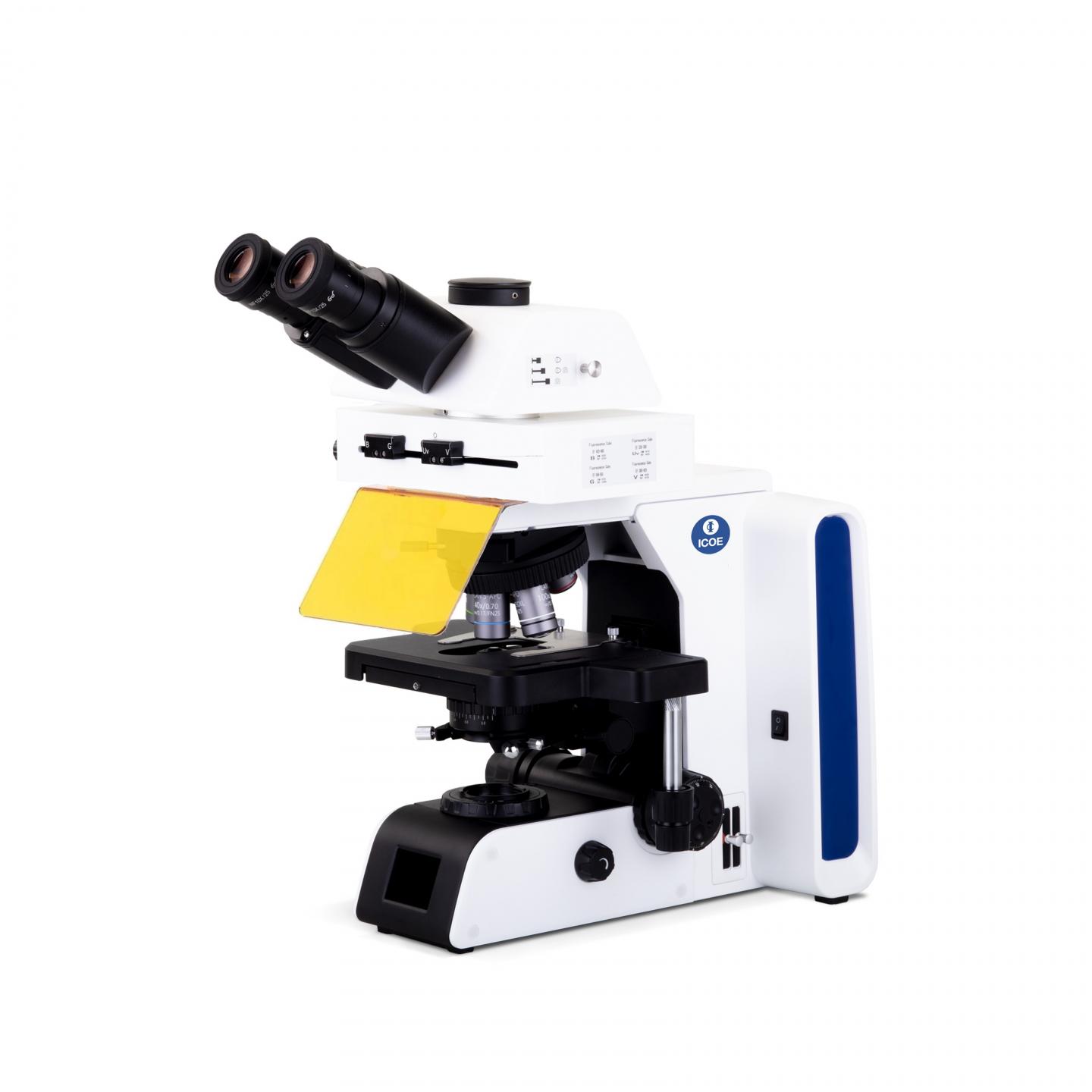

| Model | BERT-12FK Infinite Fluorescent Microscope with Infinite Plan Semi-Apochromatic Objectives, with 4 Fluorescent Excitations for BF, FL & Simple POL Observations |
| Optical system: | Infinite corrected optical system |
| Microscope body: | Microscope frame for transmitted & reflected microscopy |
| Viewing head: | Seidentopf trinoculear head, inclined at 30°, interpupilary distance 48-76mm, with trinocular port, light distribution of eyepiece/trinocular: 0/100, 80/20, 100/0 |
| Eyepiece: | A pair of super widefield eyepiece 10x/25mm |
| Nosepiece: | Backward sextuple coded nosepiece |
| Objectives: | Infinite plan semi-apochromatic objective 4x /0.10, WD: 16.20mm |
| Infinite plan semi-apochromatic objective 10x /0.30, WD: 9.60mm | |
| Infinite plan semi-apochromatic objective 20x /0.45, WD: 2.80mm | |
| Infinite plan semi-apochromatic objective 40x /0.70, WD: 0.55mm | |
| Infinite plan semi-apochromatic objective 100x /1.25, WD: 0.21mm | |
| Stage: | Rackless double-layer mechnical stage with stage size 280x160mm, XY movement range 75x55mm, slide holder allow observation of 2 slides simultaneously, with torque adjustment mechanism |
| Focus: | Coaxial focus knob with height adjustment, coaxial focus knob with X/Y torque adjustment stage mounting position variable, high sensitivity fine focusing knob, minimum adjustment gradations: 1 μm |
| Condenser: | Swing out condenser N.A.0.9/0.13 |
| Polarization: | Polarizer & analyzer |
| Illumination: | Built-in Koehler illumination, 10W high luminescent white LED illminator, with light intensity management (LIM) system, color temperature adjustable 3500K-6000K |
| Epi-fluorescence: | FK LED Epi-fluorescent Attachment, supplied with LED Epi-fluorescent illumination device including 4 channels, and a UV protection shield; Instant on-off, no need waiting of pre-heating or cooling. remember light intensity of each color light source; Light source synchronous switching with filter groups. Equipped with 4 fluorescent filter sets for B, G, UV & V excitations FL-B (Blue): EX450/60nm, DM505nm, EM520nmLP FL-G (Green): EX540/30nm, DM565nm, EM590nmLP FL-UV (Ultraviolet): EX405/30nm, DM430nm, EM470nmLP FL-V (Violet): EX405/30nm, DM430nm, EM470nmLP |
| Front LCD screen: | The LCD screen on the front of the microscope displays the use status of the microscope, including magnification, light intensity, curret brightness memory, working time setting, color temperature adjustable 3500K-6000K etc. |
| LIM system: | The illumination brightness can each objectives can be pre-set, when using each objectives. When different objectives are switched between each other, the light intensity is automatically adjusted to reduce visual fatigue & improve work efficiency. |
| ECO function: | The ECO function is able to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position for some time |
| Supplied with: | Dust cover, filter, manual, immersion oil |
