High quality images, Intuition in operation, Comfort in use
The latest BE580 series microscope is designed for professional laboratory microscopic observation. On the one hand it has upgraded optical system , NIS infinity optics system provides excellent extendibility for this microscope, high numerical aperture (NA) plan achromatic objective and various types of optical components which have adopted multilayer coating technology could ensure the image quality. On the other hand, improving comfort and operation convenience continuously, and the LCD screen in front of the microscope displays real-time
status of microscope during working, universal condenser, stopper that can be used to set the upper limit of the stage height etc., these structures ensure that beginners can use it smoothly. Ergonomic design helps you to stay focused for longer by reducing the strain on your body, which is the best choice for scientific research experimenters and medical examiners for microscopic observation.

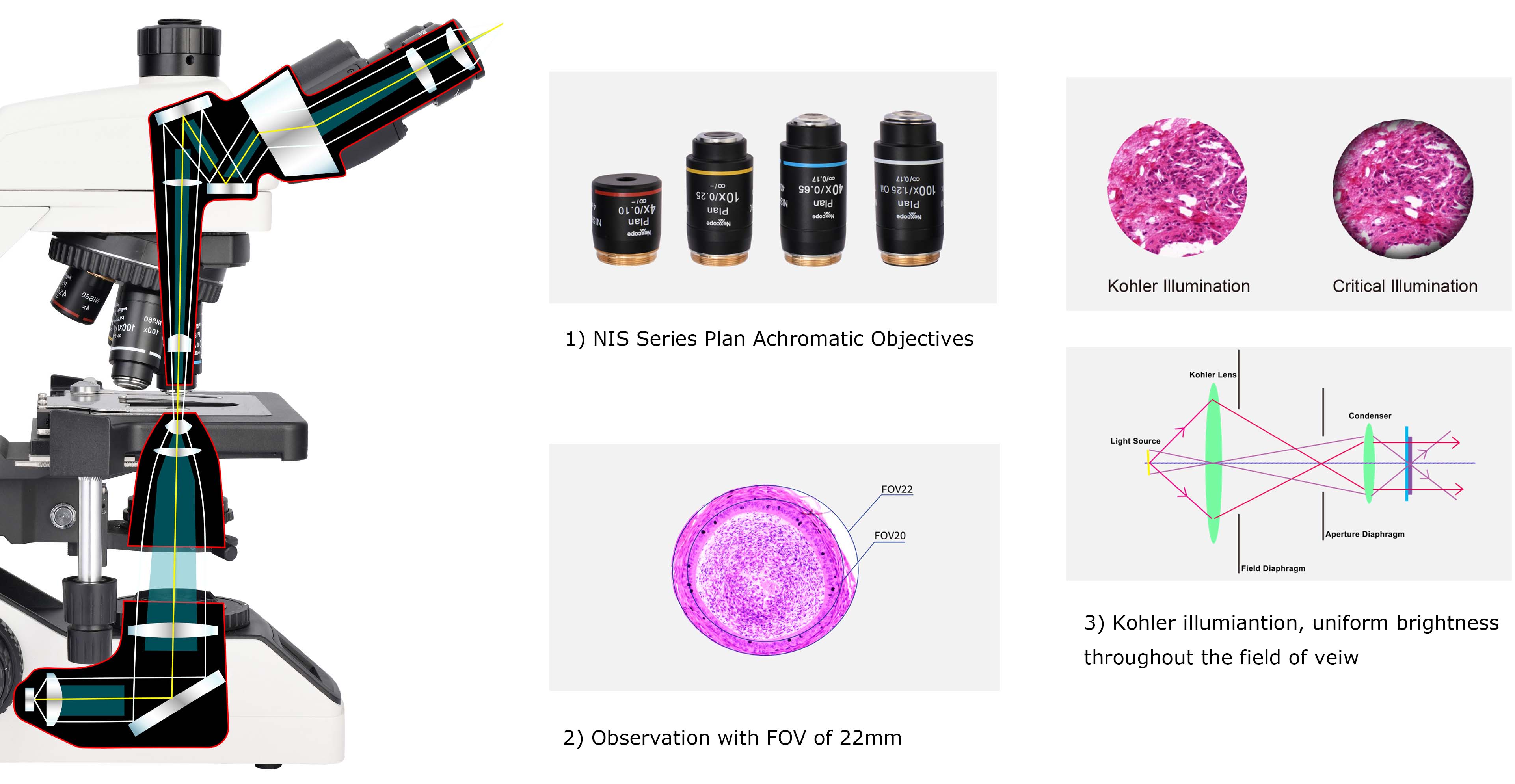

Superior Optical Design Brings Up High Quality Images
1) NIS series plan achromatic objectives
BE580 employs NIS series plan achromatic objectives, which feature flat, sharp images up to the periphery of the field of view. High numerical aperture(NA) and long working distances, with high resolution, and a wide variety of usage are available.Restore the real colors and realize accurate observation of samples.
2) Observation with FOV of 22mm
BE580 can enhance efficiency of sample observation when equipped with FOV22 tubes and lenses.
3) Kohler illumination, uniform brightness throughout the field of view
Adding a Kohler mirror in front of light source to provide bright and uniform field of view. Matching NIS infinity optical system and high-resolution objective, provides you perfect microscopic imaging.
User-friendly, even beginners can operate stress-free

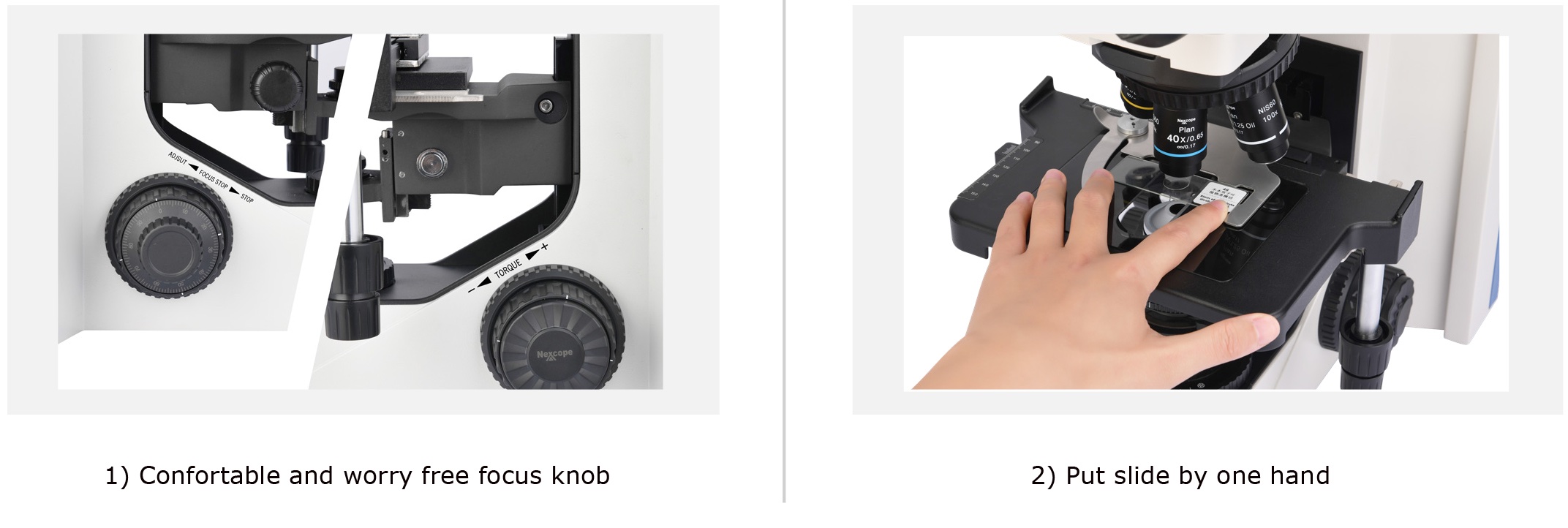

1) Comfortable and worry free focus knob
Low position focus knob design, different areas on the specimen slide can be easily explored while resting your hands on the table, with adjustable torque could improve comfort. BE580 is equipped with a stopper that can be used to set the upper limit of the stage height, the stage stops at the set height even when the focus knob is turned, thereby eliminating the risk of over-focusing and breaking the slides or damaging the objectives.
2) Put Slide by one hand
Slides can be quickly slid in and out with one hand. The universal sample holder is suitable for a variety of slide types, such as Hemocytometer.

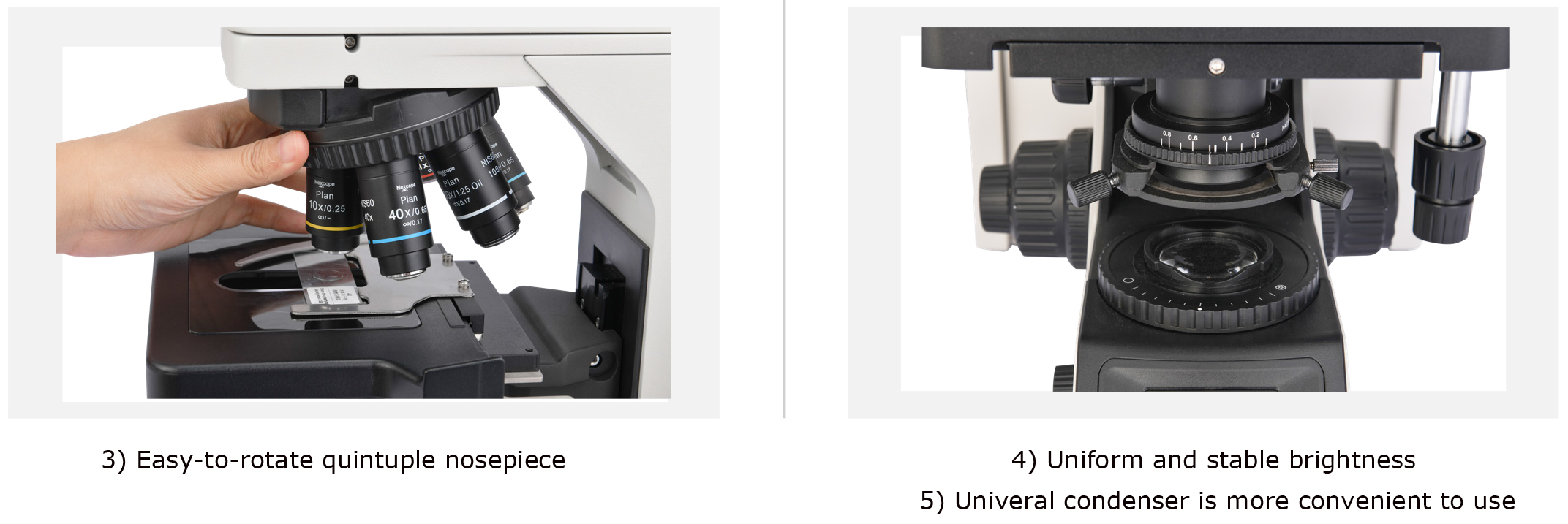

3) Easy-to-rotate quintuple nosepiece
High-precision machining ensures smoothness and durability in use. The nosepiece features an easy grip for smooth rotation, and accommodates up to five objectives, users can also choose 2X objective with large field of view and phase contrast objectives.
4) Uniform and stable brightness
The LED light source produces daylight lighting conditions, so that the sample presents a natural color. LED design life span is 50,000 hours, which not only reduces maintenance costs, but also keeps the brightness stable during use.
5) Universal condenser is more convenient to use
Users can switch from 4X to 100X without moving the top lens. Contrast adjustment is performed by adjusting the iris diaphragm.
Intuitive operation and easy-to-use

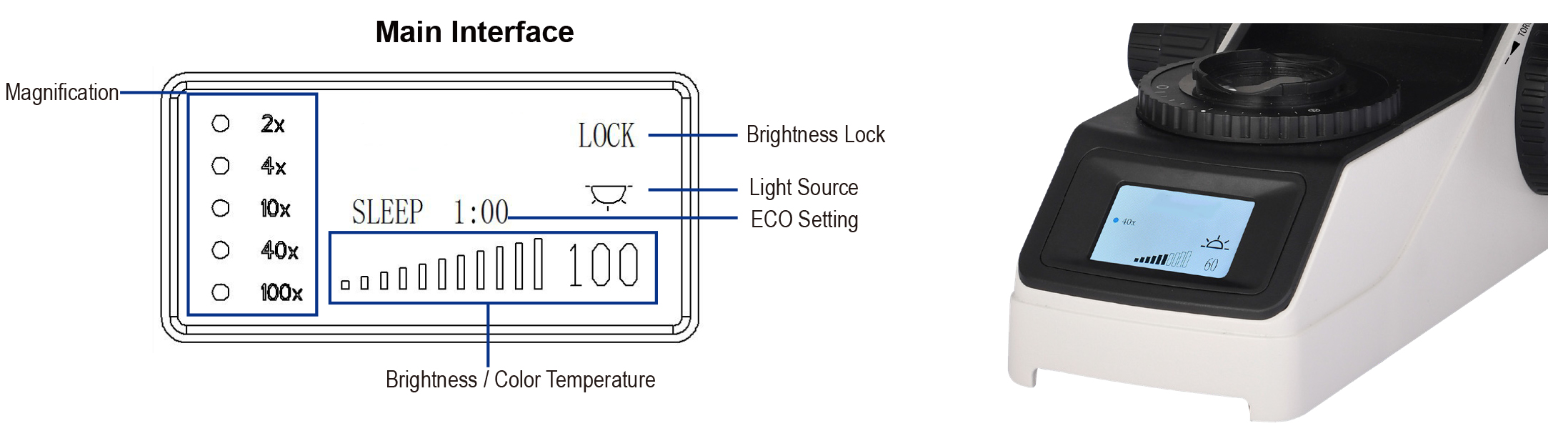

Using status including magnification, brightness, color temperature, stand by status are shown on the LCD which is in front of microscope
Longtime microscope observation requires frequent magnification switching, brightness adjustment, color temperature adjustment, etc. BE580 simplifies these repetitive mechanical operations and reflected status on the LCD to improve work efficiency and provide comfortable user experience.
1) Maintains comfortable brightness when switching magnifications
BE580 features intelligent light intensity management which automatically remembers and sets the light intensity level for objective, with this function, users can increase comfort and save time when the routine requires frequent magnification changes.
2) Color temperature adjustable
The LED light source produces daylight lighting conditions, so that the sample presents a natural color. Since the color temperature can be changed according to observation demand, even if brightness is changed, the brightness and color temperature could keep users feel comfortable.

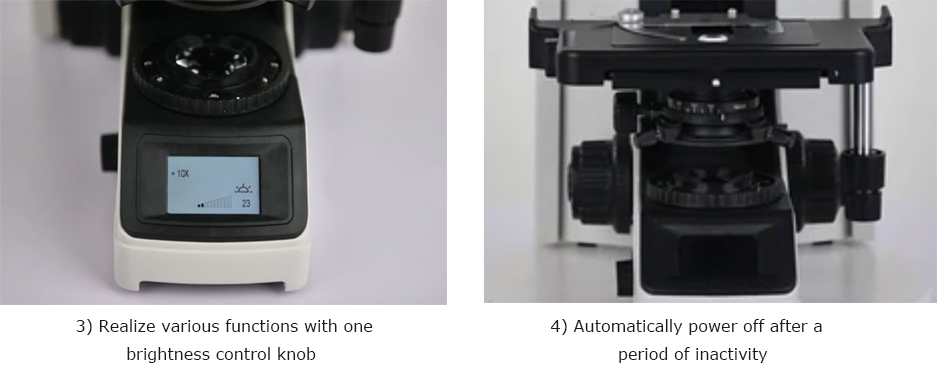

3) Realize various functions with one brightness control knob
a). Single click: enter standby status
b). Double click: light intensity lock or unlock
c). Rotate: adjust brightness
d). Press and rotate up direction: adjust brightness
e). Press and rotate down direction: adjust color temperature
f). Hold the press for 3s: setting ECO
4) Automatically power off after a period of inactivity
BE580 is equipped with an ECO mode which automatically turns off the illumination after a certain period of inactivity, the length of the inactivity period is adjustable, with ECO mode, it helps you save power and extend microscope life

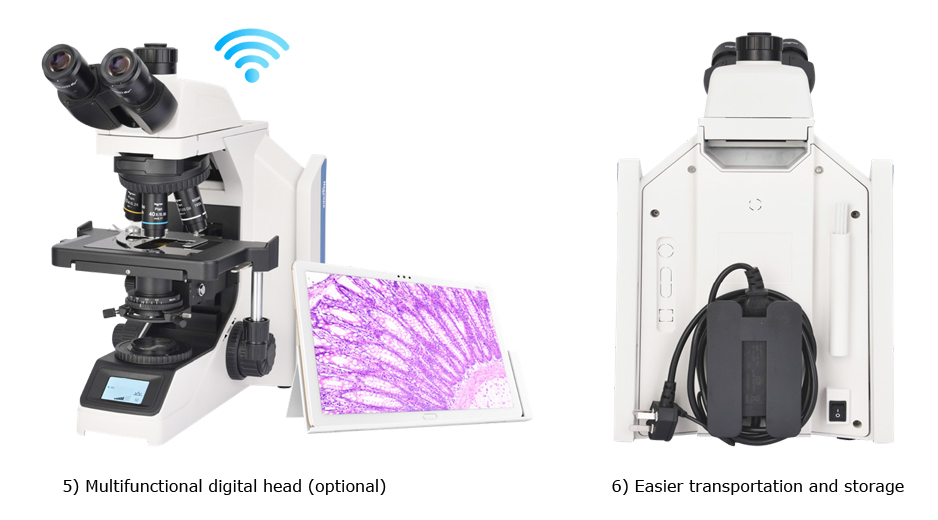

5) Multifunctional digital head (optional)
Built-in camera device, supporting Android, iOS, Windows OS, both wired and WIFI are available. images can be shared in real time remotely via network.
6) Easier transportation and storage
BE580 equipped with special handle, which is light and good in stability and stable in structure. Its back board is designed with a hub device, which effectively accommodates excessive long power cords and improves cleanliness of the laboratory. At the same time, it also reduces trip accidents caused by excessive long power cords during transportation.

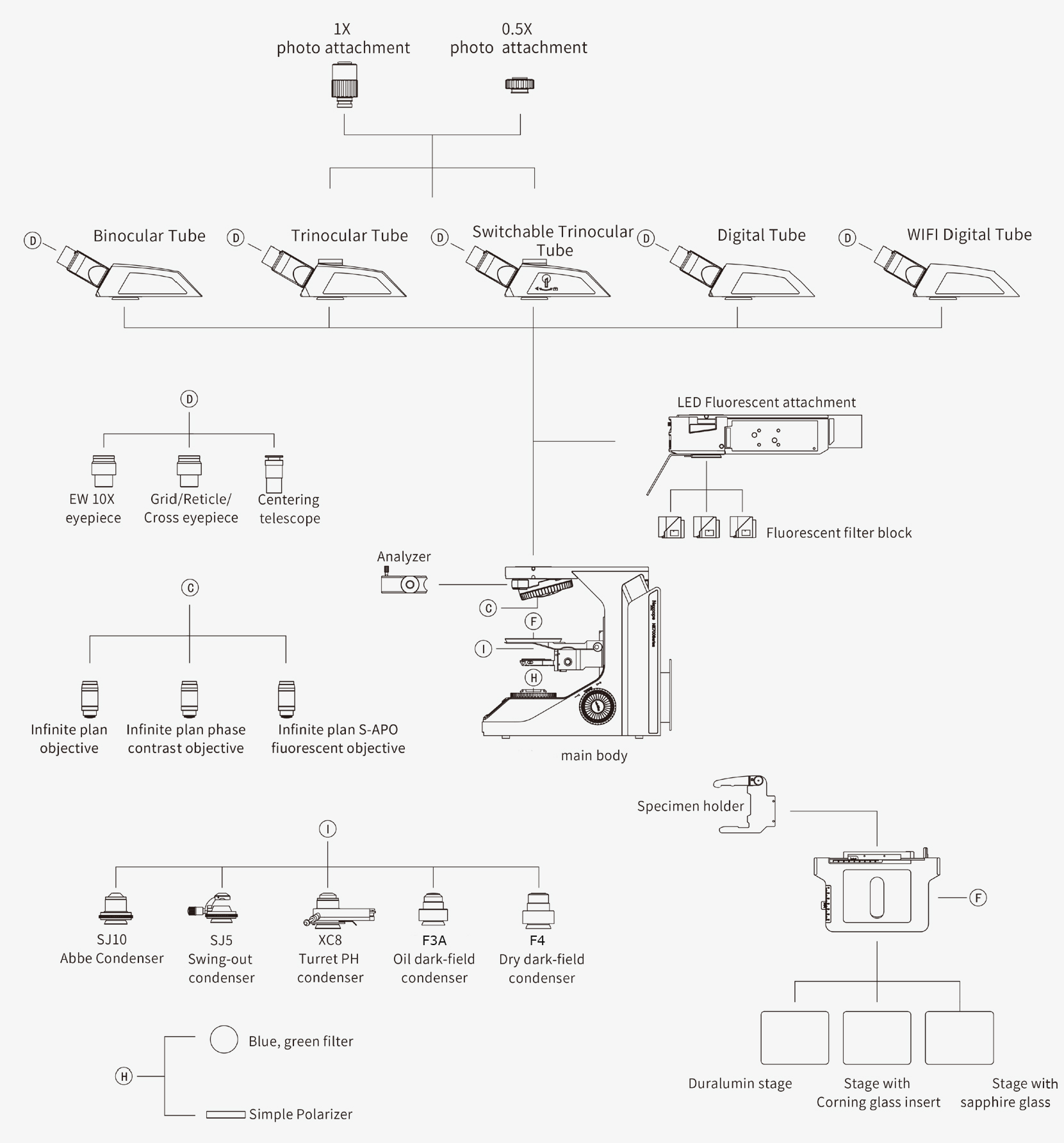

Specifications & Models
Infinity Optical System
Seidentopf Binocular Viewing Head, Inclined at 30°, Interpupillary 47-78mm
Seidentopf Trinocular Viewing Head, Inclined at 30°, Interpupillary 47-78mm, Splitting ratio of Eyepiece/Camera: 50: 50 (or you can choose 100:0/0:100 to instead of 50:50 before product leaving factory)
Backward Quintuple Coding Nosepiece, which remembers the illumination brightness when using each objectives. When different objectives are switched between each other, the light intensity is automatically adjusted to reduce visual fatigue and improve work efficiency.
Wide field eyepiece WF10x/22mm, diopter adjustment +/-5, tube diamter: Φ30mm
Infinite Plan Achromatic Objective 4x, NA 0.10, WD: 28mm
Infinite Plan Achromatic Objective 10x, NA 0.25, WD: 10mm
Infinite Plan Achromatic Objective 40x, NA 0.65, spring loaded, WD: 0.7mm
Infinite Plan Achromatic Objective 100x, NA 1.25, spring loaded, oil, WD: 0.18mm
Synchronous belt platform stage 235mmx150mm, XY Moving Range 78mmx54mm, Metal clips for glass slides, hard oxidized platform surface, table surface can be replaced
Low-hand position coarse and fine coaxial focusing mechanism, Coarse Stroke 37.7mm per Rotation, Fine division 0.001mm, Fine Stroke 0.2mm per Rotation, Focal Disatnce 28mm, With adjusting elastic device and upper limit, with platform up and down adjustment mechanism, the height of the stage bracket group is adjustable
Abbe 0.9/1.25 condenser with adjustable height, Full-Köhler type for bright field, dark field and Ph2 phase contrast
3W LED module or 6W/30W halogen module lighting, color tempeature and brightnss adjustable. Matrix lens for uniform field illumination. The brightness of the entire field of view is uniform. The color temperature can be adjusted to the lighting effects as LED illumination or halogen illumination according to the user needs. Transmitted and fluorescent lighting button switch; identify and display the band on the LCD screen.
The LCD screen on the front of the microscope displays the use status of the microscope, including magnification, light intensity, standby status, lock etc.
The ECO function is able to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position for some time (the time can be pre-set as user need)
Dust cover, spare fuse, green filter, manual, immersion oil
Seidentopf trinoculear head, inclined at 30°, interpupilary distance 47-78mm
Seidentopf binocular head, inclined at 30°, interpupilary distance 47-78mm, beam split ratio for eyepiece/trinocular port=50:50
Seidentopf binocular head, inclined at 30°, interpupilary distance 47-78mm, beam split ratio for eyepiece/trinocular port=100:0/0:100
Ergo. titling trinocular head, adjustable from 0° to 35°, interpupilary distance 47-78mm, beam split ratio for eyepiece/trinocular port=100:0/80:20/0:100
Digital viewing head, inclined at 30°, interpupilary distance 47-78mm, 5MP
Wireless digital viewing head, inclined at 30°, interpupilary distance 47-78mm, 5MP
Super wide field WF10x/22mm eyepiece, with diopter adjustment -5~+5, Ø30mm tube
Super wide field WF10x/22 mm eyepiece with cross-hair, Ø30mm tube
Wide field WF 12.5x/17.5mm eyepiece, Ø30mm tube
Wide field WF 15x/16mm eyepiece, Ø30mm tube
Wide field WF 20x/12mm eyepiece, Ø30mm tube
Reticle for eyepiece
Eyecup for eyepiece
Micrometer for stage
Quintuple coding reversed nosepiece
Sextuple coding reversed nosepiece
Plan achromatic infinity corrected objective, NIS60 Plan 2x/0.06
Plan achromatic infinity corrected objective, NIS60 Plan 4x/0.10
Plan achromatic infinity corrected objective, NIS60 Plan 10x/0.25
Plan achromatic infinity corrected objective, NIS60 Plan 20x/0.40
Plan achromatic infinity corrected objective, NIS60 Plan S40x/0.65
Plan achromatic infinity corrected objective, NIS60 Plan S60x/0.80
Plan achromatic infinity corrected objective, NIS60 Plan S100x/1.25 oil immersion
Plan achromatic infinity corrected objective 100x/1.25 oil immersion, with built-in iris diaphragm for darkfield applications, working distance 0.2 mm
Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 4x/0.13, working distance 16.5 mm
Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 10x/0.30, working distance 8.1 mm
Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 20x/0.50, working distance 2.1 mm
Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 40x/0.75, working distance 0.7 mm
Plan Semi-Apochromatic infinity corrected objective, PlanF S-Apo 100x/1.30, oil immersion, W.D.: 0.15 mm
Plan Phase infinity corrected objective, Plan 10x/0.25 Ph, working distance 10.2 mm
Plan Phase infinity corrected objective, Plan 20x/0.40 Ph, working distance 12 mm
Plan Phase infinity corrected objective, Plan 40x/0.65 Ph, working distance 0.7 mm
Plan Phase infinity corrected objective, Plan 100x/1.25 Ph, oil immersion working distance 0.2 mm
Abbe condenser 0.9, with iris diaphragm
Abbe condenser 0.9/0.25 with swing-out front lens
Zernike phase contrast set, with Plan Phase 10/20/S40/S100x objectives, phase contrast condenser, telescope and green filter
Zernike Phase contrast Abbe condenser with 4 phase annuli
Telescope for phase contrast alignment, Ø 30 mm tube
NA0.7-0.9 Dark field condenser (Dry)
NA1.3-1.26 Dark field condenser (Oil)
Simple polarization kit, consisting of reflected polarizer in slider and reflected analyzer
Rackless stage 235X150mm,moving range 78mmX54mm, with insert hard oxidized stage
Rackless stage 235X150mm,moving range 78mmX54mm, with insert bytempered glass stage
Rackless stage 235X150mm,moving range 78mmX54mm, with insert sapphire stage
Hard oxidized inserted for stage
Bytempered glass inserted for stage
Sapphire glass inserted for stage
LED illuminator replacement unit
LED Epi-Fluorescent Attachment: including 3 wave-4-position fluorescent turrent with iris diaphragm; fluorescent filter block B & G excitation filter block included; LED illuminator light source; protection barrier to resist the ultraviolet light; fluorescent oil.
Epi-Fluorescent Attachment “FL-800”, equipped with a rotating block which contain max. 6 filter cubes. Supplied with 100 W HBO mercury vapor light source for spectrum broad powerful light NFP-1, 220V/110V interchangeable, with digital display and timer; Protection barrier to resist the ultraviolet light Standard supplied with standard fluorescence filters sets for Blue excitation and Green excitation, Fluorescence Free Oil
Empty filter cube for fluorescence attachment
Filter set for blue excitation, EX: 460-490 nm BP, DM: 500 nm, EM: 520 nm LP (needs empty filter cube)
Filter set for green excitation, EX: 510-550 nm BP, DM: 570 nm, EM: 590 nm LP (needs empty filter cube)
Filter set for violet excitation, EX: 400-410 nm BP, DM: 455 nm, EM: 460 nm LP (needs empty filter cube)
Filter set for ultra-violet excitation, EX: 330-385 nm BP, DM: 400 nm, EM: 420 nm LP (needs empty filter cube)
Fitler set for red excitation: BP620-650, Dichroic Mirror: DM660, Barrier: BA670-750 (needs empty filter cube)
LED illuminator lamp (replacement) for fluorescent illumination
C-mount with 1x for C-mount camera
C-mount with high resolution relay 0.50x objective for 1/2″ C-mount camera
C-mount with high resolution relay 0.35x objective for 1/3″ C-mount camera
C-mount with high resolution relay 0.63x objective for 2/3″ C-mount camera
Universal Ø 23.2 mm tube adapter with built-in 2x lens for SLR photo camera with APS-C sensor. T2 ring adapter is needed
T2 ring for Nikon D SLR digital camera
T2 ring for Canon EOS SLR digital camera
Digital Camera (Please refer to our digital camera brochure)
