Description

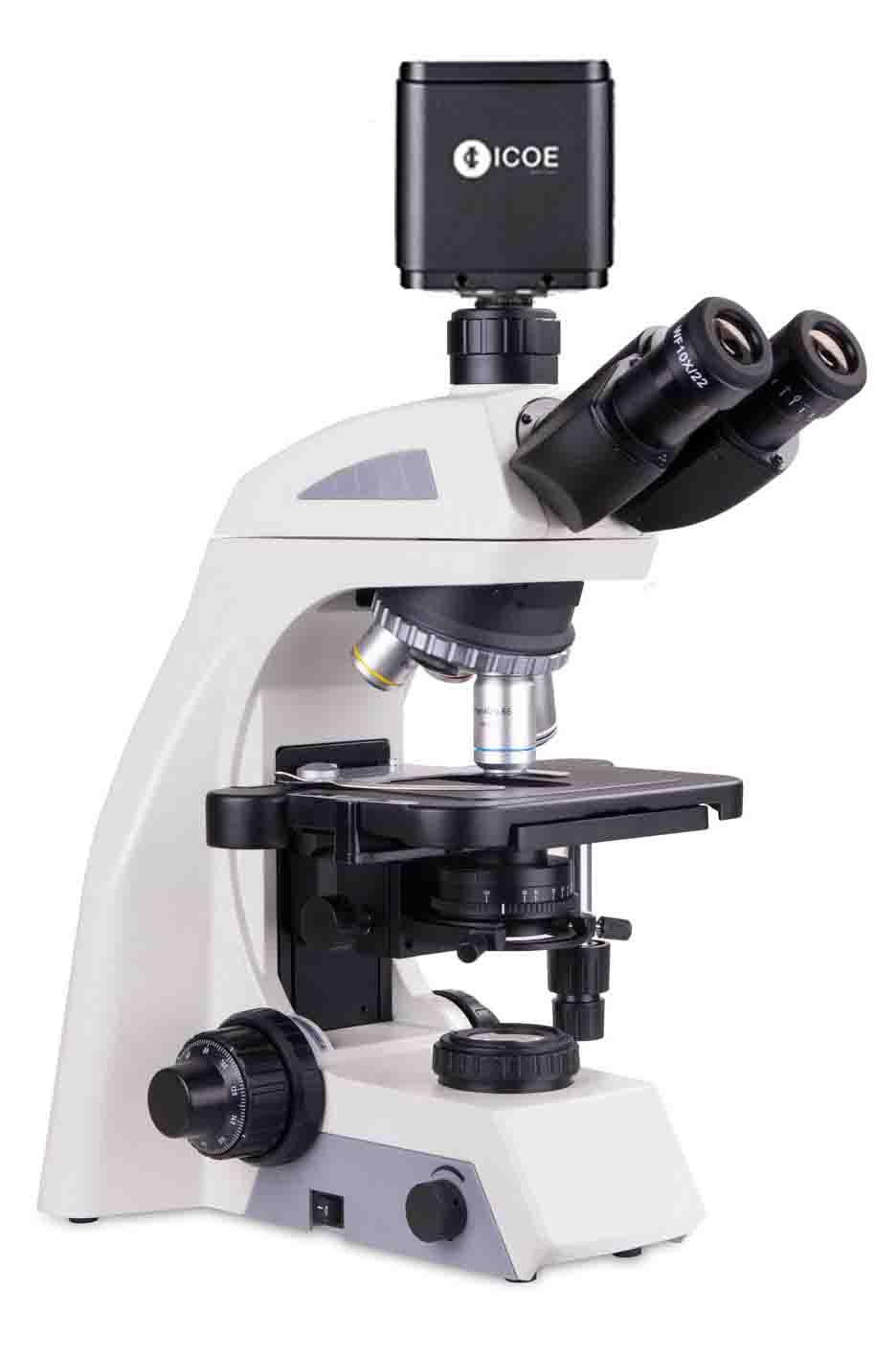

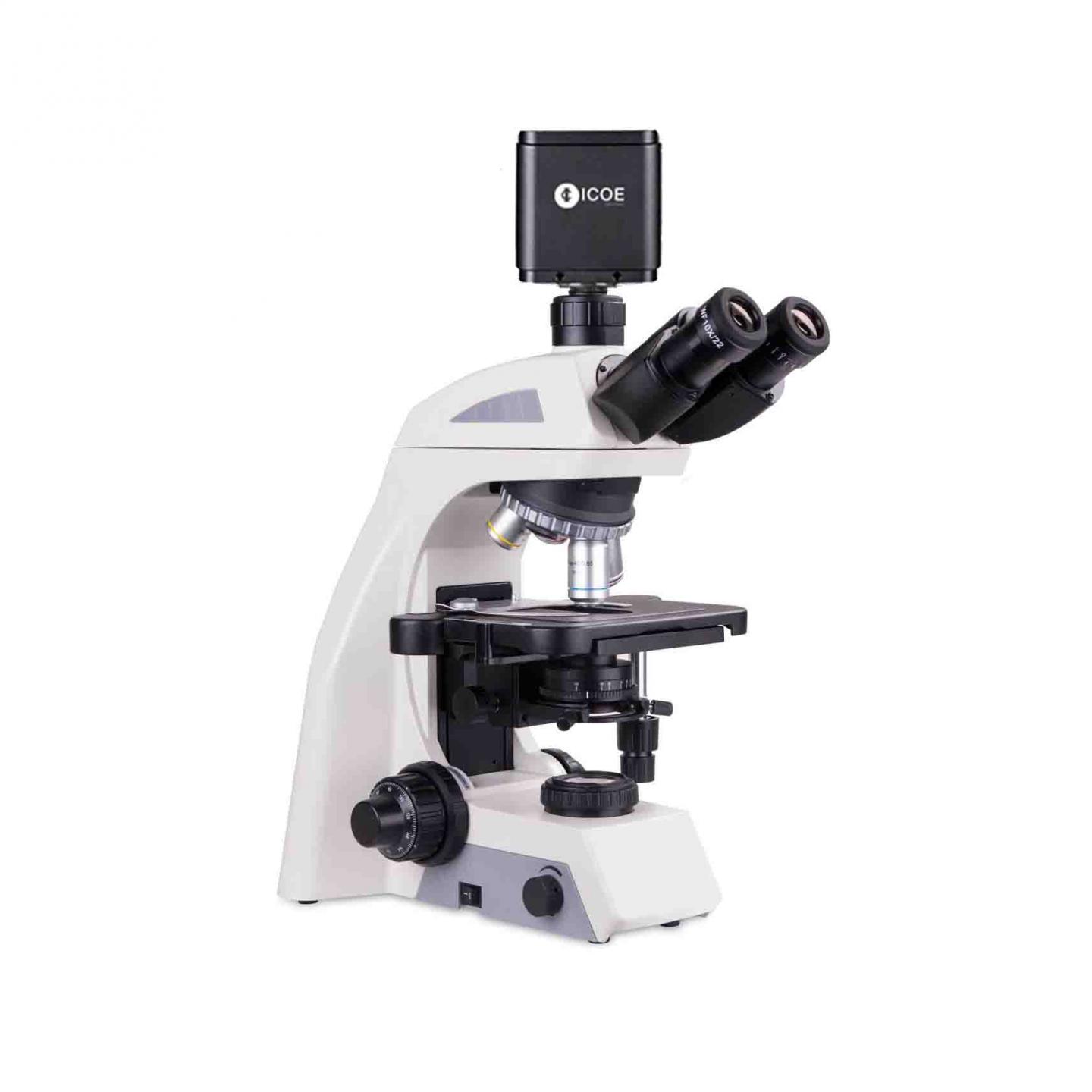

BE510T Infinite Trinocular Compound Microscope for with HUWS5 Digital Camera
| Specifications | |
| Optical system: | Infinity Corrected Optical System |
| Viewing head: | Seidentopf trinocular viewing head, itilted 30°, rotatable 360°, interpupillary 47-78mm, splitting ratio of syepiece/camera: 100/0, 0/100 |
| Nosepiece: | Backward Quintuple Nosepiece |
| Eyepiece: | Wide field eyepiece WF10x/22mm, diopter adjustment +/-5, tube diamter: Φ30mm |
| Objectives: | All with anti-fungal treatment |
| Infinite plan achromatic objective 4x/0.10, WD: 28mm | |
| Infinite plan achromatic objective 10x/0.25, WD: 10mm | |
| Infinite plan achromatic objective 20x/0.40, WD: 5.10mm | |
| Infinite plan achromatic objective 40x/0.65, WD: 0.7mm, spring loaded | |
| Infinite plan achromatic objective 100x/1.25, WD: 0.2mm, spring loaded, oil | |
| Stage: | Double layer mechanical stage with two-slide holder, Rounded stage edges, Non extending rack, with integrated coaxial stage control in low position with tension adjustment, dimension of the blad holder plate: 230x150mm, 78x54mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm |
| Focusing: | Low-hand position coarse and fine coaxial focusing mechanism, Coarse Stroke 37.7mm per Rotation, Fine division 0.002mm, fine stroke 0.2mm per Rotation, Focal Disatnce 30mm, With stop to avoid contact between the target and the sample. with platform up and down adjustment mechanism, stage XY graduation step 0.1mm |
| Condenser: | Abbe N.A.1.25 centrally adjustable diaphragm for Koehler illumination |
| Illumination: | 3W LED illumination with long lifespan not less than 60,000 hours life at full intensity , Continuous intensity adjustment, with Koehler field diaphragm |
| Supplied with: | Dust cover, green filter, manual, immersion oil |
| Power: | 100-240V, 50/60Hz |
| C mount: | C mount adapters for digital camera |
| Digital camera: | HUWS5 digital camera, 5MP, CMOS, all in 1 (HDMI,+WIFI+LAN+ USB+ SD card), 1/1.8″ (6.22×4.67), Pixel: 2.4×2.4um, G sensitivity 425mv with 1/20s, dark signal 0.15mv with 1/30s, FPS/Resolution: 30@1920×1080(HDMI), 25@1920×1080(WIFI), Binning: 1×1; Exposure: 0.03ms-918m; Interface and button functions; USB: USB Camera/USB WIFI Adater; HDMI: HDMI Output: DC12V: 12V Power in; SD: SD Card slot; On/Off: Power On/Off switch; LED: Power on indicator, C mount adapter; 32GB SD Card |
