Models & Specifications

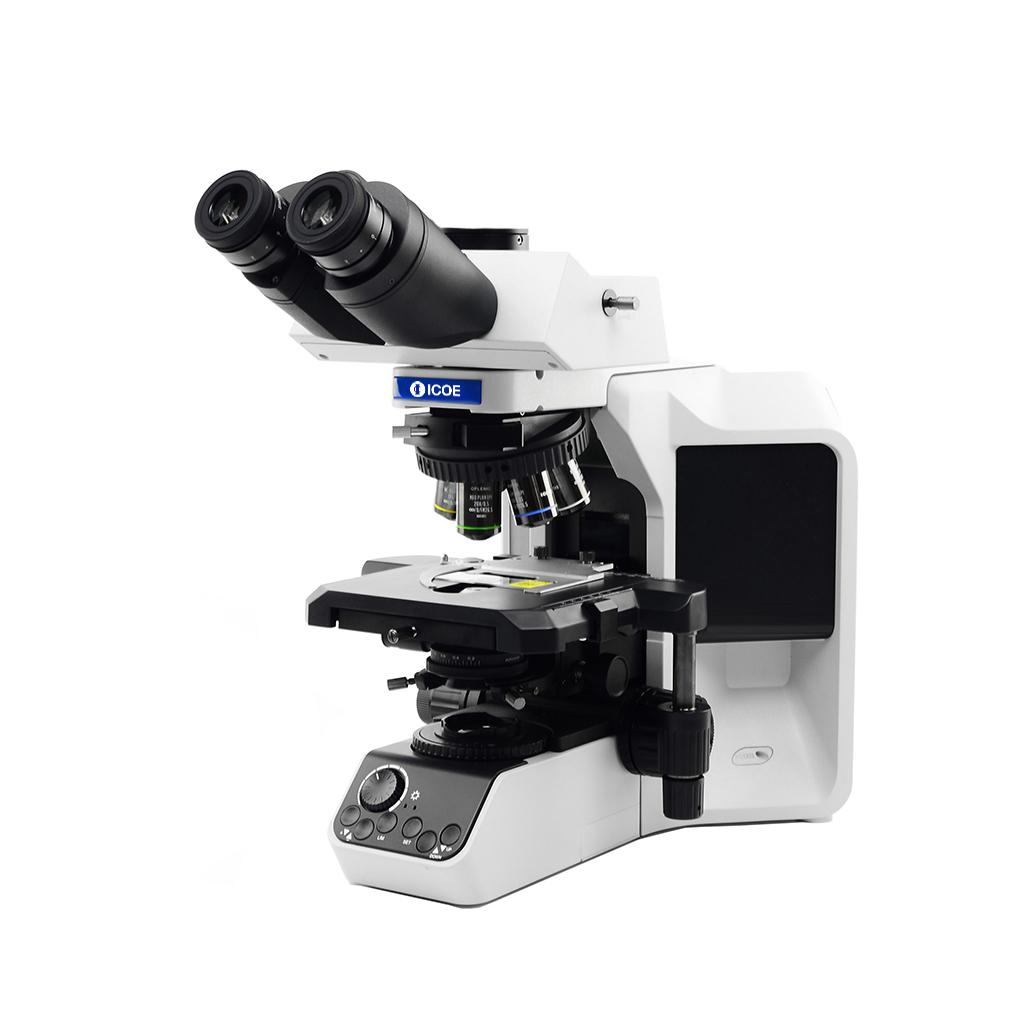

| Model | AO100PHA Infinite Phase Contrast Microscope with Apochromatic Phase Contrast Objectives |
| Optical system: | UIS2 optical system |
| Microscope body: | Microscope frame for transmitted & reflected microscopy |
| Viewing head: | Seidentopf trinoculear head, inclined at 30°, interpupilary distance 50-76mm, with trinocular port, light distribution of eyepiece/trinocular: 0/100, 100/0 |
| Eyepiece: | A pair of super widefield eyepiece 10x/25mm |
| Nosepiece: | 6-fold revolver head with the interface for the LED lighting control system with memory for light intensity on each objective |
| Objectives: | Infinite plan achromatic objective 4x /0.10, WD: 15.00mm |
| Infinity plan achromatic objective, 20x/0.40, working distance 1.50mm | |
| Infinity plan apochromatic phase contrast objective, 10x/0.40 ph, working distance 3.2mm | |
| Infinity plan apochromatic phase contrast objective, 20x/0.75 ph, working distance 0.60mm | |
| Infinity plan apochromatic phase contrast objective, 40x/0.95 ph, working distance 0.15mm | |
| Infinity plan apochromatic phase contrast objective, 100x/1.35 ph, working distance 0.13mm | |
| Stage: | Mechnical stage, torque adjustment mechanism, XY movement range 75x55mm, Slide clips allow observation of 2 slides simultaneously |
| Focus: | Coaxial focus knob with height adjustment, Coaxial focus knob with X/Y torque adjustment stage mounting position variable, high sensitivity fine focusing knob, minimum adjustment gradations: 1 μm |
| Condenser: | Universal turrent condenser NA0.9, can be used for BF, PH, DF, PL, FL, DIC observations. The disc with 8 hole positions, in which 3 position is built-in Ph1 annulus (suitable for APO 10x Ph), Ph2 annulus (Suitable for Apo 20x, 40x & 60x Ph) & Ph3 annulus (suitable for APO 100x Ph) 1 postion with dark field annulus, 4 positions can be built-in DIC annuals for 10x, 20x, 40x/60x & analyzer annulus (DIC annulus & analyzer annulas are optional) |
| Telescope: | Phase contrast telescope |
| Illumination: | Built-in Koehler illumination, 10W High luminescent white LED illminator, with light intensity management (LIM) system, ECO mode |
| LIM system: | The illumination brightness can each objectives can be pre-set, when using each objectives. When different objectives are switched between each other, the light intensity is automatically adjusted to reduce visual fatigue & improve work efficiency. |
| ECO function: | The ECO function is able to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position for some time |
| Supplied with: | Dust cover, green filter, manual, immersion oil |
