Description
Product Model & Specifications

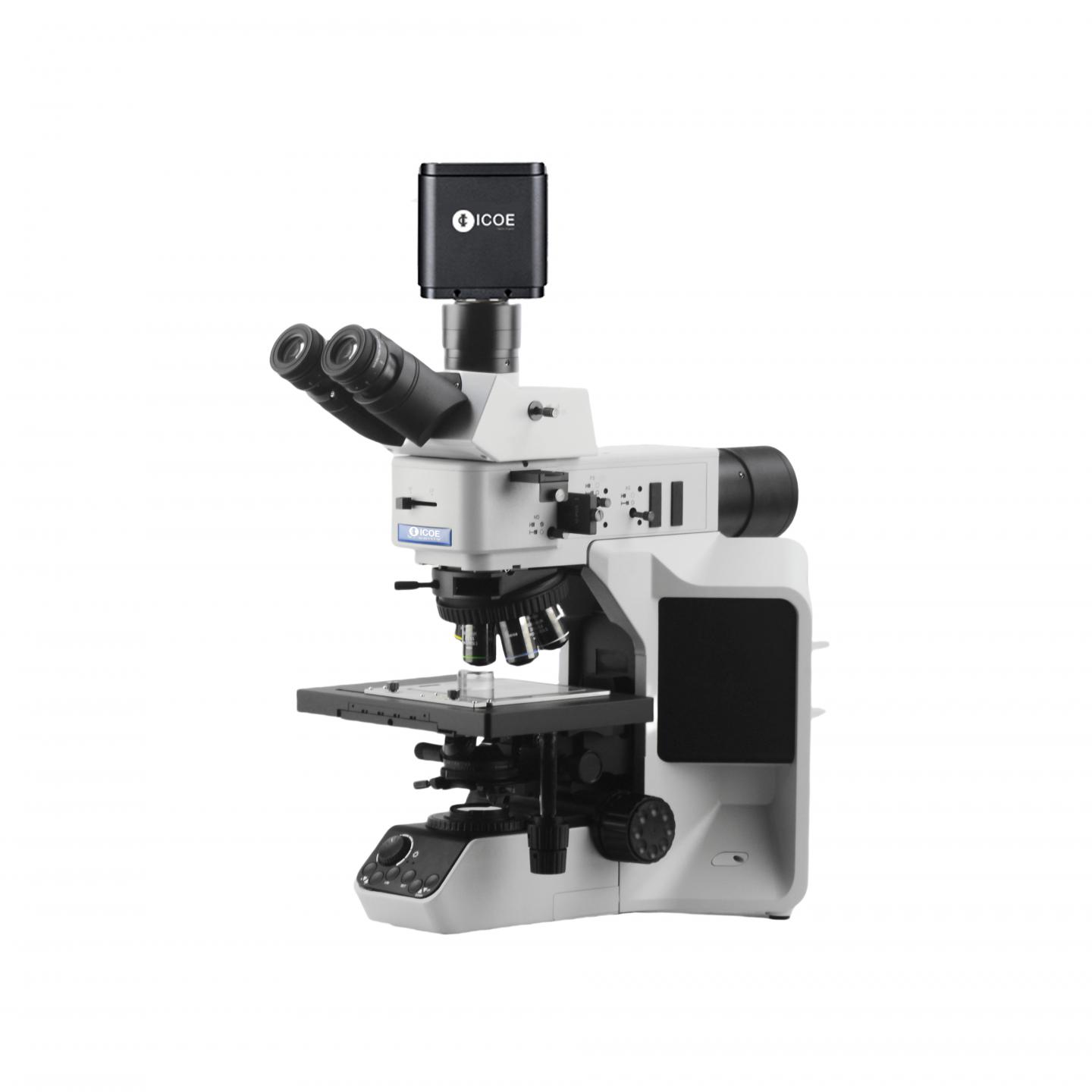

| Model | AO100MTR Infinite Compouond Microscope with Apochromatic Objectives with HCO4K-8A Digital Camera, with BF, DF, POL & DIC Observations for Transmitted & Reflected Lights |
| Optical system: | UIS2 optical system |
| Microscope body: | Microscope frame for transmitted & reflected microscopy |
| Viewing head: | Widefield trinocular viewing head, 30 degree inclined, with beamsplitter: 0/100，50/50, , Interpupillary |
| distance adjustment between 45-78mm, with eyetube diameter Φ30mm | |
| Eyepiece: | A pair of super widefield eyepiece 10x/25mm |
| Nosepiece: | Interchangeable reversed sextuple nosepiece |
| Objective: | Infinite Plan Apochromatic Objective, Plan Apo 4x/0.16, working distance 12.8mm |
| Infinite Plan Apochromatic Objective, Plan Apo 10x/0.40, working distance 3.2mm | |
| Infinite Plan Apochromatic Objective, Plan Apo 20x/0.75, working distance 0.6mm | |
| Infinite Plan Apochromatic Objective, Plan Apo 40x/0.95, working distance 0.15mm | |
| Infinite Plan Apochromatic Metallurgical Objective, Plan Apo 50x/0.8 BD, working distance 1mm | |
| Infinite Plan Apochromatic Metallurgical Objective, Plan Apo 100x/0.9 BD, working distance 2mm | |
| Stage: | torque adjustment mechanism, XY movement range 75x55mm, Vertical stage movement: 28 mm stage stroke with coarse adjustment limit stopper, torque adjustment |
| Focus: | for coarse adjustment knobs, stage mounting position variable, high sensitivity fine focusing knob, minimum adjustment gradations: 1 μm |
| Condenser: | Universal turrent condenser with NA0.9 lens (NA1.4 lens is available), can be used for BF, PH, DF, PL, FL, DIC observations. The disc with 8 hole positions (3 small hole position, 5 bigger hole position), in which 3 small hole position can be built-in phase contrast annulus, 2 bigger hole position can be built-in drk field annulus or DIC annulus, the rest 3 bigger hole positions can be built-in DIC annulus. |
| DIC kit for TL: | DIC annulus 4x, 10x, 20x & 40x for condensers & DIC prism sets for nosepiece |
| Dark field kit for TL | Dark field annulus for condenser |
| Polarization for TL: | Polarizer and analyzer for transmiited light |
| Trasnmitted light: | Built-in Koehler illumination, 10W High luminescent white LED illminator, with light intensity management (LIM) system, ECO mode |
| LIM system: | The illumination brightness can each objectives can be pre-set, when using each objectives. When different objectives are switched between each other, the light intensity is automatically adjusted to reduce visual fatigue & improve work efficiency. |
| ECO function: | The ECO function is able to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position for some time (the time can be pre-set as user need) |
| Epi-illuminator: | Bright and dark field reflection illuminator, with variable aperture diaphragm, field diaphragm, and adjustable center. Equipped with a light and dark field lighting switching device; With a color filter slot and a polarizing device slot |
| Reflected light: | With reflected light source 10W LED lamp house |
| Polarization for RL: | Polarization set for reflected light, including polarizer group, 360-degree rotating analyzer plate |
| DIC kit for RL: | DIC set for reflected light |
| Supplied with: | Dust cover, filters, manual, immersion oil |
| C mount: | C mouont camera adapter with 0.5x lens |
| Digital Camera | HX4K-8A digital camera, IMX678(C)1/1.8″(7.68×4.32) 8MP, 4K, CMOS, with DHMI, USB, WiFi SD card function/interface; exposure times up to 0.019ms to 1000ms, FPS/Resolution: 72fps (3,840×2,160 pixels); pixel size: 1.85x 1.85μm; Digital output through: HDMI, Ethernet, Built-in with WiFi function, USB mouse, USB 3.0; wireless nano USB Adapter is optional; Standalone operation without PC, on-screen display directly on a monitor, capturing and sharing images and videos directly through a monitor without PC; USB 3.0 interface for direct photography or video recording on USB memory without PC connection; Image management software with measurement tools |
